BF993

Description
RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET
CategoryDiscrete semiconductor    The transistor

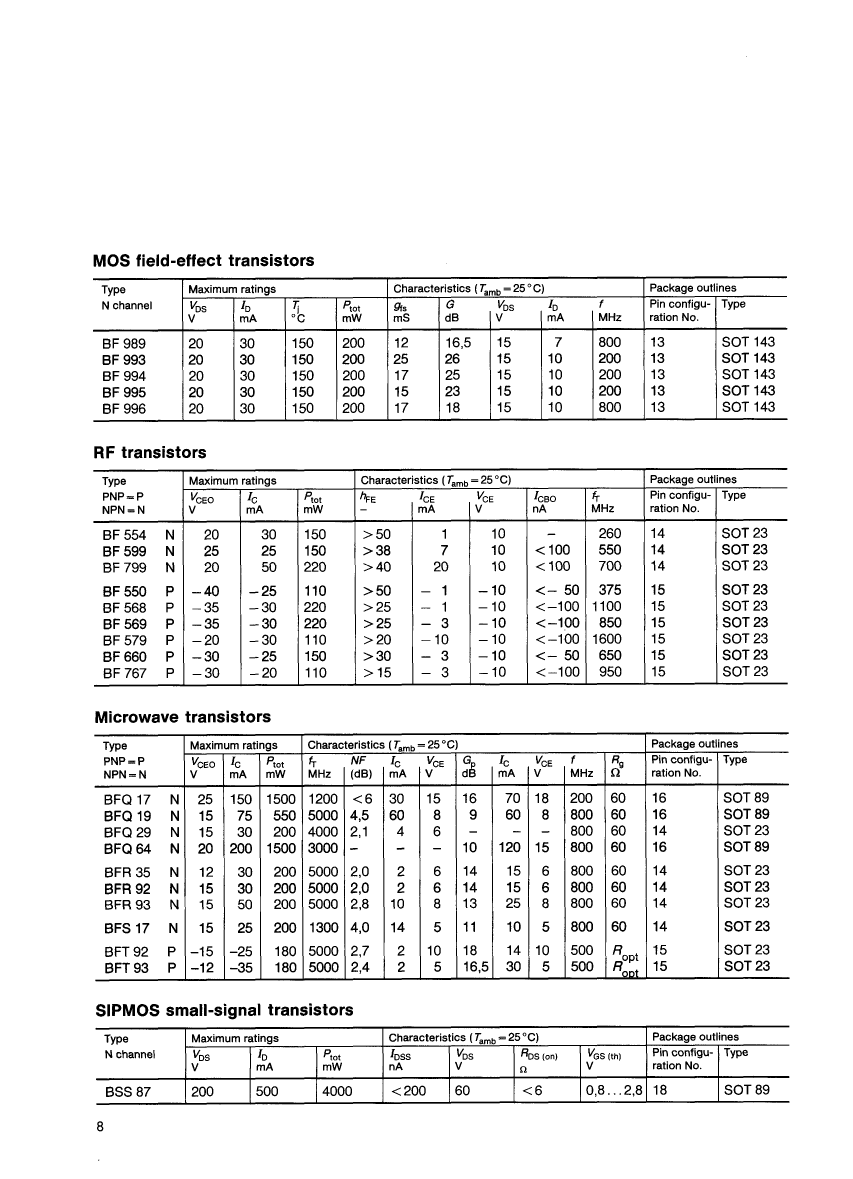

File Size51KB,1 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BF993 Overview

RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET

BF993 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSIEMENS
package instructionSMALL OUTLINE, R-PDSO-G4
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionSOURCE
ConfigurationSINGLE
Minimum drain-source breakdown voltage20 V
Maximum drain current (Abs) (ID)0.05 A
Maximum drain current (ID)0.05 A
FET technologyMETAL-OXIDE SEMICONDUCTOR
highest frequency bandVERY HIGH FREQUENCY BAND
JESD-30 codeR-PDSO-G4
JESD-609 codee0
Number of components1
Number of terminals4
Operating modeDUAL GATE, DEPLETION MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)0.2 W
Minimum power gain (Gp)25 dB
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Transistor component materialsSILICON

BF993 Related Products

BF993 BF989 BFQ64
Description RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN, TO-243
Is it Rohs certified? incompatible incompatible incompatible
Maker SIEMENS SIEMENS SIEMENS
package instruction SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Shell connection SOURCE SOURCE COLLECTOR
Configuration SINGLE SINGLE SINGLE
highest frequency band VERY HIGH FREQUENCY BAND ULTRA HIGH FREQUENCY BAND ULTRA HIGH FREQUENCY BAND
JESD-30 code R-PDSO-G4 R-PDSO-G4 R-PSSO-F3
JESD-609 code e0 e0 e0
Number of components 1 1 1
Number of terminals 4 4 3
Maximum operating temperature 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Polarity/channel type N-CHANNEL N-CHANNEL NPN
Maximum power dissipation(Abs) 0.2 W 0.2 W 1 W
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING FLAT
Terminal location DUAL DUAL SINGLE
Transistor component materials SILICON SILICON SILICON
Minimum drain-source breakdown voltage 20 V 20 V -
Maximum drain current (Abs) (ID) 0.05 A 0.03 A -
Maximum drain current (ID) 0.05 A 0.03 A -
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR -
Operating mode DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE -
transistor applications - AMPLIFIER AMPLIFIER
