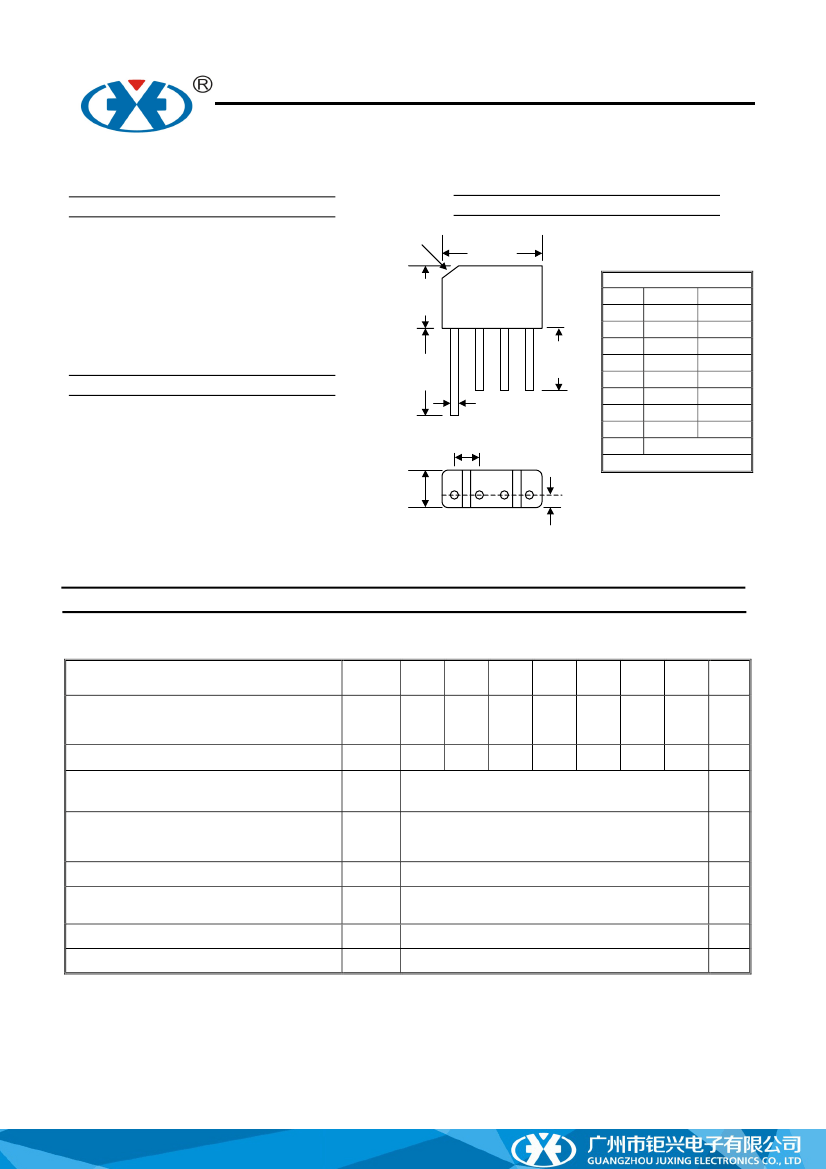

KBP201 – KBP207
BRIDGE RECTIFIERS
FEATURES
!
!
!
!
!
!
!
KBP
J
A
B
Dim
Max
A
15.24
B
11.68
C
—
D
4.20
E
4.10
G
1.27
—
H
0.70
0.90
I
12.7
—
J
4.2 x 45° Typical
All Dimensions in mm
KBP
Min
14.22
10.60
15.2
3.40
3.60
UL Recognized File # E354065
Diffused Junction
Low Forward Voltage Drop
High Current Capability
High Reliability
High Surge Current Capability
Ideal for Printed Circuit Boards
+
~
~
-
C
I
MECHANICAL DATA
!
!
!
!
!
!
!
Case: Molded Plastic
MIL-STD-202, Method 208
Polarity: As Marked on Body
Weight: 1.7 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
H
E
G
D
Maximum Ratings and Electrical Characteristics
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
KBP
201
50
35
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
KBP
202
100
70
KBP
203
200
140
KBP
204
400
280
2.0
KBP
205
600
420
KBP
206
800
560
KBP
207
1000
700
Unit
V
V
A
@T
A
= 50°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage (per element)
Peak Reverse Current
At Rated DC Blocking Voltage
Typical Thermal Resistance (Note 3)
Operating and Storage Temperature Range
@I
F
= 2.0A
@T
A
= 25°C
@T
A
= 100°C
I
FSM
V
FM
I
RM
R
JA
T
j,
T
STG
60
1.1
10
500
30
-55 to +150
A
V
µA
K/W
°C
Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
3. Thermal resistance junction to ambient mounted on PC board with 12mm
2
copper pad.
http://www.trr-jx.com
KBP201 – KBP207
BRIDGE RECTIFIERS
Characteristic Curves
(T
A
=25
℃
unless otherwise noted)
I
F
, INSTANTANEOUS FWD CURRENT (A)
10
T
J
= 150°C
T
J
= 25°C
1.0
0.1
Pulse Width
= 300 µs
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
V
F
, INSTANTANEOUS FWD VOLTAGE (V)

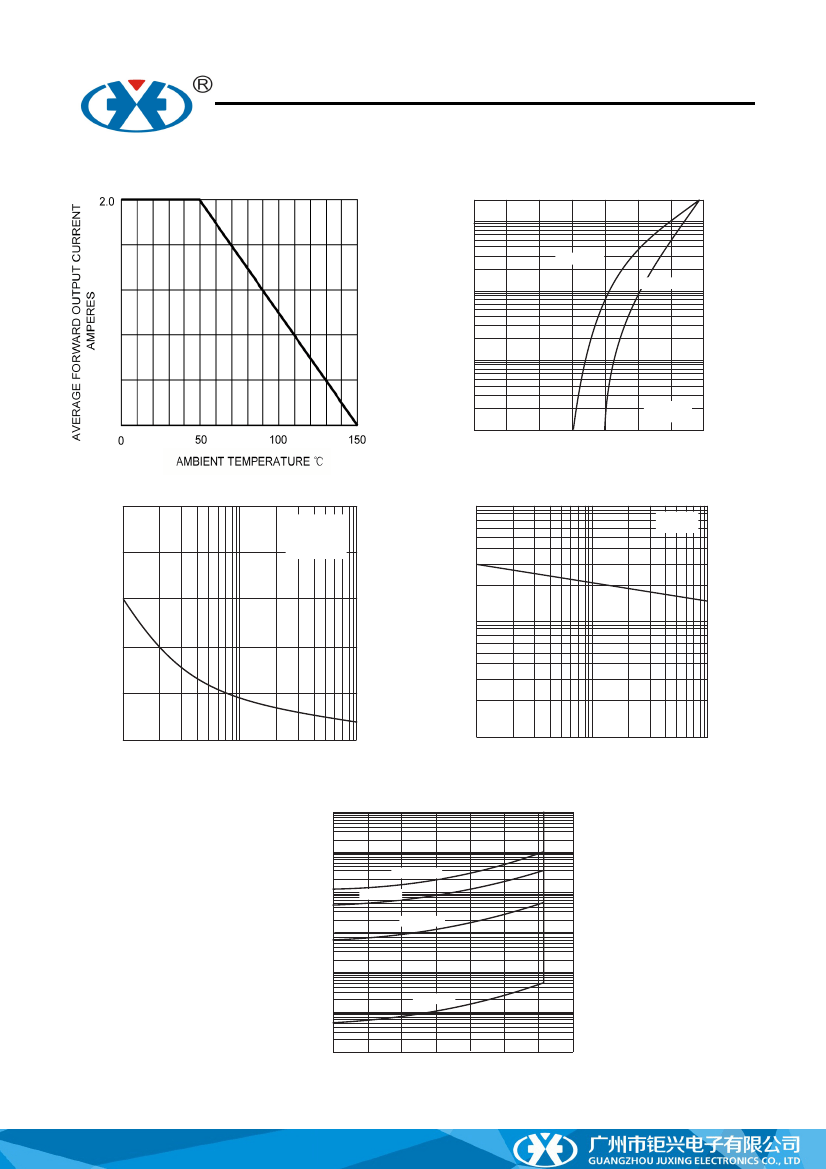

Fig. 1 Forward Current Derating Curve
Fig. 2 Typical Fwd Characteristics
100
100
T
j
= 150°c
Single Half
Sine Wave
(JEDEC Method)
T
j
= 25°C
f = 1MHz
I
FSM
, PEAK FWD SURGE CURRENT (A)
80
60
C
j
, JUNCTION CAPACITANCE (pF)
10
40
20
0
1
10
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Fwd Surge Current
100
1
1
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
100
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
10,000
1000
T
j
= 150°C
100
T
j
= 125°C
T
j
= 100°C
10
1.0
T
j
= 25°C
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics
