MT4LC1M16C3TG-8 datasheet, PDF

Datasheet> All Categories > storage> storage> MT4LC1M16C3TG-8

MT4LC1M16C3TG-8: DescriptionFast Page DRAM, 1MX16, 80ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44; Categorystorage storage; File Size539KB，16 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT4LC1M16C3TG-8 Overview

Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44

MT4LC1M16C3TG-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	TSOP
package instruction	0.400 INCH, PLASTIC, TSOP-50/44
Contacts	50/44
Reach Compliance Code	not_compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	20.95 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP44/50,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/3.3 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	1.2 mm
self refresh	NO
Maximum standby current	0.0004 A
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

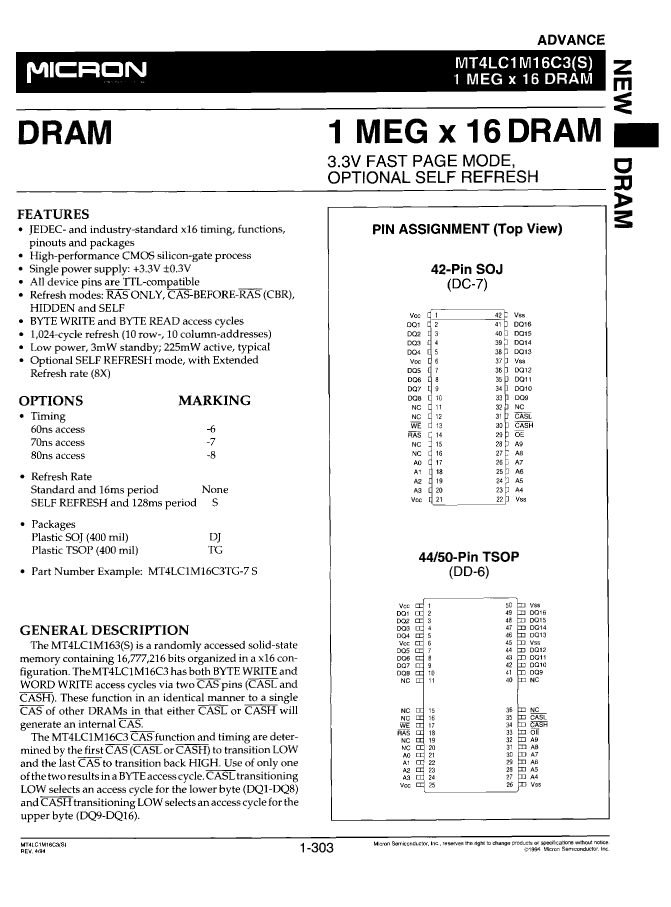

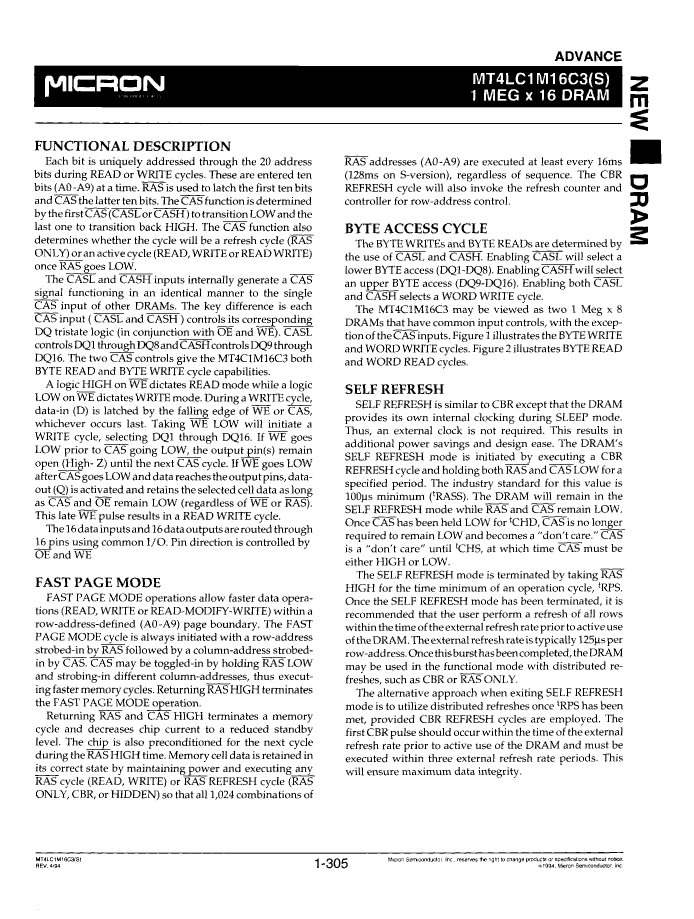

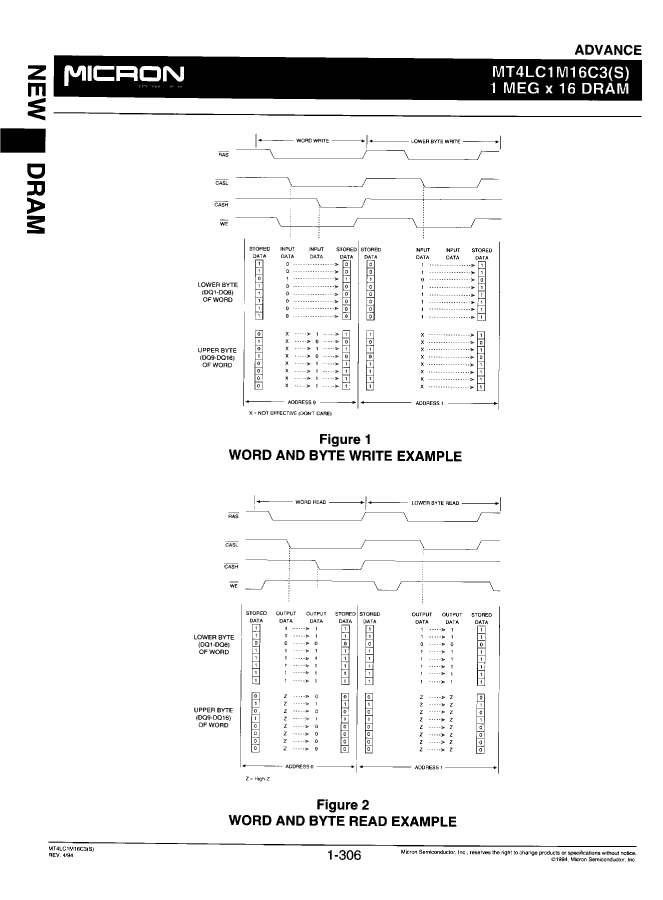

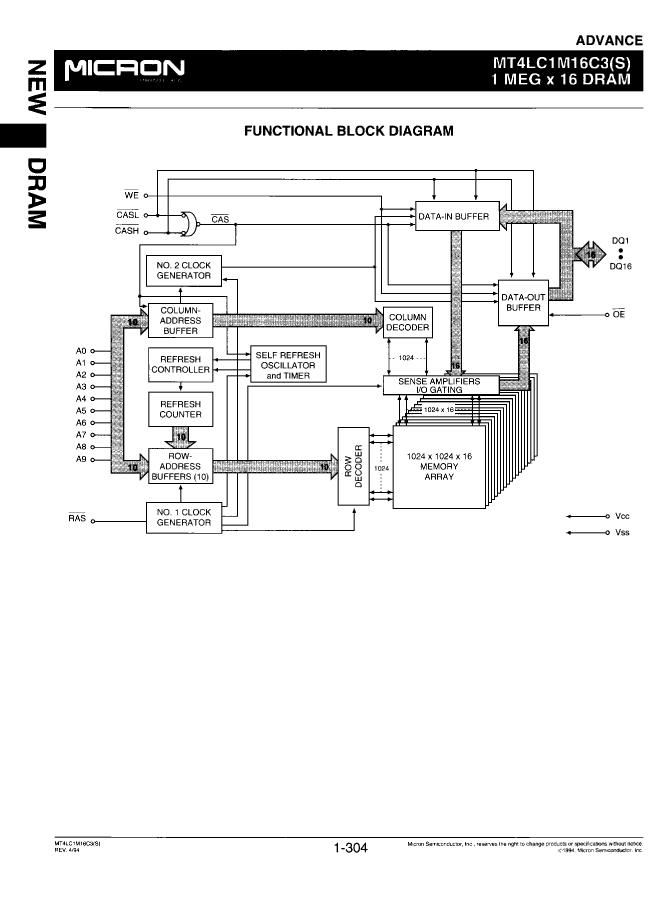

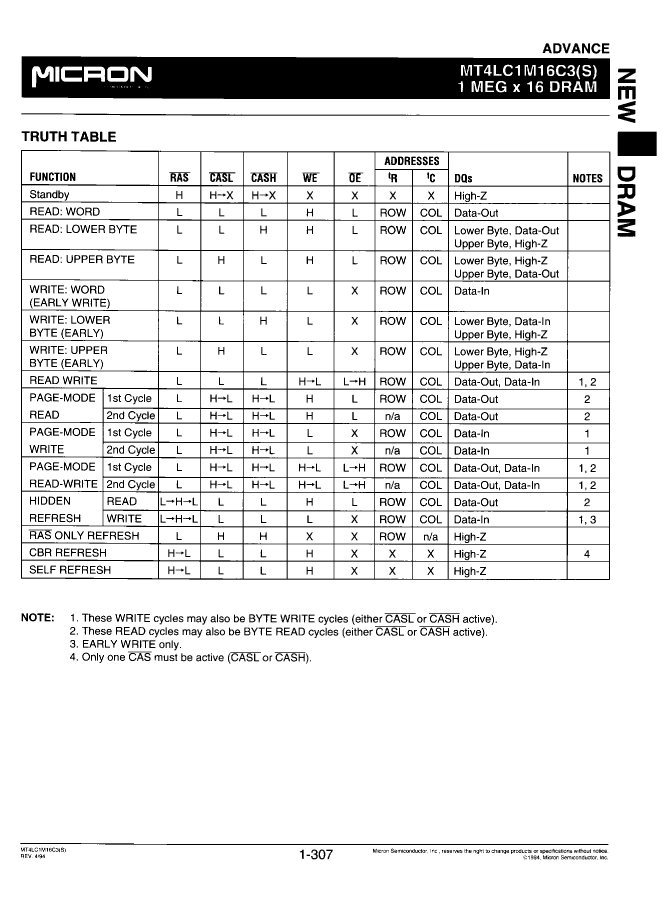

Preview

Download Datasheet

View All

MT4LC1M16C3TG-8 Related Products

	MT4LC1M16C3TG-8	MT4LC1M16C3DJ-8TR	MT4LC1M16C3TG-8STR	MT4LC1M16C3TG-8S	MT4LC1M16C3TG-8TR	MT4LC1M16C3DJ-8STR	MT4LC1M16C3DJ-8S	MT4LC1M16C3DJ-8
Description	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42
Parts packaging code	TSOP	SOJ	TSOP	TSOP	TSOP	SOJ	SOJ	SOJ
package instruction	0.400 INCH, PLASTIC, TSOP-50/44	SOJ,	TSOP2,	0.400 INCH, PLASTIC, TSOP-50/44	TSOP2,	SOJ,	0.400 INCH, PLASTIC, SOJ-42	0.400 INCH, PLASTIC, SOJ-42
Contacts	50/44	42	50/44	50/44	50/44	42	42	42
Reach Compliance Code	not_compliant	unknown	unknown	not_compliant	unknown	unknown	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	80 ns	80 ns	80 ns	80 ns	80 ns	80 ns	80 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP; SELF REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP; SELF REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP; SELF REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP; SELF REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-PDSO-G44	R-PDSO-J42	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-J42	R-PDSO-J42	R-PDSO-J42
length	20.95 mm	27.33 mm	20.95 mm	20.95 mm	20.95 mm	27.33 mm	27.33 mm	27.33 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	44	42	44	44	44	42	42	42
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	SOJ	TSOP2	TSOP2	TSOP2	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024
Maximum seat height	1.2 mm	3.76 mm	1.2 mm	1.2 mm	1.2 mm	3.76 mm	3.76 mm	3.76 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	J BEND	GULL WING	GULL WING	GULL WING	J BEND	J BEND	J BEND
Terminal pitch	0.8 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.21 mm	10.16 mm	10.16 mm	10.16 mm	10.21 mm	10.21 mm	10.21 mm
Maker	Micron Technology	-	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
JESD-609 code	e0	-	e0	e0	e0	-	e0	e0
self refresh	NO	-	YES	YES	-	YES	YES	NO
Terminal surface	Tin/Lead (Sn/Pb)	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
