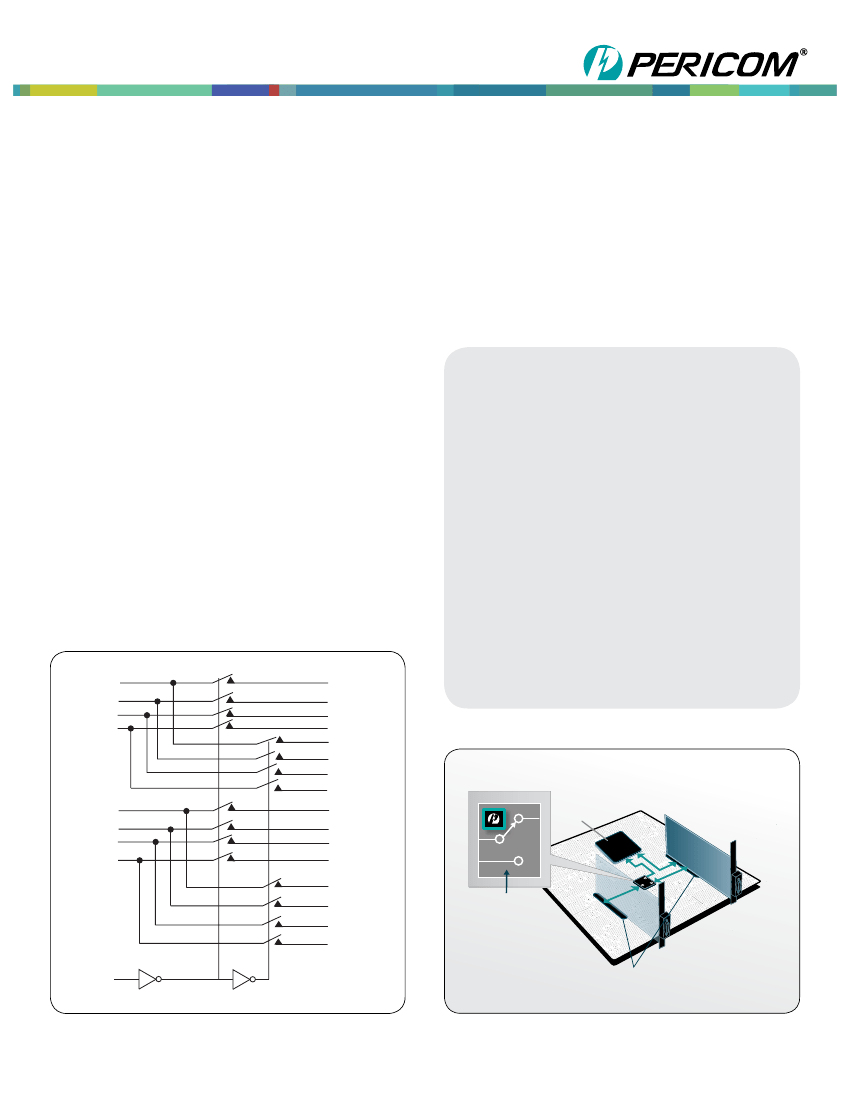

New Product Databrief
PI3PCIE3415
3.3V, PCI Express
®
3.0, 8.0Gbps, 2-Lane (4-Channel), 2:1 Mux/DeMux Switch
Pericom Semiconductor’s PI3PCIE3415 is an 8 to 4 differential
channel multiplexer/demultiplexer switch. This solution can
switch 2 full PCI Express
®
3.0, lanes to one of two locations.
Using a unique design technique, Pericom has been able to
minimize the impedance of the switch such that the attenuation
observed through the switch is negligible. The unique design
technique also offers a layout targeted for PCI Express signals,
which minimizes the channel to channel skew as well as channel
to channel crosstalk as required by the PCI Express specification.
Features
• 4 Differential Channel, 2:1 Mux/DeMux
• PCI Express
®
3.0 Performance, 8.0Gbps
• Pinout optimized for placement between two PCIe slots
• Bi-directional operation
• Low Bit-to-Bit Skew, 10ps max
• Low channel-to-channel skew, 20ps max
• Low Crosstalk: -50dB @4GHz
• Low Off Isolation: -21dB @4GHz
• Low Insertion Loss: -1.5dB @4GHz
• -3dB Bandwidth: 8.2GHz
• Supply Voltage 3.3V
• Packaging (Pb-free & Green):
Application
q
q
Routing of PCI Express
®
3.0, signals with low signal attenuation.
High-end PC/Gaming/Server
Workstation
Block Diagram
AI
+
AI
–
BI
+
BI
–
AOa
+
AOa
–
BOa
+
BOa
–
AOb
+
AOb
–
BOb
+
BOb
–
COa
+
COa
–
DOa
+
DOa
–
COb
+
COb
–
DOb
+
DOb
–
SEL
à
42-contact, TQFN (ZH42)
Utilization of PI3PCIE3415 in PC Gaming Application
CI
+
CI
–
DI
+
DI
–
16-lane PCIeG3
Graphics Port
CPU
Graphics/Media
Accelerator Card
x8
x8
x8
2m SATA
x8
Optional 2nd Graphics/Media
Accelerator Card
PI3PCIE3415
Pericom’s
Next Generation M.B
x16 PCIeG3
Connector
www.pericom.com | 1-408-435-0800
