S0525R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> S0525R

S0525R: DescriptionSilicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 50V V(DRM), 1 Element, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size714KB，10 Pages; ManufacturerLoras Industries Inc.

Download Datasheet Parametric Compare View All

S0525R Overview

Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 50V V(DRM), 1 Element, TO-220AB

S0525R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Loras Industries Inc.
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	150 V/us
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	40 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum leakage current	1 mA
On-state non-repetitive peak current	300 A
Number of components	1
Number of terminals	3
Maximum on-state current	25000 A
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	25 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	50 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

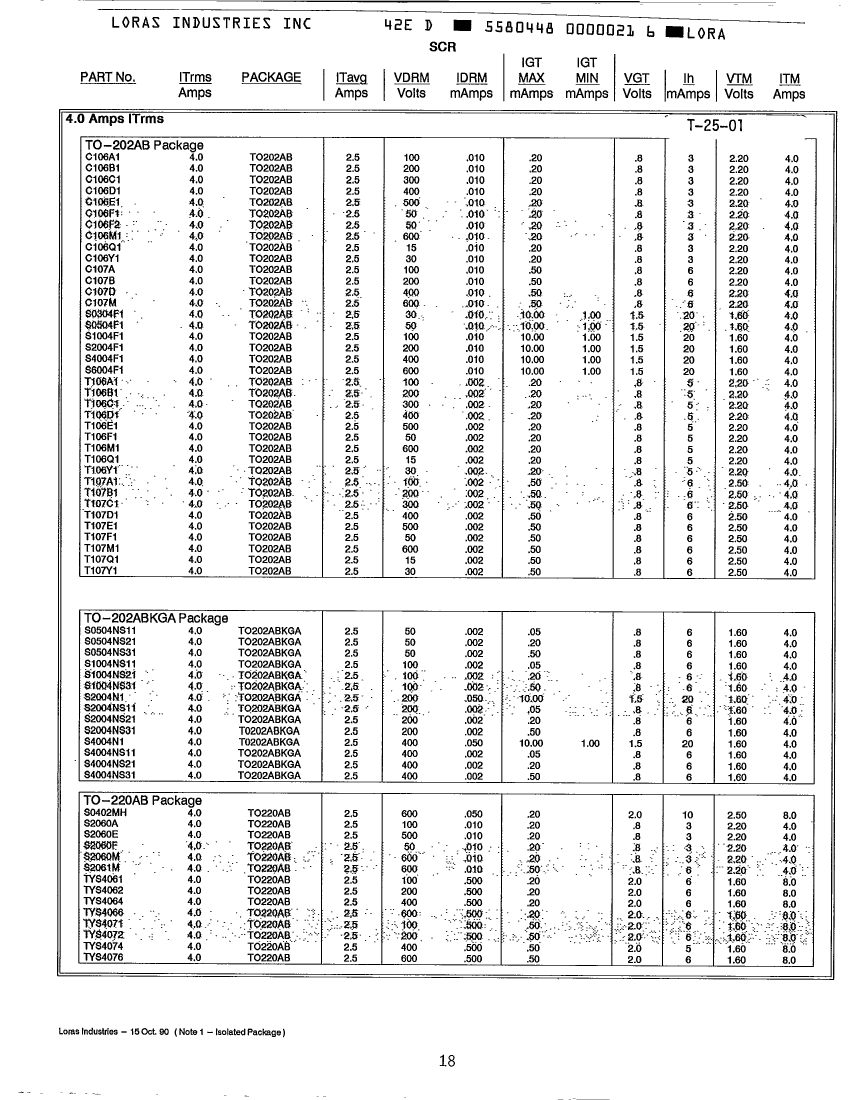

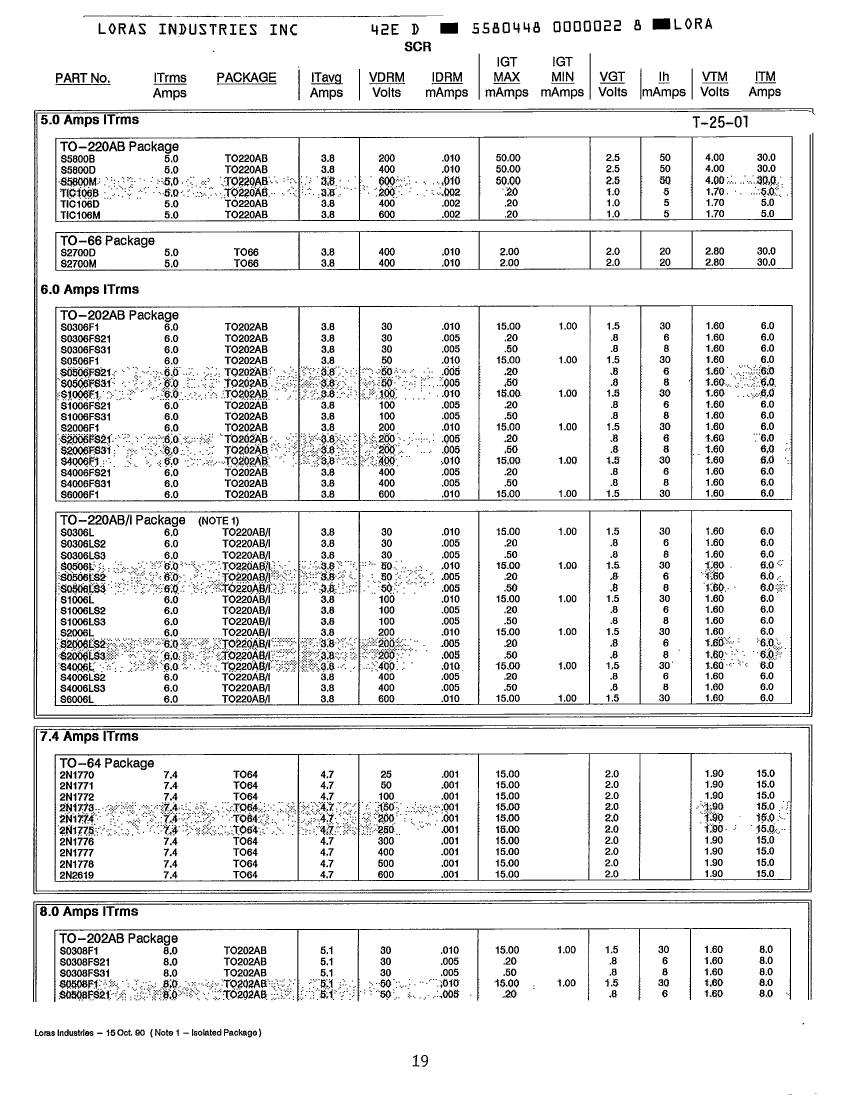

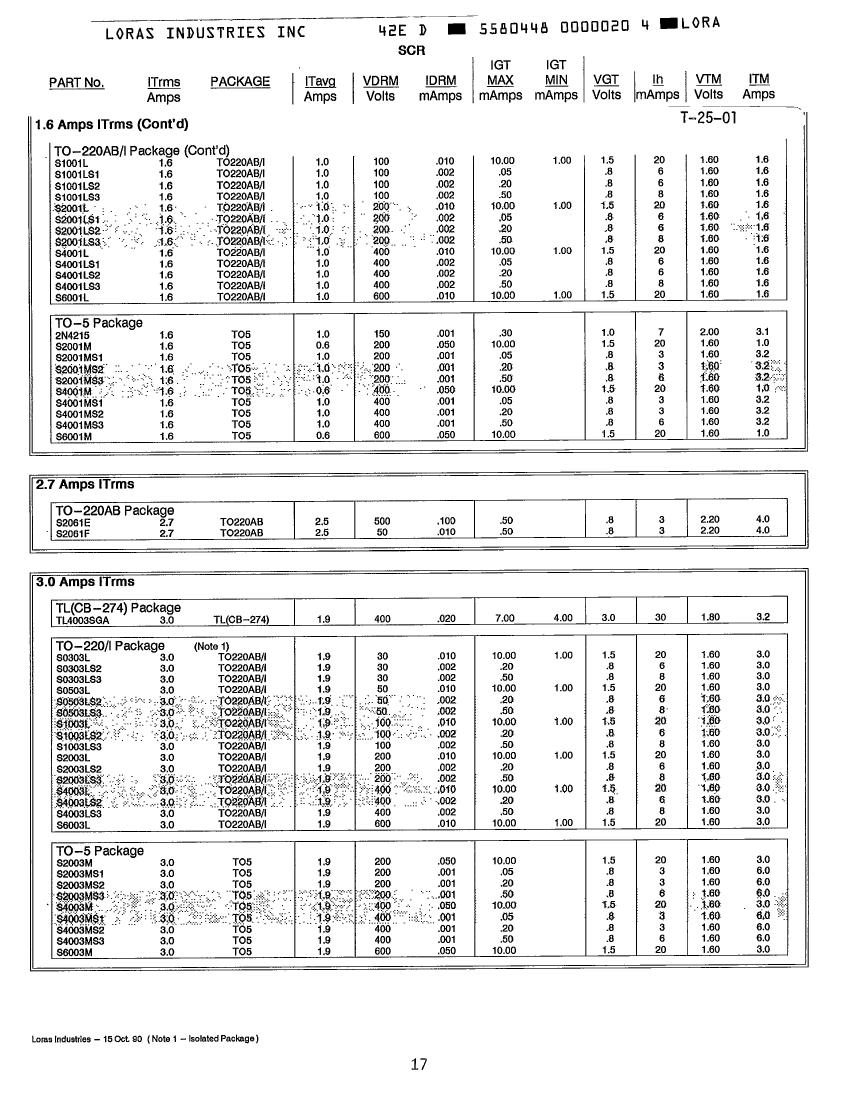

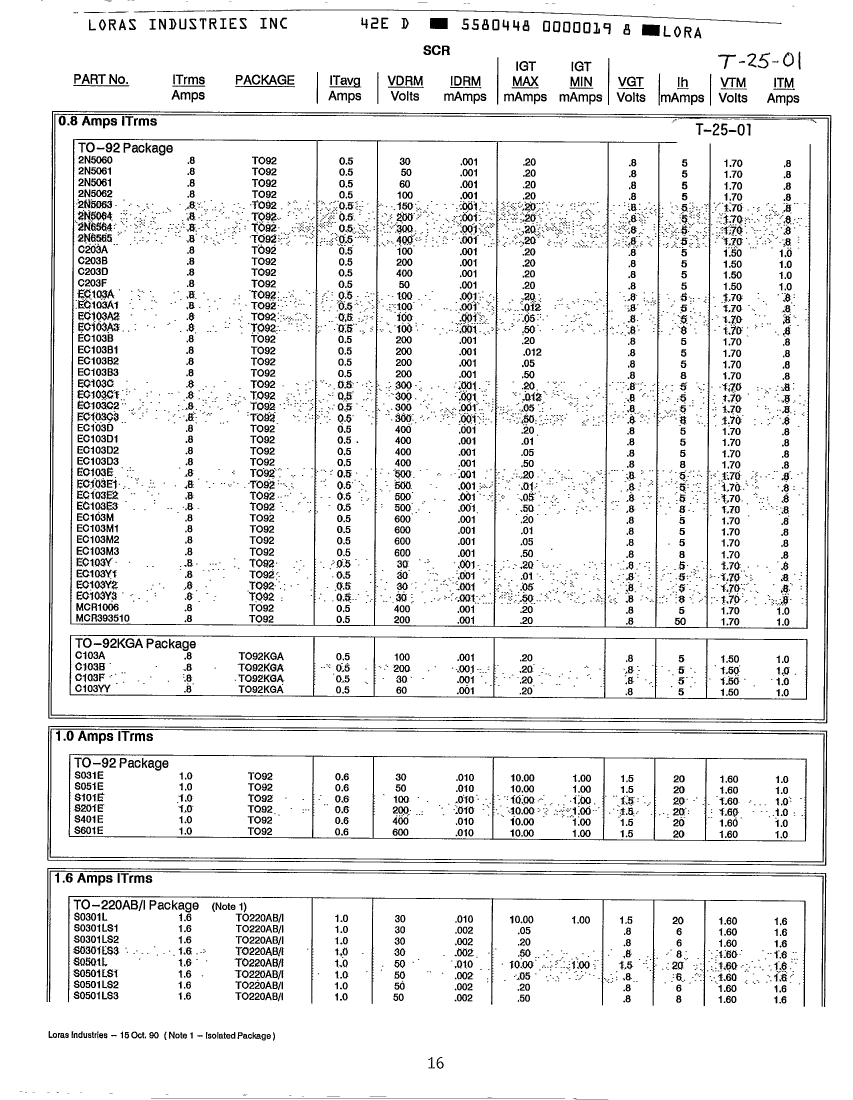

Preview

Download Datasheet

View All

S0525R Related Products

	S0525R	2N6399	2N6172	2N6173	2N6174	C106M1	C106D1	S6001L	S4016R	S0308F1
Description	Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 50V V(DRM), 1 Element, TO-220AB	Silicon Controlled Rectifier, 12A I(T)RMS, 5000mA I(T), 800V V(DRM), 1 Element, TO-220AB	Silicon Controlled Rectifier, 35A I(T)RMS, 11000mA I(T), 200V V(DRM), 1 Element	Silicon Controlled Rectifier, 35A I(T)RMS, 11000mA I(T), 400V V(DRM), 1 Element	Silicon Controlled Rectifier, 35A I(T)RMS, 11000mA I(T), 600V V(DRM), 1 Element	Silicon Controlled Rectifier, 4A I(T)RMS, 4000mA I(T), 600V V(DRM), 1 Element, TO-202AB	Silicon Controlled Rectifier, 4A I(T)RMS, 4000mA I(T), 400V V(DRM), 1 Element, TO-202AB	Silicon Controlled Rectifier, 1.6A I(T)RMS, 1600mA I(T), 600V V(DRM), 1 Element, TO-220AB	Silicon Controlled Rectifier, 16A I(T)RMS, 16000mA I(T), 400V V(DRM), 1 Element, TO-220AB	Silicon Controlled Rectifier, 8A I(T)RMS, 8000mA I(T), 30V V(DRM), 1 Element, TO-202AB
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	ANODE	ANODE	ISOLATED	ISOLATED	ISOLATED	ANODE	ANODE	ISOLATED	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	30 mA	30 mA	40 mA	40 mA	40 mA	0.2 mA	0.2 mA	10 mA	30 mA	15 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.6 V	1.6 V	1.6 V	0.8 V	0.8 V	1.5 V	1.5 V	1.5 V
Maximum holding current	40 mA	35 mA	50 mA	50 mA	50 mA	3 mA	3 mA	20 mA	40 mA	30 mA
JESD-30 code	R-PSFM-T3	R-PSFM-T3	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum leakage current	1 mA	2 mA	5.5 mA	5 mA	5 mA	0.1 mA	0.1 mA	1 mA	0.5 mA	0.2 mA
On-state non-repetitive peak current	300 A	100 A	350 A	350 A	350 A	20 A	20 A	30 A	160 A	100 A
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	2	2	2	3	3	3	3	3
Maximum on-state current	25000 A	5000 A	11000 A	11000 A	11000 A	4000 A	4000 A	1600 A	16000 A	8000 A
Maximum operating temperature	110 °C	125 °C	100 °C	100 °C	100 °C	110 °C	110 °C	110 °C	110 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	25 A	12 A	35 A	35 A	35 A	4 A	4 A	1.6 A	16 A	8 A
Maximum repetitive peak off-state leakage current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Off-state repetitive peak voltage	50 V	800 V	200 V	400 V	600 V	600 V	400 V	600 V	400 V	30 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	SOLDER LUG	SOLDER LUG	SOLDER LUG	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	UPPER	UPPER	UPPER	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Is it Rohs certified?	incompatible	incompatible	-	-	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Loras Industries Inc.	-	-	-	-	Loras Industries Inc.	Loras Industries Inc.	Loras Industries Inc.	Loras Industries Inc.	Loras Industries Inc.
package instruction	FLANGE MOUNT, R-PSFM-T3	-	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	-	FLANGE MOUNT, R-PSFM-T3
JEDEC-95 code	TO-220AB	TO-220AB	-	-	-	TO-202AB	TO-202AB	TO-220AB	TO-220AB	TO-202AB
JESD-609 code	e0	e0	-	-	-	e0	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
