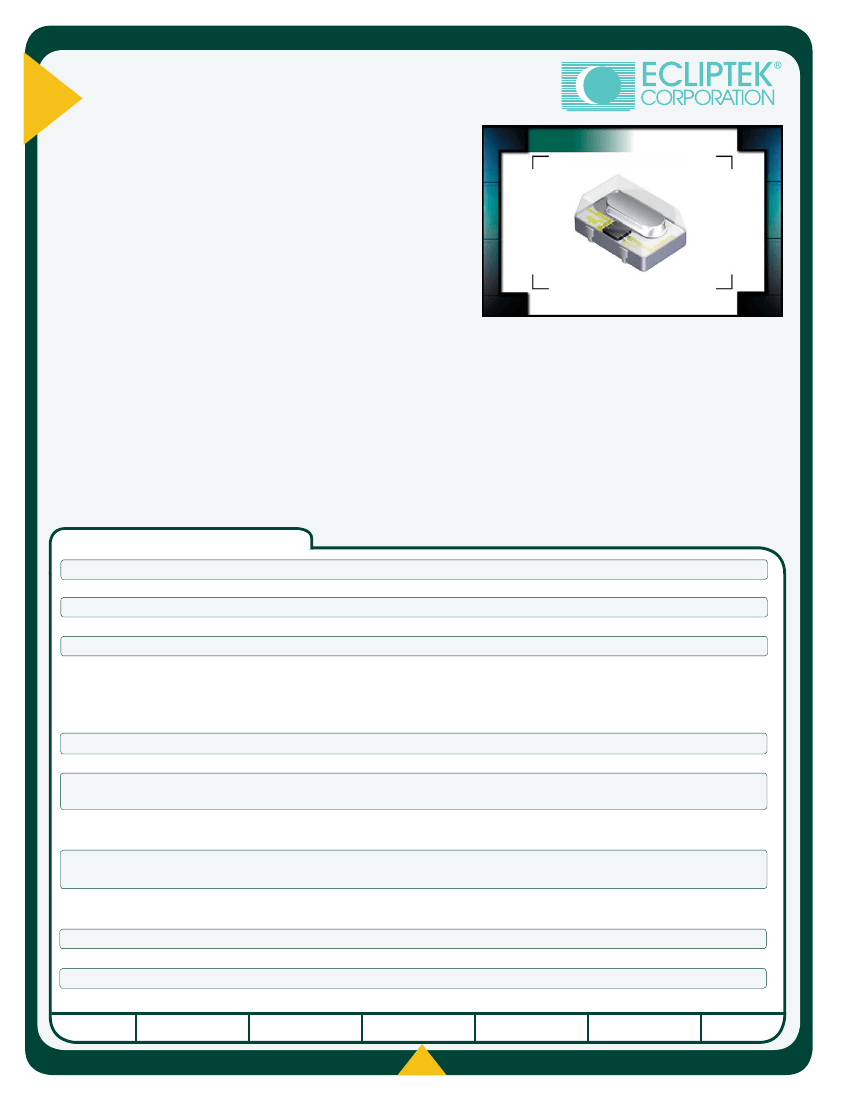

EH1545SJTTS-FREQ1TR

EH15

Series

• Plastic surface mount package

• 3.3V supply voltage

• HCMOS output

• Stability to 20ppm

• Available on tape and reel

NOTES

EH15

H 4.7

L 14.0

W 9.8

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

DD

)

Input Current

Frequency Tolerance / Stability

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, Shock, and Vibration

Output Voltage Logic High (V

OH

)

Output Voltage Logic Low (V

OL

)

Rise Time / Fall Time

Load Drive Capability

Duty Cycle (at V

DD

=3.3V

DC

)

Tri-State Input Voltage

Aging (at 25°C)

Start Up Time

Period Jitter: Absolute

Period Jitter: One Sigma

MANUFACTURER

CATEGORY

SERIES

PACKAGE

VOLTAGE

1.000MHz to 155.520MHz

0°C to 70°C or -40°C to 85°C

-55°C to 125°C

3.3V

DC

±0.3V

DC

35mA Maximum (Unloaded)

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum

2.7V

DC

Minimum

0.5V

DC

Maximum

≤70.000MHz

20% to 80% of Waveform w/HCMOS Load

>70.000MHz 20% to 80% of Waveform w/HCMOS Load

≤70.000MHz

>70.000MHz

at 50% of Waveform

V

IH

:No Connection or

≥2.2V

DC

V

IL

:≤0.8V

DC

I

OH

=-8mA

I

OL

=+8mA

6 nSeconds Maximum

4 nSeconds Maximum

30pF HCMOS Load Maximum

15pF HCMOS Load Maximum

50 ±10(%) (Standard) or

50 ±5(%) (Optional)

Enables Output

Disables Output: High Impedance

±5ppm / year Maximum

10mSeconds Maximum

±250pSec Maximum, ±100pSec Typical

±50pSec Maximum, ±40pSec Typical

CLASS

REV

.

DATE

ECLIPTEK CORP.

OSCILLATOR

EH15

PLASTIC

3.3V

OS49

02/04

800-ECLIPTEK www.ecliptek.com for latest revision

Specifications subject to change without notice.

PART NUMBERING GUIDE

EH15 00 SJ ET T TS - 24.000M TR

FREQUENCY TOLERANCE / STABILITY

00=100 ppm Maximum (Standard)

45=±50ppm Maximum, 25=±25ppm Maximum

20=±20ppm Maximum

OPERATING TEMP. RANGE

Blank =0ºC to 70ºC

ET=-40°C to 85°C

DUTY CYCLE

Blank=50 ±10(%) (Standard)

T=50 ±5(%)

PACKAGING OPTIONS

Blank=Bulk

TR=Tape and Reel (Standard)

FREQUENCY

OUTPUT CONTROL FUNCTION

TS=Tri-State

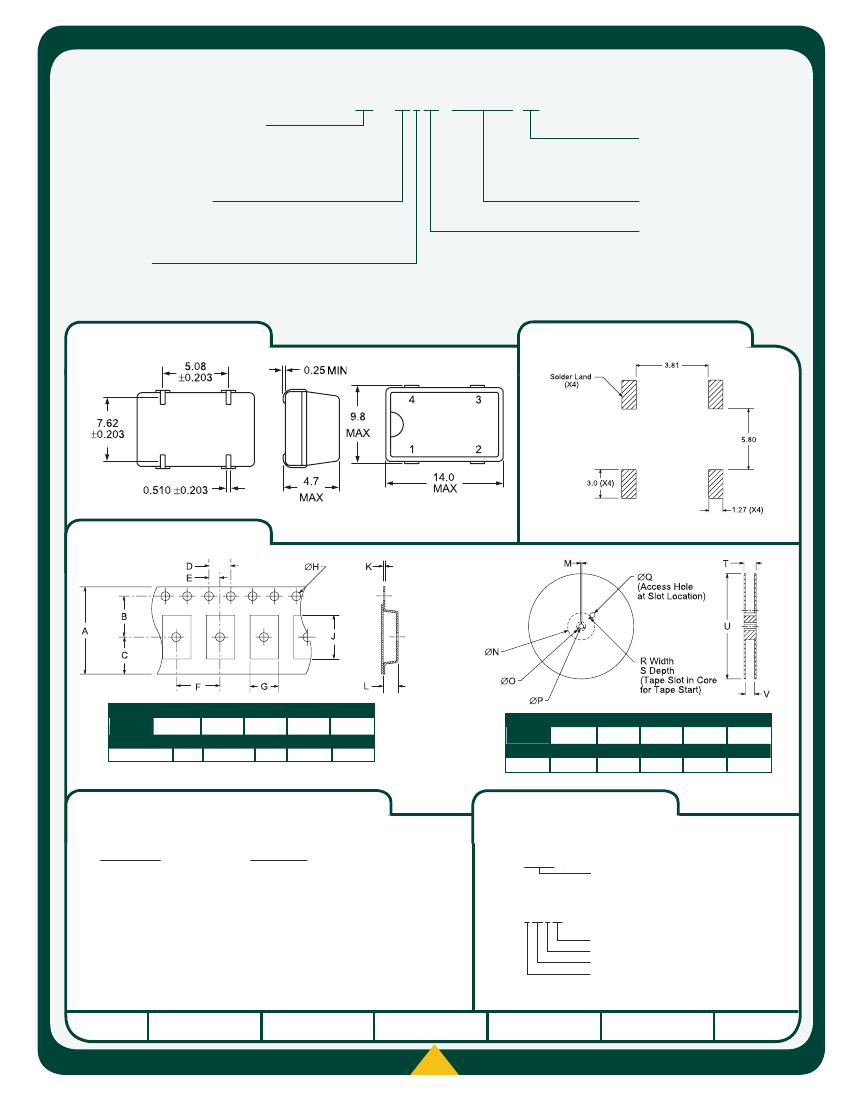

MECHANICAL DIMENSIONS

ALL DIMENSIONS IN MILLIMETERS

SUGGESTED SOLDER PAD LAYOUT

ALL DIMENSIONS IN MILLIMETERS

TAPE AND REEL DIMENSIONS

ALL DIMENSIONS IN MILLIMETERS

Pin 1: Tri-State

Pin 2: Case Ground

Pin 3: Output

Pin 4: Supply Voltage

Tolerances = ±0.1

TAPE

A

24 ±.3

B

11.5 ±.1

C

10.75 ±.1

D

4 ±.2

E

2±.1

F

REEL

M

1.5 MIN

N

50 MIN

O

20.2 MIN

P

13±.2

Q

40 MIN

QTY/REEL

1000

F

12 ±.2

G

B0*

H

1.5 +.1-0

J

A0*

K

.3 ±.1

L

K0*

R

2.5 MIN

S

10 MIN

T

30.4 MAX

U

360 MAX

V

24.4+2-0

*Compliant to EIA 481A

ENVIRONMENTAL/MECHANICAL SPECIFICATIONS

MARKING SPECIFICATIONS

Line 1: ECLIPTEK

Characteristic

Fine Leak Test

Gross Leak Test

Mechanical Shock

Vibration

Lead Integrity

Solderability

Temperature Cycling

Resistance to Soldering Heat

Resistance to Solvents

Specification

MIL-STD-883, Method 1014, Condition A

MIL-STD-883, Method 1014, Condition C

MIL-STD-202, Method 213, Condition C

MIL-STD-883, Method 2007, Condition A

MIL-STD-883, Method 2004

MIL-STD-883, Method 2002

MIL-STD-883, Method 1010

MIL-STD-883, Method 210

MIL-STD-883, Method 215

Line 2: XX.XXX M

Frequency in MHz (5 Digits Maximum + Decimal)

Line 3: P XX Y ZZ

Week of Year

Last Digit of Year

Ecliptek Manufacturing Identifier

Configuration Designator

MANUFACTURER

CATEGORY

SERIES

PACKAGE

VOLTAGE

CLASS

REV

.

DATE

ECLIPTEK CORP.

OSCILLATOR

EH15

PLASTIC

3.3V

OS49

02/04

800-ECLIPTEK www.ecliptek.com for latest revision

Specifications subject to change without notice.
