MT58L128V18FF8.5

Description
128KX18 STANDARD SRAM, 8.5ns, PBGA165, FBGA-165
Categorystorage    storage
File Size523KB,25 Pages
ManufacturerCypress Semiconductor
Download Datasheet Parametric View All

MT58L128V18FF8.5 Overview

128KX18 STANDARD SRAM, 8.5ns, PBGA165, FBGA-165

MT58L128V18FF8.5 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCypress Semiconductor
Parts packaging codeBGA
package instructionTBGA,
Contacts165
Reach Compliance Codecompliant
Maximum access time8.5 ns
JESD-30 codeR-PBGA-B165
JESD-609 codee0
length15 mm
memory density2359296 bit
Memory IC TypeSTANDARD SRAM
memory width18
Humidity sensitivity level3
Number of functions1
Number of terminals165
word count131072 words
character code128000
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize128KX18
Package body materialPLASTIC/EPOXY
encapsulated codeTBGA
Package shapeRECTANGULAR
Package formGRID ARRAY, THIN PROFILE
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)220
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)3.135 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formBALL
Terminal pitch1 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width13 mm
2Mb: 128K x 18, 64K x 32/36
FLOW-THROUGH SYNCBURST SRAM
2Mb SYNCBURST
SRAM
FEATURES
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V or +2.5V isolated output buffer
supply (V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL
WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data
I/Os and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down
• 100-pin TQFP package
• 165-pin FBGA package
• Low capacitive bus loading
• x18, x32, and x36 versions available
MT58L128L18F, MT58L64L32F,
MT58L64L36F; MT58L128V18F,
MT58L64V32F, MT58L64V36F
3.3V V
DD
, 3.3V or 2.5V I/O, Flow-Through

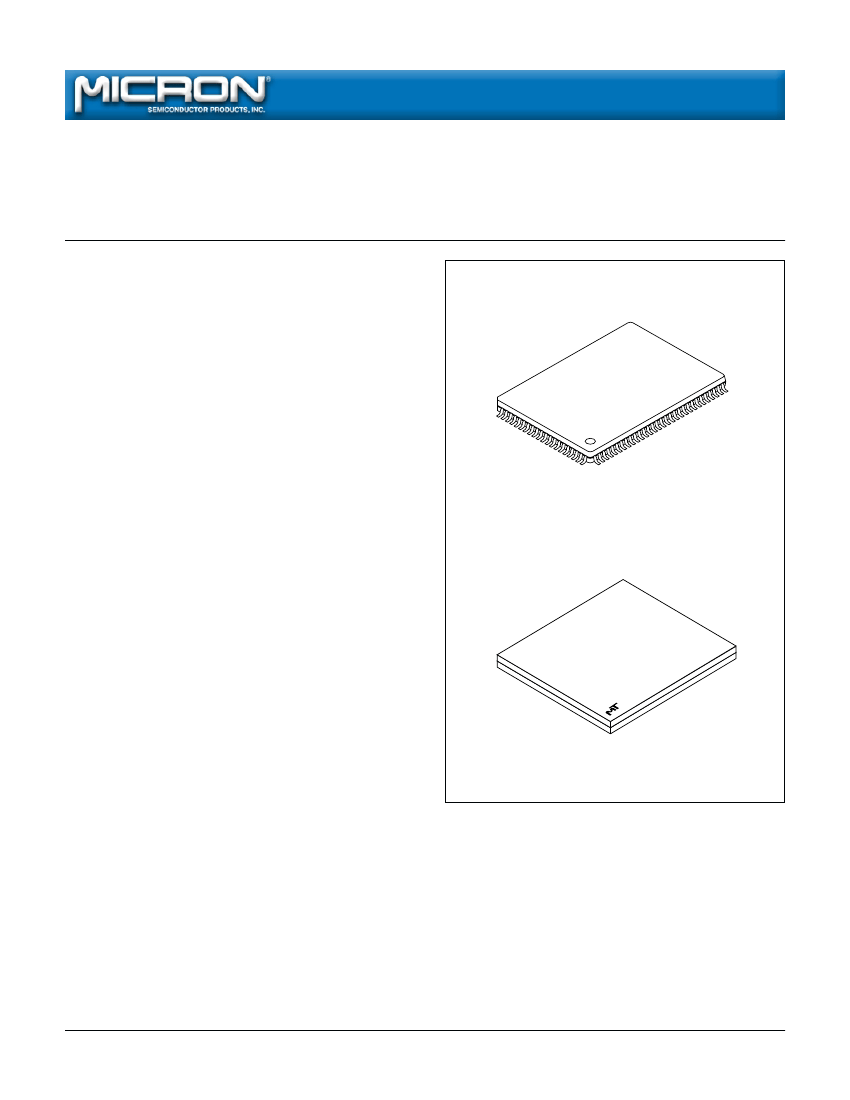

100-Pin TQFP*
165-Pin FBGA
(Preliminary Package Data)
OPTIONS
• Timing (Access/Cycle/MHz)
6.8ns/8.0ns/125 MHz
7.5ns/8.8ns/113 MHz
8.5ns/10ns/100 MHz
10ns/15ns/66 MHz
• Configurations
3.3V I/O
128K x 18
64K x 32
64K x 36
2.5V I/O
128K x 18
64K x 32
64K x 36
• Packages
100-pin TQFP
165-pin FBGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Part Number Example:
MARKING
-6.8
-7.5
-8.5
-10
MT58L128L18F
MT58L64L32F
MT58L64L36F
MT58L128V18F
MT58L64V32F
MT58L64V36F
T
F
None
*JEDEC-standard MS-026 BHA (LQFP).
GENERAL DESCRIPTION
The Micron
®
SyncBurst
SRAM family employs
high-speed, low-power CMOS designs that are fabri-
cated using an advanced CMOS process.
Micron’s 2Mb SyncBurst SRAMs integrate a 128K x
18, 64K x 32, or 64K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst
counter. All synchronous inputs pass through registers
controlled by a positive-edge-triggered single clock
input (CLK). The synchronous inputs include all ad-
dresses, all data inputs, active LOW chip enable (CE#),
MT58L64L36FT-8.5*
*See page 24 for the FBGA Part Marking Guide
2Mb: 128K x 18, 64K x 32/36 Flow-Through SyncBurst SRAM
MT58L128L18F_2.p65 – Rev. 7/00
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
