LH532000B-SN-50 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> LH532000B-SN-50

Preview

LH532000B-SN-50: DescriptionMASK ROM, 256KX8, 150ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40; Categorystorage storage; File Size129KB，6 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH532000B-SN-50 Overview

MASK ROM, 256KX8, 150ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40

LH532000B-SN-50 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-40
Reach Compliance Code	unknown
Maximum access time	150 ns
Spare memory width	16
JESD-30 code	R-PDSO-G40
length	26.3 mm
memory density	2097152 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.6 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	11.3 mm

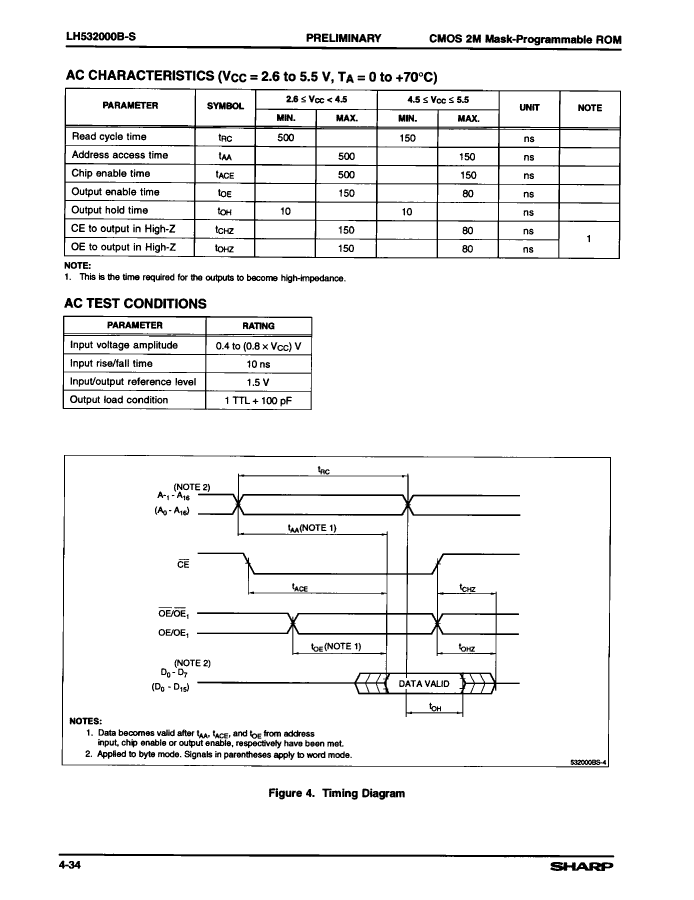

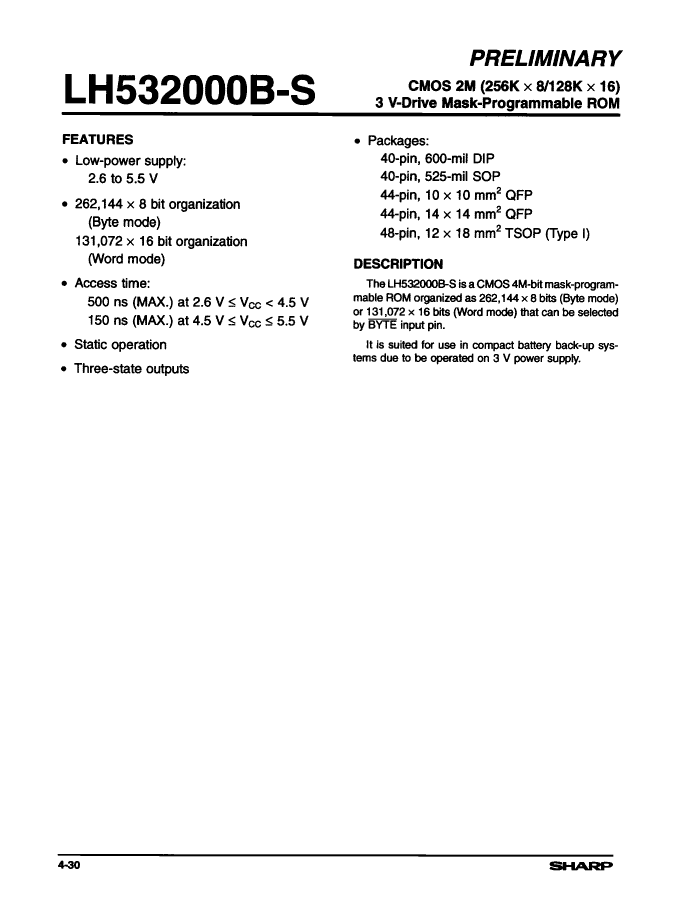

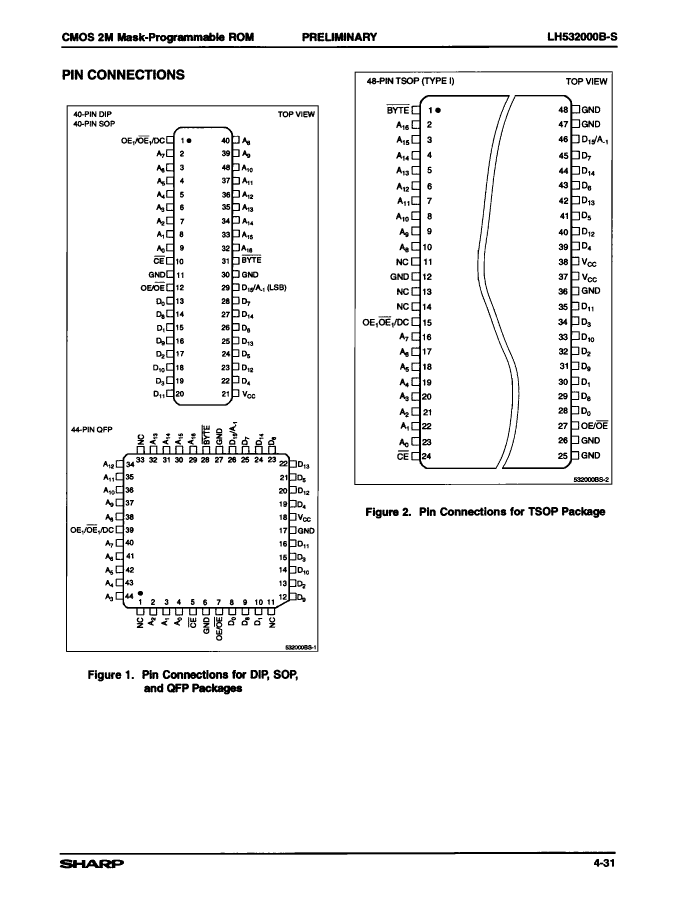

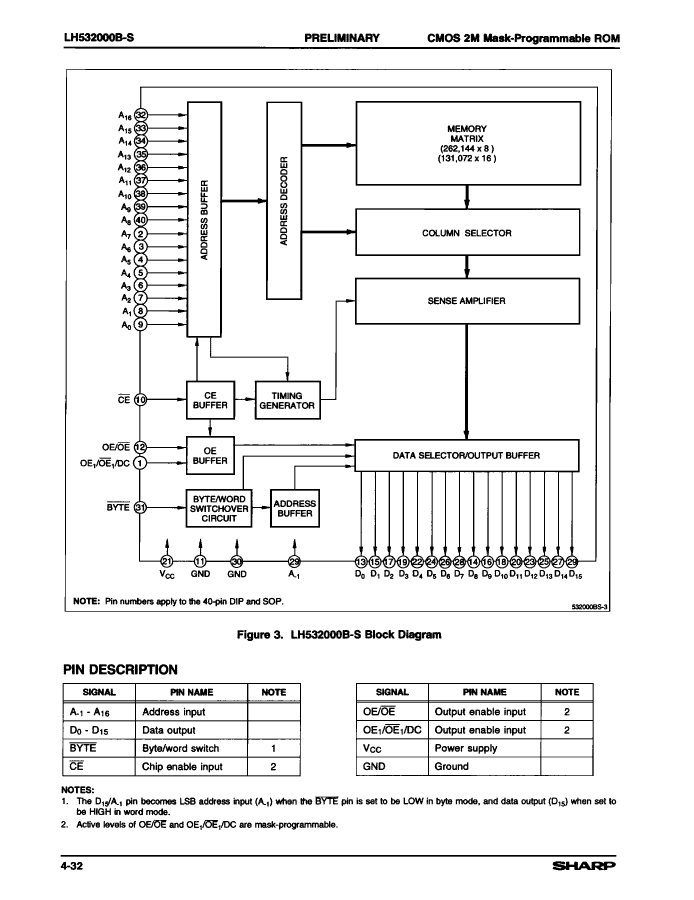

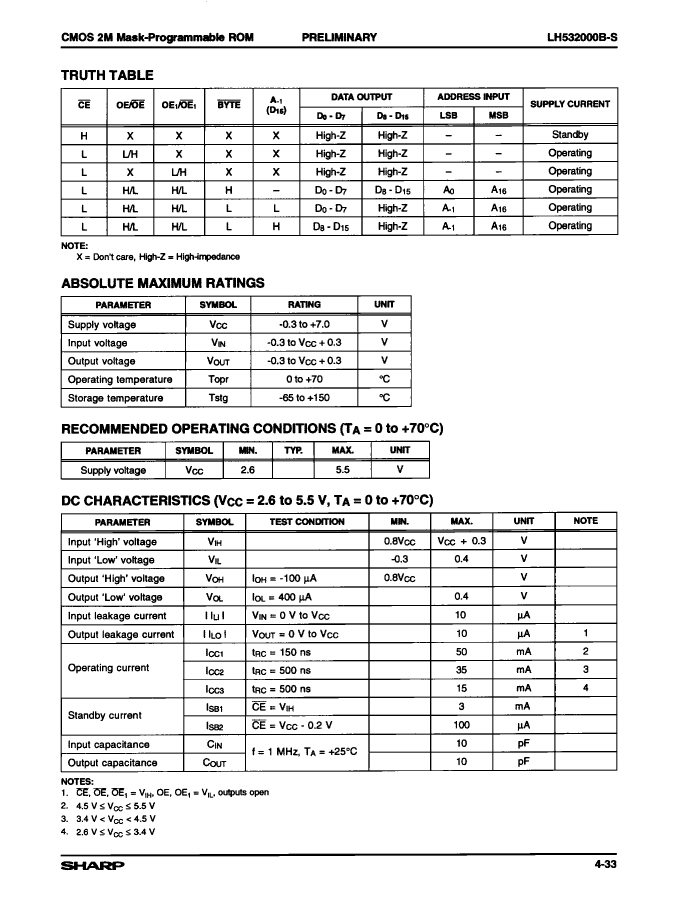

LH532000B-SN-50 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LH532000B-SN-50 Related Products

	LH532000B-SN-50	LH532000B-SM-50	LH532000B-SZ-50	LH532000B-ST-50	LH532000B-SD-50
Description	MASK ROM, 256KX8, 150ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40	MASK ROM, 256KX8, 150ns, CMOS, PQFP44, 14 X 14 MM, PLASTIC, QFP-44	MASK ROM, 256KX8, 150ns, CMOS, PQFP44, 10 X 10 MM, PLASTIC, QFP-44	MASK ROM, 256KX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48	MASK ROM, 256KX8, 150ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40
Maker	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-40	14 X 14 MM, PLASTIC, QFP-44	10 X 10 MM, PLASTIC, QFP-44	12 X 18 MM, PLASTIC, TSOP1-48	0.600 INCH, PLASTIC, DIP-40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	150 ns	150 ns	150 ns	150 ns	150 ns
Spare memory width	16	16	16	16	16
JESD-30 code	R-PDSO-G40	S-PQFP-G44	S-PQFP-G44	R-PDSO-G48	R-PDIP-T40
length	26.3 mm	14 mm	10 mm	16.4 mm	52 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	40	44	44	48	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	QFP	QFP	TSOP1	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLATPACK	FLATPACK	SMALL OUTLINE, THIN PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	2.3 mm	1.85 mm	1.2 mm	5.4 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	0.8 mm	0.8 mm	0.5 mm	2.54 mm
Terminal location	DUAL	QUAD	QUAD	DUAL	DUAL
width	11.3 mm	14 mm	10 mm	12 mm	15.24 mm
