X0202DN

Description
1.4A, 400V, SCR
CategoryAnalog mixed-signal IC    Trigger device
File Size104KB，5 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

X0202DN Overview

1.4A, 400V, SCR

X0202DN Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSTMicroelectronics
package instructionSMALL OUTLINE, R-PDSO-G4
Reach Compliance Codecompliant
Other featuresSENSITIVE GATE
ConfigurationSINGLE
Maximum DC gate trigger current0.2 mA
Maximum DC gate trigger voltage0.8 V
Maximum holding current5 mA
JESD-30 codeR-PDSO-G4
JESD-609 codee3
Maximum leakage current0.005 mA
On-state non-repetitive peak current25 A
Number of components1
Number of terminals4
Maximum on-state current1400 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current1.4 A
Off-state repetitive peak voltage400 V
Repeated peak reverse voltage400 V
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR

X0202DN Preview

®
X02xxxN
SENSITIVE GATE SCR
FEATURES
I
T(RMS)
= 1.4A
V
DRM
= 200V to 800V
Low I
GT
< 200
µA
K
A
G
A
DESCRIPTION
The X02xxxN series of SCRs uses a high
performance TOP GLASS PNPN technology.
These parts are intended for general purpose high
volume
applications using surface mount
technology.
ABSOLUTE RATINGS
(limiting values)
Symbol
I
T(RMS)
*
Parameter
RMS on-state current
(180° conduction angle)
Mean on-state current
(180° conduction angle)
Non repetitive surge peak on-state current
(T
j
initial = 25°C )
I
2
t Value for fusing
Critical rate of rise of on-state current
di
G
/dt = 0.1 A/µs.
I
G
= 10 mA
Storage and operating junction temperature range
Maximum lead temperature for soldering during 10s
Ttab= 90°C
Ta=75°C
I
T(AV)
*
Ttab= 90°C
Ta=75°C
I
TSM
tp = 8.3 ms
tp = 10 ms
I
2
t
dI/dt
T
stg
T
j
Tl
tp = 10 ms
Value
1.4
1.0
0.9
0.64
25
22.5
2.5
30
- 40, + 150
- 40, + 125
260
Unit
A
A
A
A
A
A
A
2
s
A/µs
°C
°C
SOT223
(Plastic)
* : With 5cm2 copper (e=35µm) surface under tab.
Symbol
V
DRM
V
RRM
Parameter
B
Repetitive peak off-state voltage
T
j
= 125°C R
GK
= 1KΩ
200
Voltage
D
400
M
600
N
800
Unit
V
1/5
May 1998 Ed: 1A
X02xxxN
THERMAL RESISTANCES
Symbol
Rth(j-a)
Rth(j-t)
Junction to ambient *
Junction to tab for DC
Parameter
Value
60
25
Unit
°C/W
°C/W
* : With 5cm2 copper (e=35µm) surface under tab.
GATE CHARACTERISTICS
(maximum values)
P
G (AV)
= 0.2 W P
GM
= 3 W (tp = 20
µs)
ELECTRICAL CHARACTERISTICS
Symbol
I
GT
Test Conditions
02
V
D
=12V (DC) R
L
=140Ω
Tj= 25°C
MIN
MAX
V
GT
V
GD
V
RGM
tgd
I
H
I
L
V
TM
I
DRM
I
RRM
dV/dt
tq
V
D
=12V (DC) R
L
=140Ω
V
D
=V
DRM
R
L
=3.3kΩ
R
GK
= 1 KΩ
I
RG
=10µA
V
D
=V
DRM
I
TM
= 3 x I
T(AV
)
dI
G
/dt = 0.1A/µs I
G
= 10mA
I
T
= 50mA R
GK
= 1 KΩ
I
G
=1mA R
GK
= 1 KΩ
I
TM
= 2.8A tp= 380µs
V
D
= V
DRM
R
GK
= 1 KΩ
V
R
= V
RRM
V
D
=67%V
DRM
R
GK
= 1 KΩ
I
TM
= 3 x I
T(AV
) V
R
=35V
dI/dt=10A/µs tp=100µs
dV/dt=2V/µs
V
D
= 67%V
DRM
R
GK
= 1 KΩ
Tj= 25°C
Tj= 125°C
Tj= 25°C
Tj= 25°C
Tj= 25°C
Tj= 25°C
Tj= 25°C
Tj= 25°C
Tj= 110°C
Tj= 110°C
Tj= 110°C
MAX
MIN
MIN
TYP
MAX
MAX
MAX
MAX
MAX
TYP
MAX
15
200
Sensitivity
03
20
200
0.8
0.1
8
0.5
5
6
1.5
5
200
20
100
15
05
20
50
V
V
V
µs
mA
mA
V
µA
µA
V/µs
µs
µA
Unit
I
GM
= 1.2 A (tp = 20
µs)
ORDERING INFORMATION
X
SCR TOP GLASS
CURRENT
02
03
SENSITIVITY
M
N
PACKAGE :
N = SOT223
VOLTAGE
2/5
X02xxxN

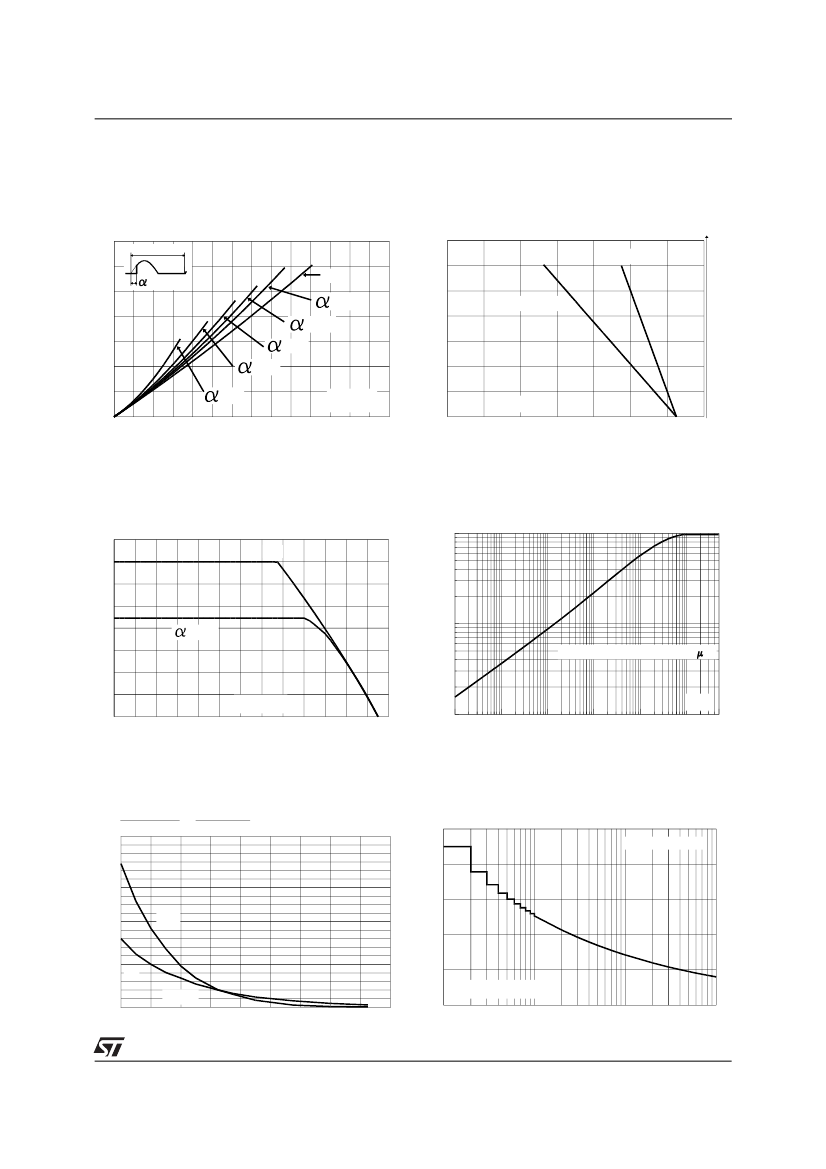

Fig.1 :
Maximum average power dissipation ver-
sus average on-state current.
Fig.2 :
Correlation between maximum average
power dissipation and maximum allowable tem-
perature (Tamb and Ttab).
P (W)
1.4
360
O
P (W)
1.4
Rth(j-t)
Ttab (
o
C)
-85
1.2
DC
1.2
o
1.0
= 180
1.0
Rth(j-a)
-95
0.8
0.6
0.4
0.2
0.0
0.0
0.2
0.4
= 30
o
= 60
o
= 120
= 90
o
o
0.8
-105
0.6
0.4
-115
Tamb ( C)
o
I T(AV)(A)
0.2
1.4
0.6
0.8
1.0
1.2
0.0
0
20
40
60
80
100
120
-125
140
Fig.3 :
Average on-state current versus tab tem-
perature.
I T(AV) (A)
Fig.4 :
Relative variation of thermal impedance
junction to ambient versus pulse duration.
Zth(j-a)/Rth(j-a)
1.00
1.6
DC
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
10
20
30
40
50
= 180
o
0.10
Standard foot print , e(Cu)=35
m
Ttab ( C)
60
70
80
90 100 110 120 130
o
tp(s)
0.01
1E-3
1E-2
1E-1
1E+0
1E+1
1E+2 5E+2
Fig.5 :
Relative variation of gate trigger current and
holding current versus junction temperature.
Igt[Tj]
o
Igt[Tj=25 C]
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
-40
-20
Ih
Igt
Fig.6 :
Non repetitive surge peak on-state current
versus number of cycles.
ITSM(A)
Ih[Tj]
Ih[Tj=25
o
C]
25
Tj initial = 25 C
o
20
15
10
5
Tj(
o
C)
0
20
40
60
80
100
120
140
Number of cycles
0
1
10
100
1000
3/5
X02xxxN
Fig.7 :
Non repetitive surge peak on-state current
for a sinusoidal pulse with width : tp
≤
10ms, and
corresponding value of I
2
t.
I TSM (A). I
2
t (A
2
s)
Fig.8 :
On-state characteristics (maximum values).
I TM (A)
Tj initial = 25
o
C
100
100
Tj initial
o
25 C
I TSM
10
Tj max
10
1
I
2
t
Tj max
Vto =1.05V
Rt =0.150
tp(ms)
VTM (V)
1
1
10
0.1
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
4/5
X02xxxN
PACKAGE MECHANICAL DATA
SOT223 (Plastic)
DIMENSIONS
V1
REF.
C
Millimeters
1.50
0.02
2.95
0.65
0.25
6.30
2.3
4.6
3.30
6.70
0.63
0.85
1.10
1.70
0.10
3.15
0.85
0.35
6.70
0.059
0.001
0.090
0.026
0.010
0.248
Inches
0.067
0.004
0.124
0.033
0.014
0.264
0.091
0.181
Min. Typ. Max. Min. Typ. Max.
A
A1
B1
e1
D
B
t
V
A1
V2
O
H E
e
S
A
A1
B
B1
C
D
e
e1
E
H
O
S
t
V
V1
V2
3.70 0.130
0.146
7.30 0.264
0.287
0.65
0.67 0.025 0.026 0.026
1.05 0.033
0.041
1.30 0.043
0.051
10° max
10° min 16°max
10° min 16°max
Weight : 0.11 g
FOOT PRINT
MARKING
Type
X0202BN
X0202DN
X0202MN
X0202NN
X0203BN
X0203DN
X0203MN
X0203NN
X0205BN
X0205DN
X0205MN
X0205NN
Marking
X2B
X2D
X2M
X2N
X3B
X3D
X3M
X3N
X5B
X5D
X5M
X5N
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of
use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are subject to
change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a trademark of STMicroelectronics
© 1998 STMicroelectronics – Printed in Italy – All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - Canada - China - France - Germany - Italy - Japan - Korea - Malaysia - Malta - Morocco - The Netherlands -
Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - U.S.A.
5/5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

X0202DN Related Products

X0202DN X0203NN X0205BN X0202BN
Description 1.4A, 400V, SCR 1A, 800V, SCR 1A, 200V, SCR 1.4A, 200V, SCR
Is it Rohs certified? conform to conform to conform to conform to
Maker STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Reach Compliance Code compliant compliant compliant compliant
Configuration SINGLE SINGLE SINGLE SINGLE
Maximum DC gate trigger current 0.2 mA 0.2 mA 0.05 mA 0.2 mA
Maximum DC gate trigger voltage 0.8 V 0.8 V 0.8 V 0.8 V
Maximum holding current 5 mA 5 mA 5 mA 5 mA
JESD-30 code R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4
JESD-609 code e3 e3 e3 e3
Maximum leakage current 0.005 mA 0.005 mA 0.005 mA 0.005 mA
On-state non-repetitive peak current 25 A 25 A 25 A 25 A
Number of components 1 1 1 1
Number of terminals 4 4 4 4
Maximum on-state current 1400 A 1400 A 1400 A 1400 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 1.4 A 1 A 1 A 1.4 A
Off-state repetitive peak voltage 400 V 800 V 200 V 200 V
Repeated peak reverse voltage 400 V 800 V 200 V 200 V
surface mount YES YES YES YES
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Trigger device type SCR SCR SCR SCR

Recommended Resources

Highly reliable N-stage parallel input low-noise amplifier circuit diagram

Infrared remote control transmitter/receiver circuit

RTS709 circuit

Transistor DC double boost circuit

tPLH(EN) and tPLH(EN) are tested by the enable circuit

Active negative intercept circuit

Battery Test Equipment --- Signal Chain
[i=s]This post was last edited by qwqwqw2088 on 2020-9-27 08:54[/i]With the rise of the lithium battery industry, the market for battery testing equipment has also become huge, and it is mainly used i...
qwqwqw2088 Analogue and Mixed Signal
STM32 Image Acquisition and Transmission
I just started learning STM32. I bought the ALIENTEK MiniSTM32 development board. I want to transplant uCOSII and realize image acquisition and transmission. The general idea is like this. I haven't t...
zhwh0303 ARM Technology
Digital electronics design help, just change
[table] [tr][td=63][align=center][align=center]Serial number[/align][/align][/td][td=46][align=right][align=center]L0[/align ][/align][/td][td=53][ali gn=right][align=center]L1[/align][/align][/td][td...
lsc201421 Integrated technical exchanges
GPRS dial-up, SOCKET can connect, IE and other programs cannot access the Internet
HI, everyone. I'm currently working on a WINCE5 project that requires GPRS and a SIM300 module as a MODEM. All the settings are OK. The problem now is that I can communicate normally using a small pro...
nanxiangzi Embedded System
New Year's Day interactive post: Truth or Tell.
At the end of the year, the forum is active: In response to the call [url=https://bbs.eeworld.com.cn/thread-363212-1-1.html]https://bbs.eeworld.com.cn/thread-363212-1-1.html[/url], open a thread, and ...
gaon Integrated technical exchanges
Please tell me what CPU to use to complete the following functions
1. Connect 4 serial ports 2. Use 220V power supply 3. Access the desktop SQL Server database. The operating system uses Windows CE. What CPU does the embedded motherboard use? What is the contact info...
wmdsummer Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. VTM3-D3CD-16M367
  2. Q-40.000000M-HC6035/2-3-30-10-A-SR-TR
  3. 54122-809-08-2000R
  4. ABL-70.0000MHZ-10-L-H5-L2-P
  5. 1812N203M250PX100T
  6. CAT5409UI-50-TE13
  7. PRA135C72K260.1%0.1%
  8. Q3.570-12-50/5-T3-3OT-TR-LF
  9. BC857BF2
  10. A2505WV-9P-GY
  11. A3502WV-14P-RD
  12. P6SMB9.1CA

Popular Articles

  1. Common Faults and Solutions of Pneumatic Control Valve
  2. Supply and development of power batteries for Toyota
  3. Tsinghua AIR Research Institute releases the world's first vehicle-road collaboration dataset DAIR-V2X
  4. How can we ensure that the CAN protocol triggers the correct ID frame filtering?
  5. Want to learn from Tesla? Xiaomi may adopt a purely visual autonomous driving solution
  6. Camera modules for smart driving and smart assisted driving applications
  7. OPPO invested in Lingming Photonics and developed dToF sensor chips
  8. AOTO Electronics' Mini LED display products continue to penetrate
  9. Demystifying the RF Signal Chain—Part 2: Basic Building Blocks
  10. Patent exposure: Samsung's new concept flexible screen mobile device supports folding, sliding and S Pen

Technical ResourceMore

  1. RF Basics and Measurement Training Materials
  2. NE555 circuit intelligent design software
  3. RTD2662 board source code
  4. Application design of buttons and menus in embedded systems
  5. Wireless and RF Solutions
  6. Research on RS485 Bus Network Reliability
  7. TCL2566B Drawing
  8. Research on Fault Transient Simulation of Synchronous Generator
  9. Haier TMP8803 v1.0 memory data
  10. Development of a new centralized wireless anti-theft system for valuable equipment

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2056  2243  356  1935  1009  42  46  8  39  21
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
