HY514100J-70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HY514100J-70

HY514100J-70: DescriptionFast Page DRAM, 4MX1, 70ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20; Categorystorage storage; File Size384KB，16 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HY514100J-70 Overview

Fast Page DRAM, 4MX1, 70ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20

HY514100J-70 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SK Hynix
Parts packaging code	SOJ
package instruction	SOJ, SOJ20/26,.34
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	SEPARATE
JESD-30 code	R-PDSO-J20
JESD-609 code	e0
length	17.15 mm
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ20/26,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.76 mm
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

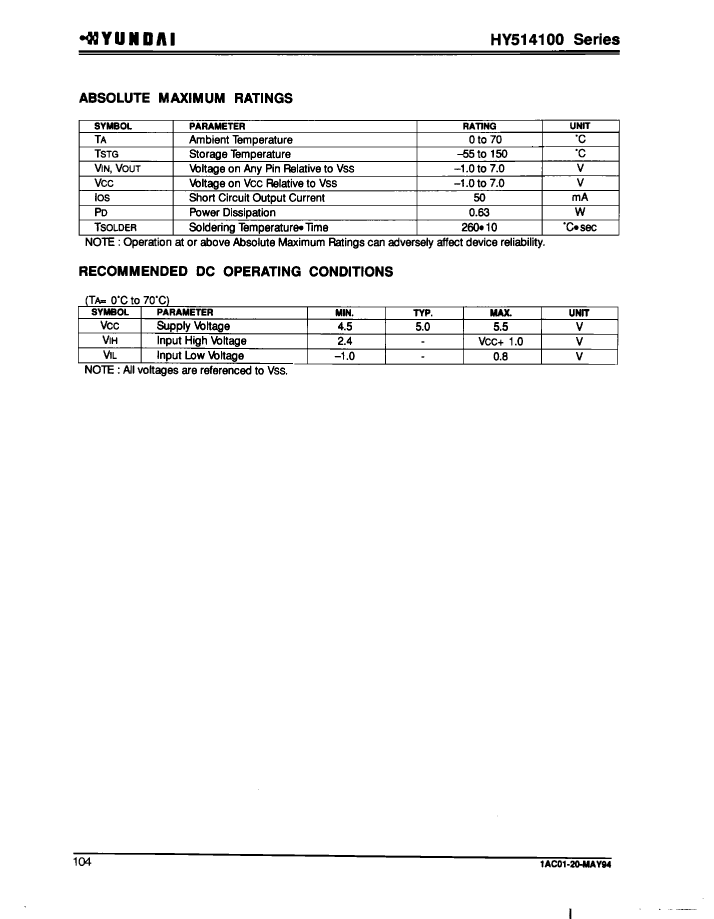

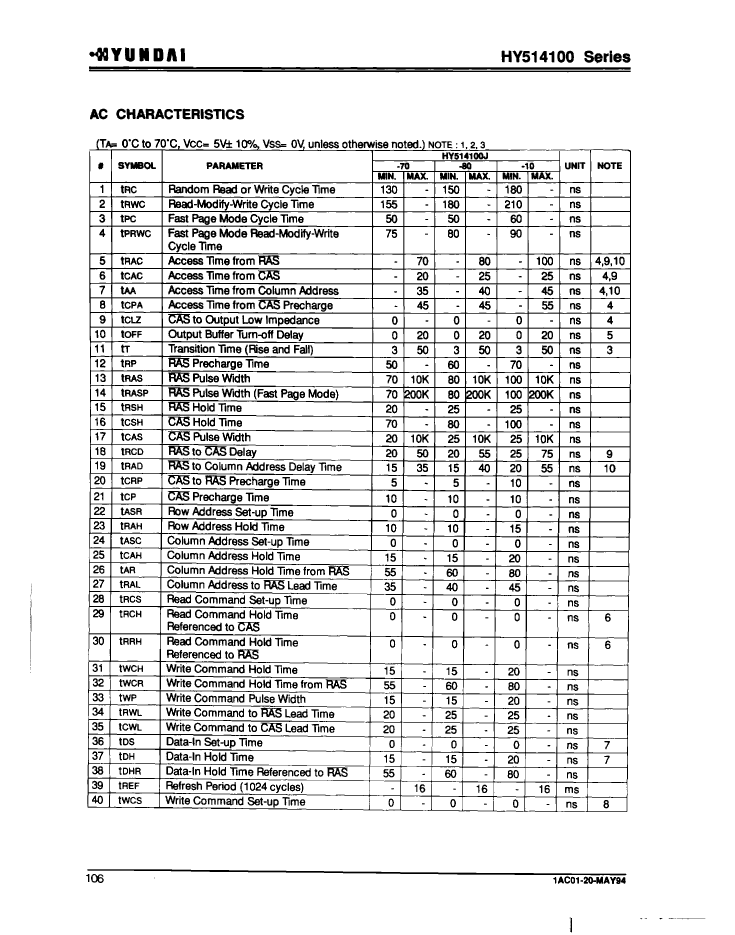

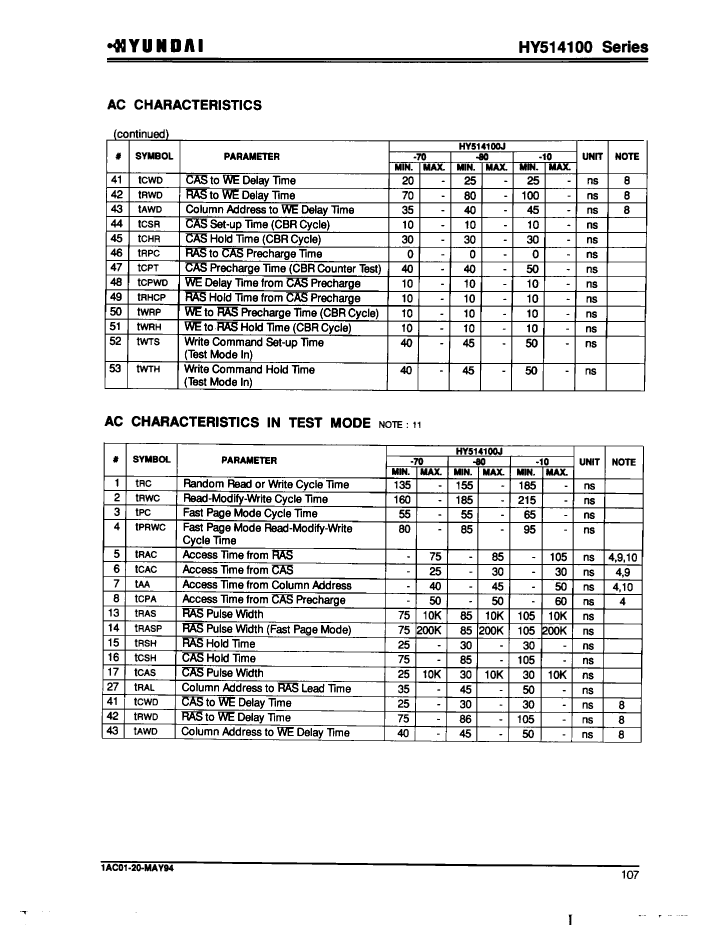

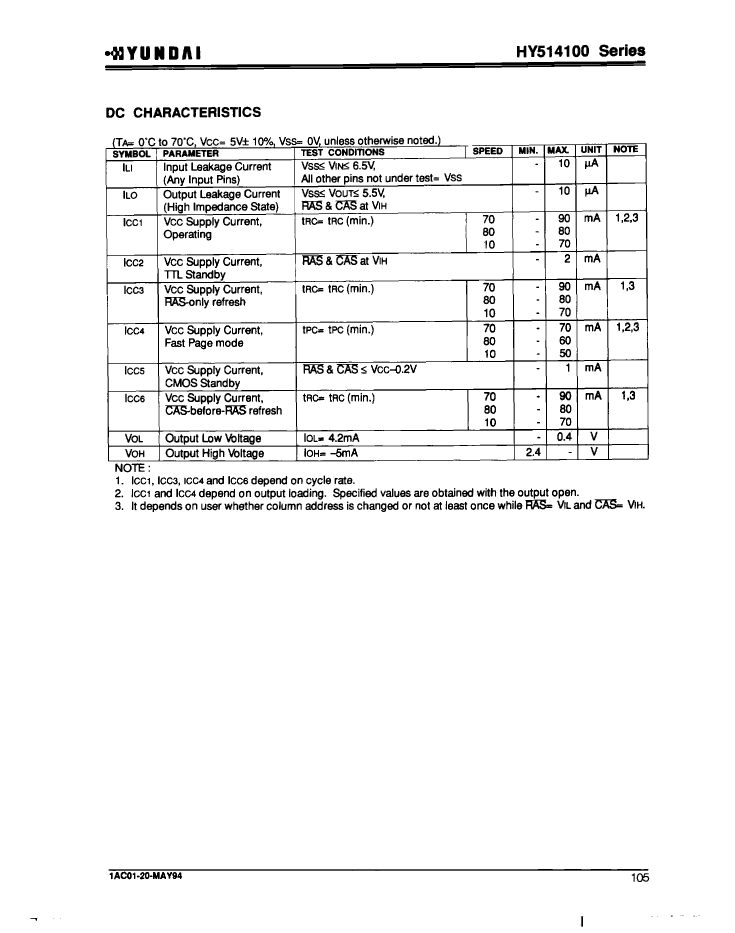

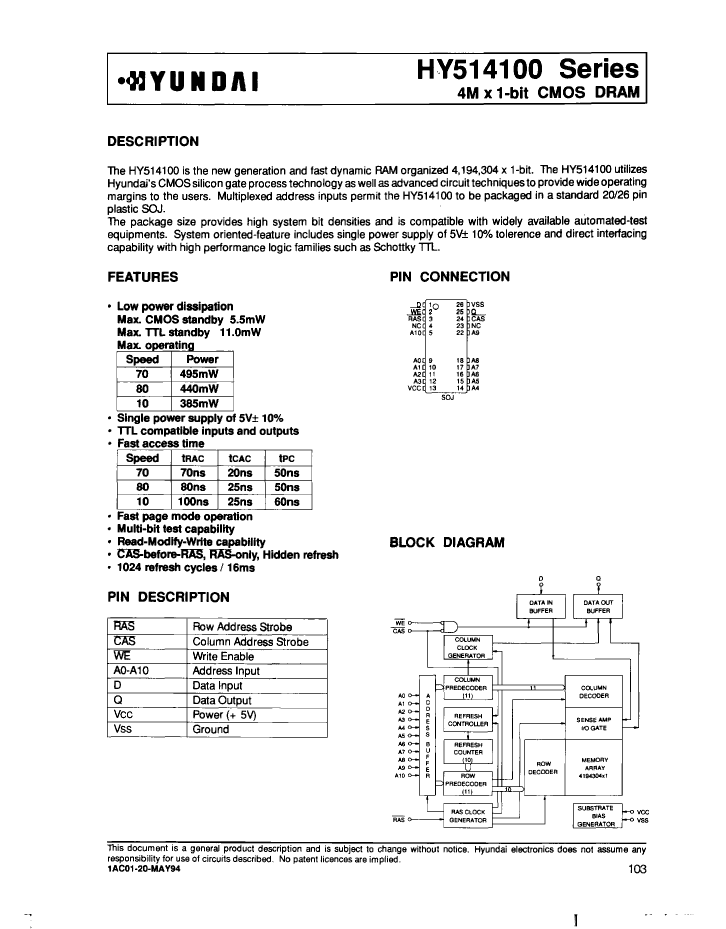

HY514100J-70 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HY514100J-70 Related Products

	HY514100J-70	HY514100J-10	HY514100J-80
Description	Fast Page DRAM, 4MX1, 70ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20	Fast Page DRAM, 4MX1, 100ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20	Fast Page DRAM, 4MX1, 80ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SK Hynix	SK Hynix	SK Hynix
Parts packaging code	SOJ	SOJ	SOJ
package instruction	SOJ, SOJ20/26,.34	SOJ, SOJ20/26,.34	SOJ, SOJ20/26,.34
Contacts	20	20	20
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	100 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-PDSO-J20	R-PDSO-J20	R-PDSO-J20
JESD-609 code	e0	e0	e0
length	17.15 mm	17.15 mm	17.15 mm
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	1	1	1
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	20	20	20
word count	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	4MX1	4MX1	4MX1
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ
Encapsulate equivalent code	SOJ20/26,.34	SOJ20/26,.34	SOJ20/26,.34
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024
Maximum seat height	3.76 mm	3.76 mm	3.76 mm
self refresh	NO	NO	NO
Maximum standby current	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.09 mA	0.07 mA	0.08 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm
