Datasheet> All Categories > Power/power management> The power supply circuit> ZR40401F50TA

Preview

ZR40401F50TA: DescriptionTwo Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO3, SOT-23, 3 PIN; CategoryPower/power management The power supply circuit; File Size168KB，4 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

ZR40401F50TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZR40401F50TA	-	-	View	Buy Now

ZR40401F50TA Overview

Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO3, SOT-23, 3 PIN

ZR40401F50TA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	SOT-23
package instruction	SOT-23, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
length	2.92 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TO-236
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.12 mm
Maximum supply current (Isup)	15 mA
surface mount	YES
Maximum voltage temperature coefficient	125 ppm/°C
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	1%
width	1.3 mm

ZR40401F50TA Preview

PRECISION 5.0 VOLT MICROPOWER

VOLTAGE REFERENCE

ISSUE 3 - NOVEMBER 2002

ZR4040-5.0

DEVICE DESCRIPTION

The ZR4040-5.0 uses a bandgap circuit

design to achieve a precision micropower

voltage reference of 5.0 volts. The device

is available in a small outline surface

mount package, ideal for applications

where space saving is important, as well

as packages for through hole

requirements.

The ZR4040-5.0 design provides a stable

voltage without an external capacitor and

is stable with capacitive loads. The

ZR4040-5.0 is recommended for operation

between 60µA and 15mA and so is ideally

suited to low power and battery powered

applications.

Excellent performance is maintained to an

absolute maximum of 25mA, however the

rugged design and 20 volt processing

allows the reference to withstand transient

e ffe cts a nd currents up to 200mA.

Superior switching capability allows the

device to reach stable operating

conditions in only a few microseconds.

FEATURES

•

Small outline SOT23 package

TO92 style package

No stabilising capacitor required

Typical T

C

20ppm/°C

Typical slope resistance 0.33Ω

2% and 1% tolerance

Automotive temperature range

Operating current 60µA to 15mA

Transient response,stable in less than

10µs

APPLICATIONS

Battery powered and portable

equipment.

Metering and measurement systems.

Instrumentation.

Test equipment.

Data acquisition systems.

Precision power supplies.

SCHEMETIC DIAGRAM

9

5

*

QG

4-181

ZR4040-5.0

ABSOLUTE MAXIMUM RATING

Reverse Current

Forward Current

Operating Temperature

Storage Temperature

25mA

-55 to 125°C

Power Dissipation (T

amb

=25°C)

SOT23

330mW

E-Line, 3 pin (TO92)

500mW

ELECTRICAL CHARACTERISTICS

TEST CONDITIONS (Unless otherwise stated) T

amb

=25°C

SYMBOL PARAMETER

CONDITIONS

MIN

V

R

I

MIN

I

R

T

C

†

Reverse Breakdown Voltage

I

R

=150µA

4.95

4.90

LIMITS

TYP

5.0

30

0.06

-40 to 85°C

I

R(min)

to

I

R(max)

-55 to 125°C

I

R(min)

to

I

R(max)

20

MAX

5.05

5.10

60

15

100

1

2

V

µA

mA

ppm/°C

TOL. % UNITS

Minimum Operating Current -55 to 125°C

Recommended Operating

Current

Average Reverse

Breakdown Voltage Temp.

Co.

Average Reverse

Breakdown Voltage Temp.

Co.

Slope Resistance

Reverse Dynamic

Impedance

Wideband Noise Voltage

I

R

= 1mA

f = 100Hz

I

AC

= 0.1 I

R

I

R

= 1mA

f = 10Hz to

10kHz

T

C

†

40

125

ppm/°C

R

S

§

Z

R

0.33

0.4

1.5

1.0

Ω

E

N

105

µV

(rms)

V

R

x

(T

(max)

−T

(min)

)

5HYHUVH &XUUHQW $

†

T

C

=

(V

R(max)

−V

R(min)

)

x

1000000

m

Note: V

R(max)

- V

R(min)

is the maximum

deviation in reference voltage measured

over the stated operating temperature

range.

§

R

S

=

V

R

Change

(I

R

(min)

to I

R

(max))

I

R

(max) −

I

R

(min)

7

$

&

7

$

&

Reverse Voltage (V)

5HYHUVH &KDUDFWHULVWLFV

4-182

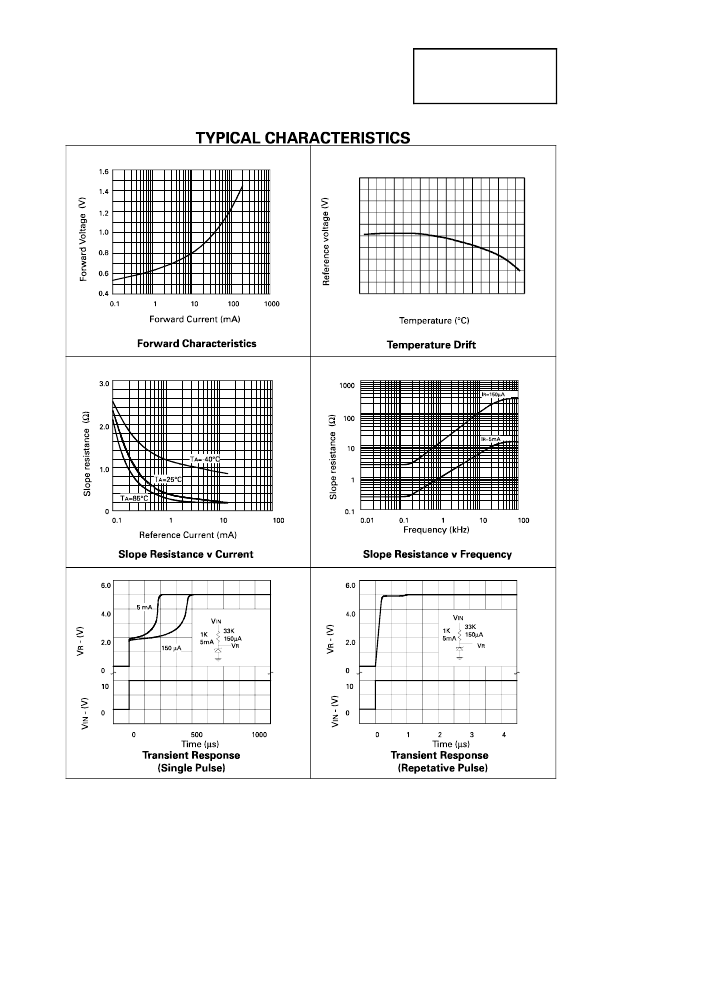

ZR4040-5.0

5.04

5.02

5.00

4.98

4.96

-60 -40 -20 0

20 40 60 80 100 120

4-183

ZR4040-5.0

CONNECTION DIAGRAMS

E-Line, 3 pin, Rev Package Suffix – R

SOT23 Package Suffix – F

Bottom View –

Pin 3 floating or connected to pin 1

Top View –

Pin 1 floating or connected to pin 2

ORDERING INFORMATION

Part Number

ZR40402F50

ZR40401F50

ZR40402R50

ZR40401R50

Tol% Package

2

1

2

1

SOT23

Partmark

50L

50M

E-Line * ZR4040250

E-Line * ZR4040150

* E-Line, 3 pin Reversed

4-184
