Tantalum Chip Capacitors
Performance, High Reliability 150
°C
Series/Type:
Date:
B45196P, B45198P
July 2006
© EPCOS AG 2006. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Tantalum chip capacitors
Performance, High Reliability 150
°C
Construction
Polar tantalum capacitors with solid
electrolyte
Conventional TaMnO
2
technology
Flame-retardant plastic case (UL 94 V-0)
Optionally tinned or gold-plated terminals
Features
B45196P, B45198P
Operating temperature up to 150
°C
Outstanding reliability
Very low failure rate
Qualification in compliance with AEC-Q200
High volumetric efficiency
Excellent solderability
Stable temperature and frequency characteristics
Low leakage current, low dissipation factor
Low self-inductance
High resistance to shock and vibration
Suitable for use without series resistor (recommended operating conditions see
www.epcos.com/tantalum_gti, section 4.4)
Lead-free and material content compatible with ELV and RoHS
Applications
Automotive electronics (safety applications e.g. airbag, ABS or motor management)
Measuring and control engineering
Medical engineering
DC/DC converters
Telecommunications (e.g. mobile phones, infrastructure)
Data processing (e.g. laptops, mainframes)
Soldering
Suitable for reflow soldering (IR and vapor phase, in compliance with JEDEC J-STD-020 C) and
wave soldering
Delivery mode
Taped and reeled in accordance with IEC 60286-3
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 2 of 15
Tantalum chip capacitors
Performance, High Reliability 150
°C
Dimensional drawing
B45196P, B45198P
Encapsulation: molded epoxy resin
NiFe; tinned surface Sn100 or gold-plated
Reduced slot length for case size A
Dimensions
Case size
Dimensions in mm (inches)
EPCOS EIA/IECQ L
W
H
A
3216-18
3.2
±0.2
(.126
±0.008)
3.5
±0.2
(.138
±0.008)
6.0
±0.3
(.236
±0.012)
7.3
±0.3
(.287
±0.012)
7.3
±0.3
(.287
±0.012)
1.6
±0.2
(.063
±0.008)
2.8
±0.2
(.110
±0.008)
3.2
±0.3
(.126
±0.012)
4.3
±0.3
(.169
±0.012)
4.3
±0.3
(.169
±0.012)
1.6
±0.2
(.063
±0.008)
1.9
±0.2
(.075
±0.008)
2.5
±0.3
(.098
±0.012)
2.8
±0.3
(.110
±0.012)
4.1
±0.3
(.161
±0.012)
L
2
typ. W
2
±0.1
H
2
typ. P
±0.3
±(.004)
±(.012)
3.2
1.2
1.3
0.8
(.126) (.047)
(.051) (.031)
3.5
2.2
(.138) (.087)
6.1
2.2
(.240) (.087)
7.3
2.4
(.287) (.094)
7.3
2.4
(.287) (.094)
1.4
0.7
(.055) (.027)
1.8
1.3
(.071) (.051)
1.8
1.3
(.071) (.051)
1.8
1.3
(.071) (.051)
B
3528-21
C
6032-28
D
7343-31
E
7343-44
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 3 of 15
Tantalum chip capacitors
Performance, High Reliability 150
°C

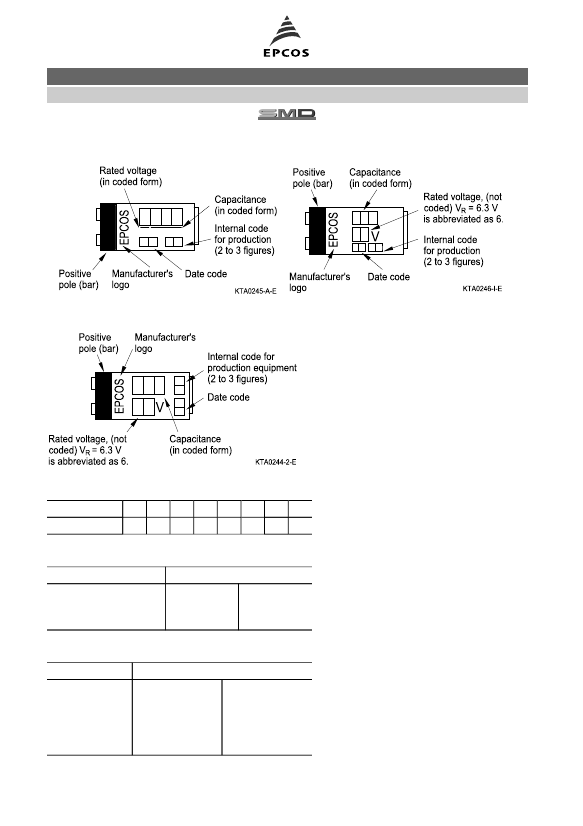

Marking
Case size A
Case size B
B45196P, B45198P
Case sizes C, D, E
Voltage coding for case size A
Rated voltage
Code letter
4
G
6.3 10
J
A
16
C
20
D
25
E
35
V
50
T
Capacitance coding
1st and 2nd digit
3rd digit
Capacitance in pF
Multiplier:
6 = 10
6
pF
7 = 10
7
pF
8 = 10
8
pF
Date coding
Year
T = 2005
U = 2006
V = 2007
W = 2008
X = 2009
Month
2 = February
3 = March
4 = April
5 = May
6 = June
8 = August
9 = September
O = October
N = November
D = December
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 4 of 15
Tantalum chip capacitors
Performance, High Reliability 150
°C
Specifications and characteristics in brief
Series
Ordering code
Technology
Terminals
Rated voltage
(up to 85
°C)
(up to 125
°C)
(up to 150
°C)
(20
°C,
120 Hz)
(20
°C,
100 kHz)
(at 40
°C; ≤
V
R
,
R
S
≥
3
Ω/V)
≤0.8
≤2.5
(V
R
, 5 min, 20
°C)
( 55
°C/+125 °C/56
days damp heat
test)
I
leak
>500000
10
V
R
B45196P, B45198P
Performance, High
Reliability 150
°C
B45198P
Ta-MnO
2
Tinned
6.3 ... 50
4.0 ... 33
3.2 ... 25
0.47 ... 150
±20%, ±10%
Z
max
T
op
0.5 ... 28
55 ... +150
Ω
°C
fit
B45196P
Ta-MnO
2
Gold-plated
VDC
Rated capacitance
Capacitance tolerance
Maximum impedance
Operating temperature range
Failure rate
(1 fit = 1 10
-9
failures/h)
C
R
V
R
≤
330
µF
V
C
R
V
R
> 330
µF
V
Service life
Leakage current
Detail specification
Climatic category
(to IEC 60068-1)
C
R
µF
h
nA/µC
CECC 30801-801/-802
55/125/56
Maximum working voltage at 150
°C:
0.5 V
R
.
Details for this operating condition must be agreed upon between supplier and customer.
For high performance types, individual tests are carried out under more extreme conditions,
supplementary to the tests specified by CECC.
All types are qualified in compliance with AEC-Q200.
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 5 of 15
