MT20D240G-6IB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MT20D240G-6IB

MT20D240G-6IB: DescriptionFast Page DRAM Module, 2MX40, 60ns, CMOS, SIMM-72; Categorystorage storage; File Size426KB，12 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT20D240G-6IB Overview

Fast Page DRAM Module, 2MX40, 60ns, CMOS, SIMM-72

MT20D240G-6IB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	SIMM
package instruction	SIMM-72
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	83886080 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	40
Humidity sensitivity level	1
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX40
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	25.654 mm
Maximum standby current	0.02 A
Maximum slew rate	1.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

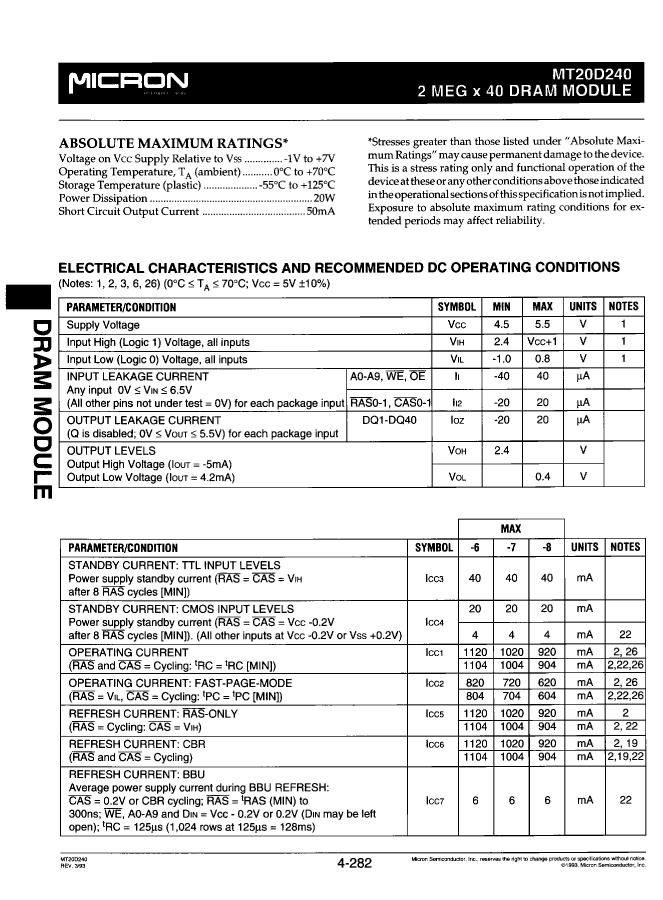

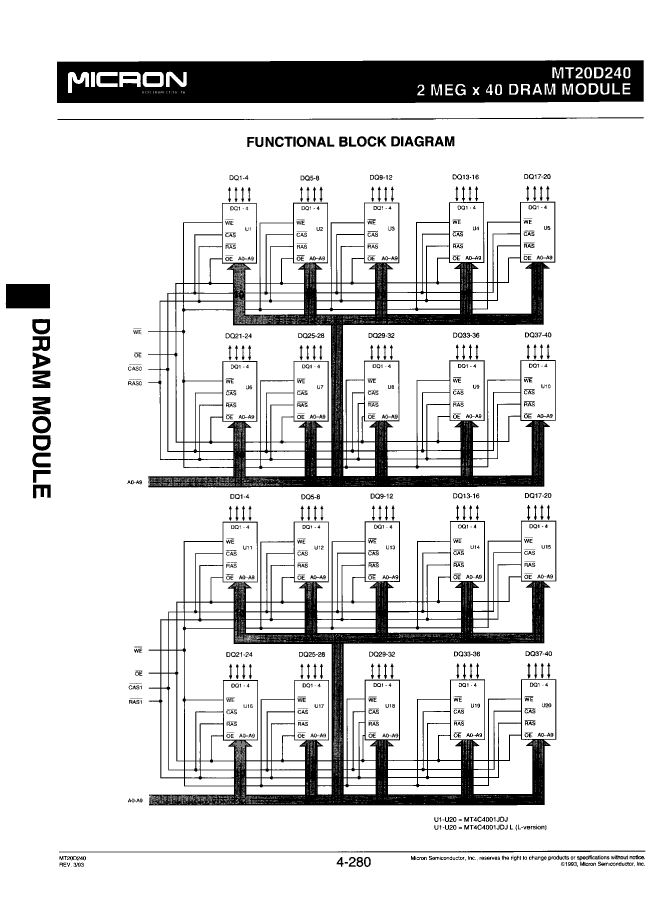

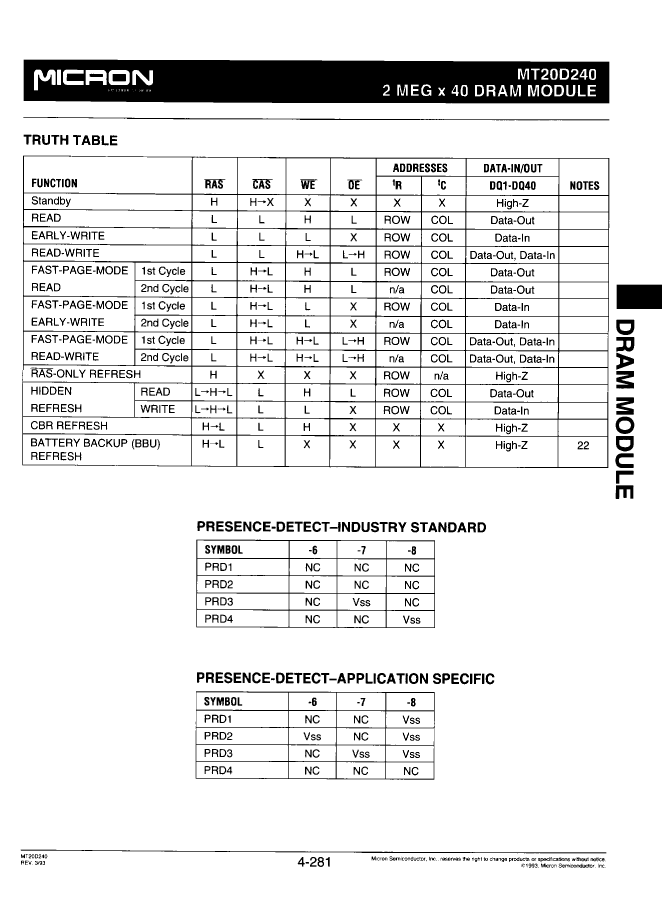

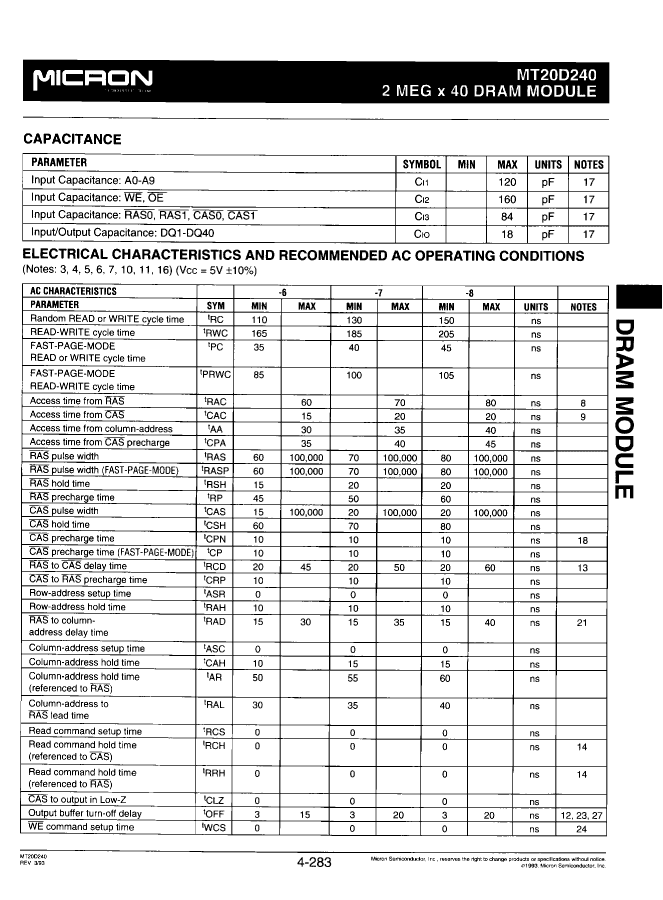

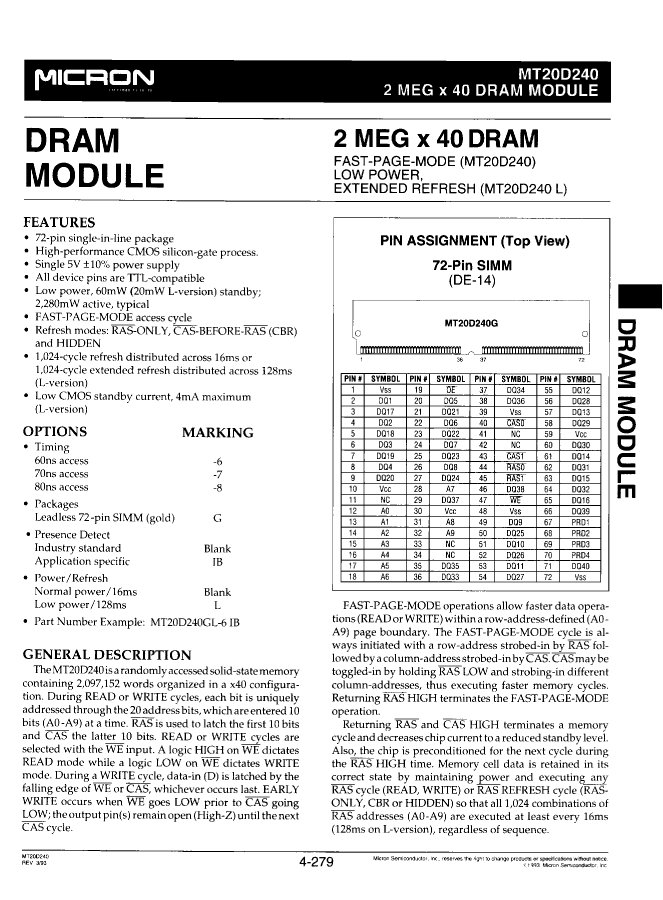

Preview

Download Datasheet

View All

MT20D240G-6IB Related Products

	MT20D240G-6IB	MT20D240G-7IB	MT20D240G-8IB	MT20D240GL-7	MT20D240GL-7IB	MT20D240GL-8	MT20D240GL-8IB	MT20D240GL-6IB	MT20D240GL-6
Description	Fast Page DRAM Module, 2MX40, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX40, 60ns, CMOS, SIMM-72
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
package instruction	SIMM-72	SIMM-72	SIMM-72	,	SIMM-72	,	SIMM-72	SIMM-72	,
Contacts	72	72	72	72	72	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	70 ns	80 ns	70 ns	70 ns	80 ns	80 ns	60 ns	60 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN; BATTERY BACKUP REFRESH
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	83886080 bit	83886080 bit	83886080 bit	83886080 bit	83886080 bit	83886080 bit	83886080 bit	83886080 bit	83886080 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	40	40	40	40	40	40	40	40	40
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72	72
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX40	2MX40	2MX40	2MX40	2MX40	2MX40	2MX40	2MX40	2MX40
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024	1024
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	Contains lead	-	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-	incompatible	incompatible	-
I/O type	COMMON	COMMON	COMMON	-	COMMON	-	COMMON	COMMON	-
Humidity sensitivity level	1	1	1	-	1	-	1	1	-
encapsulated code	SIMM	SIMM	SIMM	-	SIMM	-	SIMM	SIMM	-
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	-	SSIM72	-	SSIM72	SSIM72	-
Peak Reflow Temperature (Celsius)	225	225	225	-	225	-	225	225	-
power supply	5 V	5 V	5 V	-	5 V	-	5 V	5 V	-
Maximum seat height	25.654 mm	25.654 mm	25.654 mm	-	25.654 mm	-	25.654 mm	25.654 mm	-
Maximum standby current	0.02 A	0.02 A	0.02 A	-	0.004 A	-	0.004 A	0.004 A	-
Maximum slew rate	1.12 mA	1.02 mA	0.92 mA	-	1.004 mA	-	0.904 mA	1.104 mA	-
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	-	1.27 mm	1.27 mm	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
