SCD#QM5288
Source Control Drawing
Upscreening/Manufacturing Specification P/N FT1080MJB-LT
Title Page ................................................................................
List of Effective Pages ..............................................................
Change List .............................................................................
Definitions.................................................................................
Acronyms and Abbreviations .....................................................
1
2
3
3.1
3.2
3.3
4
4.1
5
5.1
6
6.1
7
8
8.1
8.2
8.3
8.4
Contents.
Introduction/Purpose ................................................................
Reference Documents...............................................................
Source of Parts.........................................................................
Original Part Manufacturer.........................................................
Screening Company ..................................................................
UK Supplier ..............................................................................
Manufacturing...........................................................................
Screening .................................................................................
Certificate of Conformity ............................................................
FT Certificate of Conformity .......................................................
Package Description..................................................................
Marking ....................................................................................
Traceability...............................................................................
Component selection.................................................................
General ....................................................................................
Nuclear Hardness .....................................................................
Baseline Component ................................................................
Obsolescence notice.................................................................
Date-150103
Date-040603
Date-
Date-
Date-
Date-
iss-1
iss-2
iss-
iss-
iss-
iss-
Rev-
Rev-
Rev-
Rev-
Rev-
Rev-
Changes-Orig
Changes-"B" Suffix added to denote screening
Changes-
Changes-
Changes-
Changes-
Name-MLSalmon
Name-MLSalmon
Name-
Name-
Name-
Name-
TM
Force Technologies Ltd
2003
1
INTRODUCTION/PURPOSE
This document specifies the manufacturing, procurement details and screening requirements.
In brief the part is:Advanced Low Power 5v RS232 Dual Driver/Recv
A package description is given in section 6 of this document.
REFERENCE DOCUMENTS
Test Method and procedures for
Microcircuits
General Specs for Hybrids
Sort, incoming and outgoing
Inspection procedures
MIL-STD-883
(latest issue)
MIL-PRF-38534
Department of Defence
Washington
DC 20363-5100, USA
2
3
SOURCE OF PARTS
This section provides an overview of the companies involved in the manufacture, screening and supply of the
part. Original procurement of parts shall be from the address specified in section 3.3.
Original Part Manufacturer
The original part: die are/were produced by : linear Tech
Manufacturer:Linear Technology Corp
Address:
1630 McCarthy Rd
Milpitas CA95035-7487
USA
The donor part number is: LT1080
3.1
3.2
Assy /Manu,/Screening Company
The above parts are then assembled and screened by:
Classified Disclosure under NDA or disclosed as:
3.3
UK Supplier
The assembled/screened parts shall be procured from:
Tel: +44(0)1264 731200
Force Technologies Ltd
Fax: +44(0)1264 731444
Ashley Court,
Henley,
Marlborough,
Wilts, UK
SN8 3RH
The Force Technologies part number(Ordering Code) is:
FT1080MJB-LT QM5288
4.0
Manufacture
(Manufacturing processes, assembly, Screen and test equipment listings available for inspection upon request.
Part Number breakdown
FT1080MJB-LT
M
=
J
=
B
=
LT
=
=
-55oC-125oC
CDIL
Mil-Std-883
Lin Tech
4.1
SCREENING
The FT1080MJB-LT shall be screened as specified in the table below.
All batches of parts shall be supplied with a Certificate of Conformity. The certificate of conformity shall reference the
screening specified below.
Screening
Visual Inspection
Internal Visual (Pre-Cap)
Destructive tests
Temperature cycling
Constant acceleration
Seal
a. Fine
b. Gross
Visual inspection
Interim Electrical
Burn-in test
Percentage defective
allowable (PDA) calculation
Final electrical test
A) Static Tests
1)25oC (Subgroup1)
2)Max. & Min. rated opp. temp (Subgroup 2&3)
B) Dynamic Test or Switching Test
25oC(Subgroup 4 or 9)
C)Functional Test 25oC (Subgroup 7)
External Visual
Radiation latch-up
Group B
Group C
Group D
Method
Incoming and Outgoing
Inspection Procedures
2010 Cond B (applicable to packaging parts)
1010, test condition C
2001, test condition E (min)
Y1 orientation only
1014
Req.t
100%
100%
Optional
100%
100%
100%
Note
1
1015, 160 hours at 125
°
C minimum
5 percent
In accordance with applicable device
specification.
100%
Optional
100%
All lots
100%
2
3
2009
1020
5005
5005
5005
100%
Optional
Optional
Optional
Optional
Notes:
1/ For Pre-assembled product
2/ Manufactured batches shall have Lots tests carried out in accordance with Mil-Std-883
3/ Part No.
LT1080MJ/883

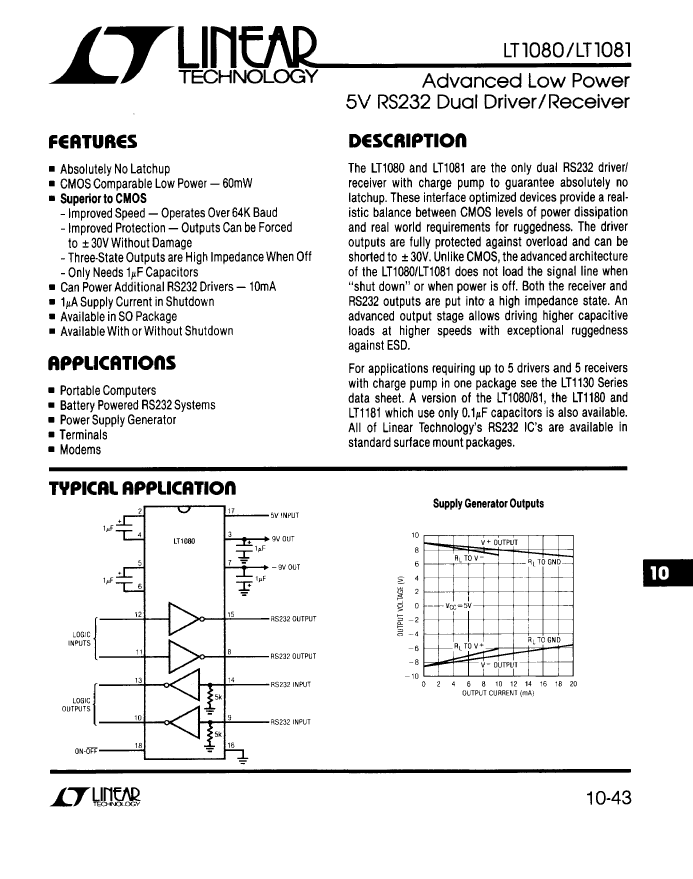

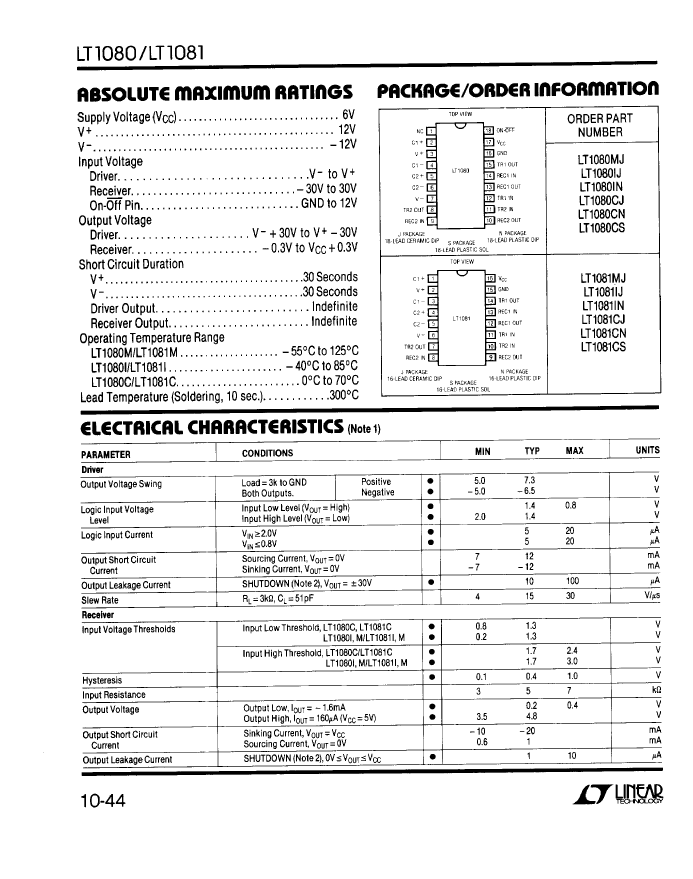

Data sheet included on .PDF copy
Manufacturing
Test
Wire Bond
Die Shear
Marking
Method
2011
2019
2015
Additional manufacturing notes.
