DV74LS377D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS377D

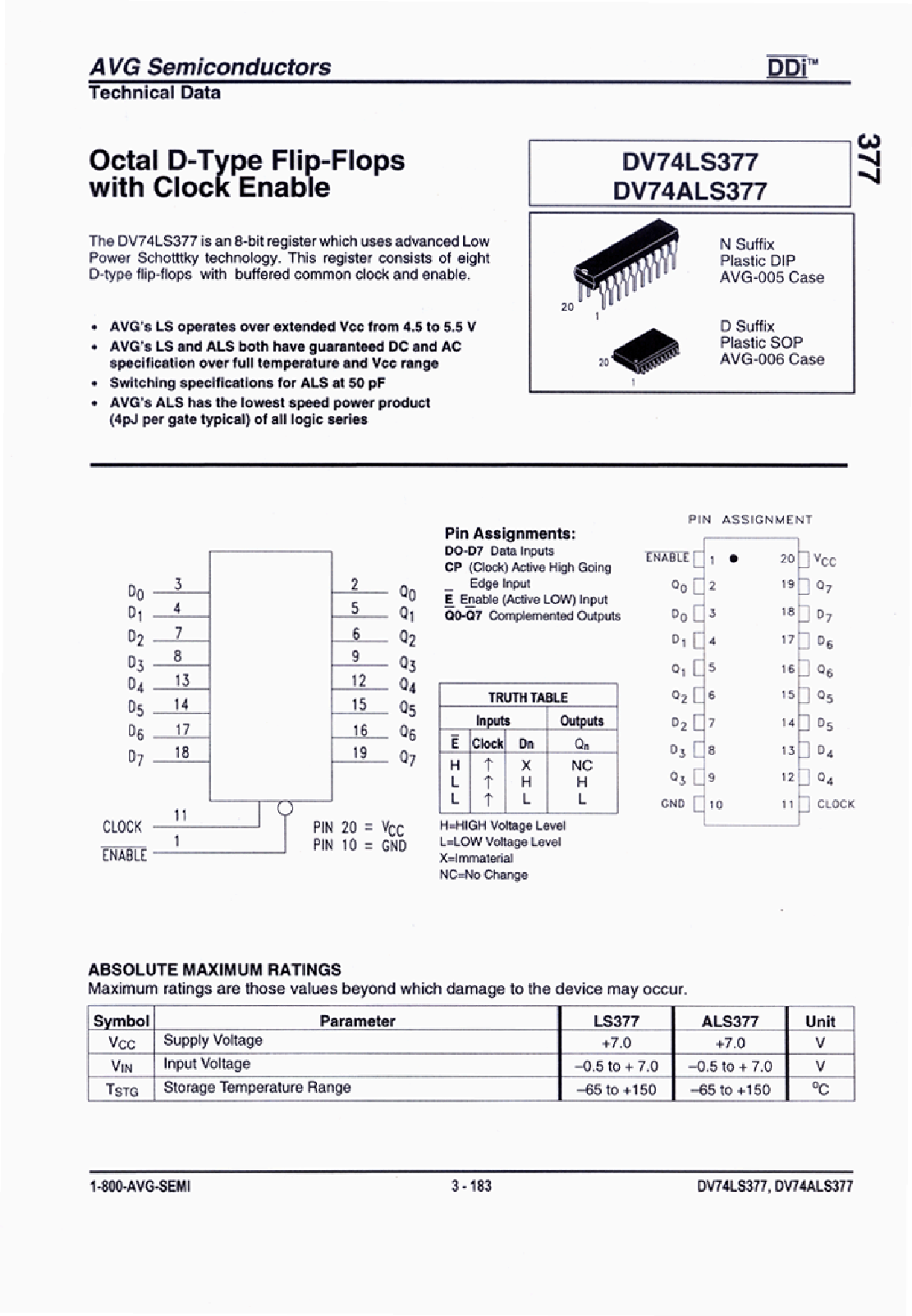

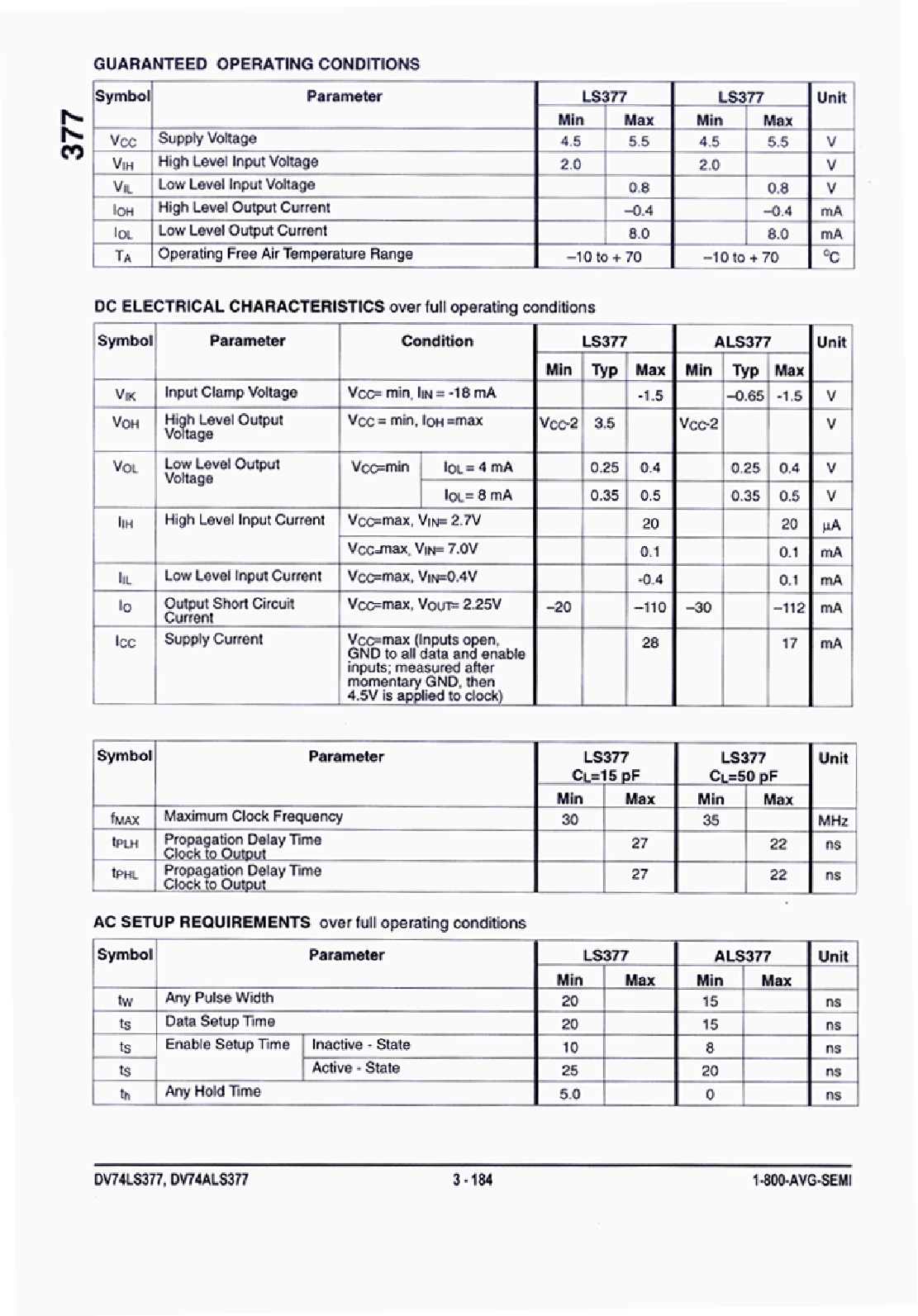

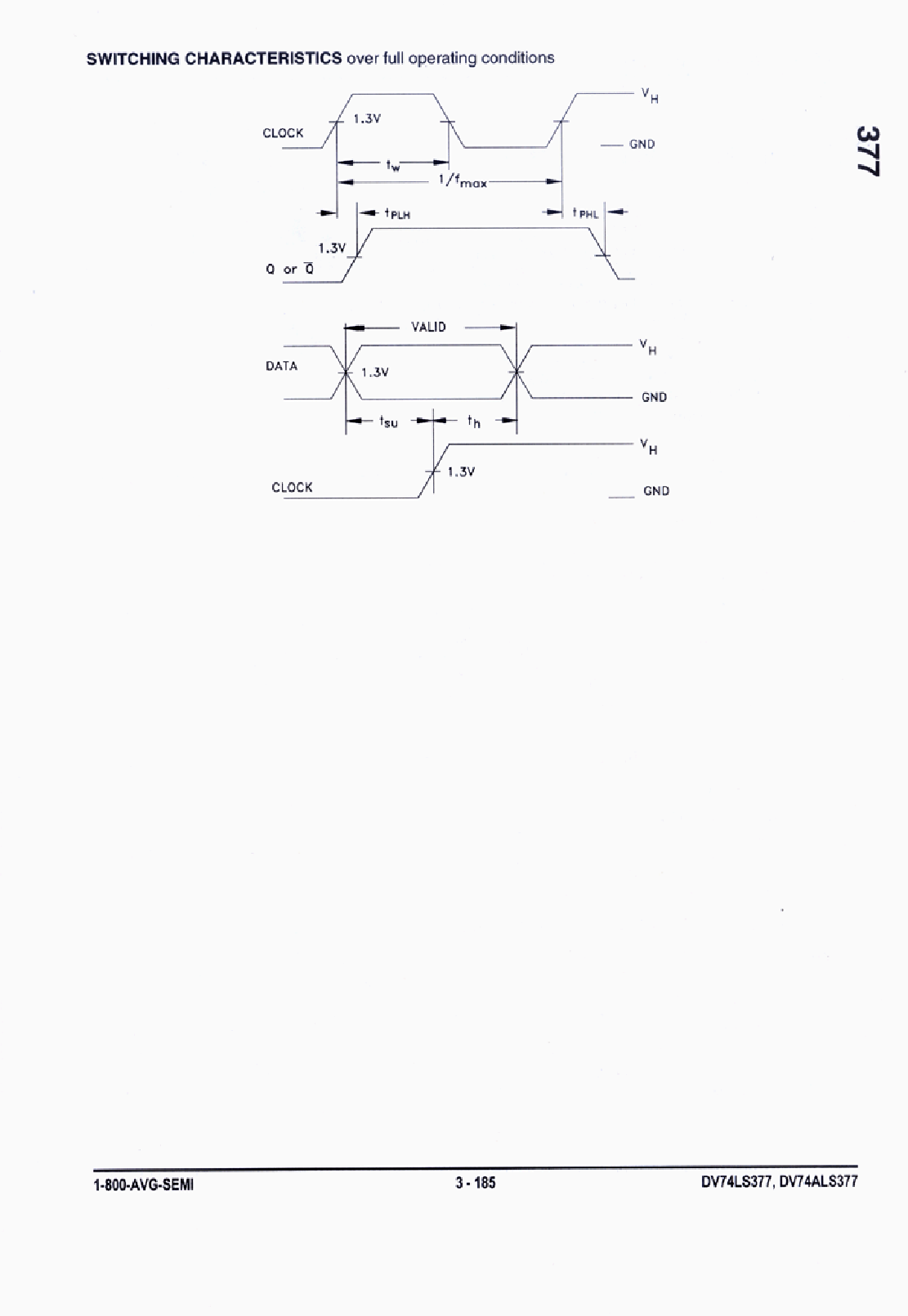

DV74LS377D: DescriptionD Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20; Categorylogic logic; File Size395KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS377D Overview

D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20

DV74LS377D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-20
Contacts	20
Reach Compliance Code	unknown
Other features	WITH HOLD MODE
series	LS
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	28 mA
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.5 mm
minfmax	30 MHz

Preview

Download Datasheet

View All

DV74LS377D Related Products

	DV74LS377D	DV74ALS377D	DV74ALS377N
Description	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20	D Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20	D Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC	DIP
package instruction	PLASTIC, SOP-20	SOP,	PLASTIC, DIP-20
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE
series	LS	ALS	ALS
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20
length	12.8 mm	12.8 mm	26.415 mm
Load capacitance (CL)	15 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	28 mA	17 mA	17 mA
propagation delay (tpd)	27 ns	22 ns	22 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	4.57 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.5 mm	7.5 mm	7.62 mm
minfmax	30 MHz	35 MHz	35 MHz
