HCTS75D/SAMPLE datasheet, PDF - EEWORLD Datasheet

HCTS75D/SAMPLE: DescriptionD Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16; Categorylogic logic; File Size229KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

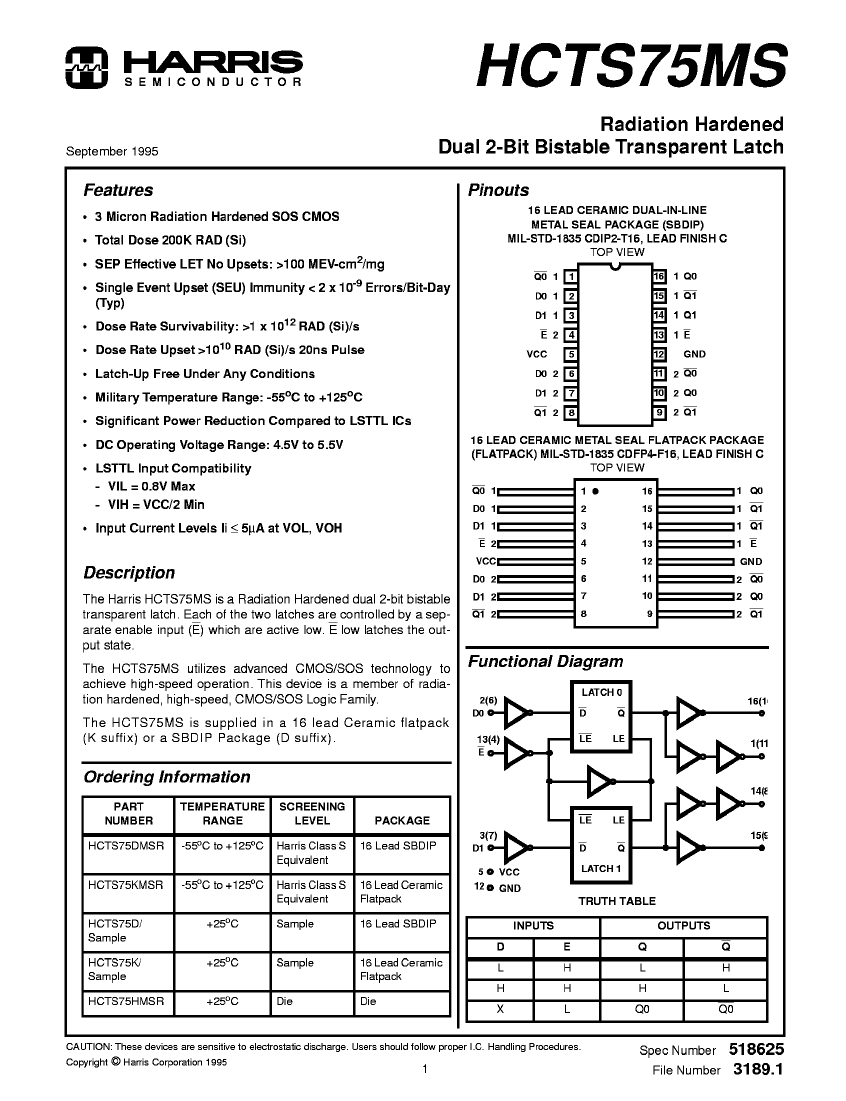

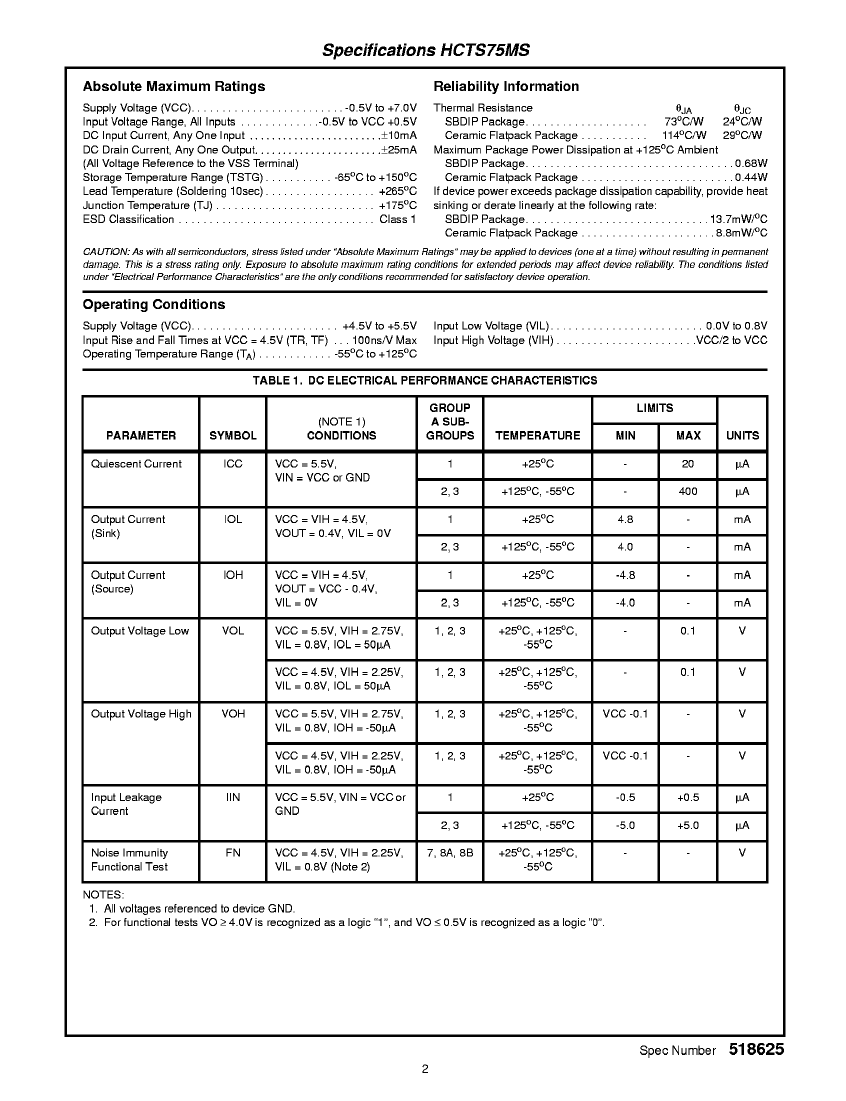

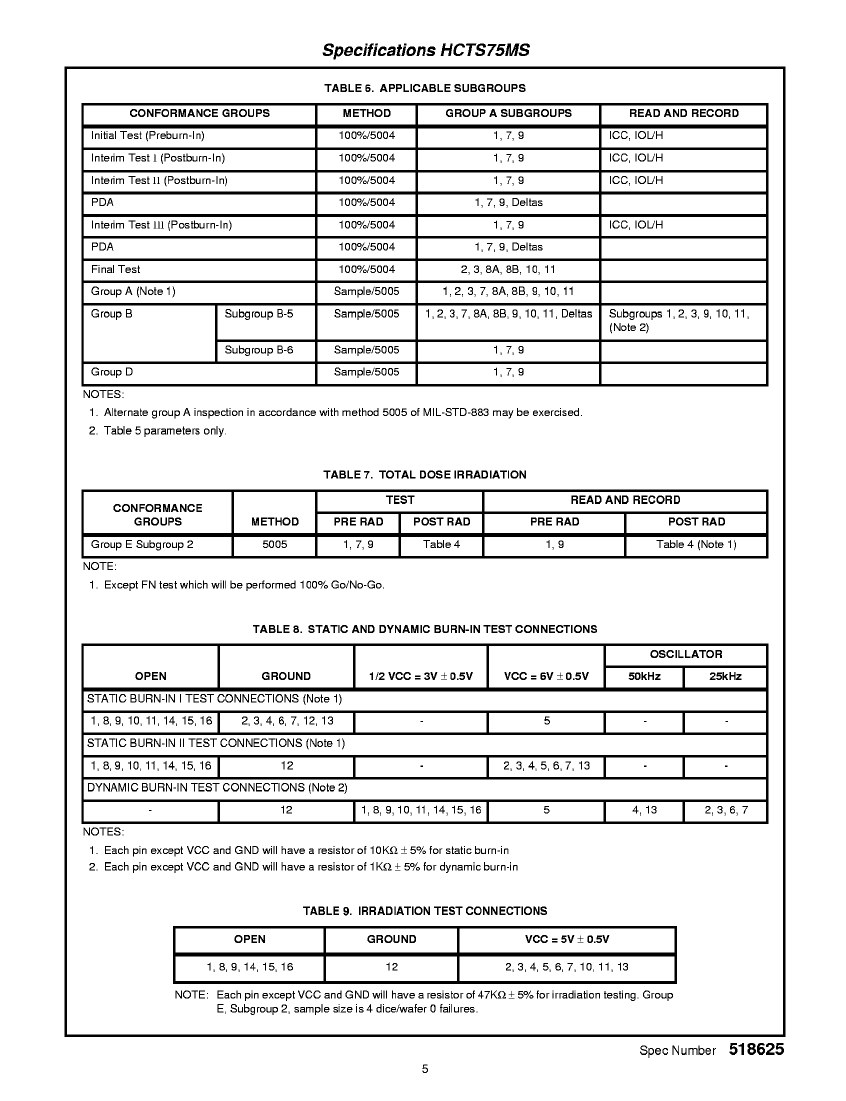

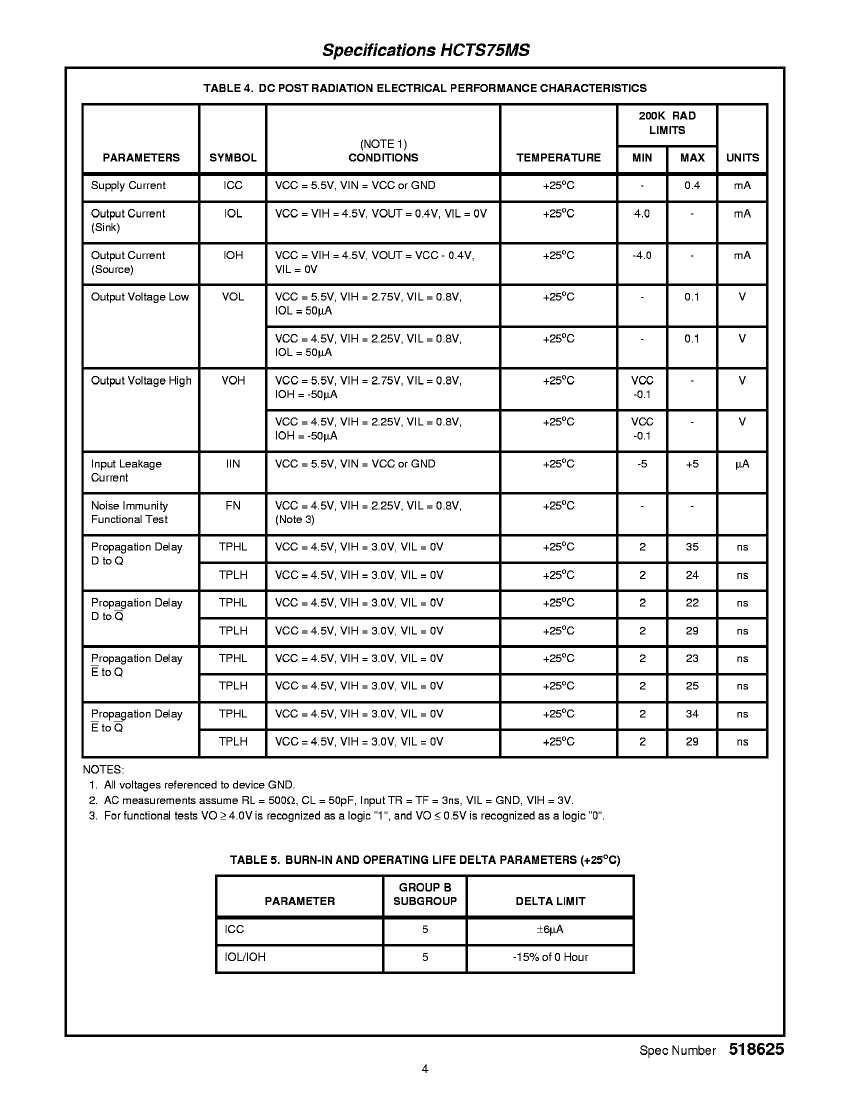

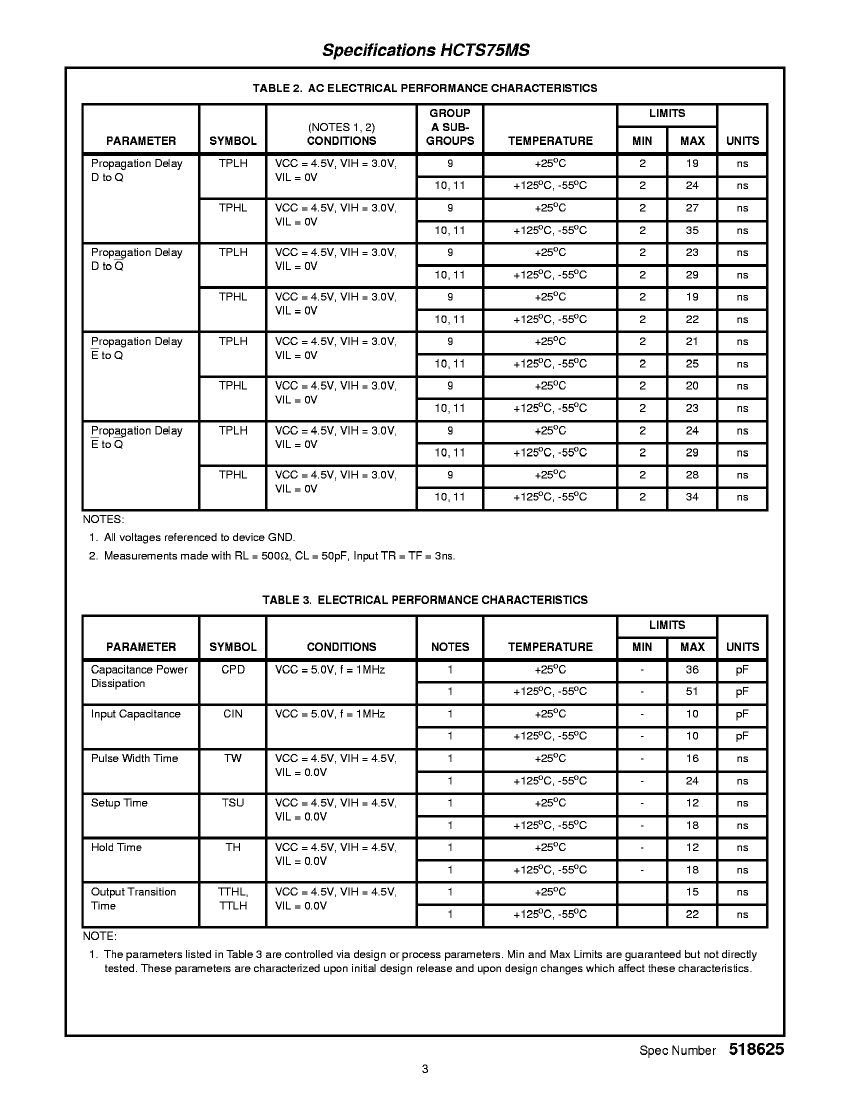

HCTS75D/SAMPLE Overview

D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-CDIP-T16
Logic integrated circuit type	D LATCH
Number of digits	2
Number of functions	2
Number of terminals	16
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	HIGH LEVEL

	HCTS75D/SAMPLE	HCTS75DMSR	HCTS75K/SAMPLE
Description	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDFP16
Maker	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown
series	HCT	HCT	HCT
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16
Logic integrated circuit type	D LATCH	D LATCH	D LATCH
Number of digits	2	2	2
Number of functions	2	2	2
Number of terminals	16	16	16
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	27 ns	35 ns	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	DUAL
Trigger type	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL
