PC Board Terminals and Connectors
wiecon
wiecon
wiecon

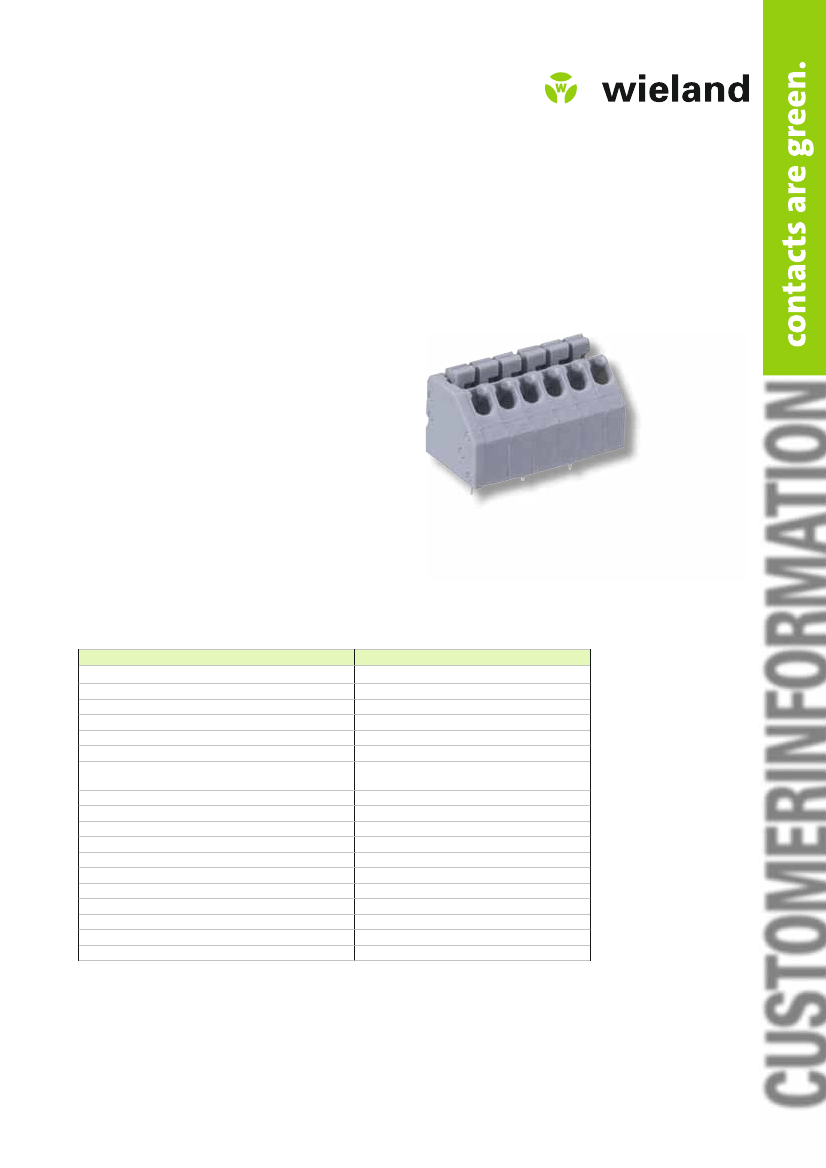

Type 8562 N
PC board terminal in spring clamp technology
Characteristics
❑
Conductors connected using spring clamp principle
❑
For solid and fine-stranded wires
❑
Ergonomic direction for operation and connection
❑
Large clamping body
❑
Two solder pins per pole
❑
2 – 24 pole designs
❑
Frameless construction
❑
3.50 mm spacing
❑
Color pebble gray (similar to RAL 7032)
Advantages
❑
Time-saving wiring
❑
Small “footprint”
❑
Good price-performance ratio
❑
No special tools required
Description
wiecon
Type 8562 N
PC board terminal in spring clamp technology
Frameless construction
Spacing
Number of poles
Rated current
Rated voltage
Rated peak voltage
Wire range
AWG wire range
Pollution degree
Material
Temperature range
Flammability according to UL 94
Conductor
– Insulation strip length
Conductor pull-out forces
Approvals
7.5 - 8.5 mm / 0.32 in
according to EN
UL, CSA
3.50 mm / 0.138 in
2 – 24 (others on request)
3A
250 V (DIN EN 60664-1)
300 V (UL, CSA)
4 kV
0.5 – 1.5 mm
2
28 – 14
2
PA 66
- 40° C – + 100° C
UL94-V0
0143.1 E 07/08
Headquarters:
Wieland Electric GmbH
Brennerstraße 10 – 14
D-96052 Bamberg
Sales- and
Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com
Technical information

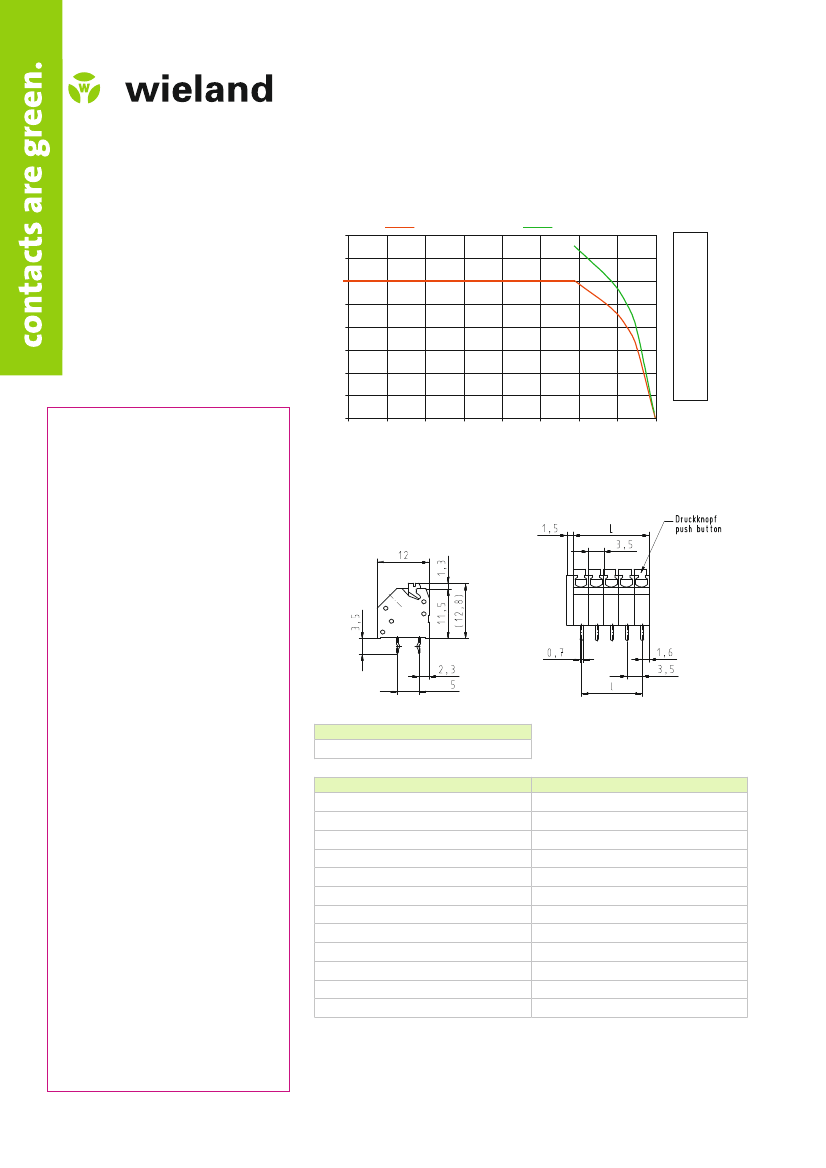

Derating
Derating according to DIN EN 60512-5-2
8562/N/5; Conductor 1.5 mm
2
stranded
4
Current carrying capability [A]
3,5
3
2,5
2
1,5
1
0,5
Corrected current AC [A]
Basic current AC [A]
Industrial technology
Solutions for the control cabinet
• DIN rail terminal blocks
– Screw, spring clamp or IDC connection
technology
– Wire cross sections up to 240 mm
2
– Numerous special functions
– Software solutions interfacing to
CAE systems
• Safety
– Safety sensors
– Safety relays
– Modular safety systems with fieldbus link
• PLC and fieldbus components
– Standard applications in IP 20
– Increased environmental conditions with
railroad and ship approvals
• Interface
– Coupling relays, semiconductor switches
– Measuring and monitoring relays
– Timer and switching relays
– Analog modules
– Passive interfaces
– Power supply units
– Overvoltage protection
Solutions for field applications
• Remote automation technology
– Power distribution
– Fieldbus interfaces and motor starters
• Connectors for industrial applications
– Square and round connectors
– Aluminum or plastic housings
– Degree of protection up to IP 68
– Current-carrying capacity up to 100 A
– Connectors for hazardous areas
– Modular, application specific technology
PC board terminals and connectors
– Screw or spring clamp connection technology
– Spacings: 3.5 mm to 10.16 mm
– Reflow or wave soldering process
Building and installation technology
• Building installation systems
– Main power supply connectors
IP 20/IP 65 ... IP 68
– Bus connectors
– Combined connectors
– Low-voltage connectors
– Power distribution system with flat cables
– Distribution systems
– Bus systems in KNX, LON and
radio technology
– DIN rail terminal blocks for
electrical installations
– Overvoltage protection
0
20
30
40
50
60
70
80
90
100
Ambient temperature [°C]
Dimensions
Poles
10
L [mm]
36.5
Type
8562N/ 2 OB
8562N/ 3 OB
8562N/ 4 OB
8562N/ 5 OB
8562N/ 6 OB
8562N/ 7 OB
8562N/ 8 OB
8562N/ 9 OB
8562N/ 10 OB
8562N/ 11 OB
8562N/ 12 OB
8562N/ 13 OB
Part No.
27.010.3253.0
27.010.3353.0
27.010.3453.0
27.010.3553.0
27.010.3653.0
27.010.3753.0
27.010.3853.0
27.010.3953.0
27.010.4053.0
27.010.4153.0
27.010.4253.0
27.010.4353.0
Type
8562N/ 14 OB
8562N/ 15 OB
8562N/ 16 OB
8562N/ 17 OB
8562N/ 18 OB
8562N/ 19 OB
8562N/ 20 OB
8562N/ 21 OB
8562N/ 22 OB
8562N/ 23 OB
8562N/ 24 OB
Part No.
27.010.4453.0
27.010.4553.0
27.010.4653.0
27.010.4753.0
27.010.4853.0
27.010.4953.0
27.010.5053.0
27.010.5153.0
27.010.5253.0
27.010.5353.0
27.010.5453.0
P r o d u c t
R a n g e
upper temperature limit
