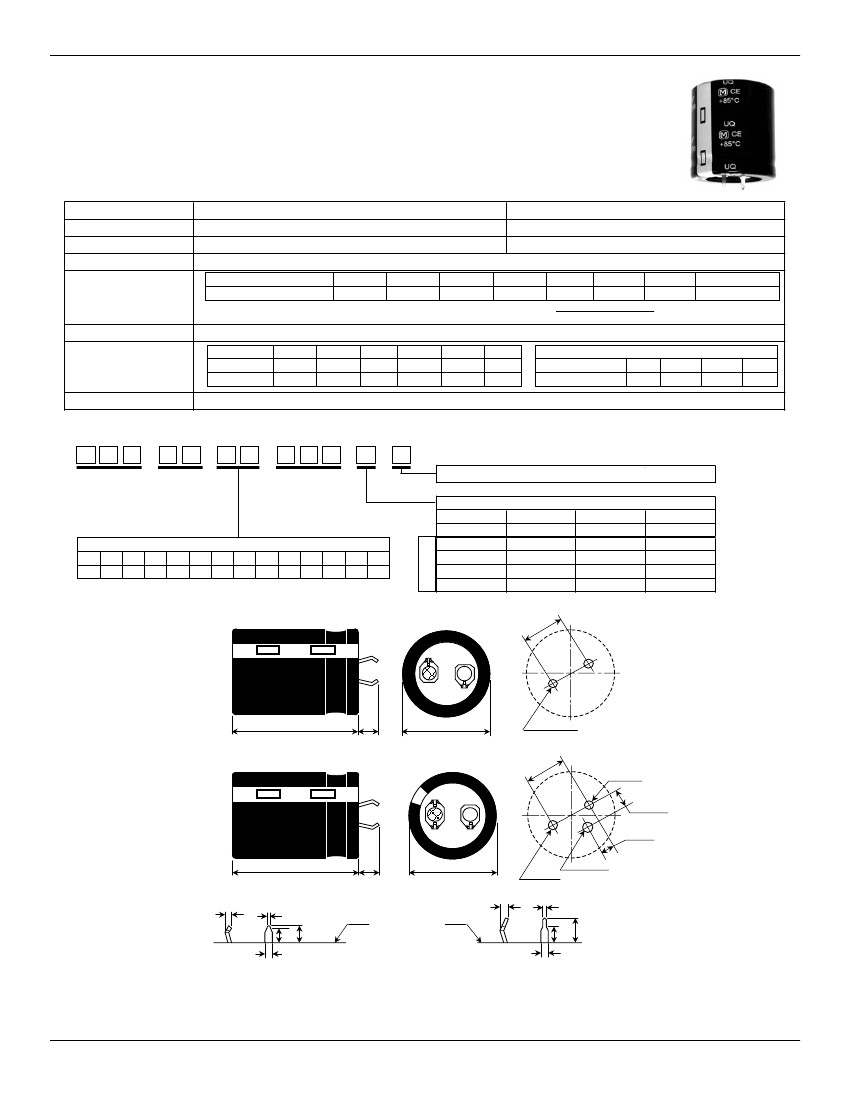

Large Can Aluminum Electrolytic Capacitors

Preview

Download Datasheet

View All

Panasonic Industrial Company

Aluminum Electrolytic Capacitors

TS-UQ Series

85°C, 2000 hours

RoHS

Compliant

Highest capacitance version (30% smaller than UP series)

2 and 3 pin versions available

RoHS compliant PVC and RoHS compliant PET sleeve options

Rated Working Voltage:

Operating Temperature:

Nominal Capacitance:

Capacitance Tolerance:

Dissipation Factor:

(120 Hz, +20°C)

Leakage Current:

Ripple Current Multipliers:

16 ~ 250 VDC

-40 ~ +85°C

270 ~ 100000µF

± 20%

Working Voltage [V]:

Max. D.F. (%):

100

160 ~ 450

350 ~ 450 VDC

-25 ~ +85°C

82 ~ 1000µF

For capacitance values > 33000µF, add the value of:

(rated cap. [µF] - 33000 )

1000

3 CV (µA) max. after 5 minutes;

C = Capacitance in µF, V = WV

Frequency(Hz):

16~100WV:

160~450WV:

0.93

0.75

0.95

0.8

100~120

1.0

500

1.05

1.2

1.08

1.25

10k

1.15

1.4

Ripple Current Ambient Temperature Factors*

Temperature (°C): 85°C

70°C

60°C

Multiplier: 1.0

1.3

1.4

45°C

1.5

Endurance:

2000 hours at +85°C with maximum specified ripple current (see page 4)

*Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.

Part Number System

Capacitance

Code

Sleeving Options: See Part Number listings

Diameter / Terminal Code

4.0±0.5mm

Common

Code

Series

Code

Dimensions in millimeters

2 Pin Mounting Style

Diameter

Voltage Code

1K 2A 2C 2D 2E 2V 2G 2S 2W

80 100 160 200 250 350 400 420 450

# of pins:

pin length "T":

22mm

25mm

30mm

35mm

6.3±1mm

10.0±0.1

Circuit Board Mounting Holes

L+2 max.

D+1 max.

2 x Ø2.0±0.1

10.0±0.1

Circuit Board Mounting Holes

Ø2.0±0.1

4.75±0.1

3.3±0.1

3 Pin Mounting Style

L+2 max.

D+1 max.

Ø2.0±0.1

Ø2.5 min.

Pin Dimensions

2.0 max.

0.8

-0.1

3.5

1.5±0.2

4.0±0.5

+0.2

2.0 max.

0.8

+0.2

-0.1

Top of Capacitor Body

4.0

1.5±0.2

6.3±1.0

4mm Length: Standard on 2 and 3 Pin Mounting Styles

6.3mm Length: Available on 2 Pin Mounting Style Only

Design and speciﬁcations are subject to change without notice.

Contact the factory or your sales representative for technical speciﬁcations before purchase and/or use.

When safety concerns arise, please contact Panasonic immediately for technical consultation.
