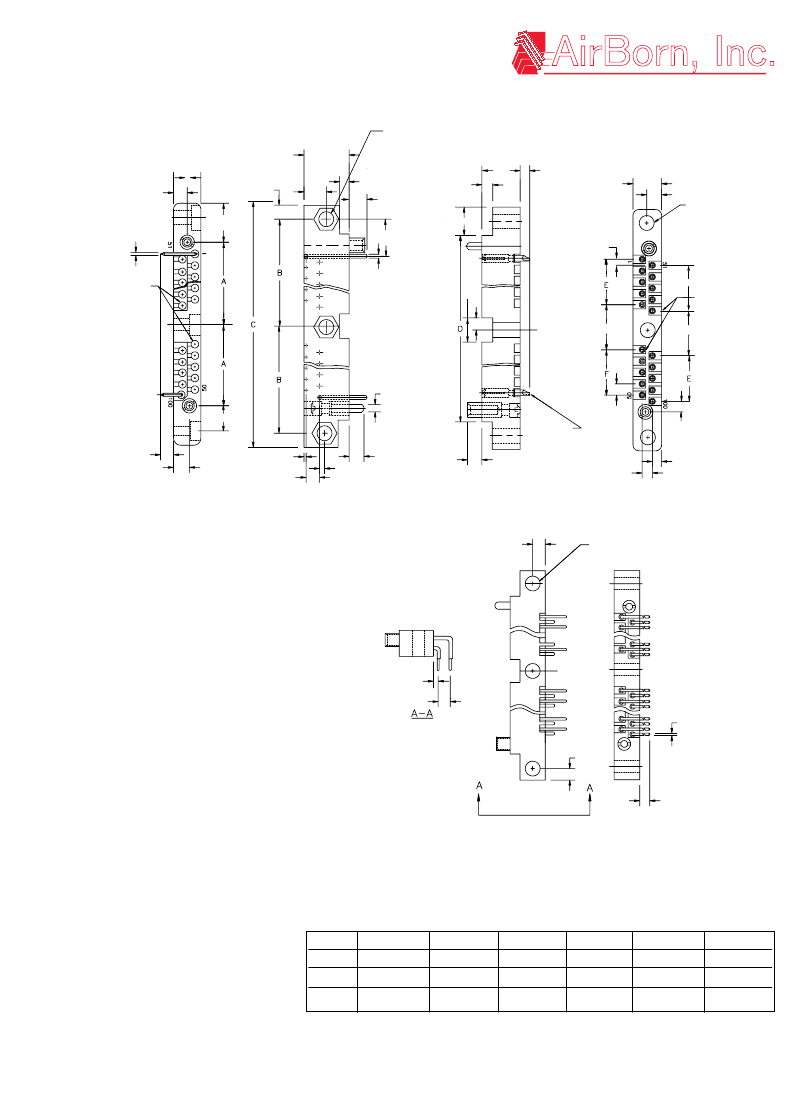

ROW
Connectors
WTB90PR7SY
2
PC Card to
Chassis or
Board
WTB90SAD11SY

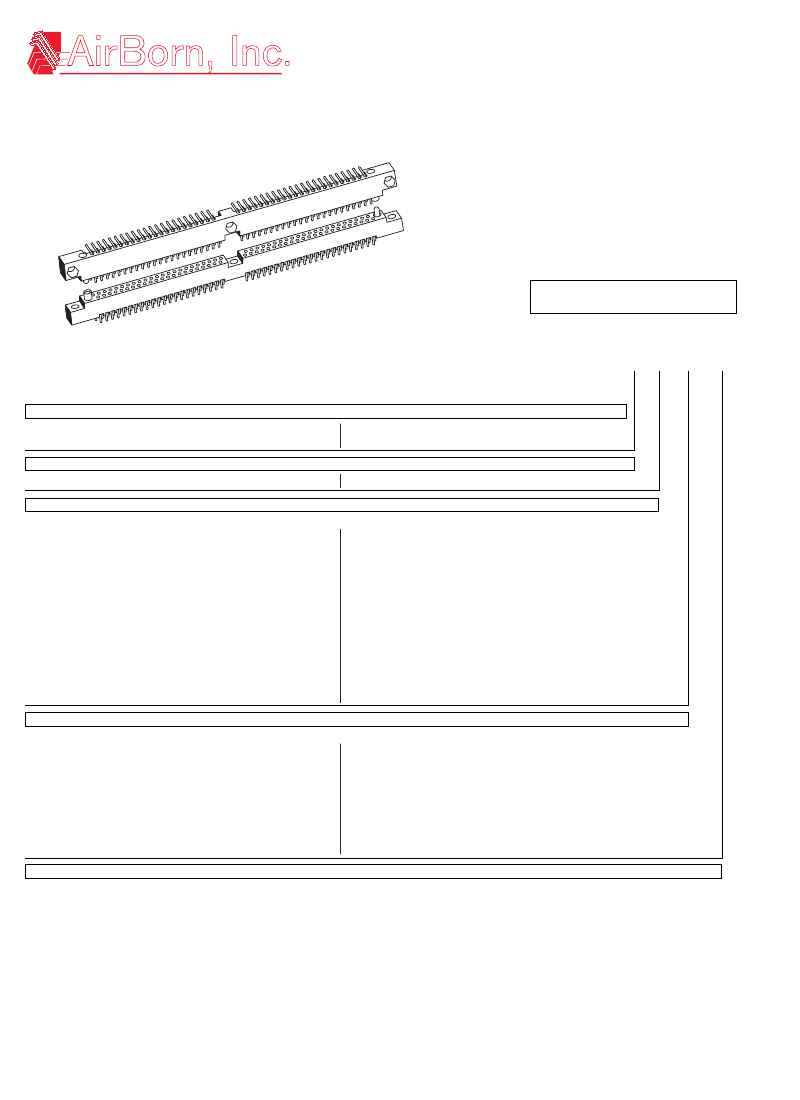

WTB-WTB (90-120)
Examples:
PLUG:
RECEPTACLE:
WTB 90
WTB 90
PR7
SY
SAD11 SY
PLUG
WTB
= 2-row, right-angle, plug, mounting ears
RECEPTACLE
SERIES
WTB
WTB
= 2-row, straight, receptacle, mounting ears
= 2-row, right angle, recept., mounting ears
NUMBER OF CONTACTS
90, 100, 120
90, 100, 120
TYPE OF CONTACTS
• The contact type determines image of connector. Pin right-angle contacts are always plug image, all other contacts, straight pin or
sockets are receptacle image. See page W-18 to switch image.
PR7
PR9
PR11
PR15
PRC
PRW33
PRW40
= Pin, right-angle, dip solder, .109
= Pin, right-angle, dip solder, .140
= Pin, right-angle, dip solder, .172
= Pin, right-angle, dip solder, .234
= Pin, right-angle, solder cup
= Pin, right-angle, wire wrap, .515
= Pin, right-angle, wire wrap, .625
SAC
SAD7
SAD9
SAD11
SAF3
SAF6
SAF9
SAW24
SAW40
SOR7
SOR9
SOR11
= Socket, straight, solder cup
= Socket, straight, dip solder, .109
= Socket, straight, dip solder, .140
= Socket, straight, dip solder, .172
= Socket, straight, flex-circuit, .050
= Socket, straight, flex-circuit, .093
= Socket, straight, flex-circuit, .140
= Socket, straight, wire wrap, .375
= Socket, straight, wire wrap, .625
= Socket, right-angle, dip solder, .109, see page W-17.
= Socket, right-angle, dip solder, .140, see page W-17.
= Socket, right-angle, dip solder, .172, see page W-17.
TYPE OF HARDWARE
• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WTB90PR9QJ. See “Gaskets” and
“Hoods” under next tab for instructions.
SY
= Guide Set
SY
= Guide Set
SY-#
= Guide Set, polarized
SY-# = Guide Set, polarized
SYL
= Guide Set, long
SYL = Guide Set, long
JT
= Turning jackset, .500
J
= Fixed jackset
JTA
= Turning jackset, .200
JL
= Fixed jackset, long
JTB
= Hex turning jackset, .200
JTC
= Turning jackset, .500
JTL
= Long turning jackset, .700
OPTIONS
• OPTION CODES: Add to the end of the part number. Example: WTB90PR7SY-D01. Call factory for additional codes.
-342: Remove .250-long mounting ears.
-443: Polarized Pin installed in contact position noted by dash number.
-515: (Right-angle insulators only) Contact position noted by dash number is left open (to mate with -443).
-B82: Termination face sealed against conformal coating.
-D01: Pre-tin contact terminations. (Solder cup, wire wrap and flex circuit contacts are excluded.)
-D54: Combine B82 and D01 special codes.
-G69: Solder cups are fixed in an outward orientation, otherwise contacts can rotate.
-413: Straight pin contacts in right-angle plug molding with solder cup terminals extending .100" beyond molding
“W” Series Connectors
