PK1-51: DescriptionFanless desktop-size appliance; File Size285KB，1 Pages; ManufacturerETC2

Download Datasheet Compare View All

PK1-51 Overview

Fanless desktop-size appliance

Preview

Download Datasheet

View All

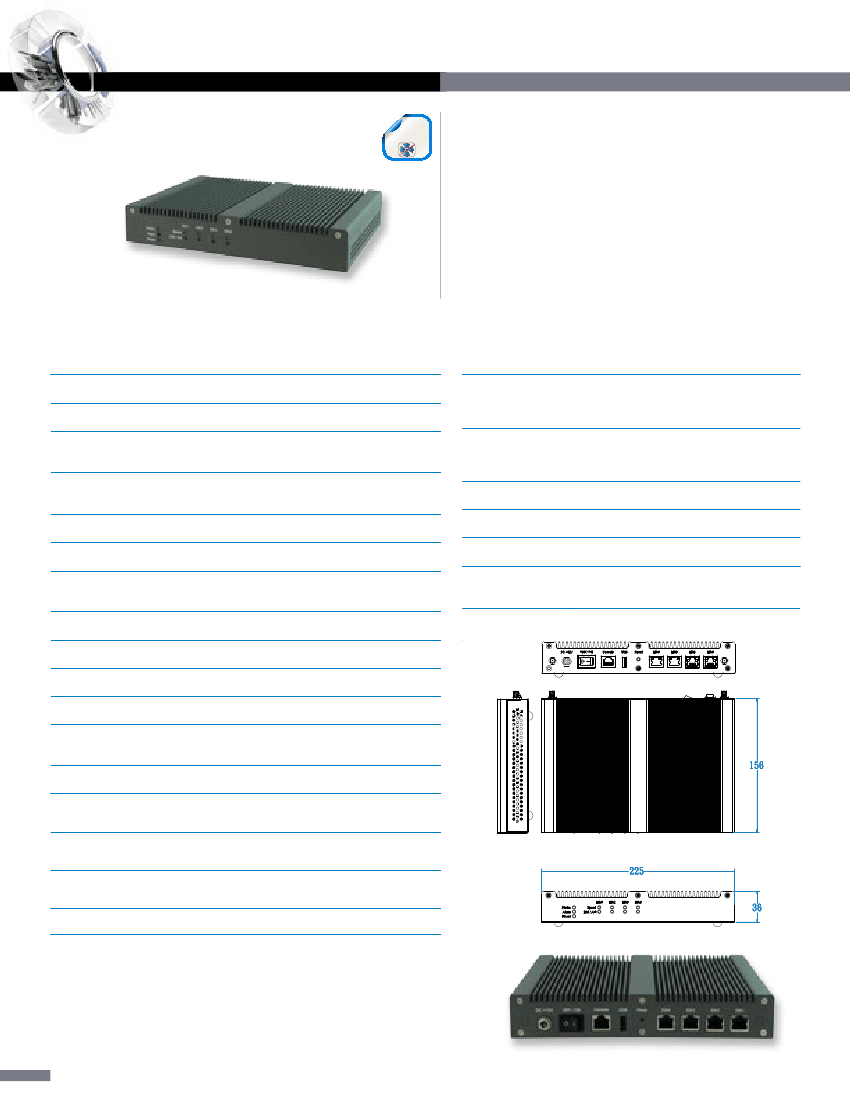

FWA6304-D25

Entry Level

iSMART

Entry Level Intel

Atom

D2550-Based

Fanless Network Appliance w/ 4 GbE Ports

Features

Fanless

NEW

FANLESS

iSMART

● Onboard

Intel

Atom

Processor D2550, 1.86 GHz

● Advanced LAN Bypass

● Fanless desktop-size appliance

● 1x CF socket, 1x 2.5” SSD drive bay

● 1x Mini-PCI socket, 1x Mini PCI-E (USB signal)

socket

Specifications

CPU

Chipset

Memory

LAN

Expansion Slots

Storage

USB

Serial I/O

VGA

LED

Power Supply

Dimensions

Weight

Operating

Temperature

Storage

Temperature

Operating

Humidity

Certification

Intel

Atom

Processor D2550, 1.86 GHz, 1M Cache

Intel

NM10 PCH

1x DDR3 non-ECC SODIMM, 800 MHz/ 1333 MHz,

up to 4GB

4x Intel

82583V GbE controller

1x Mini-PCI, 1x Mini PCI-E (USB signal)

1x 2.5” SSD drive bay, 1x CF scoket

1x USB 2.0 port on rear panel

Pin header for 2x USB 2.0 ports

1x RJ45 console, COM2 pin header

Via pin header

Power / Status / LAN activity

Full range 40W power adapter / 12V

225mm (W) x 156mm (D) x 36mm (H)

8.8”(W) x 6.14”(D) x 1.41”(H)

1.6 kg (3.53 lbs)

0°C~ 45°C (32°F~113°F)

-20° ~ 70°C (-4°F~158°F)

5~90%

CE/FCC

Ordering Information

FWA6304-D25

FWA Desktop Appliance, NM10+D2550

1.86 GHz, 4x GbE LAN, with Bypass,

40W power adaptor

5.25", Intel

Atom

D2550, NM10, 82583V

4x GbE, Bypass Eth1/2, SATA Connector,

CF socket, Mini PCI, 12V DC-In

PS/2 keyboard and mouse cable

VGA cable

Console cable, 160cm

MB837-D25

PS2G

VGA8

PK1-51

Dimensions

Remarks: 1.Specifications are subject to change without prior notice.

2.ODM/OEM is available

PK1-51 Related Products

	PK1-51	FWA6304-D25	MB837-D25	VGA8
Description	Fanless desktop-size appliance	Fanless desktop-size appliance	1x DDR3 SO-DIMM, 1066/1333 MHz, Max. 4GB	1x DDR3 SO-DIMM, 1066/1333 MHz, Max. 4GB
