AD847SQ

Description
High Speed, Low Power Monolithic Op Amp
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size241KB，12 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric View All

AD847SQ Online Shopping

Suppliers Part Number Price MOQ In stock
AD847SQ - - View Buy Now

AD847SQ Overview

High Speed, Low Power Monolithic Op Amp

AD847SQ Parametric

Parameter NameAttribute value
Brand NameAnalog Devices Inc
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerADI
Parts packaging codeDIP
package instructionDIP, DIP8,.3
Contacts8
Manufacturer packaging codeQ-8
Reach Compliance Codenot_compliant
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)7.5 µA
Maximum bias current (IIB) at 25C5 µA
Minimum Common Mode Rejection Ratio80 dB
Nominal Common Mode Rejection Ratio95 dB
frequency compensationYES
Maximum input offset voltage4000 µV
JESD-30 codeR-GDIP-T8
JESD-609 codee0
low-dissonanceNO
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-5 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT APPLICABLE
power supply+-5/+-15 V
Certification statusNot Qualified
Maximum seat height5.08 mm
minimum slew rate225 V/us
Nominal slew rate200 V/us
Maximum slew rate8.4 mA
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn63Pb37)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT APPLICABLE
Nominal Uniform Gain Bandwidth35000 kHz
Minimum voltage gain3000
width7.62 mm

AD847SQ Preview

a
FEATURES
Superior Performance
High Unity Gain BW: 50 MHz
Low Supply Current: 5.3 mA
High Slew Rate: 300 V/ s
Excellent Video Specifications
0.04% Differential Gain (NTSC and PAL)
0.19 Differential Phase (NTSC and PAL)
Drives Any Capacitive Load
Fast Settling Time to 0.1% (10 V Step): 65 ns
Excellent DC Performance
High Open-Loop Gain 5.5 V/mV (R
LOAD
= 1 k )
Low Input Offset Voltage: 0.5 mV
Specified for 5 V and 15 V Operation
Available in a Wide Variety of Options
Plastic DIP and SOIC Packages
Cerdip Package
Die Form
MIL-STD-883B Processing
Tape & Reel (EIA-481A Standard)
Dual Version Available: AD827 (8 Lead)
Enhanced Replacement for LM6361
Replacement for HA2544, HA2520/2/5 and EL2020
APPLICATIONS
Video Instrumentation
Imaging Equipment
Copiers, Fax, Scanners, Cameras
High Speed Cable Driver
High Speed DAC and Flash ADC Buffers
High Speed, Low Power
Monolithic Op Amp
AD847
CONNECTION DIAGRAM
Plastic DIP (N),
Small Outline (R) and
Cerdip (Q) Packages
specifications which include an open-loop gain of 3500 V/V
(500
Ω
load) and low input offset voltage of 0.5 mV. Common-
mode rejection is a minimum of 78 dB. Output voltage swing is
±
3 V into loads as low as 150
Ω.
Analog Devices also offers
over 30 other high speed amplifiers from the low noise AD829
(1.7 nV/√Hz) to the ultimate video amplifier, the AD811, which
features 0.01% differential gain and 0.01° differential phase.
APPLICATION HIGHLIGHTS
1. As a buffer the AD847 offers a full-power bandwidth of
12.7 MHz (5 V p-p with
±
5 V supplies) making it outstand-
ing as an input buffer for flash A/D converters.
2. The low power and small outline package of the AD847
make it very well suited for high density applications such as
multiple pole active filters.
3. The AD847 is internally compensated for unity gain opera-
tion and remains stable when driving any capacitive load.
PRODUCT DESCRIPTION
The AD847 represents a breakthrough in high speed amplifiers
offering superior ac & dc performance and low power, all at low
cost. The excellent dc performance is demonstrated by its
±
5 V
6
QUIESCENT CURRENT – mA
5.5
5
4.5
4
0
5
10
15
SUPPLY VOLTAGE –
±
Volts
20
Quiescent Current vs. Supply Voltage
AD847 Driving Capacitive Loads
REV. F
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700
Fax: 617/326-8703
AD847–SPECIFICATIONS
(@ T = +25 C, unless otherwise noted)
A
Model
Conditions
INPUT OFFSET VOLTAGE
Offset Drift
INPUT BIAS CURRENT
T
MIN
to T
MAX
INPUT OFFSET CURRENT
T
MIN
to T
MAX
Offset Current Drift
OPEN-LOOP GAIN
V
OUT
=
±
2.5 V
R
LOAD
= 500
Ω
T
MIN
to T
MAX
R
LOAD
= 150
Ω
V
OUT
=
±
10 V
R
LOAD
= 1 kΩ
T
MIN
to T
MAX
±
5 V
2
1
±
15 V
3
1.5
±
5 V
±
15 V
V
OUT
= 5 V p-p
R
LOAD
= 500
Ω,
V
OUT
= 20 V p-p,
R
LOAD
= 1 kΩ
R
LOAD
= 1 kΩ
–2.5 V to +2.5 V
10 V Step, A
V
= –1
–2.5 V to +2.5 V
10 V Step, A
V
= –1
C
LOAD
= 10 pF
R
LOAD
= 1 kΩ
f
≈
4.4 MHz, R
LOAD
= 1 kΩ
f
≈
4.4 MHz, R
LOAD
= 1 kΩ
V
CM
=
±
2.5 V
V
CM
=
±
12 V
T
MIN
to T
MAX
V
S
=
±
5 V to
±
15 V
T
MIN
to T
MAX
f = 10 kHz
f = 10 kHz
±
15 V
±
15 V
±
5 V
±
15 V
OUTPUT VOLTAGE SWING
R
LOAD
= 500
Ω
R
LOAD
= 150
Ω
R
LOAD
= 1 kΩ
R
LOAD
= 500
Ω
±
5 V
±
5 V
±
15 V
±
15 V
±
15 V
3.0
2.5
12
10
±
5 V
±
15 V
±
5 V
±
15 V
±
5 V
±
15 V
±
5 V
±
15 V
±
15 V
±
15 V
±
15 V
±
5 V
±
15 V
78
78
75
75
72
±
5 V,
±
15 V
±
5 V,
±
15 V
1
V
S
±
5 V
Min
AD847J
Typ
0.5
15
3.3
50
0.3
3.5
1.6
5.5
T
MIN
to T
MAX
Max
1
3.5
6.6
7.2
300
400
Min
AD847AR
Typ
Max
0.5
1
4
15
3.3
50
0.3
6.6
10
300
500
Units
mV
mV
µV/°C
µA
µA
nA
nA
nA/°C
V/mV
V/mV
V/mV
V/mV
V/mV
MHz
MHz
MHz
MHz
V/µs
V/µs
ns
ns
ns
ns
Degree
%
Degree
dB
dB
dB
dB
dB
nV/√Hz
pA/√Hz
V
V
V
V
±
V
±
V
±
V
±
V
mA
kΩ
pF
Ω
2
1
3.5
1.6
3
1.5
5.5
DYNAMIC PERFORMANCE
Unity Gain Bandwidth
Full Power Bandwidth
2
35
50
12.7
4.7
200
300
65
65
140
120
50
0.04
0.19
95
95
86
15
1.5
+4.3
–3.4
+14.3
–13.4
3.6
3
3.0
2.5
12
10
78
78
75
75
72
35
50
12.7
4.7
200
300
65
65
140
120
50
0.04
0.19
95
95
86
15
1.5
+4.3
–3.4
+14.3
–13.4
3.6
3
Slew Rate
3
Settling Time
to 0.1%, R
LOAD
= 250
Ω
to 0.01%, R
LOAD
= 250
Ω
Phase Margin
Differential Gain
Differential Phase
COMMON-MODE REJECTION
225
225
POWER SUPPLY REJECTION
INPUT VOLTAGE NOISE
INPUT CURRENT NOISE
INPUT COMMON-MODE
VOLTAGE RANGE
Short-Circuit Current
INPUT RESISTANCE
INPUT CAPACITANCE
OUTPUT RESISTANCE
POWER SUPPLY
Operating Range
Quiescent Current
T
MIN
to T
MAX
T
MIN
to T
MAX
N
OTES
l
32
300
1.5
32
300
1.5
15
18
6.0
7.3
6.3
7.6
4.5
4.8
5.3
18
6.0
7.3
6.3
7.6
Open Loop
4.5
15
±
5 V
±
15 V
4.8
5.3
V
mA
mA
mA
mA
Input Offset Voltage Specifications are guaranteed after 5 minutes at T
A
= +25°C.
Full Power Bandwidth = Slew Rate/2
π
V
PEAK
.
3
Slew Rate is measured on rising edge.
All min and max specifications are guaranteed. Specifications in
boldface
are 100% tested at final electrical test.
Specifications subject to change without notice.
2
–2–
REV. F
AD847
Model
Conditions
INPUT OFFSET VOLTAGE
Offset Drift
INPUT BIAS CURRENT
T
MIN
to T
MAX
INPUT OFFSET CURRENT
T
MIN
to T
MAX
Offset Current Drift
OPEN-LOOP GAIN
V
OUT
=
±
2.5 V
R
LOAD
= 500
Ω
T
MIN
to T
MAX
R
LOAD
= 150
Ω
V
OUT
= =
±
10 V
R
LOAD
= 1 kΩ
T
MIN
to T
MAX
±
5 V
2
1
±
15 V
3
1.5
±
5 V
±
15 V
V
OUT
= 5 V p-p
R
LOAD
= 500
Ω,
V
OUT
= 20 V p-p,
R
LOAD
= 1 kΩ
R
LOAD
= 1 kΩ
–2.5 V to +2.5 V
10 V Step, A
V
= –1
–2.5 V to +2.5 V
10 V Step, A
V
= –1
C
LOAD
= 10 pF
R
LOAD
= 1 kΩ
f
≈
4.4 MHz, R
LOAD
= 1 kΩ
f
≈
4.4 MHz, R
LOAD
= 1 kΩ
V
CM
=
±
2.5 V
V
CM
=
±
12 V
T
MIN
to T
MAX
V
S
=
±
5 V to
±
15 V
T
MIN
to T
MAX
f = 10 kHz
f = 10 kHz
±
15 V
±
15 V
±
5 V
±
15 V
OUTPUT VOLTAGE SWING
R
LOAD
= 500
Ω
R
LOAD
= 150
Ω
R
LOAD
= 1 kΩ
R
LOAD
= 500
Ω
±
5 V
±
5 V
±
15 V
±
15 V
±
15 V
3.0
2.5
12
10
±
5 V
±
15 V
±
5 V
±
15 V
±
5 V
±
15 V
±
5 V
±
15 V
±
15 V
±
15 V
±
15 V
±
5 V
±
15 V
80
80
75
75
72
3.5
1.6
5.5
3
1.5
2
1
3.5
1.6
5.5
V/mV
V/mV
V/mV
V/mV
V/mV
MHz
MHz
MHz
MHz
V/µs
V/µs
ns
ns
ns
ns
Degree
%
Degree
dB
dB
dB
dB
dB
nV/√Hz
pA/√Hz
V
V
V
V
±
V
±
V
±
V
±
V
mA
kΩ
pF
Ω
18
5.7
7.8
6.3
8.4
V
mA
mA
mA
mA
0.3
±
5 V,
±
15 V
50
±
5 V,
±
15 V
1
V
S
±
5 V
Min
T
MIN
to T
MAX
AD847AQ
Typ
Max
0.5
1
4
15
3.3
5
7.5
300
400
Min
AD847S
Typ
0.5
15
3.3
50
0.3
Max
1
4
5
7.5
300
400
Units
mV
mV
µV/°C
µA
µA
nA
nA
nA/°C
DYNAMIC PERFORMANCE
Unity Gain Bandwidth
Full Power Bandwidth
2
35
50
12.7
4.7
200
300
65
65
140
120
50
0.04
0.19
95
95
86
15
1.5
+4.3
–3.4
+14.3
–13.4
3.6
3
3.0
2.5
12
10
80
80
75
75
72
35
50
12.7
4.7
200
300
65
65
140
120
50
0.04
0.19
95
95
86
15
1.5
+4.3
–3.4
+14.3
–13.4
3.6
3
Slew Rate
3
225
225
Settling Time
to 0.1%, R
LOAD
= 250
Ω
to 0.01%, R
LOAD
= 250
Ω
Phase Margin
Differential Gain
Differential Phase
COMMON-MODE REJECTION
POWER SUPPLY REJECTION
INPUT VOLTAGE NOISE
INPUT CURRENT NOISE
INPUT COMMON-MODE
VOLTAGE RANGE
Short-Circuit Current
INPUT RESISTANCE
INPUT CAPACITANCE
OUTPUT RESISTANCE
POWER SUPPLY
Operating Range
Quiescent Current
T
MIN
to T
MAX
T
MIN
to T
MAX
Open Loop
32
300
1.5
15
4.5
4.8
5.3
18
5.7
7.0
6.3
7.6
4.5
32
300
1.5
15
±
5 V
±
15 V
4.8
5.3
REV. F
–3–
AD847
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
±
18 V
Internal Power Dissipation
2
Plastic (N) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 Watts
Small Outline (R) . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 Watts
Cerdip (Q) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 Watts
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
±
V
S
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . .
±
6 V
Storage Temperature Range (Q) . . . . . . . . . –65°C to +150°C
(N, R) . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to +125°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 175°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . +300°C
NOTES
1
Stresses above those listed under “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress rating only, and functional
operation of the device at these or any other conditions above those indicated in
the operational section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
2
Mini-DIP Package:
θ
JA
= 100°C/Watt;
θ
JC
= 33°C/Watt
Cerdip Package:
θ
JA
= 110°C/Watt;
θ
JC
= 30°C/Watt
Small Outline Package:
θ
JA
= 155°C/Watt;
θ
JC
= 33°C/Watt
ABSOLUTE MAXIMUM RATINGS
1
ESD SUSCEPTIBILITY
ESD (electrostatic discharge) sensitive device. Electrostatic
charges as high as 4000 volts, which readily accumulate on the
human body and on test equipment, can discharge without de-
tection. Although the AD847 features proprietary ESD protec-
tion circuitry, permanent damage may still occur on these
devices if they are subjected to high energy electrostatic dis-
charges. Therefore, proper ESD precautions are recommended
to avoid any performance degradation or loss of functionality.

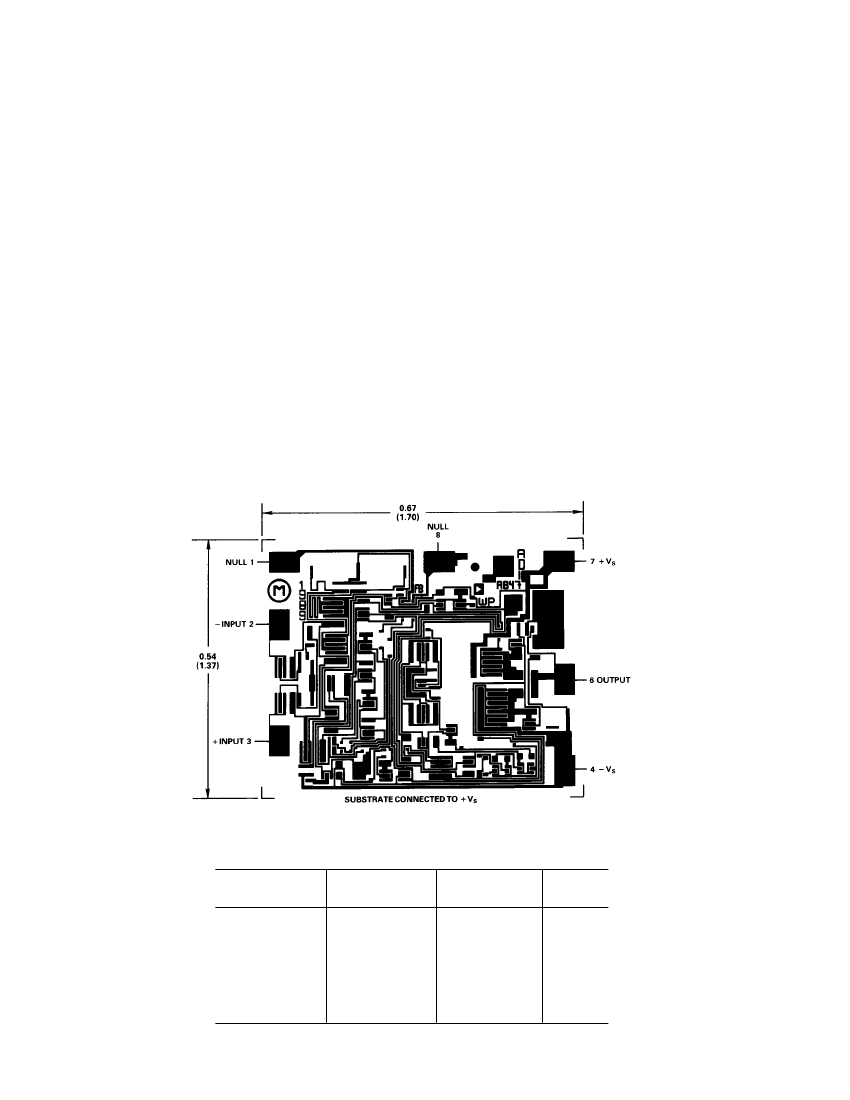

METALIZATION PHOTOGRAPH
Contact factory for latest dimensions.
Dimensions shown in inches and (mm).
ORDERING GUIDE
Models*
AD847JN
AD847JR
AD847AQ
AD847AR
AD847SQ
AD847SQ/883B
5962-8964701PA
Temperature
Range – C
0 to +70
0 to +70
–40 to +85
–40 to +85
–55 to +125
–55 to +125
–55 to +125
Package
Description
Plastic
SOIC
Cerdip
SOIC
Cerdip
Cerdip
Cerdip
Package
Option
N-8
R-8
Q-8
R-8
Q-8
Q-8
Q-8
*AD847 also available in J and S grade chips, and AD847JR and AD847AR are available
*in
tape and reel.
–4–
REV. F
AD847
Typical Characteristics
(@ +25 C and V =
S
20
15 V, unless otherwise noted)
20
INPUT COMMON-MODE RANGE –
±
Volts
OUTPUT VOLTAGE SWING – Volts
15
+V
IN
10
–V
IN
5
15
+V
OUT
10
–V
OUT
5
R
LOAD
= 500Ω
0
0
5
10
SUPPLY VOLTAGE –
±
Volts
15
20
0
0
5
10
SUPPLY VOLTAGE –
±
Volts
15
20
Figure 1. Input Common-Mode Range vs. Supply Voltage
Figure 2. Output Voltage Swing vs. Supply Voltage
30
OUTPUT VOLTAGE SWING – Volts p-p
6
25
QUIESCENT CURRENT – mA
10k
5.5
20
±15
V SUPPLIES
15
5
10
±5V
SUPPLIES
4.5
5
0
10
100
1k
LOAD RESISTANCE –
Ω
4
0
5
10
SUPPLY VOLTAGE –
±
Volts
15
20
Figure 3. Output Voltage Swing vs. Load Resistance
Figure 4. Quiescent Current vs. Supply Voltage
5
100
INPUT BIAS CURRENT –
µA
4
V
S
=
±
5V
OUTPUT IMPEDANCE –
Ω
10
1
3
0.1
2
–60
0.01
–40
–20
0
20
40
60
80
100
120
140
10k
100k
1M
FREQUENCY – Hz
10M
100M
TEMPERATURE –
°C
Figure 5. Input Bias Current vs. Temperature
Figure 6. Output Impedance vs. Frequency
REV. F
–5–
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Electronic trip unit circuit

60 seconds display circuit

Filter circuit diagram

Multifunctional high-precision ramp generator circuit diagram

Massager circuit diagram

Output 80Vp-p suspended load amplifier circuit

Look at different beauties, find different beauties
Today, "Find the Differences" presents to you all beautiful celebrities. Please take your time to look and choose. [img]http://pic.yupoo.com/250echo/2874274faa9d/0h8yezhk.jpg[/img] [img]http://pic.yup...
迷失的悟空 Talking
Regarding the issue of giving away chip coins - Dear moderators
Everyone: When I was browsing the posts just now, I saw that everyone was actively helping friends who didn’t have Chip Coins by giving away Chip Coins. Thank you for your hard work. However, if too m...
soso Suggestions & Announcements
Software Phase-Locked Method of DSP2812
[b]1. Phase-locked[/b][backcolor=rgb(255,255,255)][font=Tahoma,] The meaning of phase-locked is the automatic control of phase synchronization. The automatic control closed-loop system that can comple...
灞波儿奔 DSP and ARM Processors
HP Prime G2 calculator with MicroPython support
Hardware of HP Prime G2:CPU: Cortex A7 @528MHz RAM: 256MB Flash (ROM): 512MB LCD: 320x240-pixel (16-bit color) touchscreenHome View: 11 rows by 40 columnsPorts: micro-USB Power: 2000mAh Rechargeable l...
dcexpert MicroPython Open Source section
Ka-band communication satellite and Ka-band transponder technology
AbstractThe widespread popularity of the Internet has brought new opportunities to Ka-band broadband satellite communications. This article introduces the development and application of Ka-band commun...
JasonYoo RF/Wirelessly
"A Brief Analysis of 51 Single-Chip Microcomputer C Language Examples"
Just as the title!...
542764435 51mcu
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. MS3476L18-30SX
  2. ZWS250ESB3200R5%LX
  3. SFV17R-2STBE5LF
  4. SIT2045BMES8-28NA123.948001
  5. S2512CA2460DEB-TR
  6. RC1206AG576RFKEF
  7. C2824H153MCGALT050
  8. RGC26DRAH
  9. SD103AWS
  10. ED506S_S2_00001
  11. A2541WV-S-2x20P-C305
  12. PPS103KC241016LC

Popular Articles

  1. Introduction to the four major parts of air conditioning and refrigeration_The refrigeration principle of air conditioning
  2. 51 single chip microcomputer-temperature PID algorithm (C program)
  3. Cloud maintenance and repair enables digitalization of factory equipment inspection and maintenance, and empowers the new generation of industrial Internet
  4. The difference and distinction between automobile noise and abnormal sound
  5. How to set the inverter DI port?
  6. Wi-SUN: A protocol built for interconnected smart cities
  7. Toshiba Launches High-Voltage, Low-Current-Consumption LDO Regulator to Help Reduce Equipment Standby Power Consumption

Technical ResourceMore

  1. Circuits 5th Edition Courseware Chapter 3
  2. LLC parameter design
  3. Anti-interference technology of switching power supply
  4. uC-FS V3.10 source code, not the real source code of LIB.
  5. Analysis and comparison of inductor losses in critical mode boost power factor correction circuits
  6. Verilog IEEE 13642005 IEEE Standard
  7. Complex robotic arm drawings
  8. 1-6 DC and AC power supply acting on the diode at the same time
  9. High-speed dual MOSFET driver and its application in switching power supplies.
  10. Altium Designer schematic library voice chip.SchLib

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2352  1028  258  2695  2183  48  21  6  55  44
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
