SOLID STATE DEVICES, INC.
14830 Valley View Blvd * La Mirada, Ca 90638
Phone: (562) 404-7855 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SDR623CTJ & CAJ
thru
SDR625CTJ & CAJ
40AMPS
300 - 500 VOLTS
35 nsec
HYPER FAST
CENTERTAP RECTIFIER
TO-257(J)
Designer's Data Sheet
FEATURES:
• Hyper Fast Recovery: 35nsec Maximum
• High Surge Rating
• Low Reverse Leakage Current
• Low Junction Capacitance
• Hyper Fast Recovery: 35nsec Maximum
• Isolated Hermetically Sealed Package
• Custom Lead Forming Available
• Eutectic Die Attach Available
• Ultrasonic Aluminum Wire Bonds
• TX, TXV and Space Level Screening Available
Available in Following Configurations:
Rectifier:
SDR62_J, SDR62_JDB, and SDR62_JUB
Common Cathode Centertap:
SDR62_CTJ, SDR62_CTJDB, and SDR62_CTJUB
Common Anode Centertap:
SDR62_CAJ, SDR62_CAJDB, and SDR62_CAJUB
Maximum Ratings
Peak Repetitive Reverse and
DC Blocking Voltage
SDR623CTJ & CAJ
SDR624CTJ & CAJ
SDR625CAJ & CAJ
SYMBOL
V
RRM
V
RWM
V
R
Io
I
FSM
T
OP
& Tstg
VALUE
300
400
500
40
250
-65 TO +175
UNITS
Volts
Average Rectified Forward Current.
(Resistive load, 60Hz, Sine Wave, T
A
=25
o
C)
2/
Peak Surge Current
(8.3 ms Pulse, Half Sine Wave, T
A
= 25
o
C)
1/
Operating and Storage Temperature
Maximum Thermal Resistance
Junction to Case,
1/
Junction to Case,
2/
NOTE:
1/
Per Leg.
2/
Both Legs Tied Together
Amps
Amps
o
C
R
2JC
2.1
1.0
o
C/W
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RH0051B
SDR623CTJ & CAJ
thru
SDR625CTJ & CAJ
Electrical Characteristics (Per Leg)
Instantaneous Forward Voltage Drop
(T
A
= 25
o
C, 300:sec Pulse )
I
F
= 10 A
I
F
= 20 A
SYMBOL
V
F1
V
F2
V
F4
V
F5
I
R1
I
R2
C
J
t
RR
SOLID STATE DEVICES, INC.
14830 Valley View Blvd * La Mirada, Ca 90638
Phone: (562) 404-7855 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
MINIMUM
--
--
--
--
--
--
--
--
MAXIMUM
1.4
1.7
1.3
1.5
50
5.0
150
35
UNITS
V
DC
V
DC
:A
mA
pF
nsec
Instantaneous Forward Voltage Drop
T
A
= 100
o
C
T
A
= -55
o
C
(I
F
= 10A, 300:sec pulse )
Reverse Leakage Current
(Rated V
R
, 300:s pulse min.)
Junction Capacitance
(V
R
= 10V
DC
, T
A
= 25
o
C, f = 1MHz)
Reverse Recovery Time
(I
F
= 500mA, I
R
= 1A, I
RR
= 250mA, T
A
= 25
o
C)

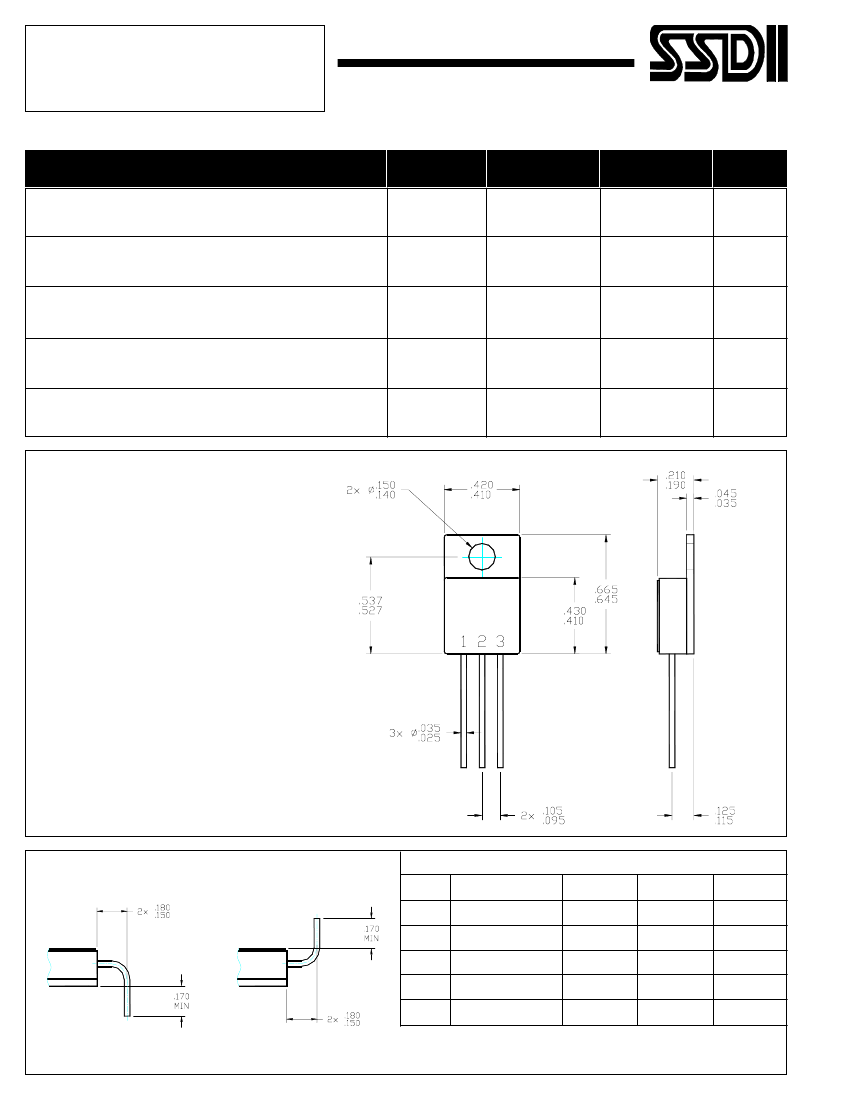

CASE OUTLINE: TO-257 (Sufix J)
T
A
= 25
o
C
T
C
= 100
o
C
OPTIONAL LEAD BEND CONFIGURATION
CODE
CT
CA
PIN ASSIGNMENT
FUNCTION
Common Cathode
Common Anode
PIN 1
Anode
Cathode
PIN 2
Cathode
Anode
PIN 3
Anode
Cathode
SUFIX JDB
SUFIX JUB
MCU
