M27V512-90B6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> M27V512-90B6

Preview

M27V512-90B6: DescriptionM27V512-90B6, DIP6-28; Categorystorage storage; File Size734KB，14 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M27V512-90B6 Overview

M27V512-90B6, DIP6-28

M27V512-90B6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	DIP6-28
Reach Compliance Code	not_compliant
Maximum access time	90 ns
I/O type	COMMON
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
memory density	524288 bit
Memory IC Type	OTP ROM
memory width	8
Number of terminals	28
word count	65536 words
character code	64000
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Certification status	Not Qualified
Maximum standby current	0.00001 A
Maximum slew rate	0.03 mA
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

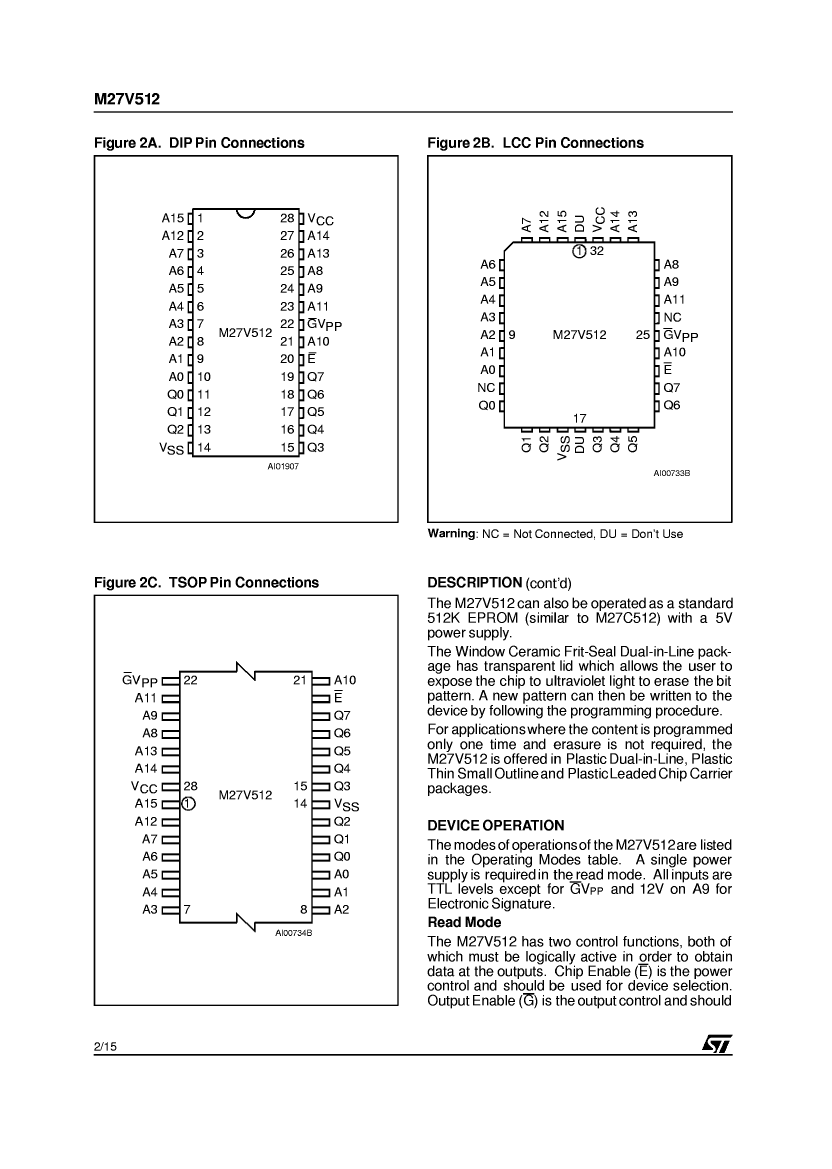

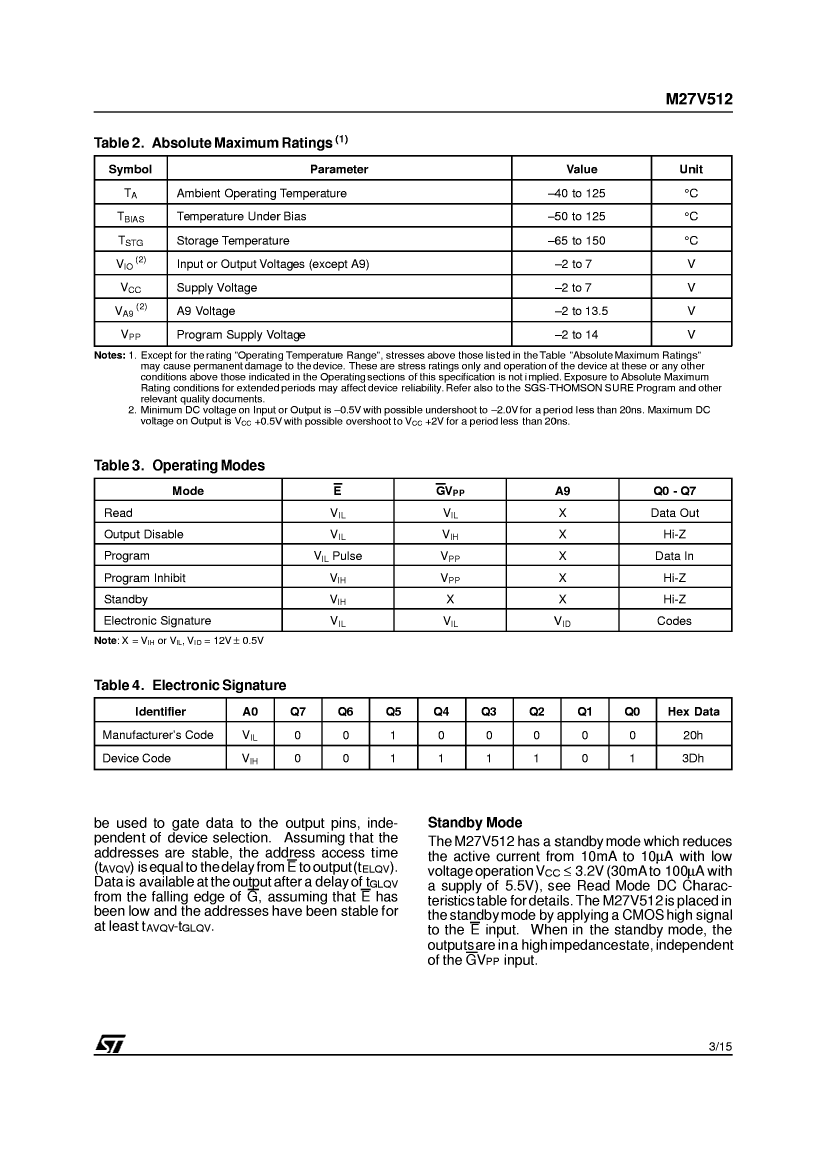

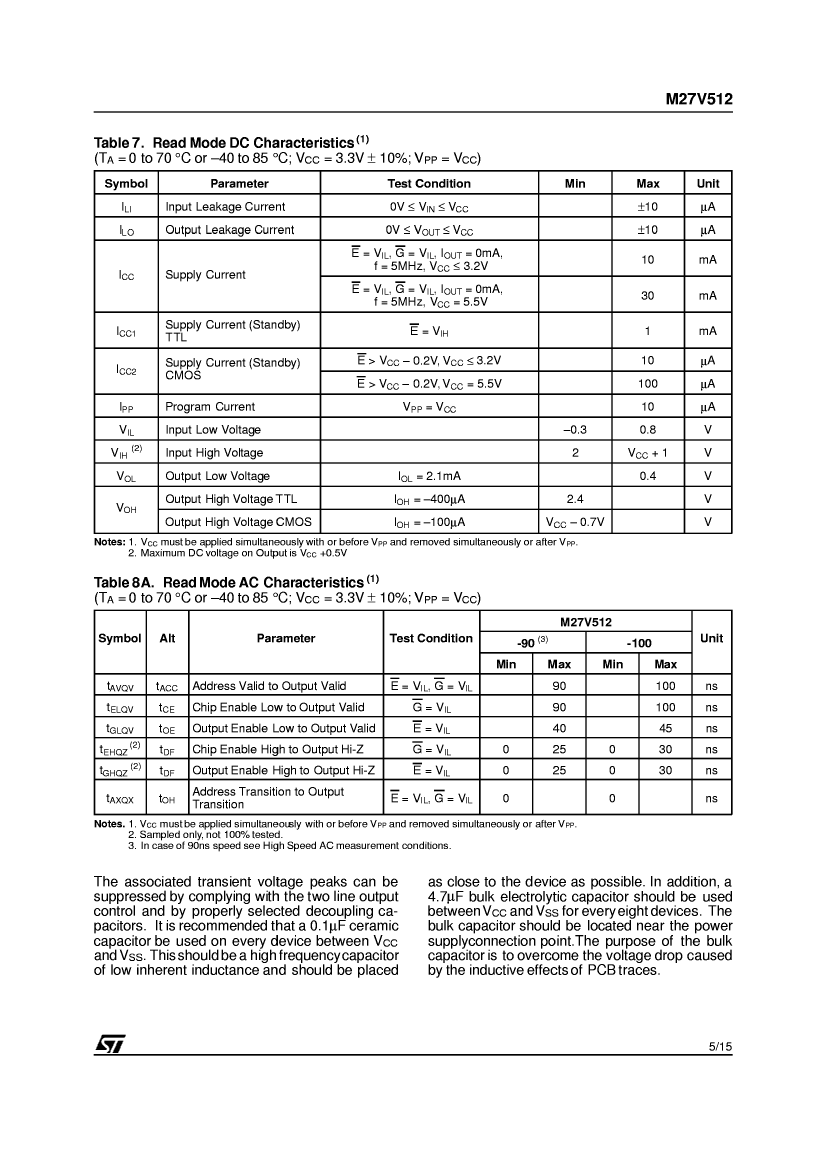

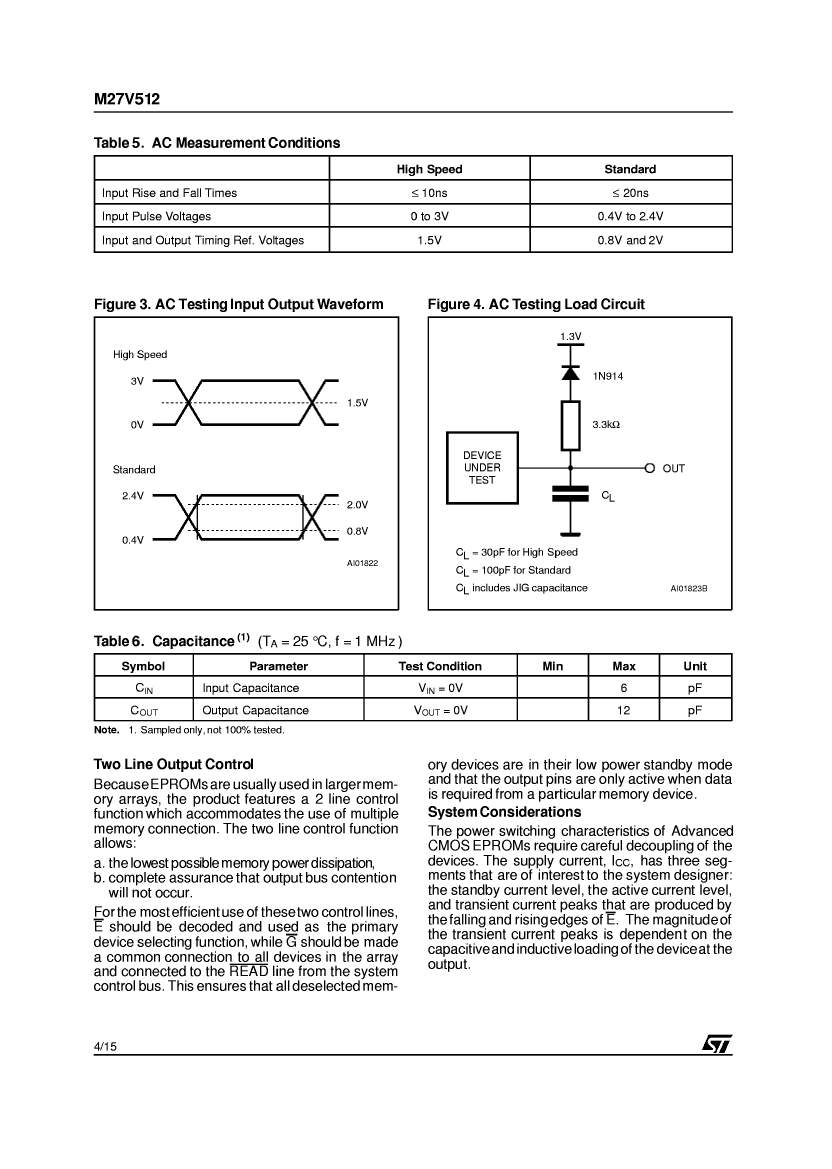

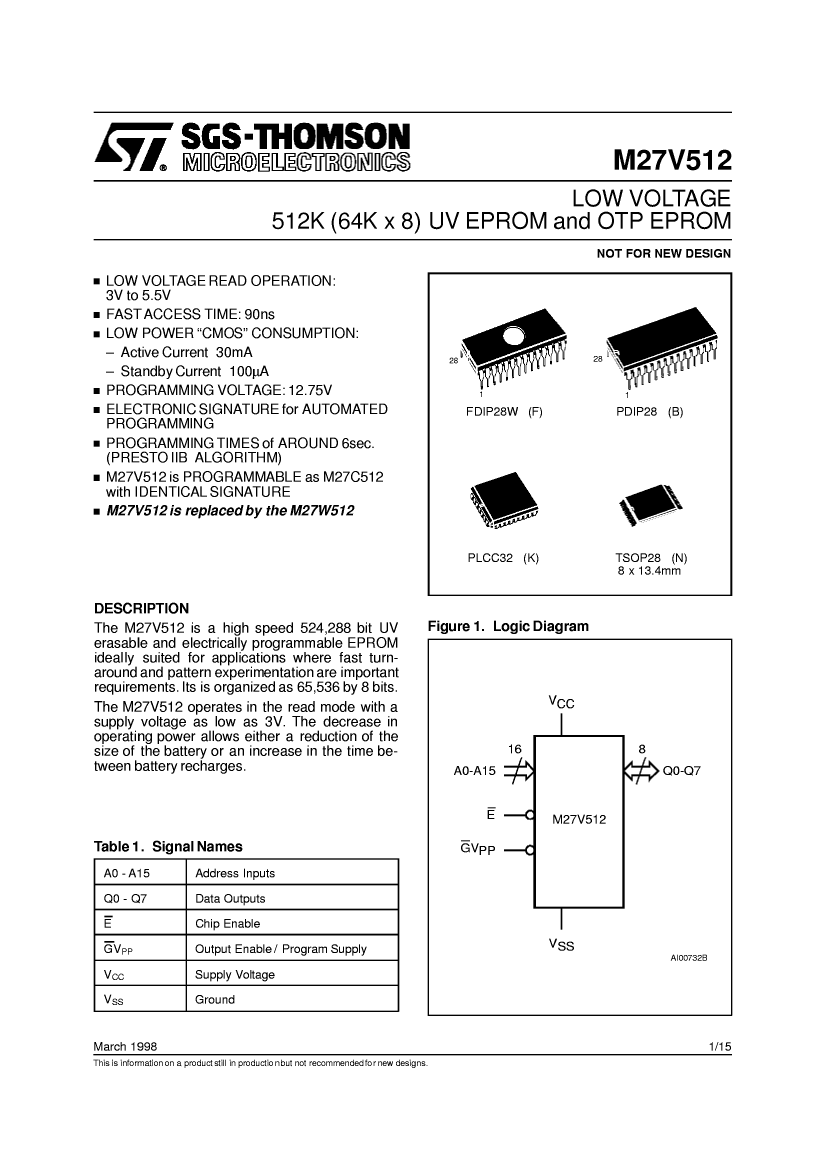

M27V512-90B6 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

M27V512-90B6 Related Products

	M27V512-90B6	M27V512-90B1	M27V512-90F1	M27V512-90F6	M27V512-90K1	M27V512-90K6	M27V512-90N6
Description	M27V512-90B6, DIP6-28	M27V512-90B1, DIP6-28	M27V512-90F1, DIP6-28	M27V512-90F6, DIP6-28	M27V512-90K1, PLCC-32	M27V512-90K6, PLCC-32	M27V512-90N6, TSOP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	DIP6-28	DIP6-28	DIP, DIP28,.6	DIP, DIP28,.6	PLCC-32	PLCC-32	TSOP-28
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum access time	90 ns	90 ns	90 ns	90 ns	90 ns	90 ns	90 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-XDIP-T28	R-XDIP-T28	R-PQCC-J32	R-PQCC-J32	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	OTP ROM	OTP ROM	UVPROM	UVPROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8	8	8	8
Number of terminals	28	28	28	28	32	32	28
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-	-40 °C	-40 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	QCCJ	QCCJ	TSSOP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	LDCC32,.5X.6	LDCC32,.5X.6	TSSOP28,.53,22
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A
Maximum slew rate	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA
surface mount	NO	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	0.55 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL
