TL084IJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> TL084IJ

TL084IJ: DescriptionQUAD OP-AMP, 7000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size208KB，8 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

TL084IJ Overview

QUAD OP-AMP, 7000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14

TL084IJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.02 µA
Maximum bias current (IIB) at 25C	0.0002 µA
Nominal Common Mode Rejection Ratio	80 dB
frequency compensation	YES
Maximum input offset current (IIO)	0.004 µA
Maximum input offset voltage	7000 µV
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5 mm
minimum slew rate	8 V/us
Nominal slew rate	16 V/us
Maximum slew rate	10 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	4000 kHz
Minimum voltage gain	25000
width	7.62 mm

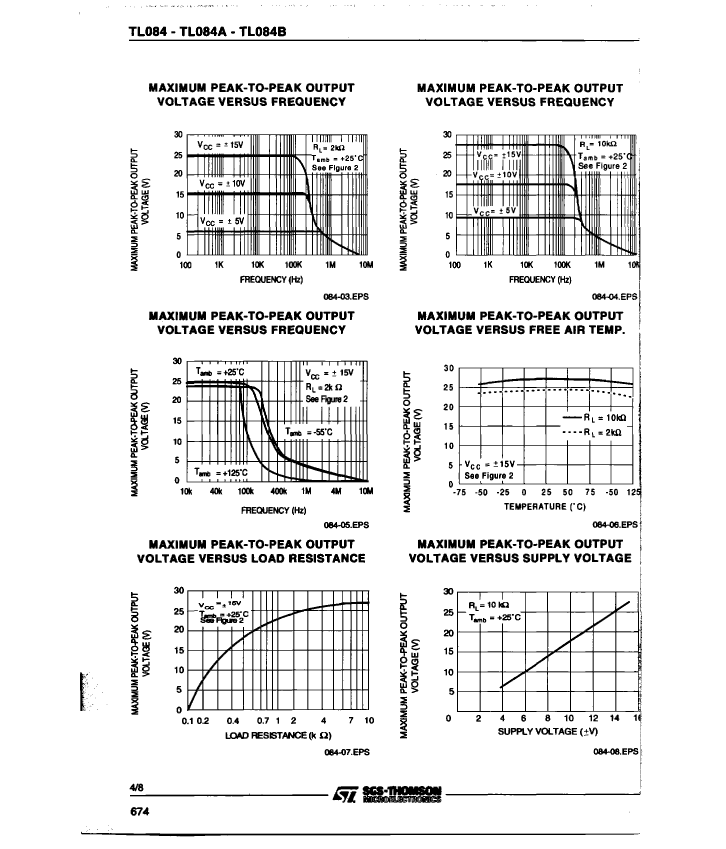

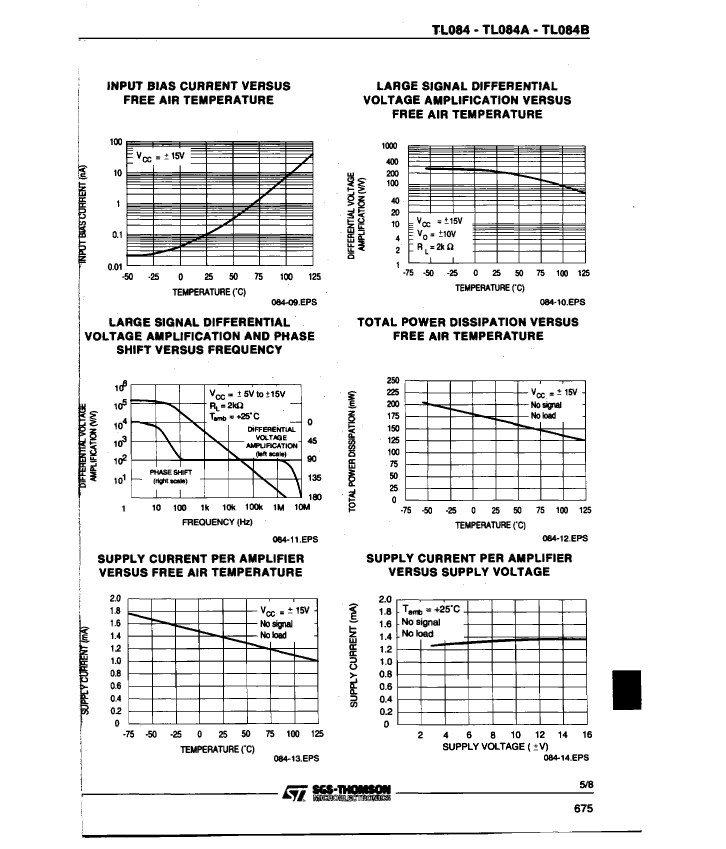

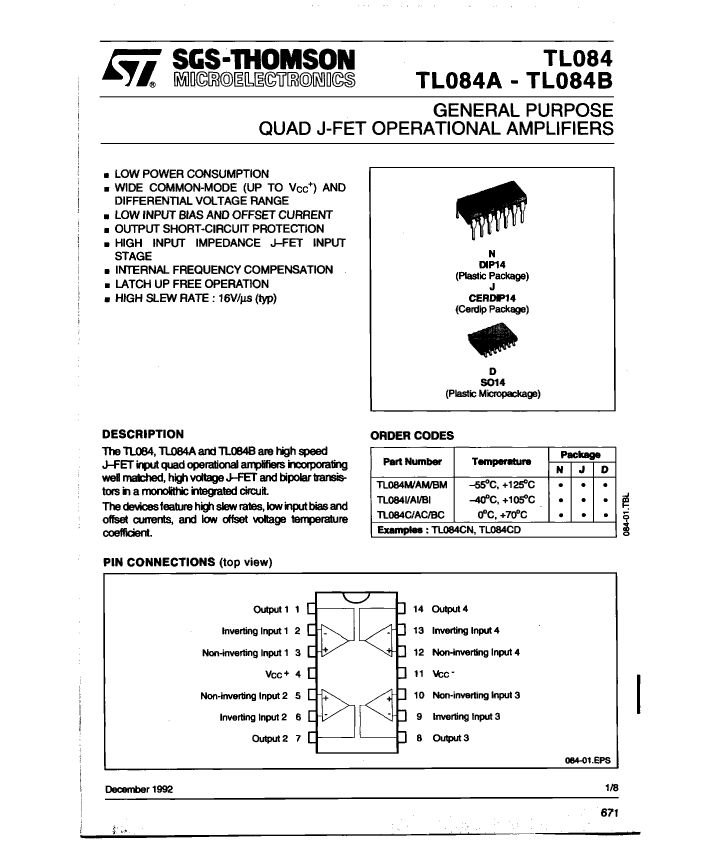

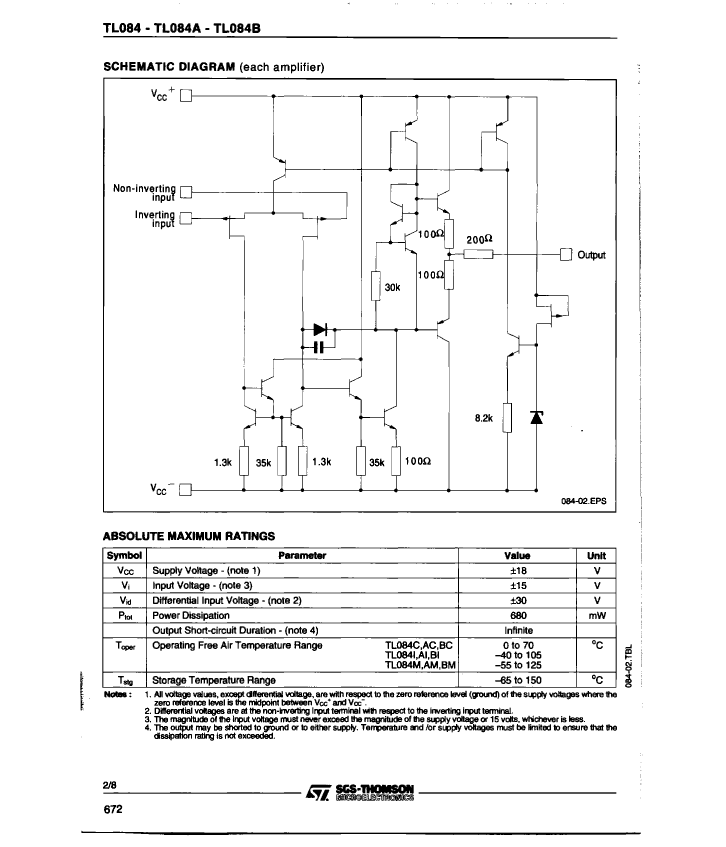

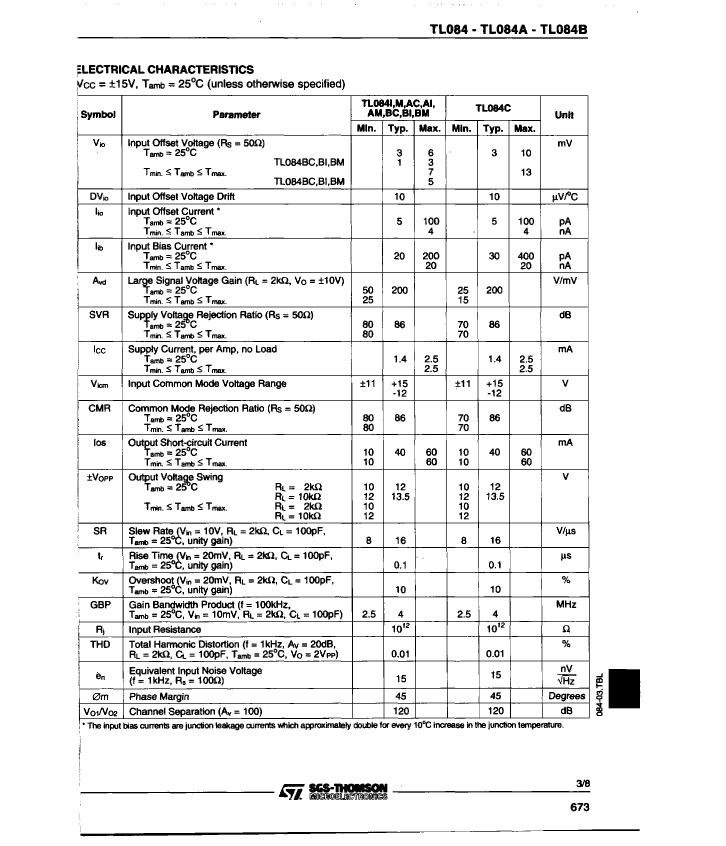

Preview

Download Datasheet

View All

TL084IJ Related Products

	TL084IJ	TL084AIJ	TL084AMJ	TL084BIJ	TL084BMJ	TL084ACJ	TL084CJ	TL084BCJ
Description	QUAD OP-AMP, 7000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 7000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 7000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 5000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 5000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 7000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 13000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14	QUAD OP-AMP, 5000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	14	14	14	14	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.02 µA	0.02 µA	0.02 µA	0.02 µA	0.02 µA	0.02 µA	0.02 µA	0.02 µA
Maximum bias current (IIB) at 25C	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA
Nominal Common Mode Rejection Ratio	80 dB	80 dB	86 dB	80 dB	80 dB	80 dB	70 dB	80 dB
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset current (IIO)	0.004 µA	0.004 µA	0.004 µA	0.004 µA	0.004 µA	0.004 µA	0.004 µA	0.004 µA
Maximum input offset voltage	7000 µV	7000 µV	7000 µV	5000 µV	5000 µV	7000 µV	13000 µV	5000 µV
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-CDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
low-bias	YES	YES	YES	YES	YES	YES	YES	YES
low-dissonance	NO	NO	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	105 °C	105 °C	125 °C	105 °C	125 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-55 °C	-	-	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
minimum slew rate	8 V/us	8 V/us	8 V/us	8 V/us	8 V/us	8 V/us	8 V/us	8 V/us
Nominal slew rate	16 V/us	16 V/us	16 V/us	16 V/us	16 V/us	16 V/us	16 V/us	16 V/us
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	4000 kHz	4000 kHz	4000 kHz	4000 kHz	4000 kHz	4000 kHz	4000 kHz	4000 kHz
Minimum voltage gain	25000	25000	25000	25000	25000	25000	25000	25000
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	-	Contains lead	-	Contains lead
