Z84C44AC6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C44AC6

Z84C44AC6: Description2 CHANNEL(S), 800Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size890KB，24 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

Z84C44AC6 Overview

2 CHANNEL(S), 800Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44

Z84C44AC6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	not_compliant
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS
Address bus width	1
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.09765625 MBps
External data bus width	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
Maximum slew rate	6 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

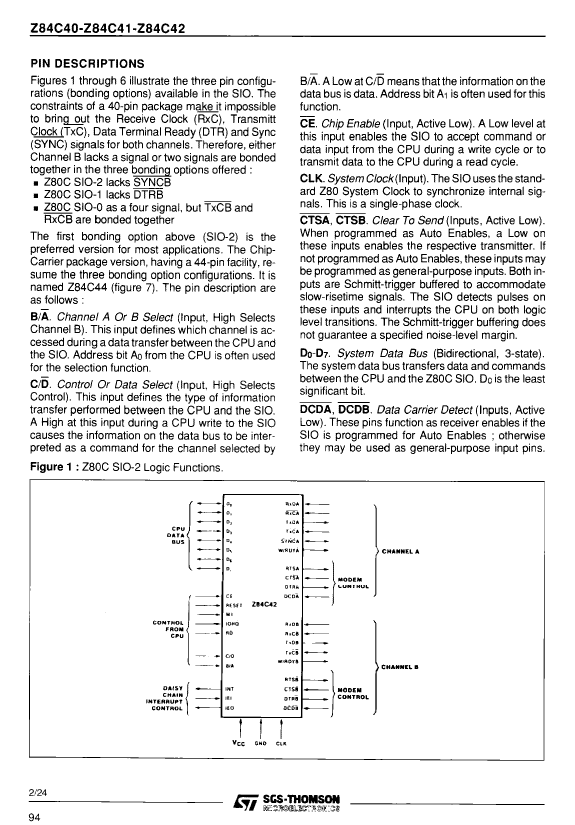

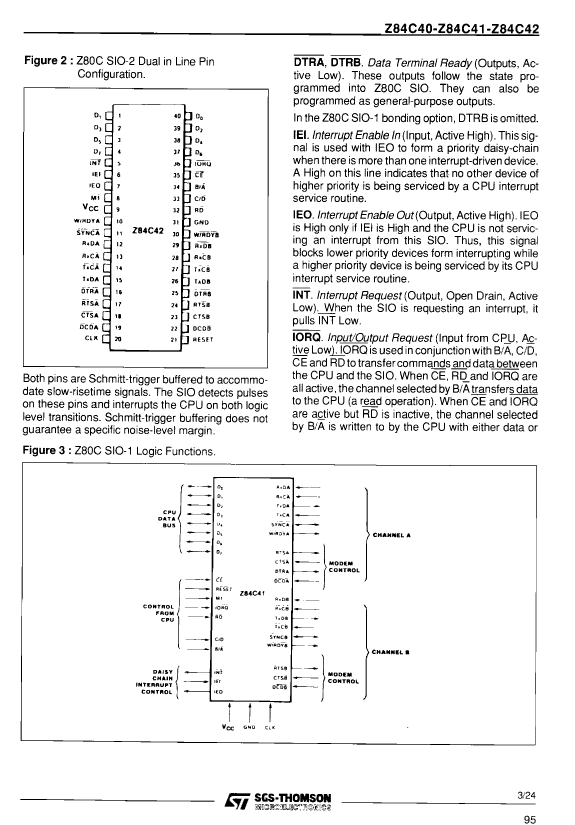

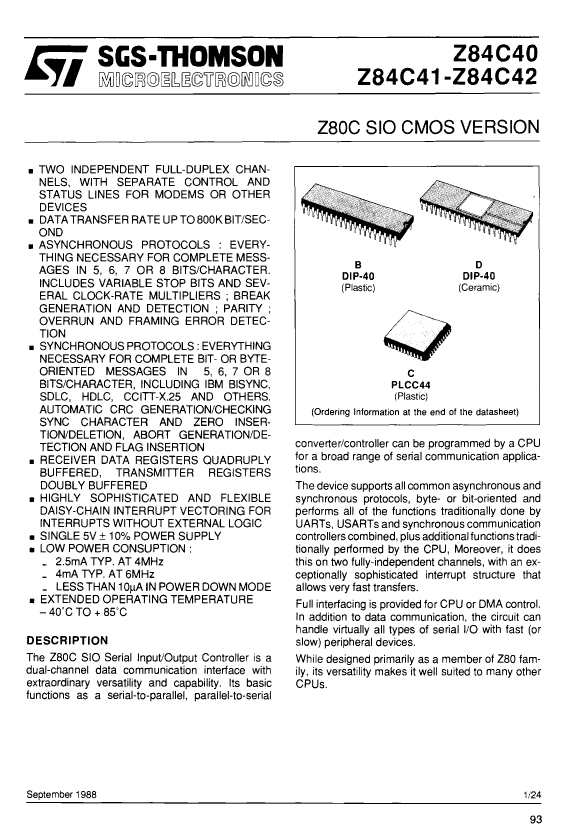

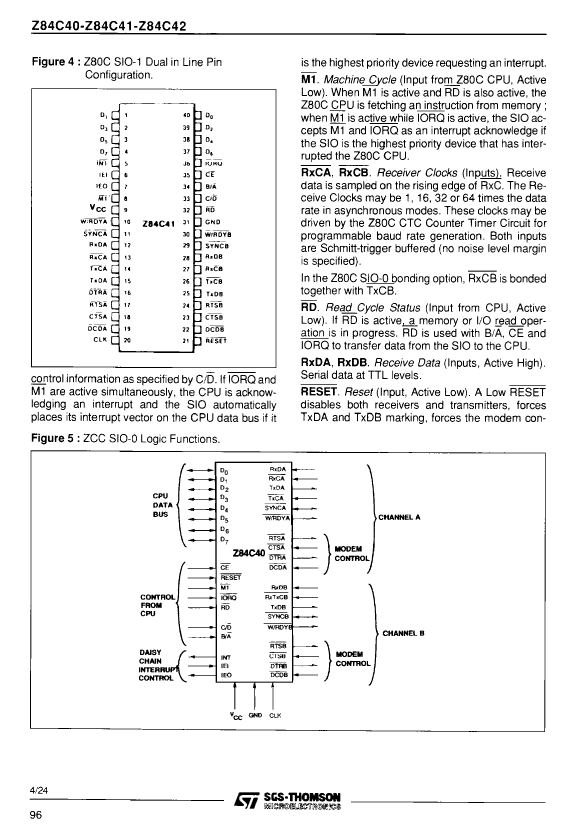

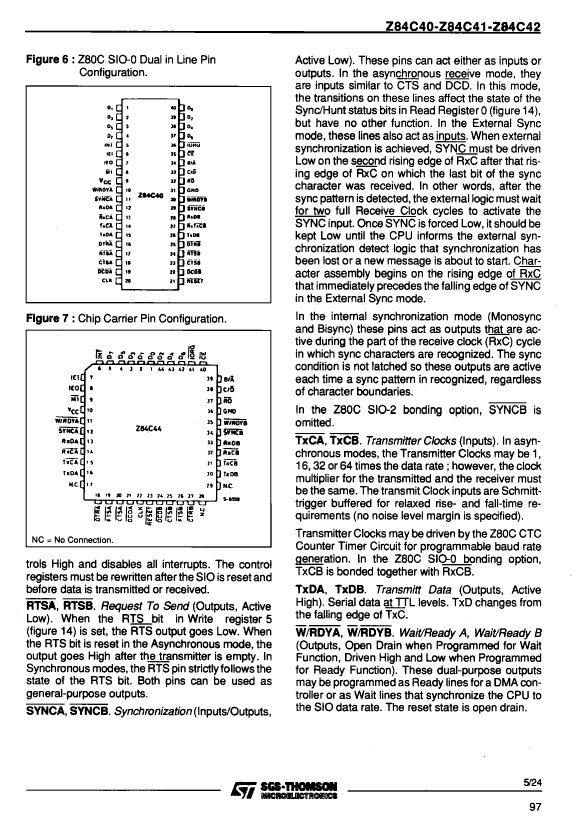

Preview

Download Datasheet

View All

Z84C44AC6 Related Products

	Z84C44AC6	Z84C44BC6
Description	2 CHANNEL(S), 800Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44	2 CHANNEL(S), 800Kbps, SERIAL COMM CONTROLLER, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	LCC	LCC
package instruction	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Contacts	44	44
Reach Compliance Code	not_compliant	not_compliant
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS
Address bus width	1	1
boundary scan	NO	NO
Bus compatibility	Z80	Z80
maximum clock frequency	4 MHz	6 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ	NRZ
Maximum data transfer rate	0.09765625 MBps	0.09765625 MBps
External data bus width	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0
length	16.5862 mm	16.5862 mm
low power mode	YES	YES
Number of serial I/Os	2	2
Number of terminals	44	44
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm
Maximum slew rate	6 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
