SMD2500C-52.000MHZ Overview

Oscillator

SMD2500C-52.000MHZ Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Base Number Matches1

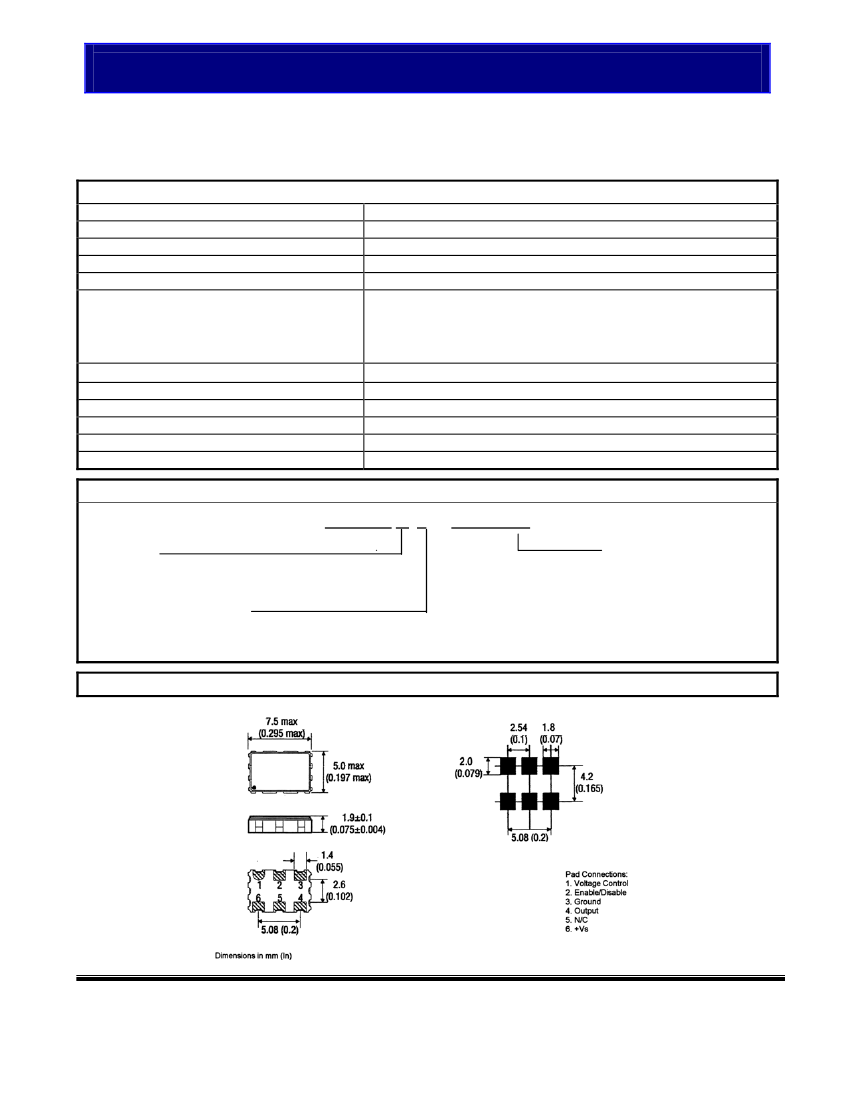

SMD2500 Series
Surface Mount Voltage Controlled Crystal Oscillator (VCXO)
HCMOS Output
5.0V Supply Voltage
Ceramic 6-pad SMD package
Pad#2Tristate; Pad #5 No Connect
ELECTRICAL SPECIFICATIONS
Frequency Range
Frequency Stability
Operating Temperature Range
Storage Temperature Range
Input Voltage
Input Current
1.000MHz to 52.000MHz
±25ppm
±50ppm
±100ppm
0 ~ +70°C or -40°C to +85°C
-55 ~ +125°C
+5.0
DC
±10%
1.000MHz to 18.000MHz
15mA Max
>18.000MHz to 30.000MHz
15mA Max
>30.000MHz to 36.000MHz
25mA Max
>36.000MHz to 45.000MHz
25mA Max
>40.000MHz to 52.000MHz
40mA Max
50±10% , 50±5%
5nSeconds Max
2.5V ±2.0V
±50ppm Min, ±80ppm Min, ±100ppm Min
15pF CMOS
±10% Typical, ±20% Max
Symmetry (Duty Cycle)
Rise Time / Fall Time
Voltage Control Pin 1
Frequency Pullability
Output Load Capability
Linearity
PART NUMBERING GUIDE
SMD2500 .3 C – 35.328MHz
Input Voltage
Blank - 5V
.3
- 3.3V
.2
- 2.5V
Frequency
Frequency Tolerance/ Stability
Blank or A - ±100ppm
C
- ± 25ppm
X
- Customer Specified
PACKAGE DIMENSIONS
General Electronic Devices
320 So. Pacific St. San Marcos, CA 92069 Tel: (760) 591-4170 Fax: (760) 591-4164 Email: gedlm@4dcomm.com Website: www.gedlm.com
