5527-2-02-0D-2-1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5527-2-02-0D-2-1

Preview

5527-2-02-0D-2-1: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Straight, 0.197 inch Pitch, Solder Terminal, Locking, Blue Insulator; CategoryThe connector The connector; File Size218KB，3 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5527-2-02-0D-2-1 Overview

Board Connector, 2 Contact(s), 1 Row(s), Straight, 0.197 inch Pitch, Solder Terminal, Locking, Blue Insulator

5527-2-02-0D-2-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Board mount options	HOLE .086-.098
body width	0.587 inch
subject depth	0.504 inch
body length	0.472 inch
Connector type	BOARD CONNECTOR
contact mode	RECTANGULAR
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5527
Plug contact pitch	0.197 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	16 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

STRAIGHT HEADER RAST 5.0

5527 SERIES.

5.00 mm. (0.197”).

Features



Available in 2 through 12 circuits

Insulator Material: PBT UL 94V-0

Mate with 5525 series socket



Polarised with locking ribs

Current Rating 16 A AC, DC

Consult options with the Sales Office

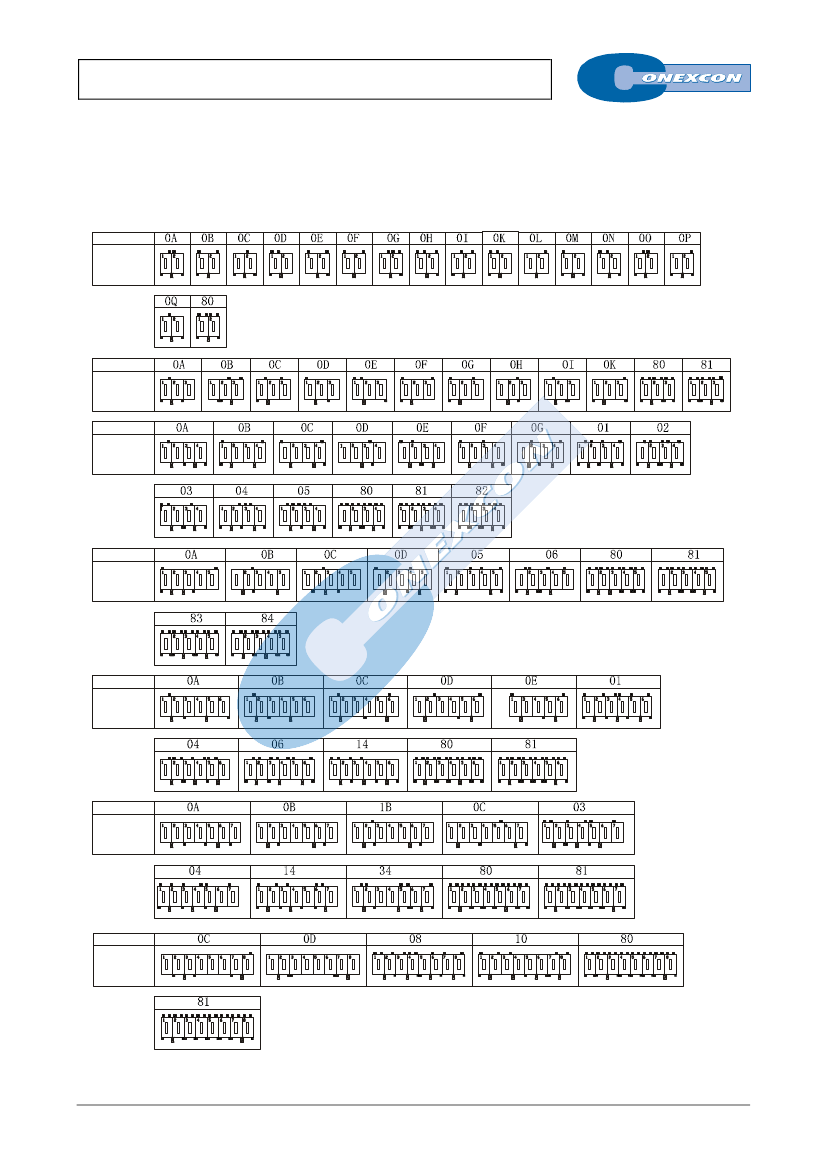

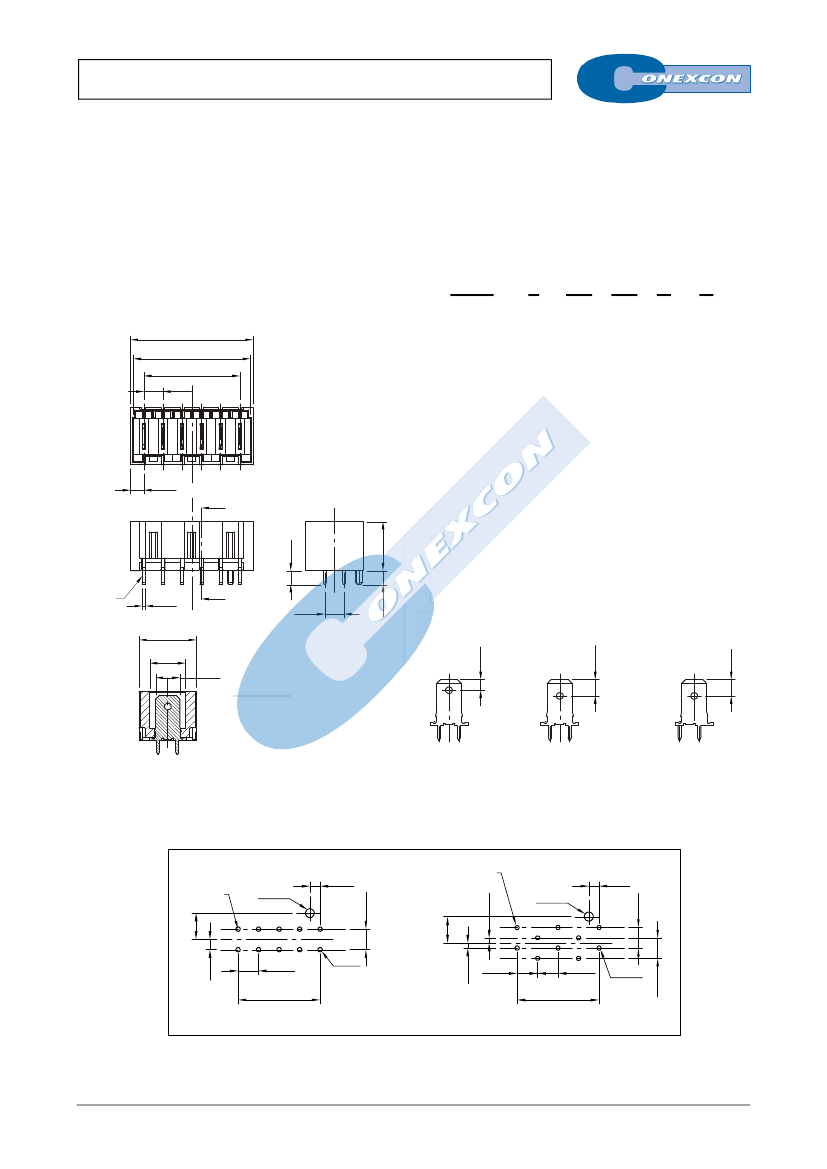

Dimensional Information

Ordering Information

5527 -

1

A

C

B

5.00

.197

1

2

3

4

5

6

2-

2

XX- PP- C-

3

4

5

R

6

1. Connector Serie

3. (XX) Circuit Size



Available in 2 through 12 circuits

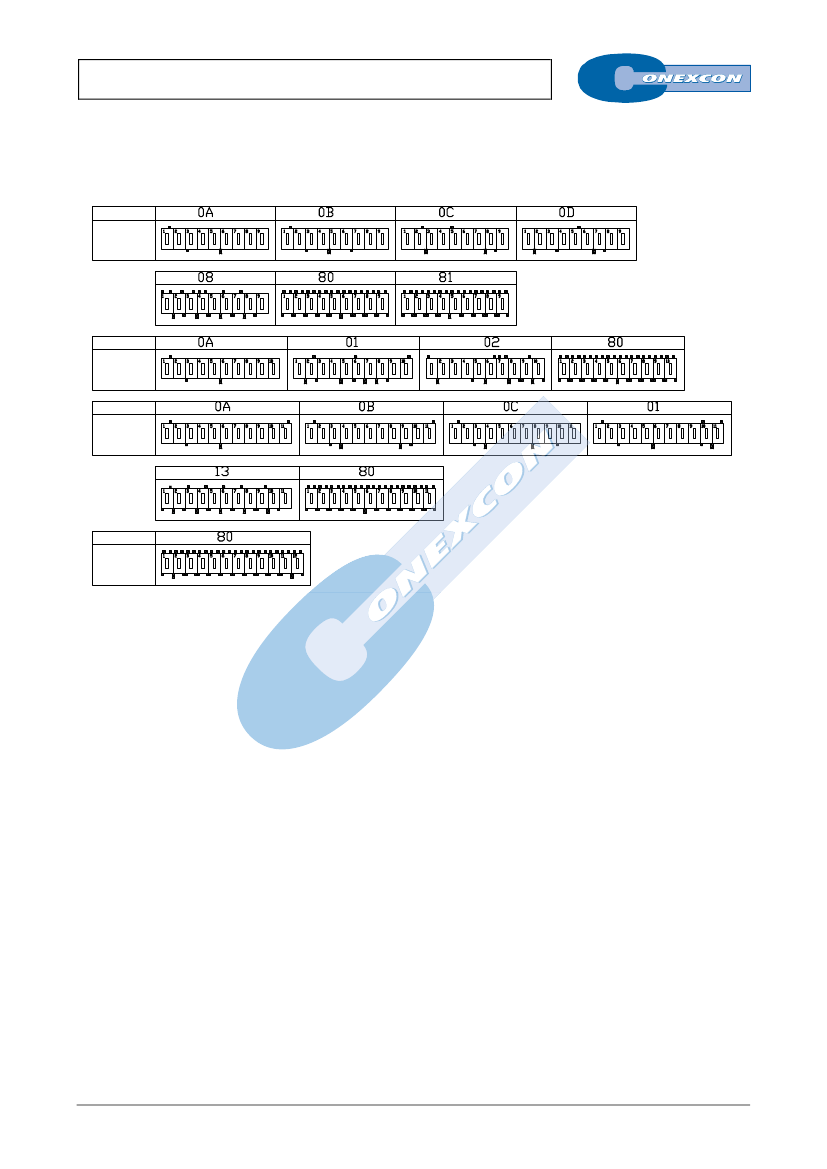

4. (PP) Polarisation Options



Check enclosed Table (Pages 46 – 47)

5. (C) Colour

3.50

.138

A

12.80

.504



C =

1.

White

C =

2.

Blue

6. (R) Contact Type

3.60

.142



R =

1.

2.75 mm.

R =

2.

4.20 mm.

R =

3.

4.20 mm.

0.80

.031

14.90

.587

9.30

.366

5.00

.197

3.60

.142

Pin 1

A

Contact Type

4.20

.165

2.75

.108

4.20

.165

R=3

6.30

.248

Dimensiones

A= 5.0 mm. x Nº circ. + 2.00 mm.

B= 5.00 mm. X Nº of spaces

C= 5.0 mm. x Nº circ. + 0.2 mm.

SEC. A-A

R=1

R=2

RECOMMENDED HOLE PATTERN

Pin 1

6.40

.252

ø2.20

ø.087

2.50

.098

Pin 1

5.00

.197

ø2.20

ø.087

1.25

.049

2.50

.098

5.00

.197

B

2.50

.098

1.25

.049

B

For contacts Type 3

For contacts Type 1 and 2

L-XX

FULL LINE CATALOGUE

5.00

.197

ø1.05

ø.041

6.40

.252

5.00

.197

5.00

.197

ø1.05

ø.041

5.00

.197
