SDLS029C − DECEMBER 1983 − REVISED JANUARY 2004
SN5404, SN54LS04, SN54S04,
SN7404, SN74LS04, SN74S04
HEX INVERTERS
D
Dependable Texas Instruments Quality and
Reliability
description/ordering information
These devices contain six independent inverters.
SN5404 . . . J PACKAGE
SN54LS04, SN54S04 . . . J OR W PACKAGE
SN7404, SN74S04 . . . D, N, OR NS PACKAGE
SN74LS04 . . . D, DB, N, OR NS PACKAGE
(TOP VIEW)
1A
1Y
2A
2Y
3A
3Y
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V
CC
6A
6Y
5A
5Y
4A
4Y
SN5404 . . . W PACKAGE
(TOP VIEW)
1A
2Y
2A
V
CC
3A
3Y
4A
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1Y
6A
6Y
GND
5Y
5A
4Y
SN54LS04, SN54S04 . . . FK PACKAGE
(TOP VIEW)
2A
NC
2Y
NC
3A
4
5
6
7
8
3 2 1 20 19
18
17
16
15
14
9 10 11 12 13
1Y
1A
NC
V
CC
6A
6Y
NC
5A
NC
5Y
NC − No internal connection
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
On products compliant to MIL PRF 38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
Copyright
2004, Texas Instruments Incorporated
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
3Y
GND
NC
4Y
4A
1
SDLS029C − DECEMBER 1983 − REVISED JANUARY 2004
SN5404, SN54LS04, SN54S04,
SN7404, SN74LS04, SN74S04
HEX INVERTERS
ORDERING INFORMATION
TA
PACKAGE†
Tube
PDIP − N
Tube
Tube
Tube
Tape and reel
Tube
0 C 70 C
0°C to 70°C
SOIC − D
Tape and reel
Tube
Tape and reel
Tape and reel
SOP − NS
SSOP − DB
Tape and reel
Tape and reel
Tape and reel
Tube
Tube
Tube
CDIP − J
Tube
Tube
−55 C 125°C
−55°C to 125 C
CFP − W
Tube
Tube
Tube
Tube
Tube
LCCC − FK
Tube
ORDERABLE
PART NUMBER
SN7404N
SN74LS04N
SN74S04N
SN7404D
SN7404DR
SN74LS04D
SN74LS04DR
SN74S04D
SN74S04DR
SN7404NSR
SN74LS04NSR
SN74S04NSR
SN74LS04DBR
SN5404J
SNJ5404J
SN54LS04J
SN54S04J
SNJ54LS04J
SNJ54S04J
SNJ5404W
SNJ54LS04W
SNJ54S04W
SNJ54LS04FK
SNJ54S04FK
S04
SN7404
74LS04
74S04
LS04
SN5404J
SNJ5404J
SN54LS04J
SN54S04J
SNJ54LS04J
SNJ54S04J
SNJ5404W
SNJ54LS04W
SNJ54S04W
SNJ54LS04FK
SNJ54S04FK
LS04
7404
TOP-SIDE
MARKING
SN7404N
SN74LS04N
SN74S04N
† Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines
are available at www.ti.com/sc/package.
FUNCTION TABLE
(each inverter)
INPUT
A
H
L
OUTPUT
Y
L
H
2
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
SDLS029C − DECEMBER 1983 − REVISED JANUARY 2004
SN5404, SN54LS04, SN54S04,
SN7404, SN74LS04, SN74S04
HEX INVERTERS
logic diagram (positive logic)
1A
1Y
2A
2Y
3A
3Y
4A
4Y
5A
5Y
6A
Y=A
6Y
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
3
SDLS029C − DECEMBER 1983 − REVISED JANUARY 2004
SN5404, SN54LS04, SN54S04,
SN7404, SN74LS04, SN74S04
HEX INVERTERS

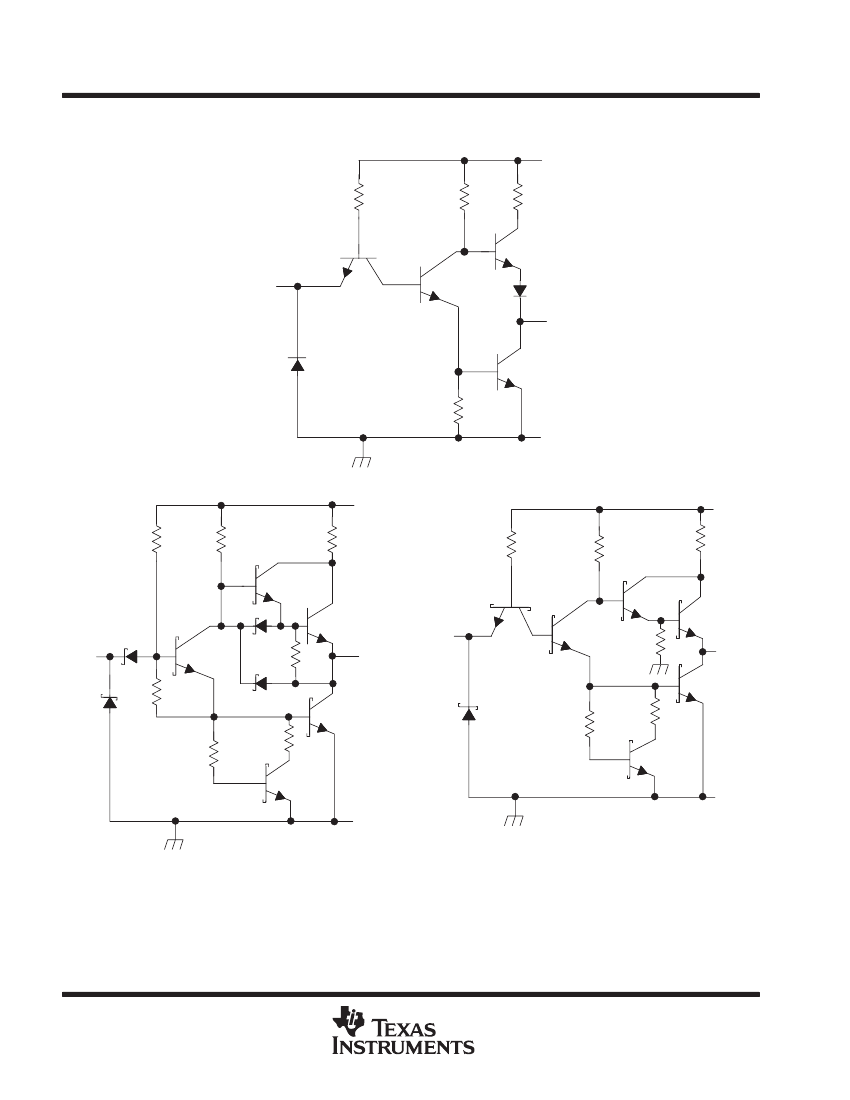

schematics (each gate)
’04
VCC
130
Ω
4 kΩ
1.6 kΩ
Input A
Output Y
1 kΩ
GND
’LS04
VCC
20 kΩ
8 kΩ
120
Ω
2.8 kΩ
’S04
VCC
900
Ω
50
Ω
Input
A
12 kΩ
4 kΩ
Output
Y
Input
A
3.5 kΩ
Output
Y
500
Ω
3 kΩ
1.5 kΩ
250
Ω
GND
GND
Resistor values shown are nominal.
4
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
SDLS029C − DECEMBER 1983 − REVISED JANUARY 2004
SN5404, SN54LS04, SN54S04,
SN7404, SN74LS04, SN74S04
HEX INVERTERS
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
†
Supply voltage, V
CC
(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, V
I
: ’04, ’S04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
’LS04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Package thermal impedance,
θ
JA
(see Note 2): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W
Storage temperature range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. This are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. Voltage values are with respect to network ground terminal.
2. The package thermal impedance is calculated in accordance with JESD 51-7.
recommended operating conditions (see Note 3)
SN5404
MIN
VCC
VIH
VIL
IOH
IOL
TA
Supply voltage
High-level input voltage
Low-level input voltage
High-level output current
Low-level output current
Operating free-air temperature
−55
4.5
2
0.8
−0.4
16
125
0
NOM
5
MAX
5.5
MIN
4.75
2
0.8
−0.4
16
70
SN7404
NOM
5
MAX
5.25
UNIT
V
V
V
mA
mA
°C
NOTE 3: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs,
literature number SCBA004.
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER
VIK
VOH
VOL
II
IIH
IIL
IOS¶
ICCH
ICCL
VCC = MIN,
VCC = MIN,
VCC = MIN,
VCC = MAX,
VCC = MAX,
VCC = MAX,
VCC = MAX
VCC = MAX,
VCC = MAX,
VI = 0 V
VI = 4.5 V
TEST CONDITIONS‡
II = − 12 mA
VIL = 0.8 V,
VIH = 2 V,
VI = 5.5 V
VI = 2.4 V
VI = 0.4 V
−20
6
18
SN5404
MIN TYP§
2.4
3.4
0.2
0.4
1
40
−1.6
−55
12
33
−18
6
18
MAX
−1.5
IOH = −0.4 mA
IOL = 16 mA
2.4
3.4
0.2
0.4
1
40
−1.6
−55
12
33
SN7404
MIN TYP§
MAX
−1.5
UNIT
V
V
V
mA
µA
mA
mA
mA
mA
‡ For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
§ All typical values are at VCC = 5 V, TA = 25°C.
¶ Not more than one output should be shorted at a time.
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
5
MCU
