CDRH5D28NP-8R2NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH5D28NP-8R2NB

CDRH5D28NP-8R2NB: DescriptionGeneral Purpose Inductor, 8.2uH, 30%, 1 Element, Ferrite-Core, SMD, 2222, ROHS COMPLIANT; CategoryPassive components inductor; File Size106KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH5D28NP-8R2NB Overview

General Purpose Inductor, 8.2uH, 30%, 1 Element, Ferrite-Core, SMD, 2222, ROHS COMPLIANT

CDRH5D28NP-8R2NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2222
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2222
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.053 Ω
Nominal inductance(L)	8.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH5D28
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	5.7 mm
Package form	SMT
Package width	5.7 mm
method of packing	Box
Maximum rated current	1.6 A
series	CDRH5D28
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.01 MHz
Tolerance	30%

Preview

Download Datasheet

View All

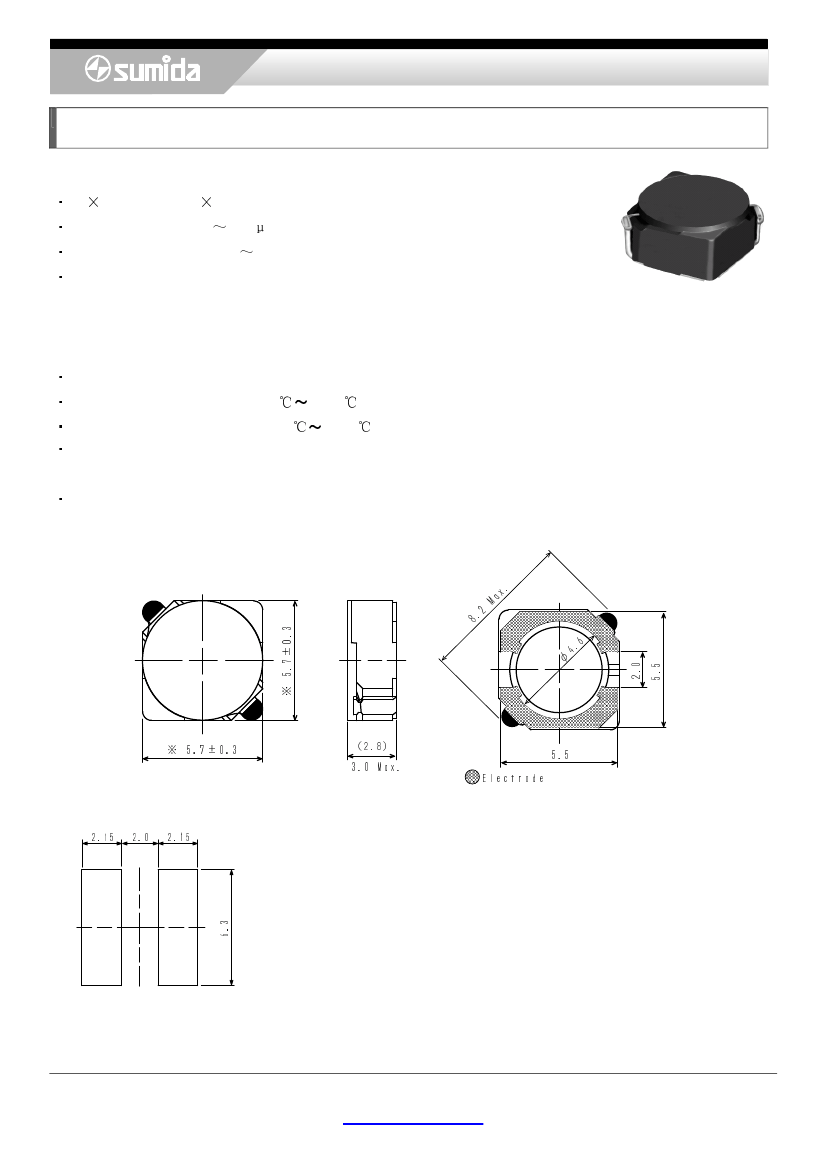

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH5D28

◆

Product Description

6.0 6.0mm Max.(L W), 3.0mm Max. Height.

Inductance range: 2.5 100 H.

Rated current range: 0.42 2.6A.

In addition to the standards versions shown here,

custom inductors are also available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+100 (Including coil’s self temperature rise).

Ideally used in Notebook PC,HDD,DSC/DVC, LCD TV ,Game machine etc as DC-DC converter

inductors.

RoHS compliance and Halogen Free.

◆

Dimensions (mm)

◆

Land Pattern (mm)

51.2

0.2

51.2

Please refer to the sales offices on our website for a representative near you

www.sumida.com

5 2

. .

5 0

6.4

5.5

e d o r t c e lE

.xa

.xaM 0.3

)8.2(

℃ ½℃

Storage temperature range: -40

※

μ ½

3.0±7.5 ※

・

+100 .

1/2
