Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LMG32D14V

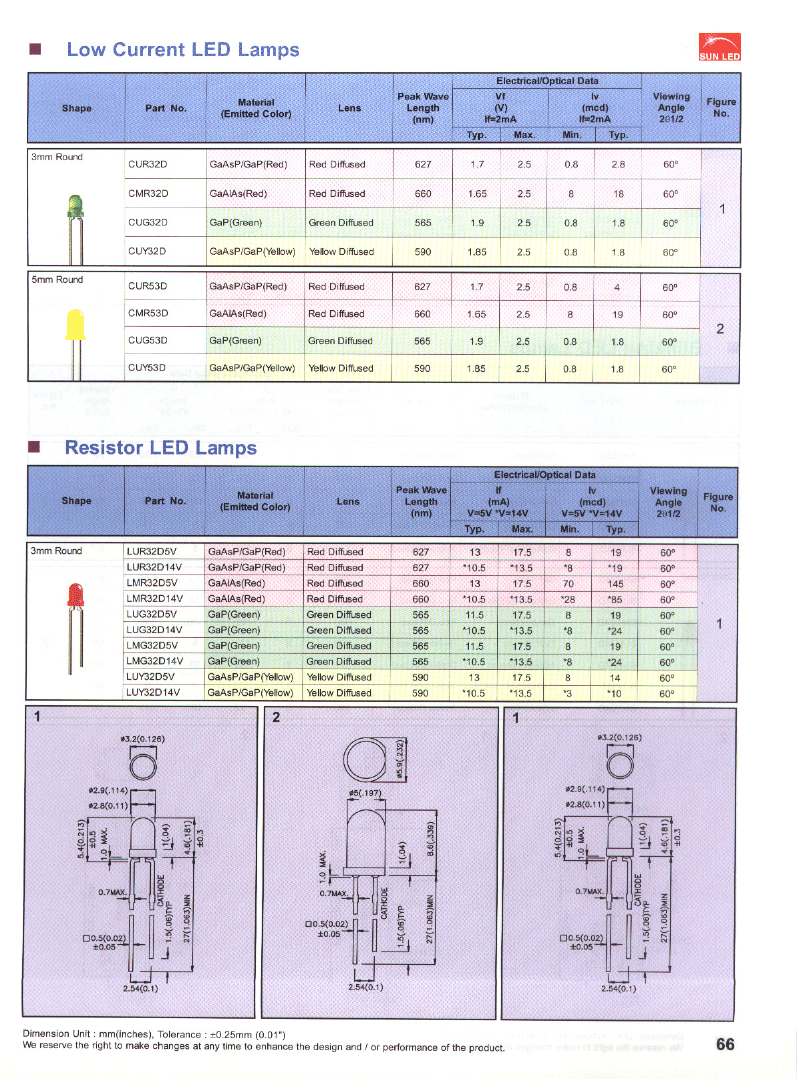

Preview

LMG32D14V: DescriptionSingle Color LED, Green, Diffused, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

LMG32D14V Overview

Single Color LED, Green, Diffused, T-1, 3mm,

LMG32D14V Parametric

Parameter Name	Attribute value
Maker	SUNLED
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0135 A
Lens type	DIFFUSED
Nominal luminous intensity	24.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

LMG32D14V Related Products

	LMG32D14V	LUR32D5V	LUY32D5V	LUG32D14V	LUG32D5V	LMR32D5V	LMG32D5V	LUR32D14V	LUY32D14V
Description	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Red, Diffused, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm,	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Red, Diffused, T-1, 3mm,	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Red, Diffused, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm,
Maker	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	GREEN	RED	YELLOW	GREEN	GREEN	RED	GREEN	RED	YELLOW
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0135 A	0.0175 A	0.0175 A	0.0135 A	0.0175 A	0.0175 A	0.0175 A	0.0135 A	0.0135 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	24.0 mcd	19.0 mcd	14.0 mcd	24.0 mcd	19.0 mcd	145.0 mcd	19.0 mcd	19.0 mcd	10.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	565 nm	627 nm	590 nm	565 nm	565 nm	660 nm	565 nm	627 nm	590 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg
