XSUY29D: DescriptionSingle Color LED, Yellow, Diffused, T-3/4, 2mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size72KB，2 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XSUY29D Overview

Single Color LED, Yellow, Diffused, T-3/4, 2mm, ROHS COMPLIANT PACKAGE-2

XSUY29D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	4.8 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5 mm
method of packing	BULK
peak wavelength	590 nm
shape	CYLINDRICAL
size	2 mm
surface mount	NO
T code	T-3/4
Terminal pitch	2.54 mm
perspective	70 deg

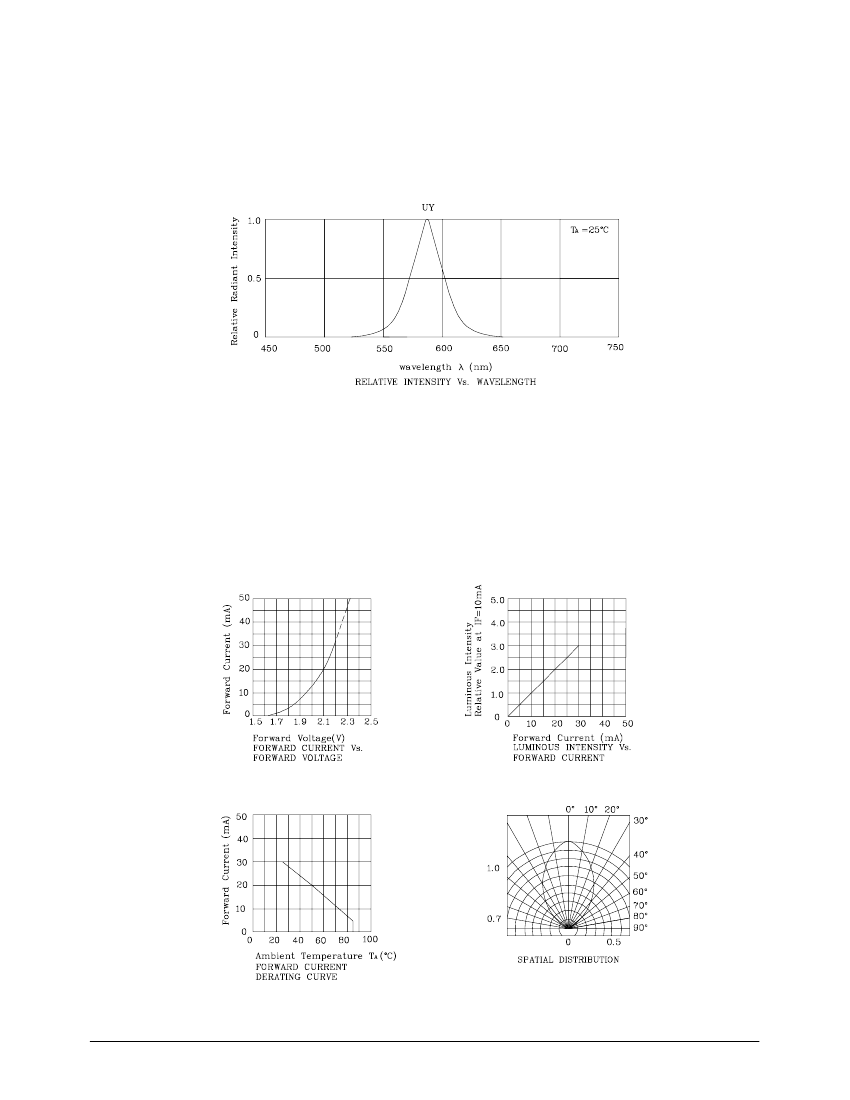

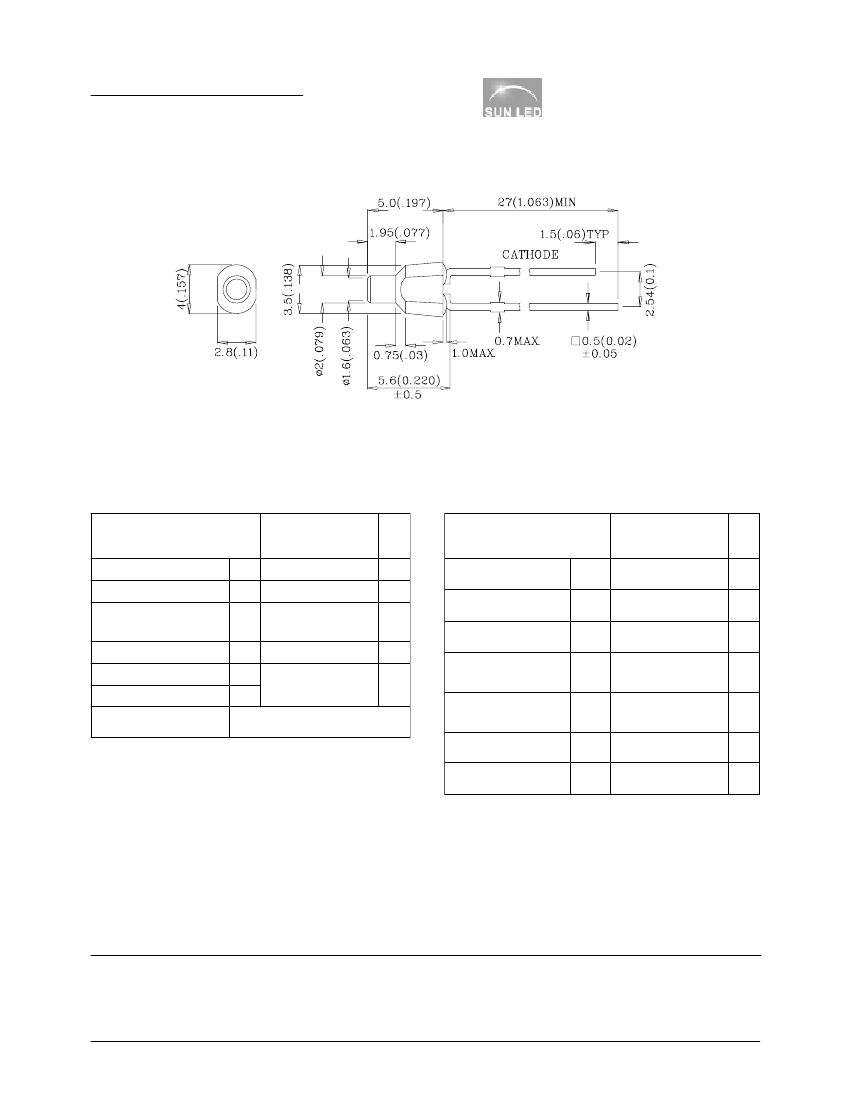

XSUY29D Preview

2mm FLAT TOP LED LAMP

XSUY29D

SUN LED

Email

: sales@us.sunled.com

Web Site : www.sunled.com

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

Absolute maximum ratings

(T

A

=25

°

C)

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operating temperature

Storage temperature

Lead solder temperature

[2mm below package base]

V

R

I

F

i

FS

P

T

A

Tstg

UY

(GaAsP/GaP)

5

30

140

105

-40 ~ +85

Unit

V

mA

mW

°C

Op e r a t i n g Ch a r a c t e r i s t i c s

C)

( T

A

=25

°

C)

Forward voltage (typ.)

(I F=10mA)

Forward voltage (max.)

(I F=10mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=10mA)

Wavelength at Dominate

emission

(I F=10mA)

Spectral Line half-width

(I F=10mA)

Capacitance

(V

F

=0V, f=1MHz)

V

F

V

F

I

R

λ

peak

UY

( G a As P /G a P )

1.95

2.5

10

590

Un i t

V

uA

nm

260

°C

For 5 Seconds

λD

∆λ

C

588

35

20

nm

pF

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 10m A )

mc d

min .

ty p .

2

4

Wa v e l e n g t h

nm

λ

P

Vi e w i n g

An g l e

2θ1/2

θ

XSUY29D

Yellow

GaAsP/GaP

Yellow Diffused

590

70°

Published Date : JUL 26,2002

Drawing No: XDSA2304

V1

Checked : B.L.LIU

2-1

XSUY29D

!

UY

Published Date : JUL 26,2002

Drawing No: XDSA2304

V1

Checked : B.L.LIU

2-2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
