D21-036-020-IJBAA datasheet, PDF

Datasheet> All Categories > The connector> The connector> D21-036-020-IJBAA

D21-036-020-IJBAA: DescriptionRectangular Power Connector, 36 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size102KB，4 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

D21-036-020-IJBAA Overview

Rectangular Power Connector, 36 Contact(s), Male, Solder Terminal, Plug

D21-036-020-IJBAA Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	D21
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

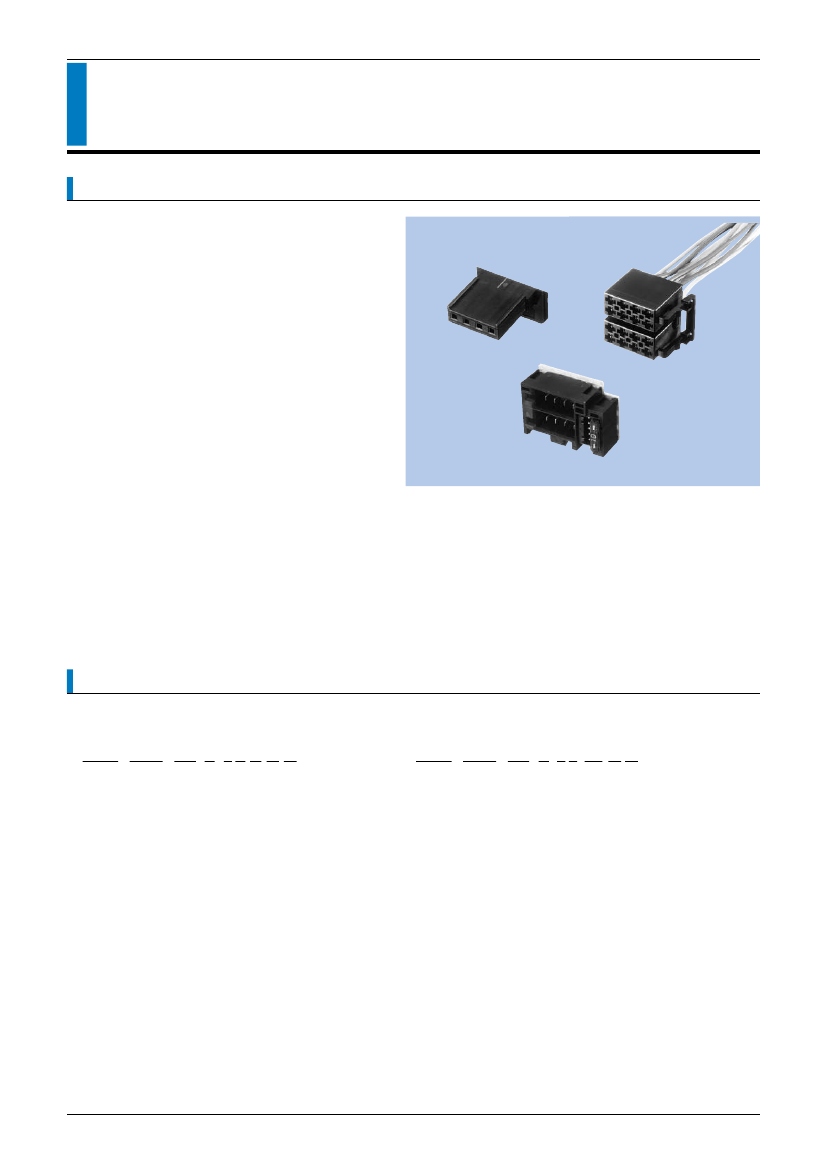

MITSUMI

Connectors for Power Supply Voltage (ISO Standard)

CAM-D21, CAM-D22, CCM-D23

Connectors

FEATURES

1. Connectors for power supplies, conforming to

ISO standards.

The CAM-D21 is a plug connector used in

board mounting. The CAM-D22 is a

conversion connector capable of circuit

switching, and connects to the CAM-D21.

The CCM-D23 is a socket connector for use

with cable assemblies.

2. The plug connector can accept fuses.

3. The insertion position of the conversion

connector can be modified to switch the set

circuit.

4. The socket connector integrated A and B part

locks to enhance operation.

CAM-D22(Socket)

CCM-D23(Socket)

CAM-D21(Plug)

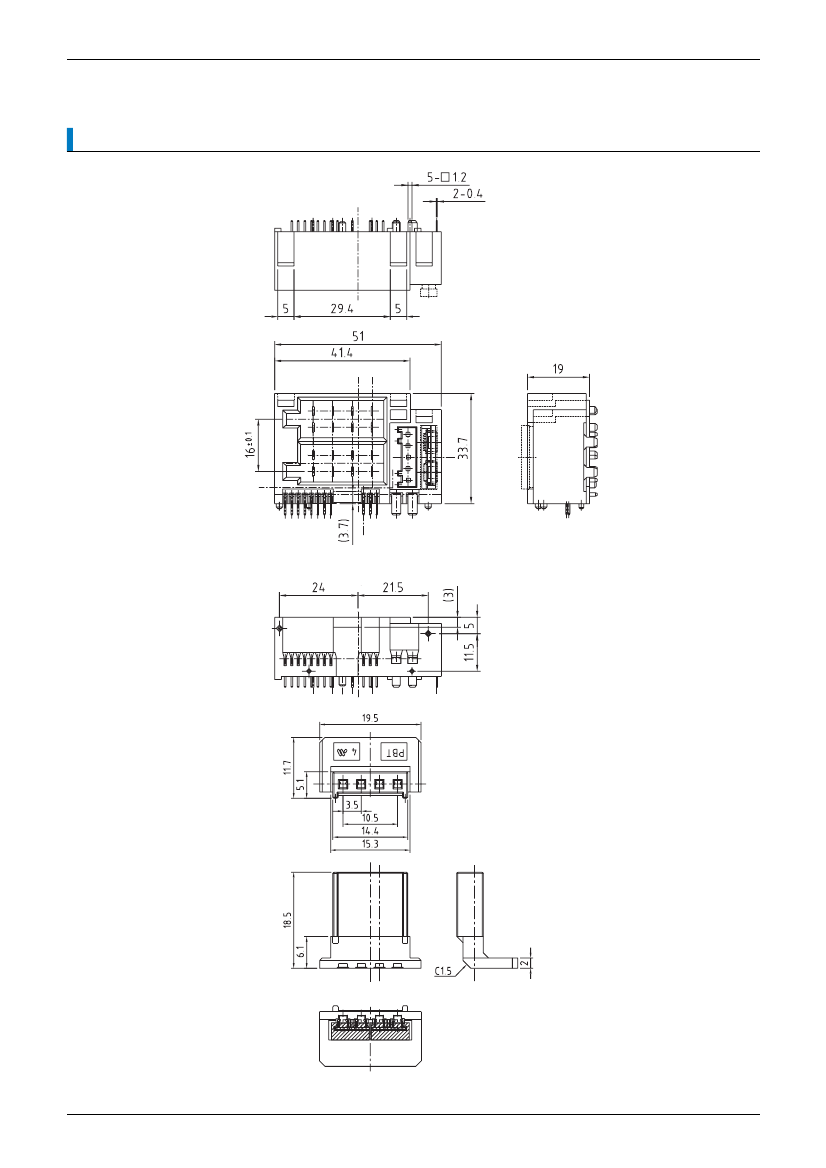

HOW TO ORDER

1. CAM-D21 (Plug)

2. CAM-D22 (Socket)

D21-036-02 0-I J B A A

4 56 7 8 9

Series No.

No. of contacts (036 : 36pins)

Housing material (02 : PBT resin)

Housing UL grade (0 : UL94V-0)

Contact finish (I : Tin reflow)

Contact plating thickness (J : 3.0µm)

Contact tail style (B : Angle)

Accessory for connector outside (A : none)

Accessory for connector inside (A : none)

D22-004-02 0-I I B A A

4 56 7

8 9

Series No.

No. of contacts (004 : 4pins)

Housing material (02 : PBT resin)

Housing UL grade (0 : UL94V-0)

Contact finish (I : Tin reflow)

Contact plating thickness (I : 1.0µm)

Contact tail style (B : Angle)

Accessory for connector outside (A : none)

Accessory for connector inside (A : none)

D21-036-020-IJBAA Related Products

	D21-036-020-IJBAA	D23-016-2339A	D22-004-020-IIBAA
Description	Rectangular Power Connector, 36 Contact(s), Male, Solder Terminal, Plug	Rectangular Power Connector, 16 Contact(s), Female, Socket	Rectangular Power Connector, 4 Contact(s), Female, Socket
Reach Compliance Code	unknown	unknown	unknown
Body/casing type	PLUG	SOCKET	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	D21	D23	D22
Plug information	MULTIPLE MATING PARTS AVAILABLE	D21-036-020-IJBAA	D21-036-020-IJBAA
Mixed contacts	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	36	16	4
UL Flammability Code	94V-0	94V-0	94V-0
Installation type	BOARD	CABLE	-
Shell material	POLYBUTYLENE TEREPHTHALATE	-	POLYBUTYLENE TEREPHTHALATE
Base Number Matches	-	1	1
