MH1M32ADJ-8: DescriptionFast Page DRAM Module, 1MX32, 80ns, CMOS, SIMM-72; Categorystorage storage; File Size312KB，11 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

MH1M32ADJ-8 Overview

Fast Page DRAM Module, 1MX32, 80ns, CMOS, SIMM-72

MH1M32ADJ-8 Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	25.4 mm
self refresh	NO
Maximum standby current	0.008 A
Maximum slew rate	0.6 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

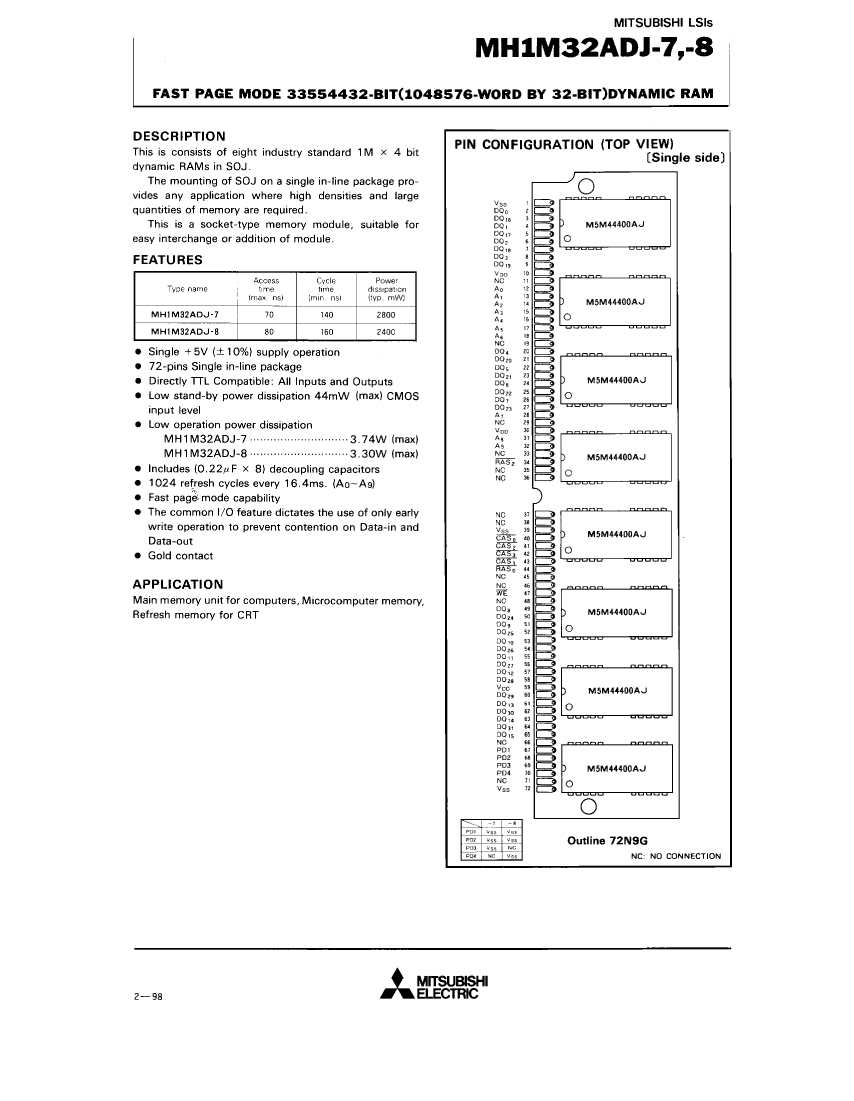

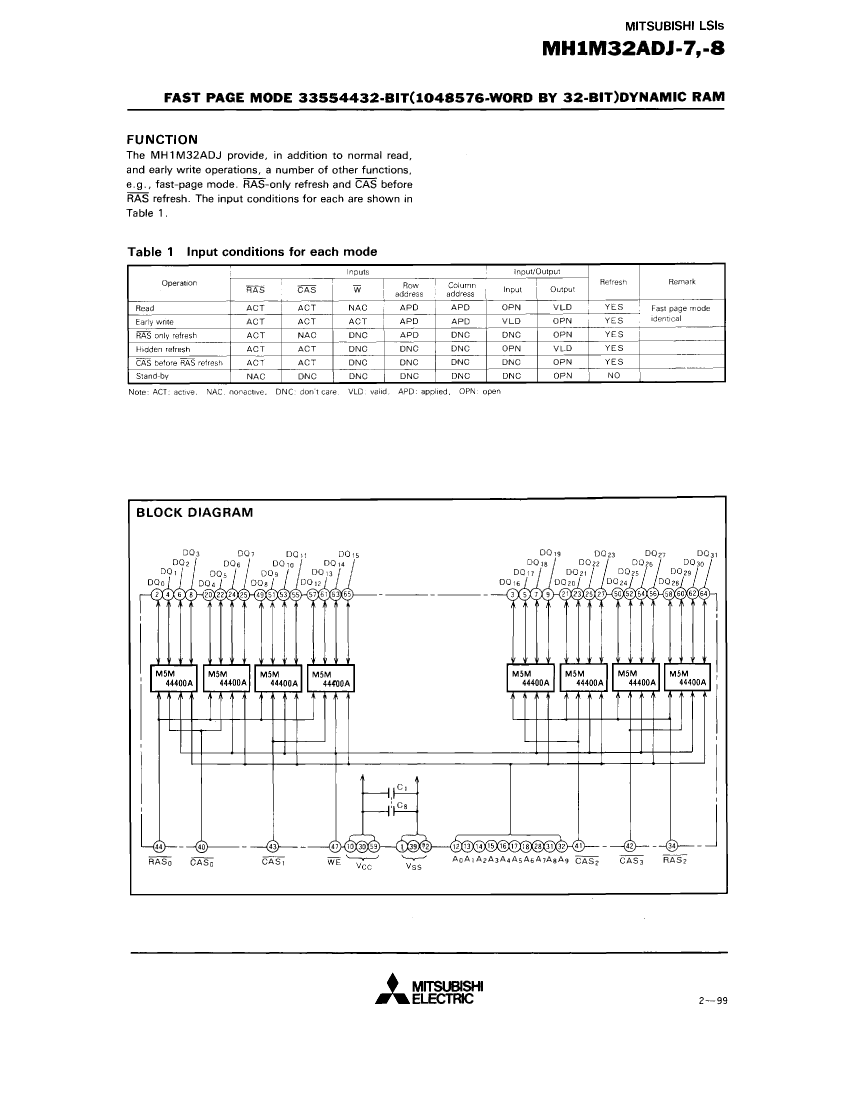

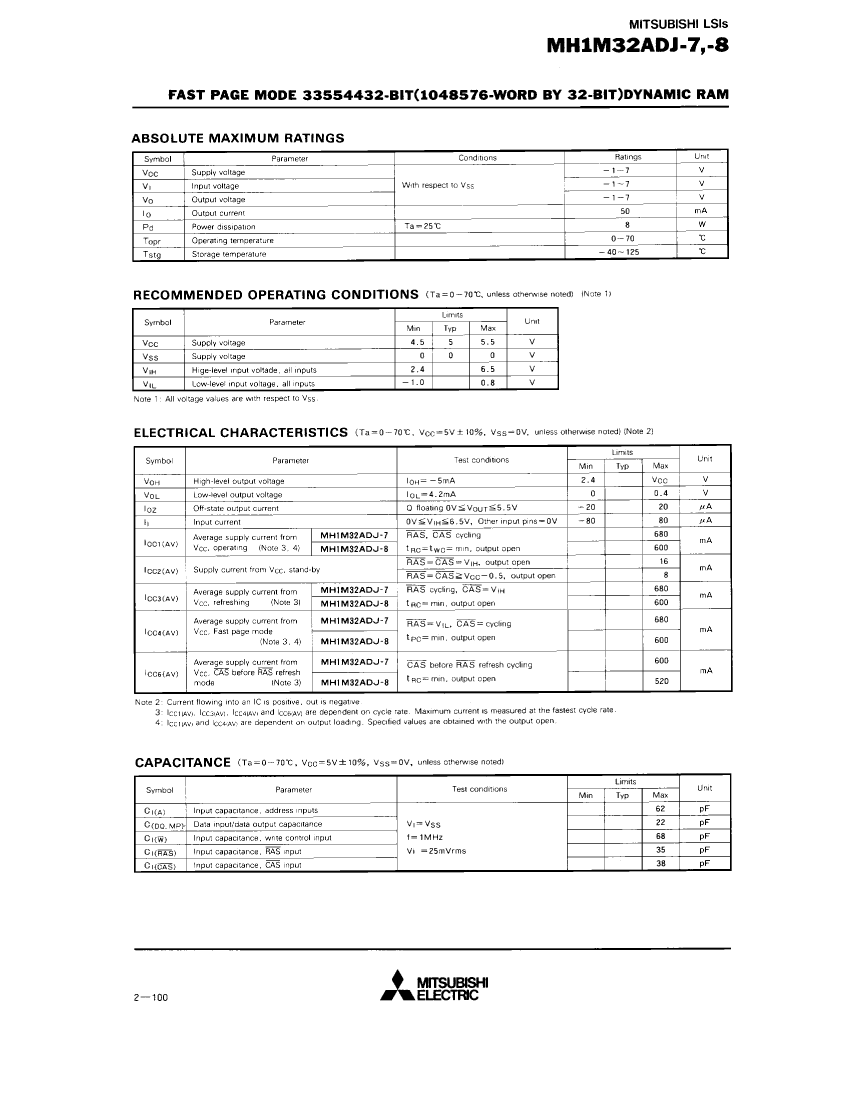

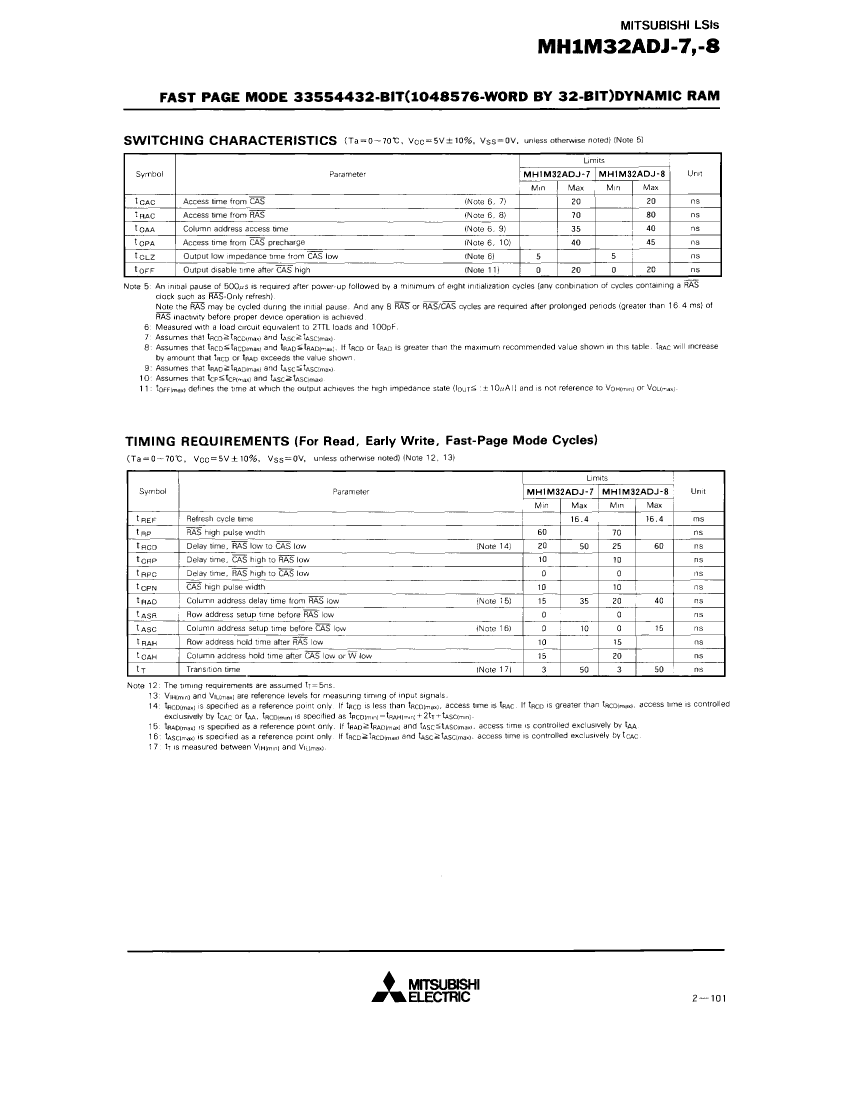

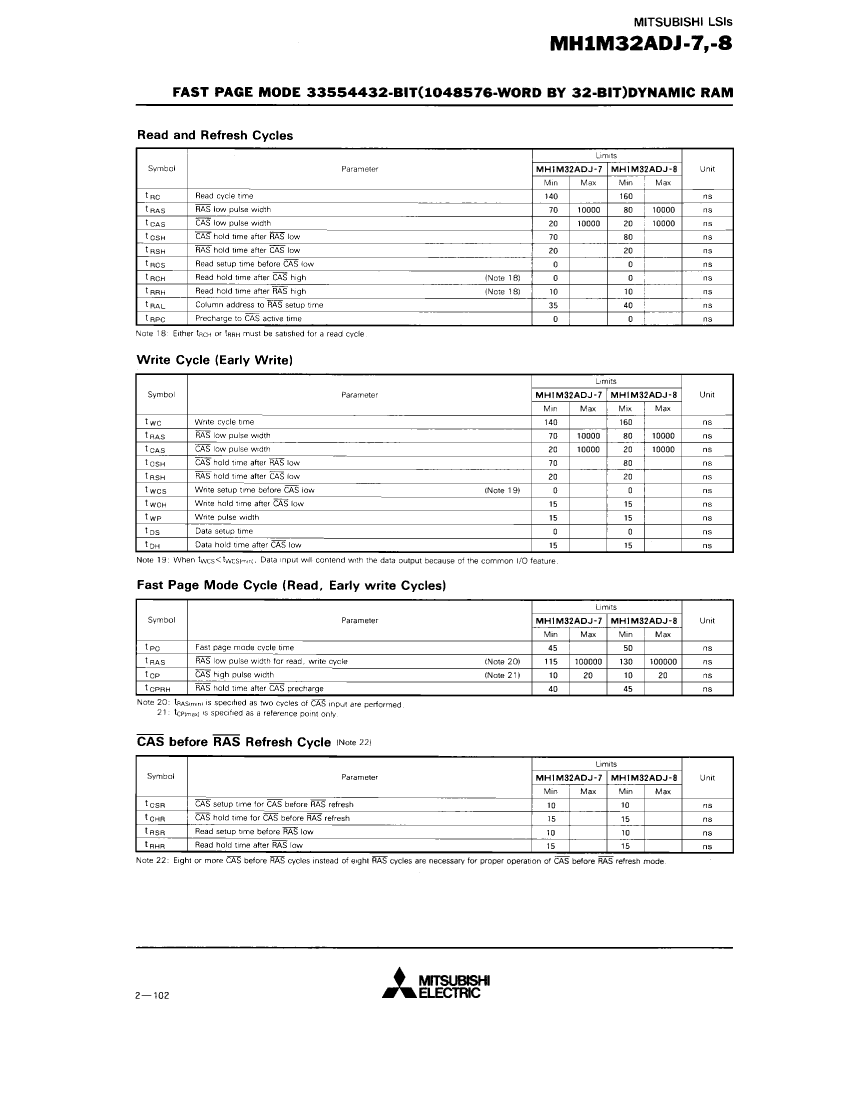

Preview

Download Datasheet

View All

MH1M32ADJ-8 Related Products

	MH1M32ADJ-8	MH1M32ADJ-7
Description	Fast Page DRAM Module, 1MX32, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 1MX32, 70ns, CMOS, SIMM-72
Parts packaging code	SIMM	SIMM
package instruction	SIMM, SSIM72	SIMM, SSIM72
Contacts	72	72
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE
Maximum access time	80 ns	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72
memory density	33554432 bit	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32
Number of functions	1	1
Number of ports	1	1
Number of terminals	72	72
word count	1048576 words	1048576 words
character code	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	1MX32	1MX32
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
refresh cycle	1024	1024
Maximum seat height	25.4 mm	25.4 mm
self refresh	NO	NO
Maximum standby current	0.008 A	0.008 A
Maximum slew rate	0.6 mA	0.68 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE
