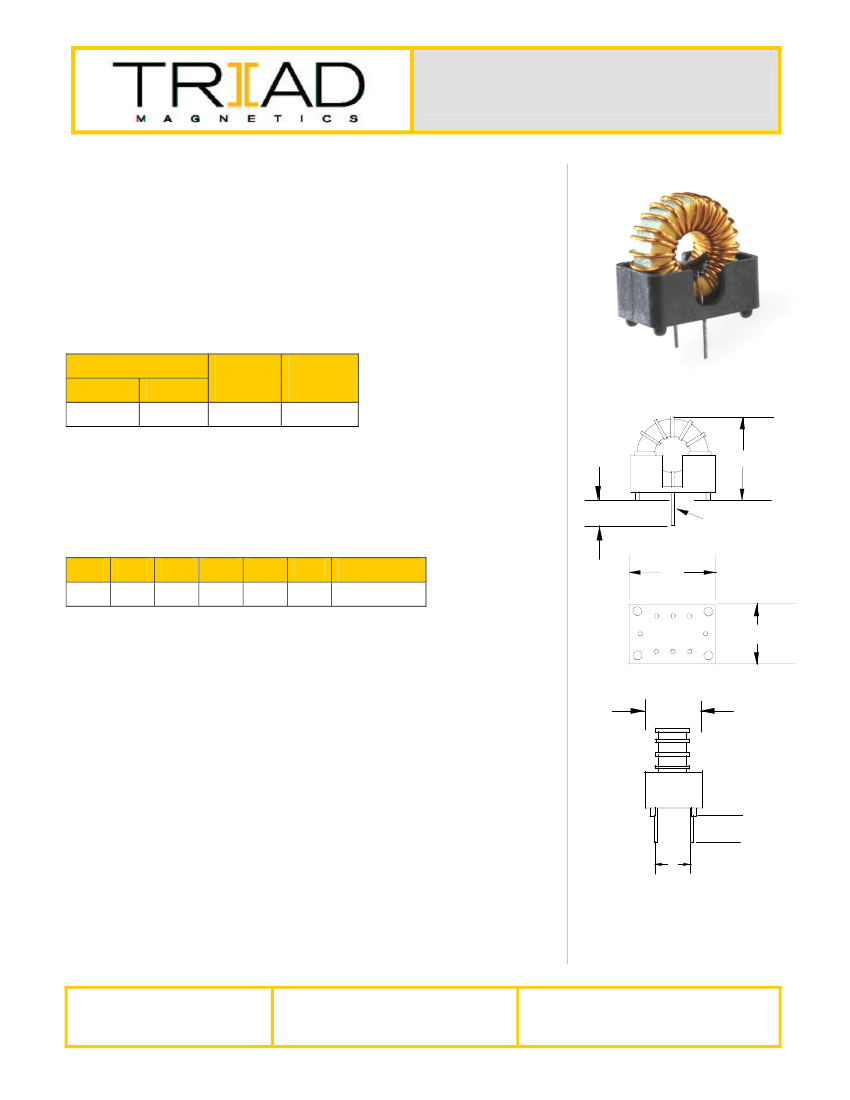

Switchmode/High Frequency
Toroidal Inductor
FIT50-4
Description:
The FIT50-4 toroidal inductor is specifically designed to minimize transients.
It stores energy and therefore, conditions the output signal by leveling the current
waveform providing a more stable current supply. Generally used in high frequency
circuits, its standard design provides an economical solution in differential mode
applications or as an output inductor.
Electrical Specifications (@25C):
Min. Inductance (µH)
No Bias
21.65
At Bias
12.27
Rated
DC Amps
4.8
Max
DCR (mΩ)
29.2
Note:
No Bias inductance measured at .25V, 10KHZ.
C
F
Dimensions:
A
.700
B
.475
C
.750
D
.300
E
.474
F
.125
G
.028±.003
A
G (DIA.)
Units: In inches
B
Weight:
.012 lbs.
E
Technical Notes:
1. Nominal inductance values are typically 10% higher than minimal rating.
2. Biased inductance measured at rated DC amps.
3. Operation at rated current yields approximately 40°C temperature rise
over 20°C ambient.
LEADS TINNED TO
MTG SURFACE MIN.
D
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
