BAS70-06235 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70-06235

BAS70-06235: DescriptionDIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode; CategoryDiscrete semiconductor diode; File Size99KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BAS70-06235 Overview

DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode

BAS70-06235 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	0.1 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

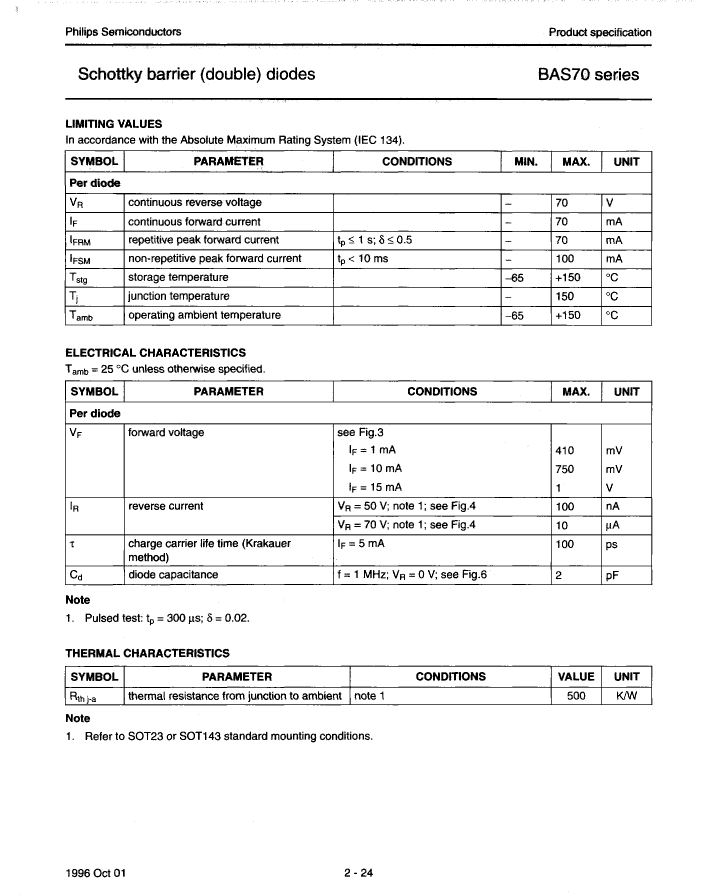

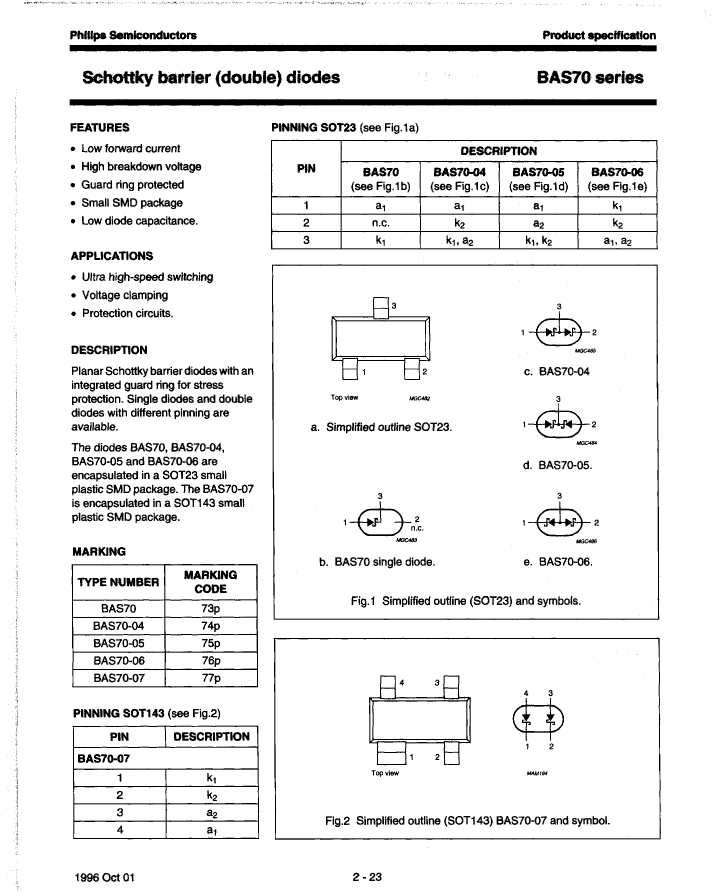

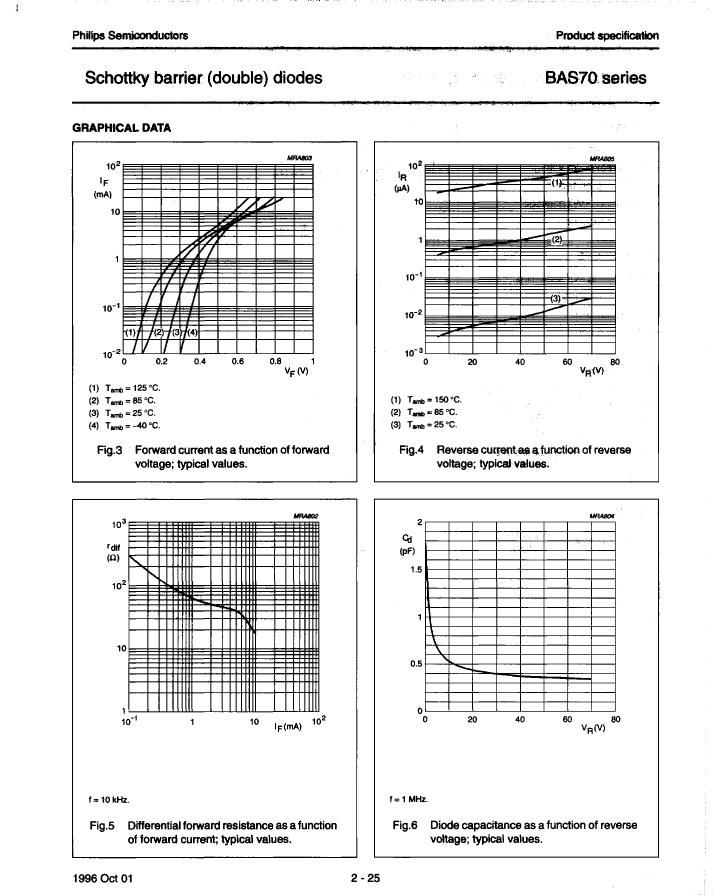

Preview

Download Datasheet

View All

BAS70-06235 Related Products

	BAS70-06235	BAS70-07212	BAS70-07235	BAS70-04212	BAS70-04235	BAS70-06212	BAS70-05212	BAS70-05235	BAS70212
Description	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.07 A, 2 ELEMENT, SILICON, SIGNAL DIODE, Signal Diode	0.07A, 2 ELEMENT, SILICON, SIGNAL DIODE	DIODE 0.07 A, SILICON, SIGNAL DIODE, Signal Diode
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	R-PDSO-G3	R-PDSO-G4	R-PDSO-G4	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Number of components	2	2	2	2	2	2	2	2	1
Number of terminals	3	4	4	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	NXP	NXP	NXP	-	NXP	-	NXP	NXP	NXP
package instruction	R-PDSO-G3	R-PDSO-G4	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3
Base Number Matches	-	1	1	1	1	1	-	-	-
