Datasheet> All Categories > Wireless rf/communication> Telecom circuit> B88069X8900B502

B88069X8900B502: DescriptionSurge Protection Circuit, PACKAGE-3; CategoryWireless rf/communication Telecom circuit; File Size207KB，4 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

B88069X8900B502 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B88069X8900B502	-	-	View	Buy Now

B88069X8900B502 Overview

Surge Protection Circuit, PACKAGE-3

B88069X8900B502 Parametric

Parameter Name	Attribute value
Maker	TDK Corporation
package instruction	PACKAGE-3
Reach Compliance Code	compliant
Factory Lead Time	15 weeks 5 days
JESD-30 code	O-XXSS-W3
Number of functions	1
Number of terminals	3
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	SPECIAL SHAPE
surface mount	NO
Telecom integrated circuit types	SURGE PROTECTION CIRCUIT
Temperature level	INDUSTRIAL
Terminal form	WIRE
Terminal location	UNSPECIFIED

B88069X8900B502 Preview

Surge Arrester

3-Electrode-Arrester

T87-A230X

B88069X8900B502

23.05.2002

Issue 03

Series/Type:

Ordering code:

Date:

Version:



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Important notes

The following applies to all products named in this publication:

1. Some parts of this publication contain

statements about the suitability of our products for

certain areas of application.

These statements are based on our knowledge of typical

requirements that are often placed on our products in the areas of application concerned. We

nevertheless expressly point out

that such statements cannot be regarded as binding

statements about the suitability of our products for a particular customer application.

As a

rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them

than the customers themselves. For these reasons, it is always ultimately incumbent on the

customer to check and decide whether an EPCOS product with the properties described in the

product specification is suitable for use in a particular customer application.

2. We also point out that

in individual cases, a malfunction of electronic components or failure

before the end of their usual service life cannot be completely ruled out in the current state

of the art, even if they are operated as specified.

In customer applications requiring a very high

level of operational safety and especially in customer applications in which the malfunction or

failure of an electronic component could endanger human life or health (e.g. in accident

prevention or life-saving systems), it must therefore be ensured by means of suitable design of the

customer application or other action taken by the customer (e.g. installation of protective circuitry

or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or

failure of an electronic component.

The warnings, cautions and product-specific notes must be observed.

4. In order to satisfy certain technical requirements,

some of the products described in this

publication may contain substances subject to restrictions in certain jurisdictions (e.g.

because they are classed as hazardous).

Useful information on this will be found in our Material

Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed

questions, please contact our sales offices.

5. We constantly strive to improve our products. Consequently,

the products described in this

publication may change from time to time.

The same is true of the corresponding product

specifications. Please check therefore to what extent product descriptions and specifications

contained in this publication are still applicable before or when you place an order.

We also

reserve the right to discontinue production and delivery of products.

Consequently,

we cannot guarantee that all products named in this publication will always be available.

The aforementioned does not apply in the case of individual agreements deviating from the

foregoing for customer-specific products.

6. Unless otherwise agreed in individual contracts,

all orders are subject to the current version of

the “General Terms of Delivery for Products and Services in the Electrical Industry”

published by the German Electrical and Electronics Industry Association (ZVEI).

7. The trade names EPCOS, Alu-X, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CSSP,

CTVS, DeltaCap, DigiSiMic, DSSP, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell,

MKD, MKK, MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PQSine, SIFERRIT,

SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, SIP5D, SIP5K, TFAP,

ThermoFuse, WindCap are

trademarks registered or pending

in Europe and in other countries.

Further information will be found on the Internet at www.epcos.com/trademarks.

Surge Arrester

3-Electrode-Arrester

T87-A230X

Ordering code:

B88069X8900B502

DC spark-over voltage

1) 2) 4)

Impulse spark-over voltage

at 100 V/µs - for 99 % of measured values

- typical values of distribution

at 1 kV/µs

- for 99 % of measured values

- typical values of distribution

230

< 450

< 400

< 650

< 600

> 10

< 1.5

< 0.2

~ 35

~ 200

-40 ... +90

40/ 90/ 21

230 YY O

230

- Nominal voltage

- Year of production

- Non radioactive

GΩ

µs

°C

Nominal impulse discharge current (wave 8/20 µs)

Single impulse discharge current

(wave 8/20 µs)

Nominal alternating discharge current (50 Hz, 1 s)

Alternating discharge current (50 Hz, 9 cycles)

Insulation resistance at 100 V

dc 4)

Capacitance at 1 MHz

Transverse delay time

Arc voltage at 1 A

Glow to arc transition current

Glow voltage

Weight

Operation and storage temperature

Climatic category (IEC 60068-1)

Marking, red

At delivery AQL 0.65 level II, DIN ISO 2859

In ionized mode

Test according to ITU-T Rec. K.12

Tip or ring electrode to center electrode

Total current through center electrode, half value through

tip respectively ring electrode.

Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845

AB E / AB PM

Page 1 of 2

Issue 03, 23.05.2002

Surge Arrester

3-Electrode-Arrester

T87-A230X

Ordering code:

B88069X8900B502

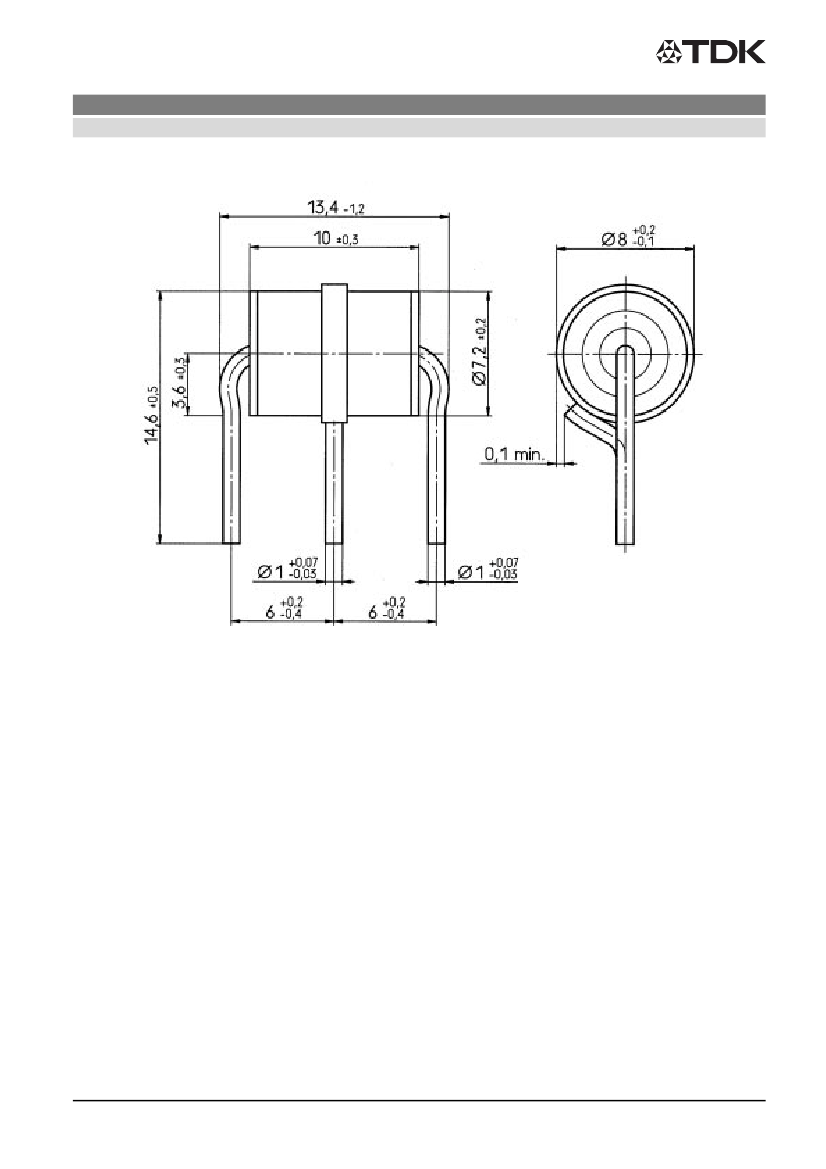

Not to scale

Dimensions in mm

Non controlled document

EPCOS AG 2002. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

Purchase orders are subject to the General Conditions for the Supply of Products and Services of the Electrical and

Electronics Industry recommended by the ZVEI (German Electrical and Electronic Manufacturers' Association), unless

otherwise agreed.

AB E / AB PM

Page 2 of 2

Issue 03, 23.05.2002
