749656-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 749656-4

749656-4: Description40 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, IDC, RECEPTACLE; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

749656-4 Overview

40 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, IDC, RECEPTACLE

749656-4 Parametric

Parameter Name	Attribute value
Objectid	1504396889
Reach Compliance Code	unknown
Other features	AMPLIMITE
Body/casing type	RECEPTACLE
Connector type	OTHER D TYPE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	749656
Plug information	749880-4
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Termination type	IDC
Total number of contacts	40
UL Flammability Code	94V-0

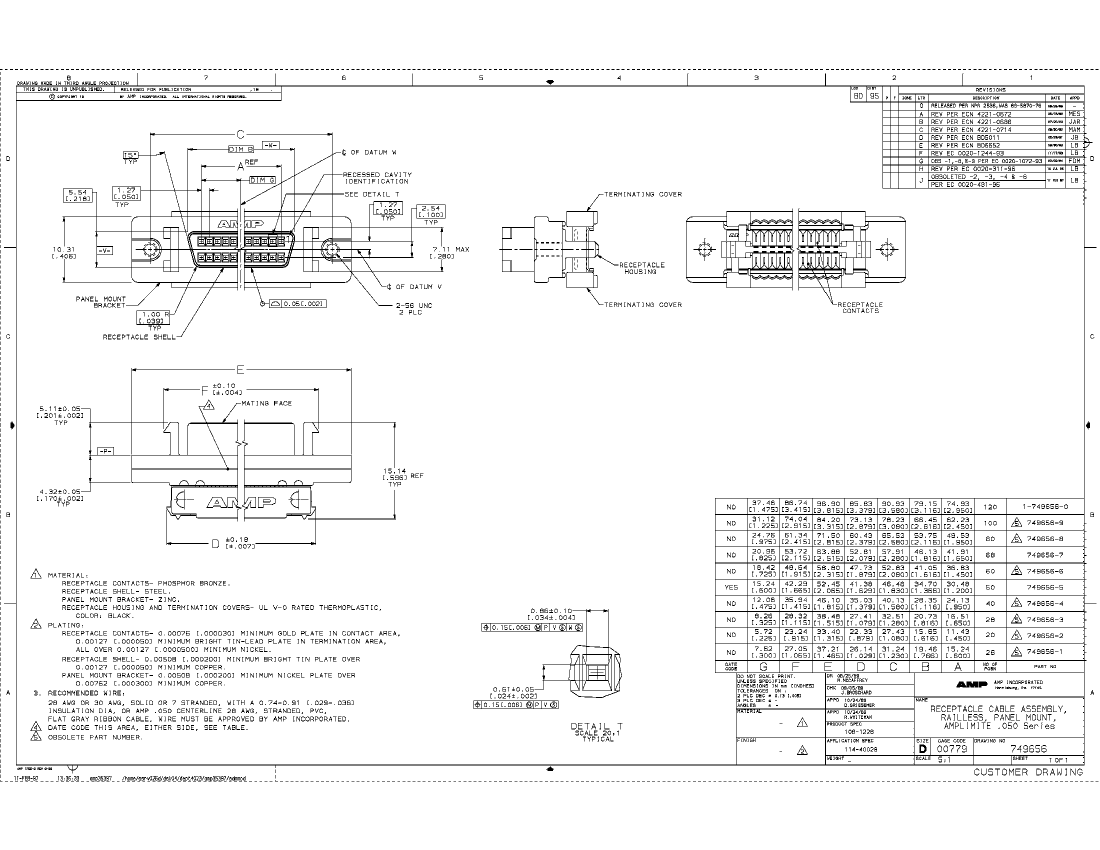

Preview

Download Datasheet

View All

749656-4 Related Products

	749656-4	749656-3	749656-8	749656-9	749656-1	749656-2	749656-6
Description	40 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, IDC, RECEPTACLE	CONNECTOR,D-SHELL,CABLE MNT,PLUG,28 CONTACTS,SKT,0.05 PITCH,#2-56	80 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, IDC, RECEPTACLE	CONNECTOR, 100 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, IDC, RECEPTACLE	CONNECTOR, 26 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, IDC, RECEPTACLE	CONNECTOR, 20 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, IDC, RECEPTACLE	CONNECTOR,D-SHELL,CABLE MNT,PLUG,60 CONTACTS,SKT,0.05 PITCH,#2-56
Objectid	1504396889	300008668	1504396901	1504396904	1504396880	1504396883	300008671
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	AMPLIMITE	LATCH BLOCK	AMPLIMITE	AMPLIMITE	AMPLIMITE	AMPLIMITE	LATCH BLOCK
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Total number of contacts	40	28	80	100	26	20	60
Connector type	OTHER D TYPE CONNECTOR	-	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	D SUBMINIATURE CONNECTOR	OTHER D TYPE CONNECTOR	-
DIN compliance	NO	-	NO	NO	NO	NO	-
empty shell	NO	-	NO	NO	NO	NO	-
Filter function	NO	-	NO	NO	NO	NO	-
IEC compliance	NO	-	NO	NO	NO	NO	-
MIL compliance	NO	-	NO	NO	NO	NO	-
Mixed contacts	NO	-	NO	NO	NO	NO	-
Installation type	PANEL	-	PANEL	PANEL	PANEL	PANEL	-
Termination type	IDC	-	IDC	IDC	IDC	IDC	-
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	-
