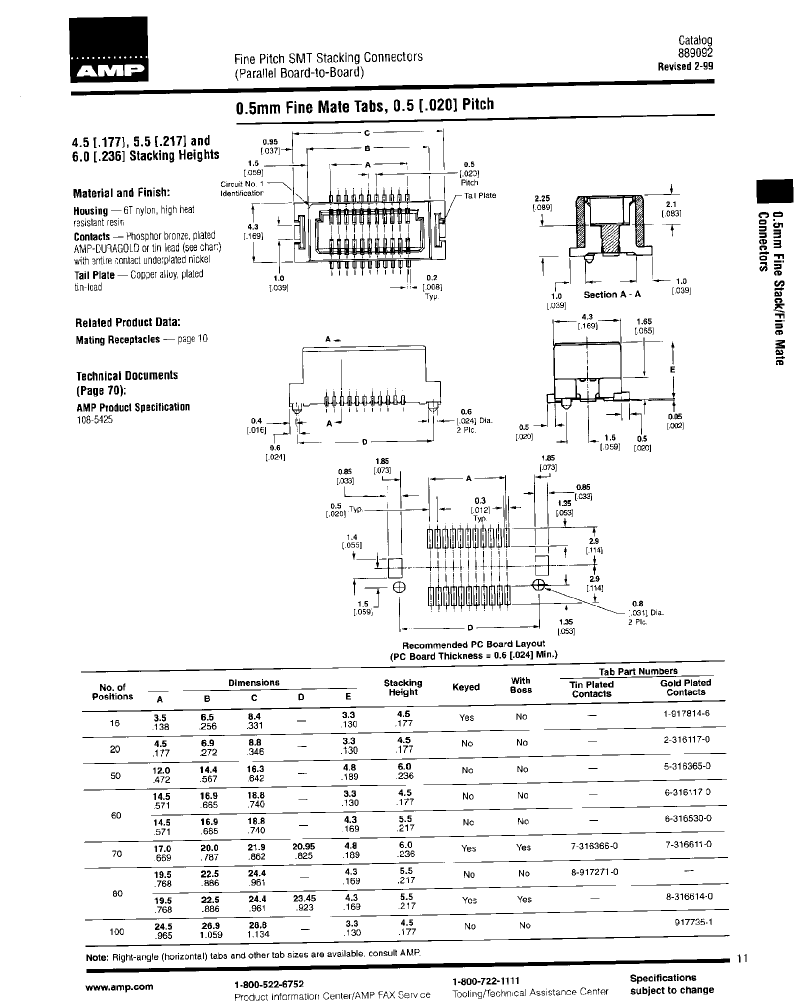

80 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT
| Parameter Name | Attribute value |
| Objectid | 1431070722 |
| Reach Compliance Code | unknown |
| Connector type | BOARD STACKING CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 917271 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 80 |
| 8-917271-0 | 7-316366-0 | 917735-1 | |
|---|---|---|---|
| Description | 80 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT | HEADER CONNECTOR,PCB MNT,RECEPT,70 CONTACTS,PIN,0.02 PITCH | 100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT |
| Reach Compliance Code | unknown | unknown | compliant |
| Connector type | BOARD STACKING CONNECTOR | BOARD CONNECTOR | BOARD STACKING CONNECTOR |
| Contact point gender | MALE | MALE | MALE |
| Manufacturer's serial number | 917271 | 316366 | 316117 |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Number of rows loaded | 2 | 2 | 2 |
| Terminal pitch | 0.5 mm | 0.508 mm | 0.5 mm |
| Total number of contacts | 80 | 70 | 100 |
| DIN compliance | NO | - | NO |
| Filter function | NO | - | NO |
| IEC compliance | NO | - | NO |
| MIL compliance | NO | - | NO |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | - | 917734-1 |
| Mixed contacts | NO | - | NO |
| Installation type | BOARD | - | BOARD |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE |
| Termination type | SURFACE MOUNT | - | SURFACE MOUNT |
| Maker | - | TE Connectivity | TE Connectivity |
| Other features | - | WITH TAPE AND REEL PACKAGING | WITH TAPE AND REEL PACKAGING |
| Board mount options | - | LOCATING POSTS | LOCATING POSTS |
| body width | - | 0.169 inch | 0.169 inch |
| subject depth | - | 0.191 inch | 0.132 inch |
| body length | - | 0.862 inch | 1.134 inch |
| Body/casing type | - | RECEPTACLE | RECEPTACLE |
| Contact to complete cooperation | - | SN-PB ON NI | GOLD OVER NICKEL |
| Contact completed and terminated | - | TIN OVER NICKEL | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact material | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | - | RECTANGULAR | RECTANGULAR |
| insulator material | - | NYLON | NYLON |
| Plug contact pitch | - | 0.02 inch | 0.02 inch |
| Number of connectors | - | ONE | ONE |
| PCB row number | - | 2 | 2 |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 4.445 mm | 4.445 mm |
| polarization key | - | POLARIZED HOUSING | POLARIZED HOUSING |
| reliability | - | COMMERCIAL | COMMERCIAL |
