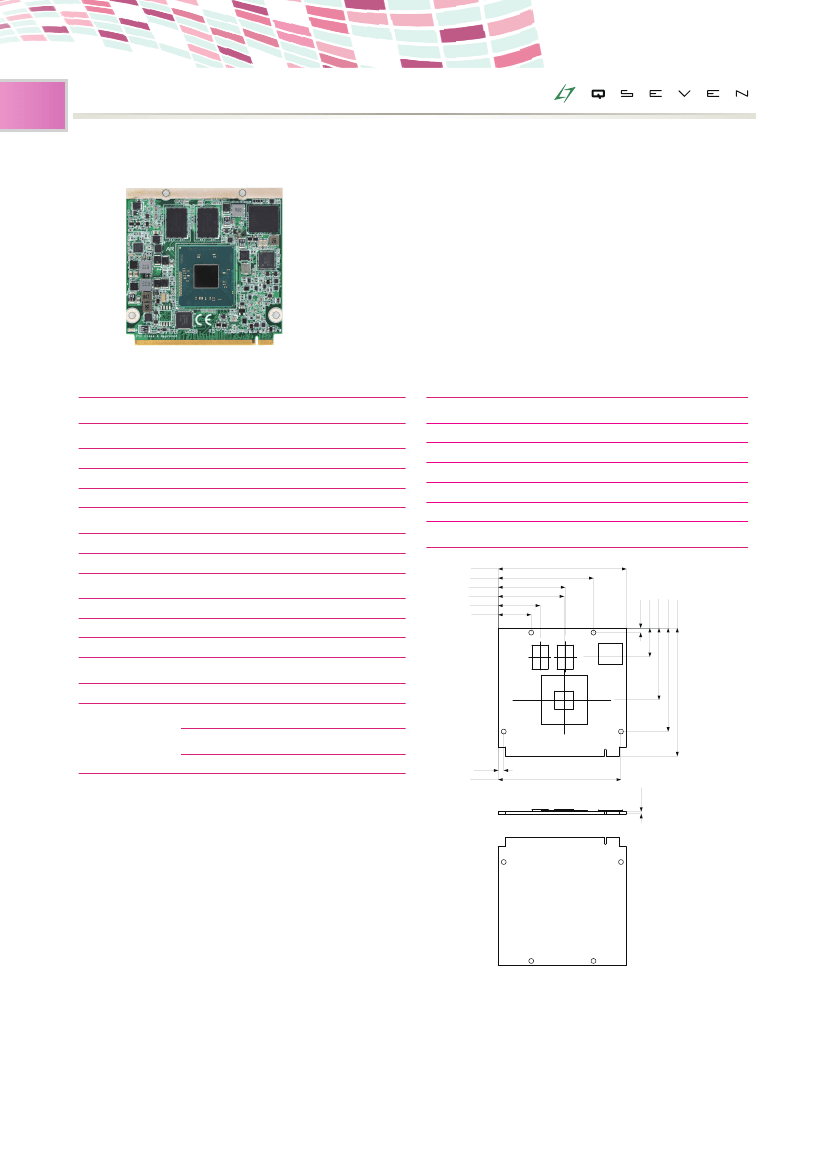

EmQ-i2301
Intel® Atom E3800 series processor Qseven™ CPU Module
Features
•
•
•
•
•
•
Fanless Design
Soldered Onboard Intel® Atom E3800 series SoC Processor
Intel i210IT PCIe GbE controller
Soldered Onbaod 16GB eMMC
Dual Channels 24-bit LVDS, DDI Port
Extended Operating Temp.: -20 ~ 70
º
C
System
CPU/ Chipset
Memory
BIOS
Soldered onboard Intel Atom E3825 1.33GHz or
E3845 1.91GHz SoC Processor
Soldered onboard 2GB / 4GB DDR3L SDRAM
Insyde UEFI BIOS
®
Mechanical & Environmental
Power Requirement
Power Consumption
Operating Temp.
Operating Humidity
Dimension (L x W)
5V
0.93A@+12V with E3825 (Typical)
-20 ~ 70ºC (-4 ~ 158ºF)
10 ~ 95% @ 70ºC (non-condensing)
70 x 70 mm (2.76” x 2.76”)
Watchdog Timer
1~255 levels reset
I/O
USB Port
Expansion Bus
Storage
SDIO
Audio
8 x USB 2.0 ports
3 x PCIe x1 lanes
2 x Serial ATA ports
Soldered onboard 16GB eMMC (Optional)
Supports SDIO
HD Audio Link
Dimensions
70.00
52.00
36.58
35.94
22.86
18.00
Display
Graphics Chipset
SoC Integrated Intel
®
Gen7 graphic
Graphics Interface
LCD: Dual Channel 24-bit LVDS, resolution up to
1920x1200
Support Analog RGB signals (via Qseven GF
reserved pin)
1 x DDI port
3.00
67.00
1.20
Unit:mm
1
All specifications are subject to change without notice.
2.50
15.77
39.27
56.50
70.00
Ethernet Chipset
1 x Intel
®
i210IT PCIe GbE controller
Block Diagram
DDR3L-1066/1333MHz (up to 4GB)
Onboard DDR3L
2GB SDRAM
1 x eDP port
NXP
PTN3460
Dual Channels 24-bit LVDS
Analog R.G.B. to Q7 RSV pin
1 x DDI port (DDI1)
4 x USB 2.0 host ports (0~3)
3 x PCIex1
1 x PCIe x 1
Giga LAN
Intel i210IT
GbE LAN
SATA0 6GB/s
SATA1 6GB/s
SDIO
LPC I/F
HD Audio Link
eMMC 4.5
Onboard eMMC
up to 16GB
Ordering Information
EmQ-i2301-E3825-2G
EmQ-i2301-E3845-2G
Intel
®
Atom™ Bay Trail-I E3825 Qseven™ CPU module w / 2GB memory soldered on module
Intel
®
Atom™ Bay Trail-I E3845 Qseven™ CPU module w / 2GB memory soldered on module
EmQ-i2301-E3825-4G(BTO)
Intel
®
Atom™ Bay Trail-I E3825 Qseven™ CPU module w / 4GB memory soldered on module
EmQ-i2301-E3845-4G(BTO)
Intel
®
Atom™ Bay Trail-I E3845 Qseven™ CPU module w / 4GB memory soldered on module
EmQ-i2301D-E3825-2G(BTO)
Intel
®
Atom™ Bay Trail-I E3825 Qseven™ CPU module w / eMMC16GB and 2GB memory soldered on module
EmQ-i2301D-E3845-2G(BTO)
Intel
®
Atom™ Bay Trail-I E3845 Qseven™ CPU module w / eMMC16GB and 2GB memory soldered on module
EmQ-i2301D-E3825-4G(BTO)
Intel
®
Atom™ Bay Trail-I E3825 Qseven™ CPU module w / eMMC16GB and 4GB memory soldered on module
EmQ-i2301D-E3845-4G(BTO)
Intel
®
Atom™ Bay Trail-I E3845 Qseven™ CPU module w / eMMC16GB and 4GB memory soldered on module
Optional Accessories
HS-0662-F1
HS-0000-W3
PBQ-3000 R1.2
SCDB-5291
CBK-06-3000-00
Heat spreader
Universal evaluation heatsink kit for Qseven CPU module (70x70x30mm)
Qseven™ EPIC evaluation board
Battery Charger DB
Cable kit
•
1 x USB cable
•
1 x USB2 cable
•
2 x Serial port cables
•
1 x SATA cable
•
1 x SATA power cable
Q7 Golden Finger
Intel®
Atom
Bay
Trail-I
E3825
1.33GHz
/ E3845
1.91GHz
1 x HSIC
SMSC
USB4604
4 x USB 2.0 Ports(4~7)
All specifications are subject to change without notice.
2
