842925-3 datasheet, PDF - EEWORLD Datasheet

842925-3: DescriptionCONNECTOR,FILTERED D-SHELL,CABLE MNT,PLUG,9 CONTACTS,SKT,0.108 PITCH,SOLDER TERMINAL,HOLE .112-.124; CategoryThe connector The connector; File Size396KB，10 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

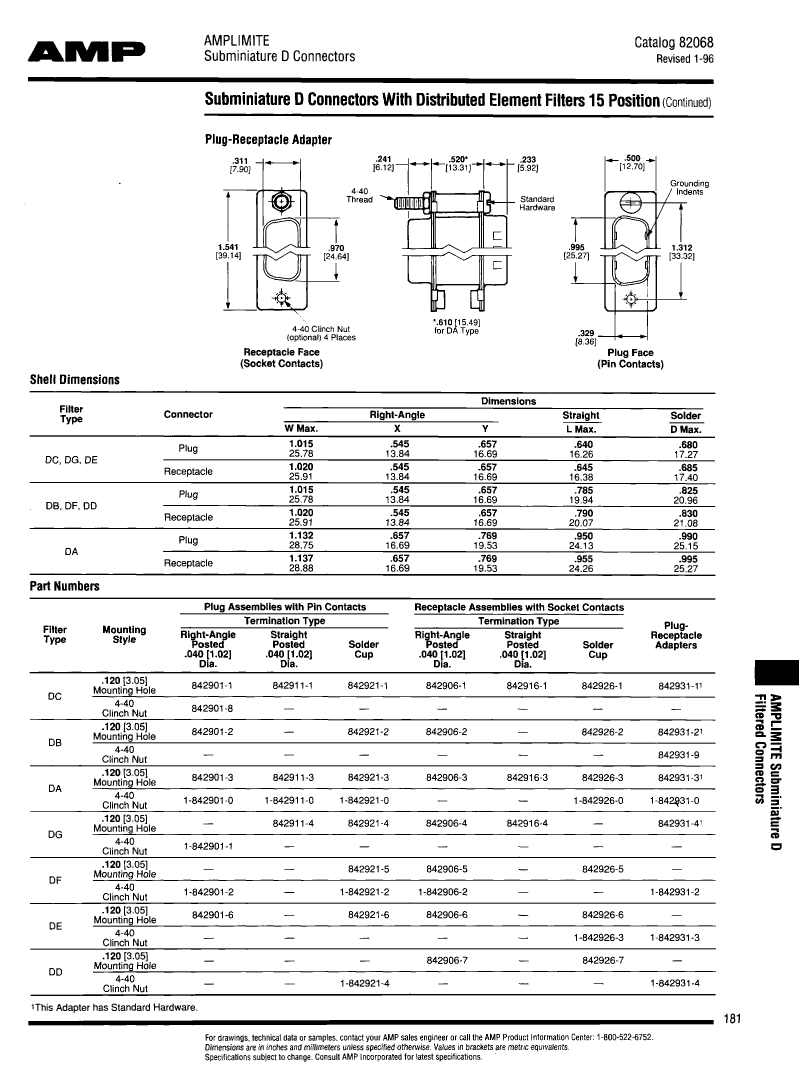

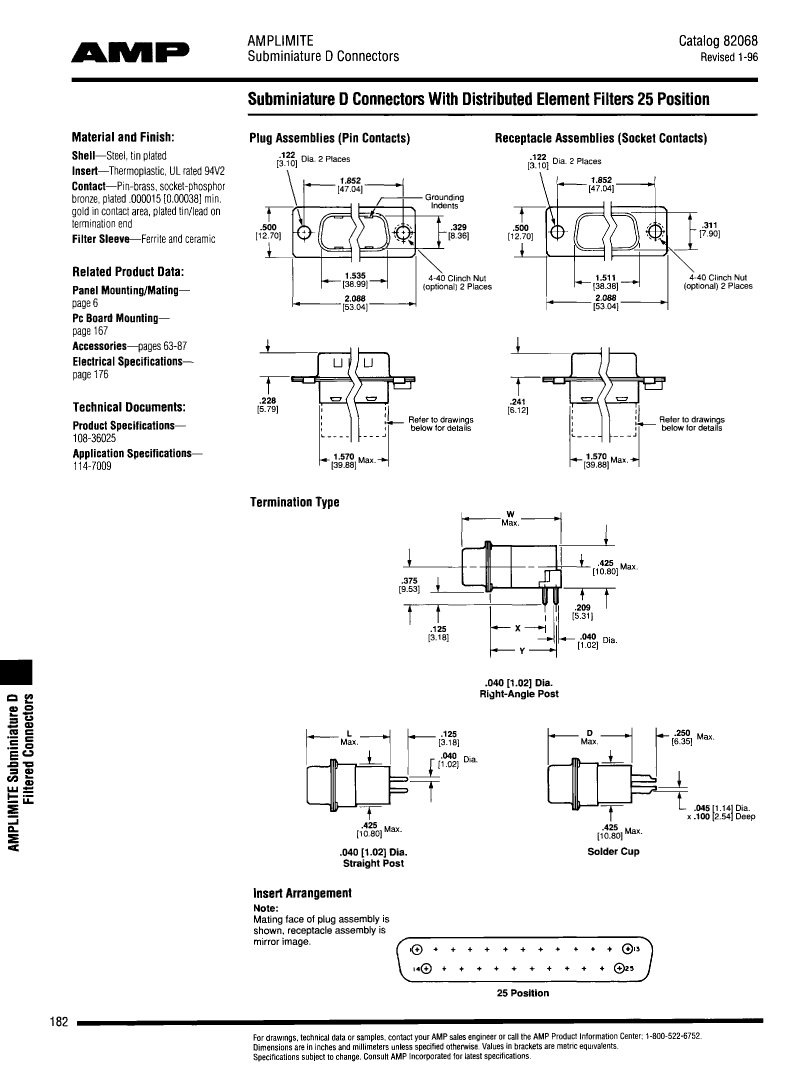

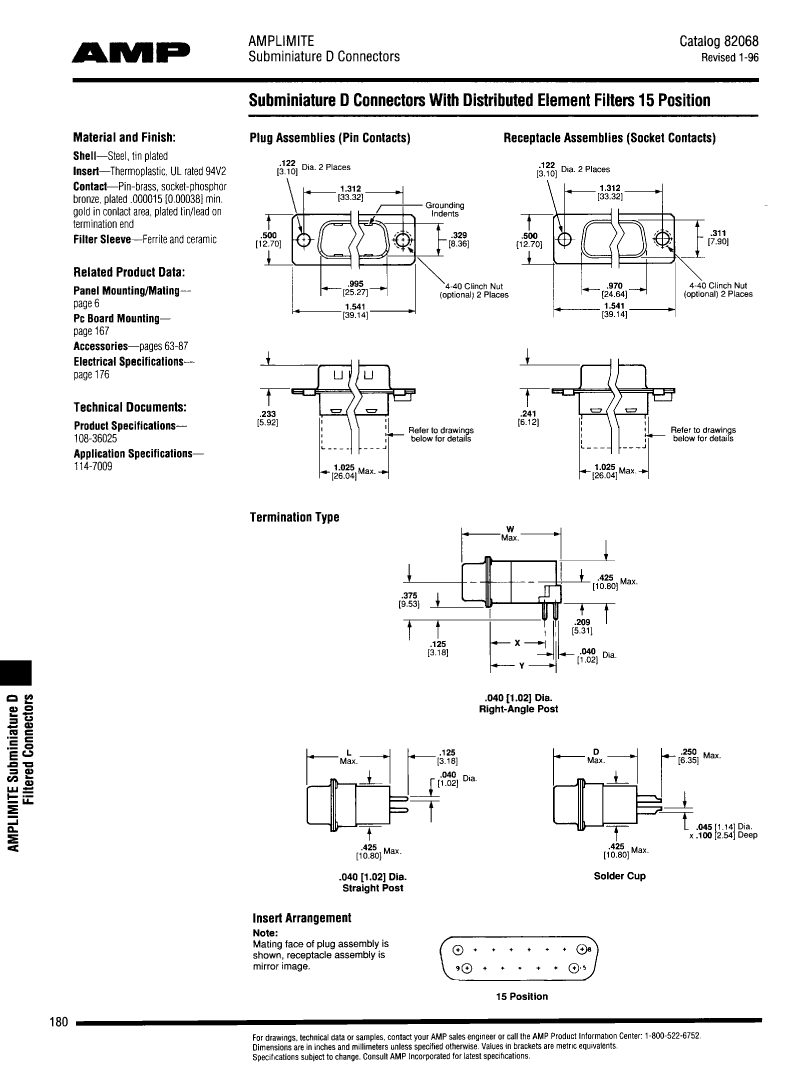

842925-3 Overview

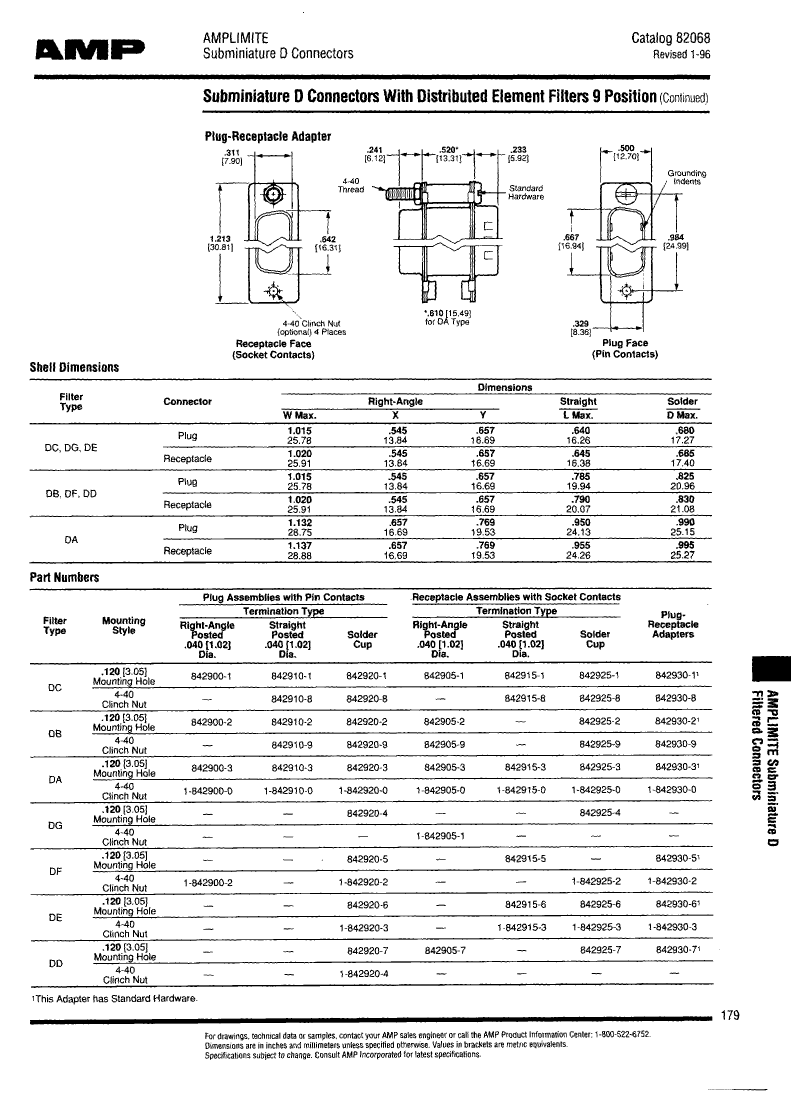

CONNECTOR,FILTERED D-SHELL,CABLE MNT,PLUG,9 CONTACTS,SKT,0.108 PITCH,SOLDER TERMINAL,HOLE .112-.124

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	FILTERED

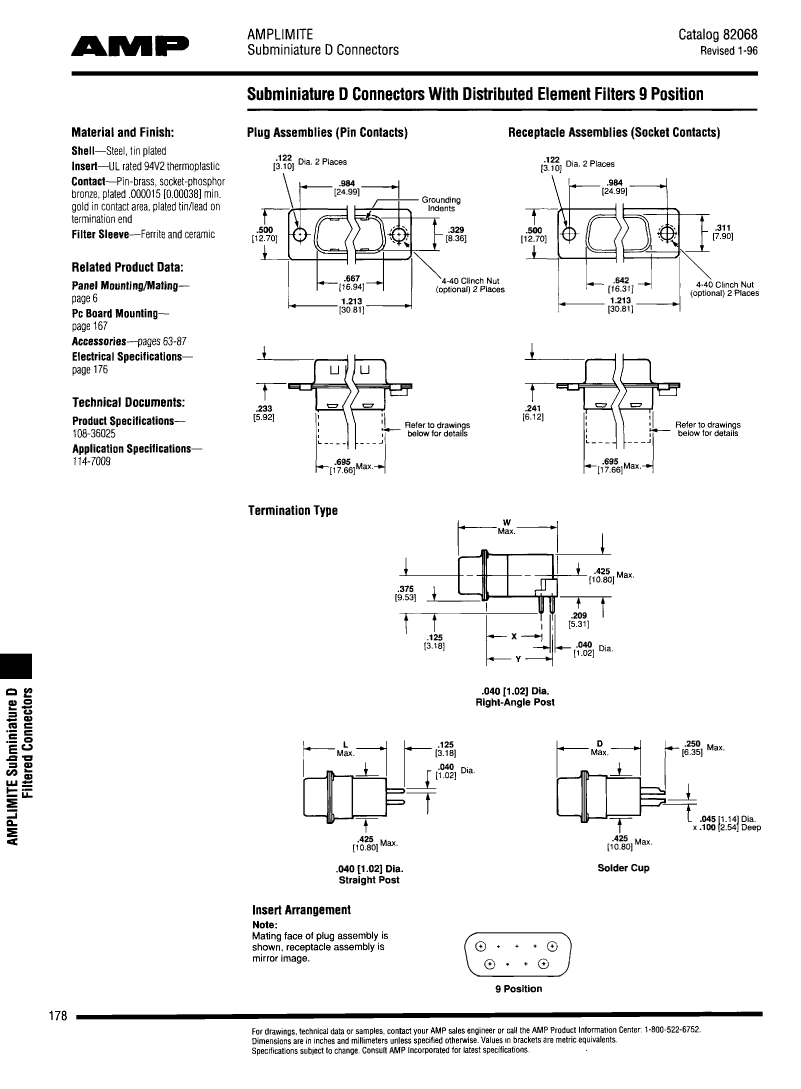

body width	0.5 inch
subject depth	0.754 inch
body length	1.213 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	2 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	250VDC V
Filter function	YES
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation type	PANEL
Number of rows loaded	2
Plating thickness	15u inch
Rated current (signal)	7.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.25 inch
Termination type	SOLDER LUG
Total number of contacts	9
