8C-1002 datasheet, PDF - EEWORLD Datasheet

8C-1002: DescriptionSMPS TRANSFORMER; CategoryPower management transformer; File Size133KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

8C-1002 Overview

SMPS TRANSFORMER

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	ER
Primary inductance	11.6 µH
Transformer type	SMPS TRANSFORMER

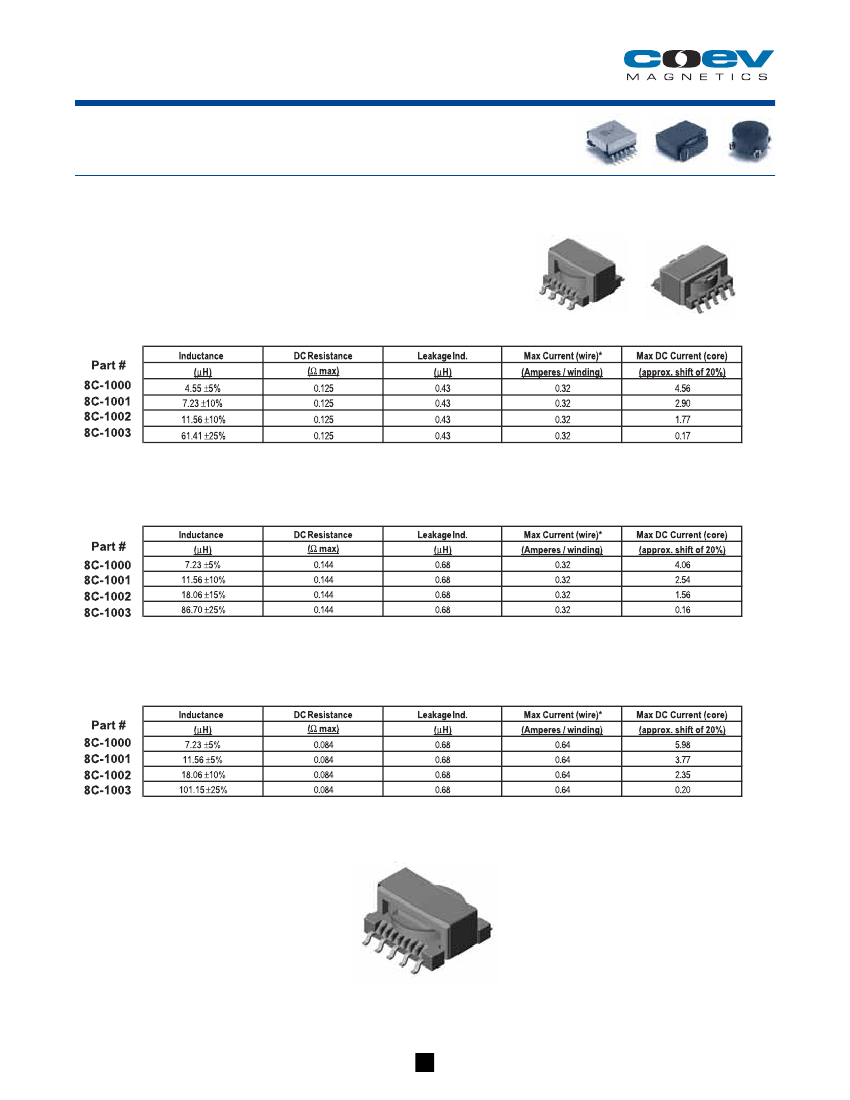

POWER

SMPS TRANSFORMERS

Configurable Magnetics—

ER Series

ER 9.5

ER 11

ER 14.5

* using a current density of 200 circular mils per Amp (cm/A)

47

	8C-1002	8C-1000	8C-1001	8C-1003
Description	SMPS TRANSFORMER	SMPS TRANSFORMER	SMPS TRANSFORMER	SMPS TRANSFORMER
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	ER	ER	ER	ER
Primary inductance	11.6 µH	4.5 µH	7.2 µH	61.4 µH
Transformer type	SMPS TRANSFORMER	SMPS TRANSFORMER	SMPS TRANSFORMER	SMPS TRANSFORMER
