AIR CORE INDUCTORS
Aerospace Grade Air Core Inductors
■
Excellent Q factors – up to 130
■
Current handling as high as 4.4 Amps!

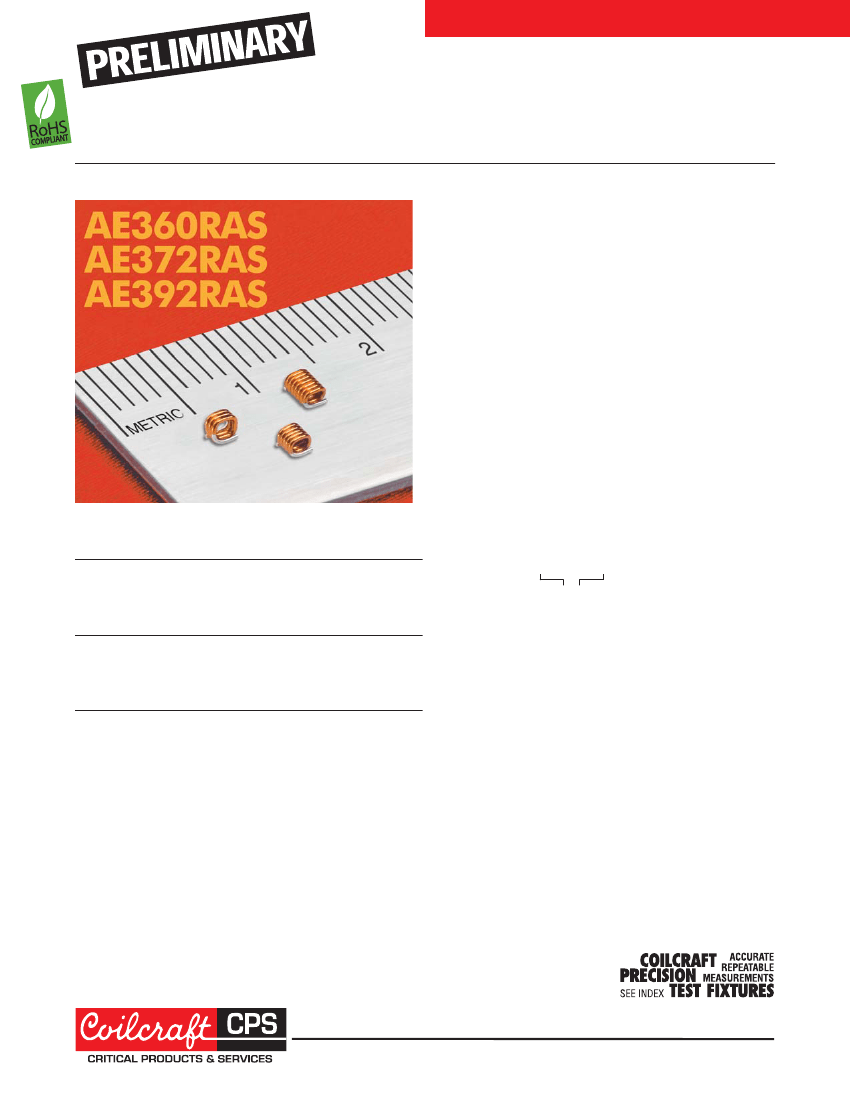

AE360RAS
AE372RAS
AE392RAS
■
15 inductance values from 6.0 to 27 nH at 5% and 2%
■
Designed to operate in ambient temperatures up to 155°C.
■
Passes NASA low outgassing specifications
■
Tin-lead (Sn-Pb) terminations ensures the best possible
board adhesion
Terminations
Tin-lead (63/37) over copper
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+5 to +70 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Part number
1
AE360RAS6N0_SZ
AE360RAS8N9_SZ
AE360RAS12N_SZ
AE360RAS16N_SZ
AE360RAS19N_SZ
AE372RAS6N9_SZ
AE372RAS10N_SZ
AE372RAS14N_SZ
AE372RAS17N_SZ
AE372RAS22N_SZ
AE392RAS8N1_SZ
AE392RAS12N_SZ
AE392RAS17N_SZ
AE392RAS22N_SZ
AE392RAS27N_SZ
Inductance
2
%
(nH)
tol
6.0
8.9
12.3
15.7
19.4
6.9
10.2
13.7
17.0
22.0
8.1
12.1
16.6
21.5
27.3
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
Q
3
typ
64
90
90
90
90
100
100
100
100
100
130
130
130
130
130
SRF
DCR
typ
4
max
5
Imax
(GHz) (mOhm) (A)
5.2
4.3
4.8
4.4
4.0
4.6
4.0
4.3
4.0
3.5
5.2
4.3
3.4
3.7
3.2
6.0
7.0
8.0
9.0
10.0
6.0
7.0
8.0
9.0
10.0
6.0
7.0
8.0
9.0
10.0
2.9
2.9
2.9
2.9
2.9
2.7
2.7
2.7
2.7
2.7
4.4
4.4
4.4
4.4
4.4
1. Please specify
tolerance
and
testing
codes:
AE392RAS27NGSZ
Tolerance: G
= 2%
J
= 5%
Testing: Z
= Coilcraft Critical Products Environmental Stress
Conditions Testing.
H
= Coilcraft Qual + Coilcraft Hi-Rel Burn-in
P
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening
N
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening
C
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening + MIL-STD-981 Class S Group B qualification
W
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening + MIL-STD-981 Class S Group B qualification
2. Inductance measured at 400 MHz on an Agilent/HP 4286A or
equivalent with a Coilcraft SMD-A test fixture and correlation.
3. Q measured at 400 MHz on an Agilent/HP 4291A or equivalent with a
16193-A test fixture or equivalent.
4. SRF measured on an Agilent/HP 8753D or equivalent with a Coilcraft
SMD-D test fixture.
5. DCR measured on a Keithley 580 Micro-Ohmmeter or equivalent.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE617-1
Revised 07/15/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com

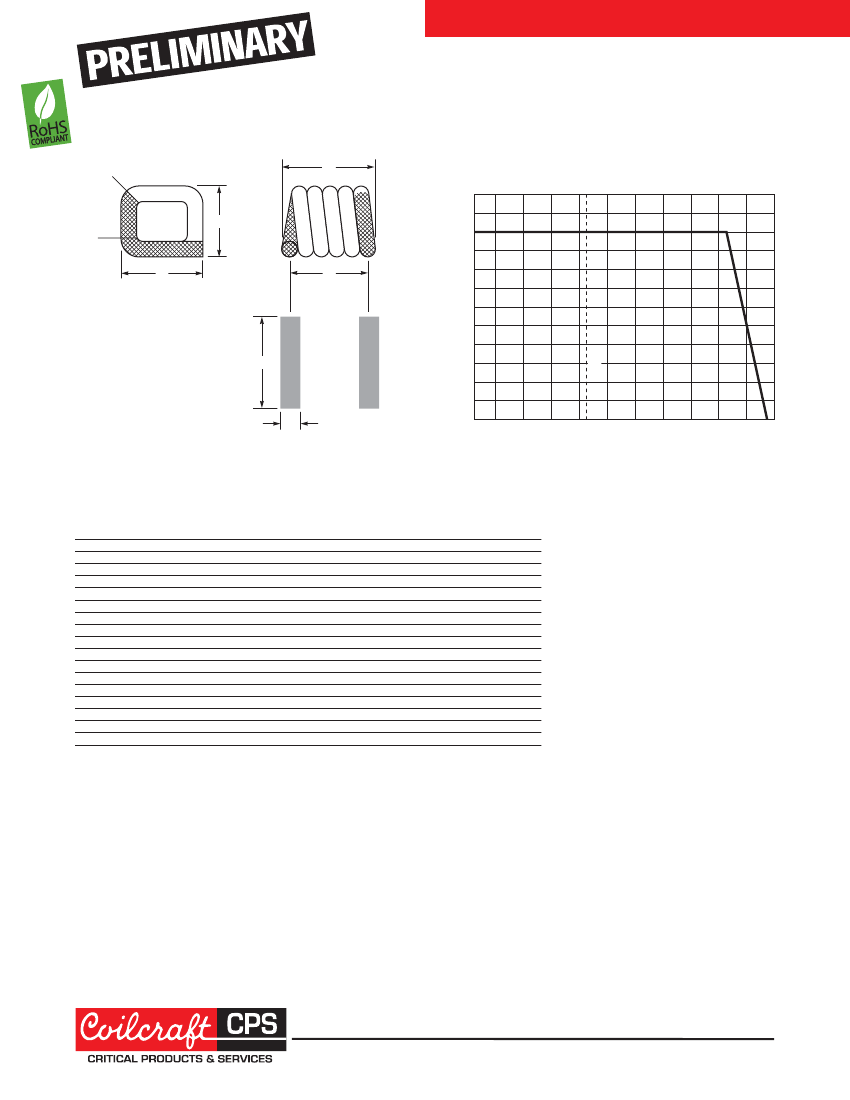

AIR CORE INDUCTORS
Square Air Coil Inductors
max
A
Irms Derating
120
110
100
Strip
length
C
min
Percent of rated
I
rms
90
80
70
60
50
25°C
B
D
40
30
20
10
E
F
0
-55 -40
-20
0
20
40
60
80
100
120
140 160
Recommended
Suggested
Land
Pattern
Enhanced crush-resistant packaging
2000 per 7″reel
Pastic tape: 12 mm wide, 0.254 mm thick, 4 mm pocket spacing
Part
number
AE360RAS-6N0
AE360RAS-8N9
AE360RAS-12N
AE360RAS-16N
AE360RAS-19N
AE372RAS-6N9
AE372RAS-10N
AE372RAS-14N
AE372RAS-17N
AE372RAS-22N
AE392RAS-8N1
AE392RAS-12N
AE392RAS-17N
AE392RAS-22N
AE392RAS-27N
A
1,295 ±0,102
1,626 ±0,152
1,930 ±0,152
2,286 ±0,152
2,591 ±0,152
1,295 ±0,102
1,626 ±0,152
1,930 ±0,152
2,286 ±0,152
2,591 ±0,152
1,473 ±0,152
1,854 ±0,152
2,210 ±0,152
2,565 ±0,152
2,972 ±0,152
B
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
1,829 ±0,254
2,134 ±0,152
2,134 ±0,152
2,134 ±0,152
2,134 ±0,152
2,134 ±0,152
C
1,397 ±0,102
1,397 ±0,102
1,397 ±0,102
1,397 ±0,102
1,397 ±0,102
1,524 ±0,254
1,524 ±0,254
1,524 ±0,254
1,524 ±0,254
1,524 ±0,254
1,829 ±0,152
1,829 ±0,152
1,829 ±0,152
1,829 ±0,152
1,829 ±0,152
D
0,99
1,27
1,63
1,96
2,29
1,02
1,32
1,57
1,93
2,29
1,12
1,45
1,83
2,18
2,57
E
2,6
2,6
2,6
2,6
2,6
2,6
2,6
2,6
2,6
2,6
2,8
2,8
2,8
2,8
2,8
F
0,51
0,51
0,51
0,51
0,51
0,51
0,51
0,51
0,51
0,51
0,64
0,64
0,64
0,64
0,64
Weight Tape pocket
(mg) depth (mm)
8,5
1,42
10,8
1,55
13,6
1,52
16,1
1,50
18,7
1,55
9,1
11,5
14,0
16,8
19,4
12,8
16,9
21,1
24,7
28,7
1,60
1,57
1,60
1,68
1,68
2,01
1,96
2,01
1,98
1,01
Ambient temperature (°C)
All dimensions are in mm.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE617-2
Revised 07/15/09
1102 Silver Lake Road
Cary IL 60013

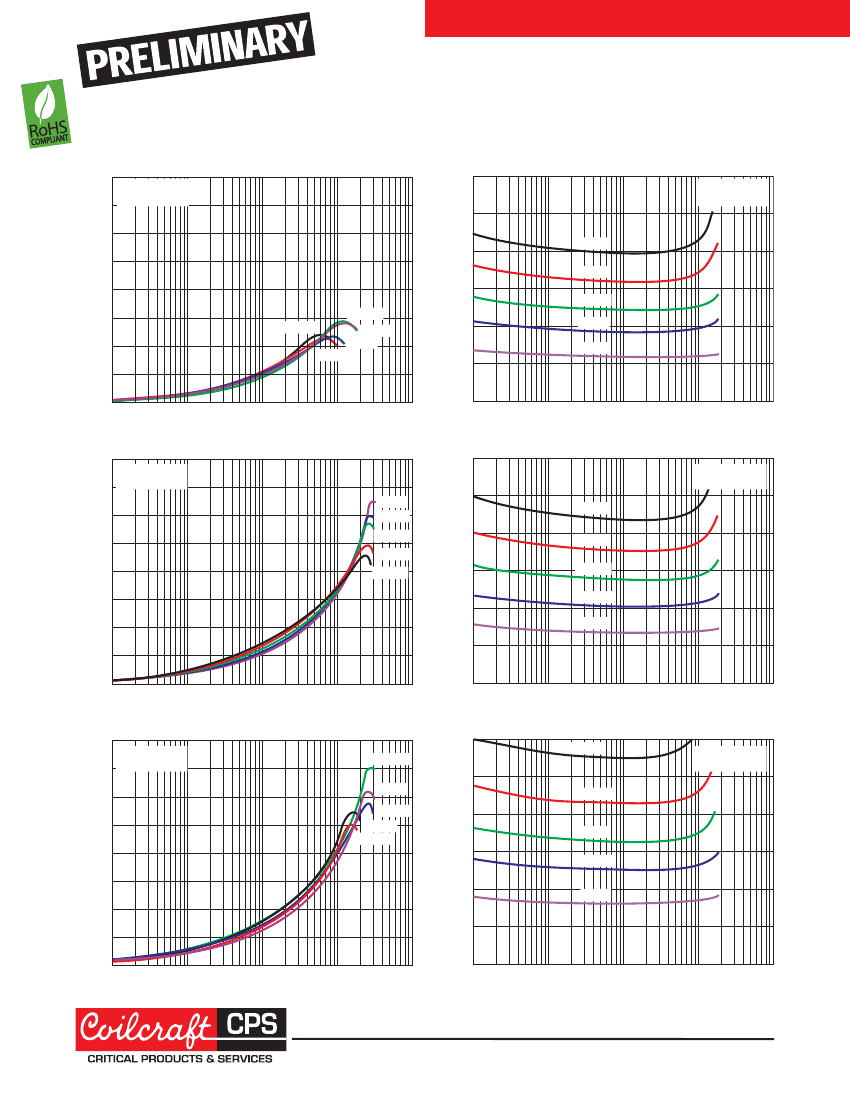

© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com
