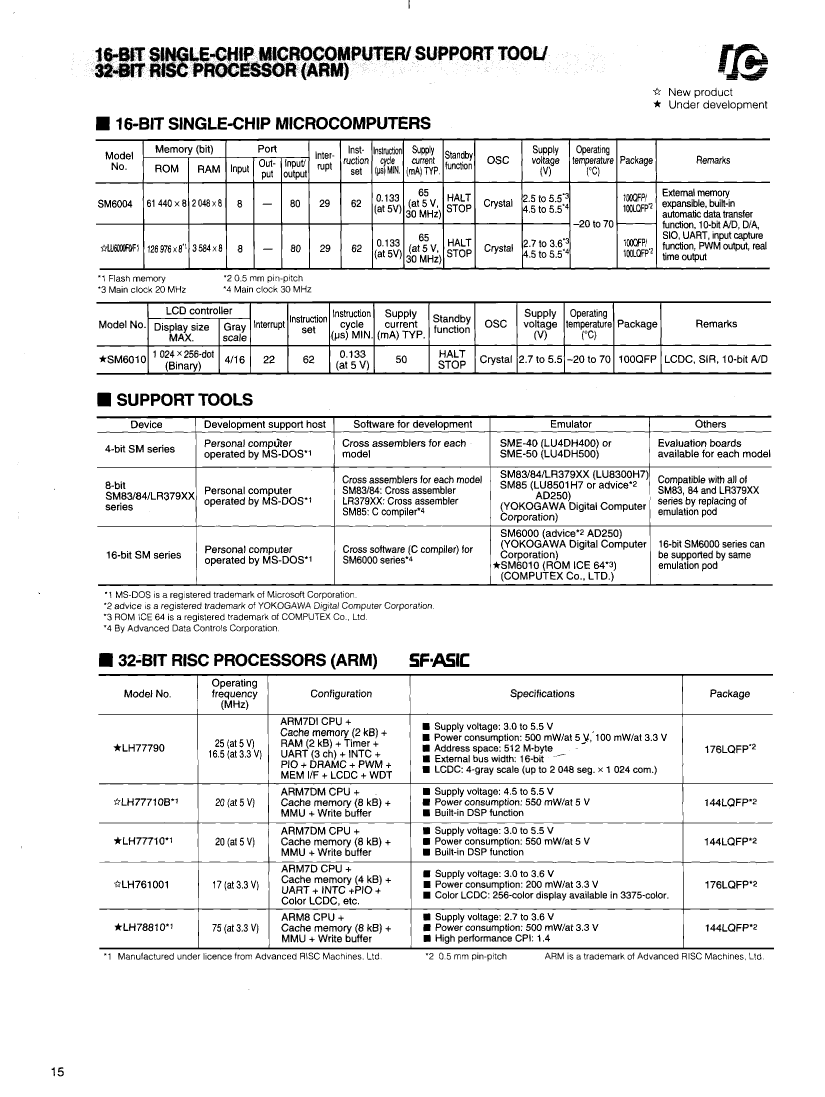

LH77710: DescriptionRISC Microprocessor, 32-Bit, 20MHz, CMOS, PQFP144, 0.50 MM PITCH, LQFP-144; CategoryThe embedded processor and controller Microcontrollers and processors; File Size69KB，1 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH77710 Overview

RISC Microprocessor, 32-Bit, 20MHz, CMOS, PQFP144, 0.50 MM PITCH, LQFP-144

LH77710 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.50 MM PITCH, LQFP-144
Reach Compliance Code	unknown
bit size	32
boundary scan	NO
maximum clock frequency	20 MHz
Format	FIXED POINT
Integrated cache	YES
JESD-30 code	S-PQFP-G144
length	20 mm
low power mode	NO
Number of terminals	144
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified
Maximum seat height	1.7 mm
speed	20 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	20 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

Preview

Download Datasheet

View All

LH77710 Related Products

	LH77710	LH78810	LH77790	LH77710B	LH761001
Description	RISC Microprocessor, 32-Bit, 20MHz, CMOS, PQFP144, 0.50 MM PITCH, LQFP-144	RISC Microprocessor, 32-Bit, 75MHz, CMOS, PQFP144, 0.50 MM PITCH, LQFP-144	RISC Microcontroller, 32-Bit, CMOS, PQFP176, 0.50 MM PITCH, LQFP-176	RISC Microprocessor, 32-Bit, 20MHz, CMOS, PQFP144, 0.50 MM PITCH, LQFP-144	RISC Microprocessor, 32-Bit, 17MHz, CMOS, PQFP176, 0.50 MM PITCH, LQFP-176
Maker	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	0.50 MM PITCH, LQFP-144	0.50 MM PITCH, LQFP-144	0.50 MM PITCH, LQFP-176	0.50 MM PITCH, LQFP-144	0.50 MM PITCH, LQFP-176
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
bit size	32	32	32	32	32
maximum clock frequency	20 MHz	75 MHz	25 MHz	20 MHz	17 MHz
JESD-30 code	S-PQFP-G144	S-PQFP-G144	S-PQFP-G176	S-PQFP-G144	S-PQFP-G176
length	20 mm	20 mm	24 mm	20 mm	24 mm
Number of terminals	144	144	176	144	176
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm
Maximum supply voltage	5.5 V	3.6 V	5.5 V	5.5 V	3.6 V
Minimum supply voltage	3 V	2.7 V	3 V	4.5 V	3 V
Nominal supply voltage	5 V	3.3 V	5 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	20 mm	20 mm	24 mm	20 mm	24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROCONTROLLER, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
boundary scan	NO	NO	-	NO	NO
Format	FIXED POINT	FIXED POINT	-	FIXED POINT	FIXED POINT
Integrated cache	YES	YES	-	YES	YES
low power mode	NO	NO	-	NO	NO
speed	20 MHz	75 MHz	-	20 MHz	17 MHz
