BZT52C6V2KRK

Description
Zener Diode, 6.2V V(Z), 2%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2
CategoryDiscrete semiconductor    diode
File Size185KB,3 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric View All

BZT52C6V2KRK Overview

Zener Diode, 6.2V V(Z), 2%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2

BZT52C6V2KRK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiwan Semiconductor
package instructionROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-F2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.2 W
Nominal reference voltage6.2 V
surface mountYES
technologyZENER
Terminal surfaceMatte Tin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance2%
Working test current5 mA

BZT52C6V2KRK Preview

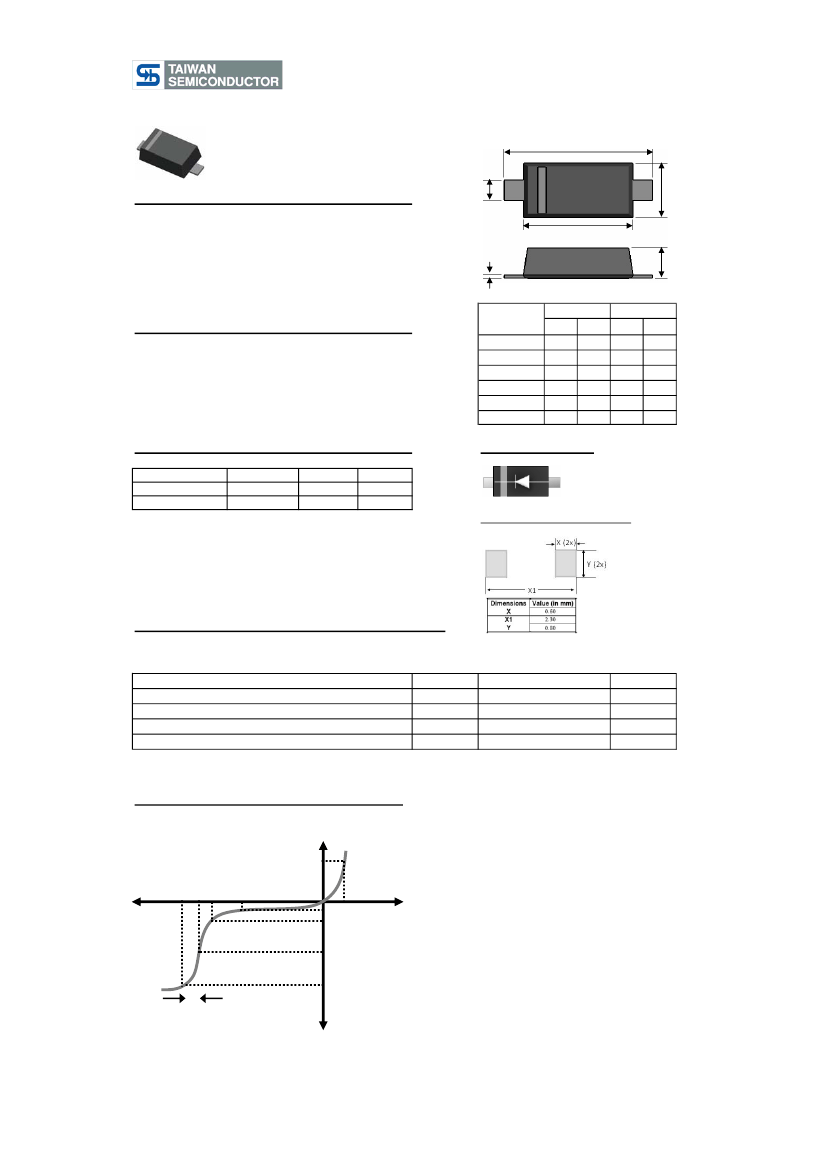

BZT52C2V0K~BZT52C75K
200mW,Surface Mount Zener Diode
Small Signal Diode
SOD-523F
B
Features
Wide zener voltage range selection : 2.0V to 75V
Surface device type mounting
Moisture sensitivity level 1
Matte Tin(Sn) lead finish with Nickel(Ni) underplate
Pb free version,RoHS compliant
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
C
A
D
E
F
Unit (mm)
Min
0.70
1.50
0.25
1.10
0.60
0.10
Max
0.90
1.70
0.40
1.30
0.70
0.14
Unit (inch)
Min
Max
0.028 0.035
0.059 0.067
0.010 0.016
0.043 0.051
0.024 0.028
0.004 0.006
Mechanical Data
Case :SOD-523F small outline plastic package
Terminal: Matte tin plated, lead free., solderable
per MIL-STD-202, Method 208 guaranteed
High temperature soldering guaranteed:260°C/10s
Polarity : Indicated by cathode band
Weight :1.68±0.5 mg
Dimensions
A
B
C
D
E
F
Ordering Information
Part No.
Package code Package
Packing
BZT52C2V0K~75K
RK
SOD-523F 3K / 7" Reel
BZT52C2V0K~75K
RKG
SOD-523F 3K / 7" Reel
Pin Configutation
Suggested PAD Layout
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation
Forward Voltage
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
I
F
=10mA
(Note 1)
Symbol
P
D
V
F
RθJA
T
J
, T
STG
Value
200
1
625
-65 to + 150
Units
mW
V
°C/W
°C
Notes:1. Valid provided that electrodes are kept at ambient temperature
Zener I vs. V Characteristics
Current
I
F
V
ZM
V
Z
V
BR
V
R
I
R
I
ZK
V
F
Voltage
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
Forward Region
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
I
ZT
I
ZM
BreakdownRegion
Leakage Region
I
ZM
V
ZM
Version : B11
BZT52C2V0K~BZT52C75K
200mW,Surface Mount Zener Diode
Small Signal Diode
Electrical Characteristics
Ta = 25°C unless otherwise noted
V
F
Forward Voltage = 0.9V Maximum @ I
F
= 10 mA for all part numbers
Part Number
BZT52C2V0K
BZT52C2V2K
BZT52C2V4K
BZT52C2V7K
BZT52C3V0K
BZT52C3V3K
BZT52C3V6K
BZT52C3V9K
BZT52C4V3K
BZT52C4V7K
BZT52C5V1K
BZT52C5V6K
BZT52C6V2K
BZT52C6V8K
BZT52C7V5K
BZT52C8V2K
BZT52C9V1K
BZT52C10K
BZT52C11K
BZT52C12K
BZT52C13K
BZT52C15K
BZT52C16K
BZT52C18K
BZT52C20K
BZT52C22K
BZT52C24K
BZT52C27K
BZT52C30K
BZT52C33K
BZT52C36K
BZT52C39K
BZT52C43K
BZT52C47K
BZT52C51K
BZT52C56K
BZT52C62K
BZT52C68K
BZT52C75K
Notes:
1. The Zener Voltage (V
Z
) is tested under pulse condition of 20ms
2. The device numbers listed have a standard tolerance on the nominal zener voltage of ±2%.
3. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter voltage
tolerances,
4. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to 10% of the DC
zener current
Device
Marking
RD
RE
Z7
A8
B8
C8
D8
E8
F8
G8
H8
I8
J8
K8
L8
M8
N8
O8
P8
Q8
R8
S8
T8
U8
V8
W8
X8
Y8
Z8
A9
B9
C9
D9
E9
F9
G9
H9
I9
J9
V
Z
@ I
ZT
(Volt)
Min
1.8
2.08
2.2
2.5
2.8
3.1
3.4
3.7
4
4.4
4.8
5.2
5.8
6.4
7
7.7
8.5
9.4
10.4
11.4
12.4
14.3
15.3
16.8
18.8
20.8
22.8
25.1
28
31
34
37
40
44
48
52
58
64
70
Nom
2.0
2.2
2.4
2.7
3
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
Max
2.15
2.33
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5
5.4
6
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.8
17.1
19.1
21.2
23.3
25.6
28.9
32
35
38
41
46
50
54
60
66
72
79
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
100
100
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
I
ZK
(mA)
-
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Z
ZK
@ I
ZK
(Ω) I
R
@ V
R
(μA)
Max
Max
-
-
1000
1000
1000
1000
1000
1000
1000
800
500
200
100
160
160
160
160
160
160
80
80
80
80
80
100
100
120
300
300
300
500
500
500
500
500
500
500
500
500
120
120
120
120
50
20
10
5
5
2
2
1
1
0.5
0.5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
2
2
2
1
1
0.2
0.2
0.2
V
R
(V)
0.5
0.7
1
1
1
1
1
1
1
1
1.5
2.5
3
3.5
4
5
6
7
8
9
10
11
12
13
15
17
19
21
23
25
27
30
33
36
39
43
47
52
57
Version : B11
BZT52C2V0K~BZT52C75K
200mW,Surface Mount Zener Diode
Small Signal Diode

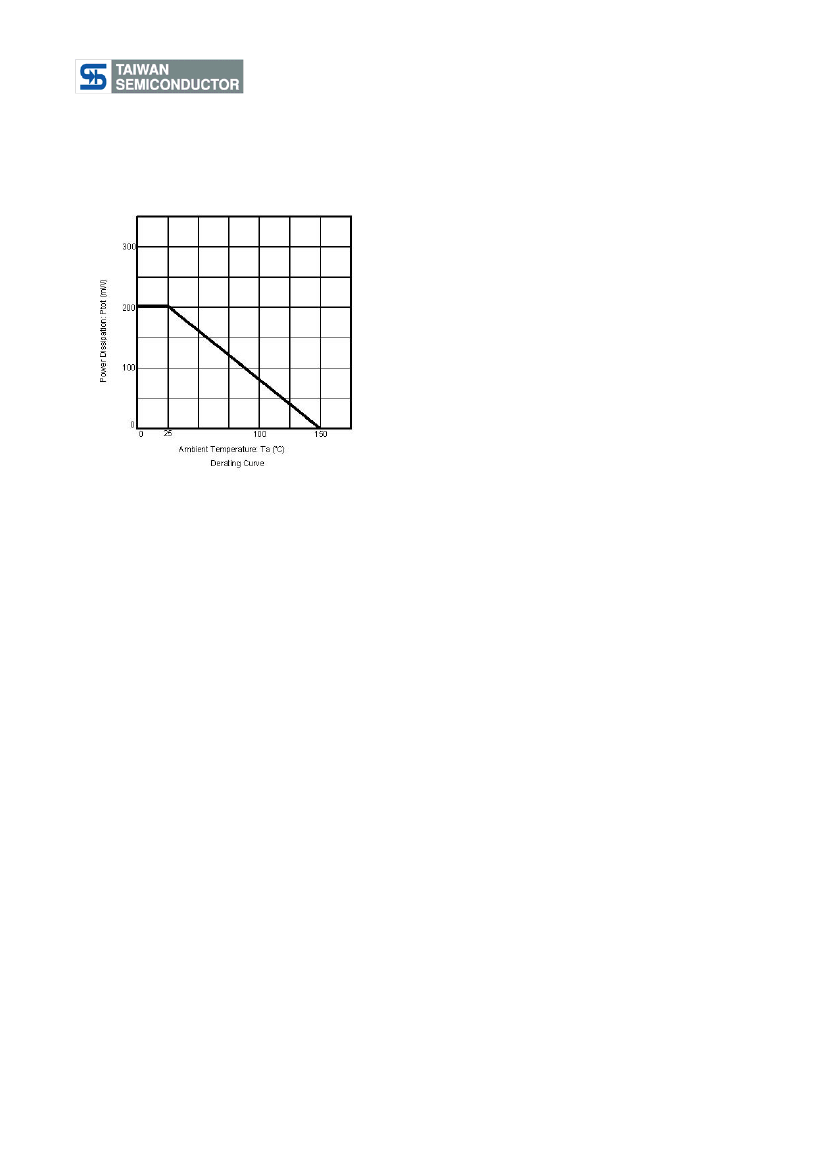

Rating and Sharacteristic Curves
Version : B11
