Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
803-RF243.95M-A
PHS, IF SAW Filter
Specification Contents
o
o
o
o
o
o

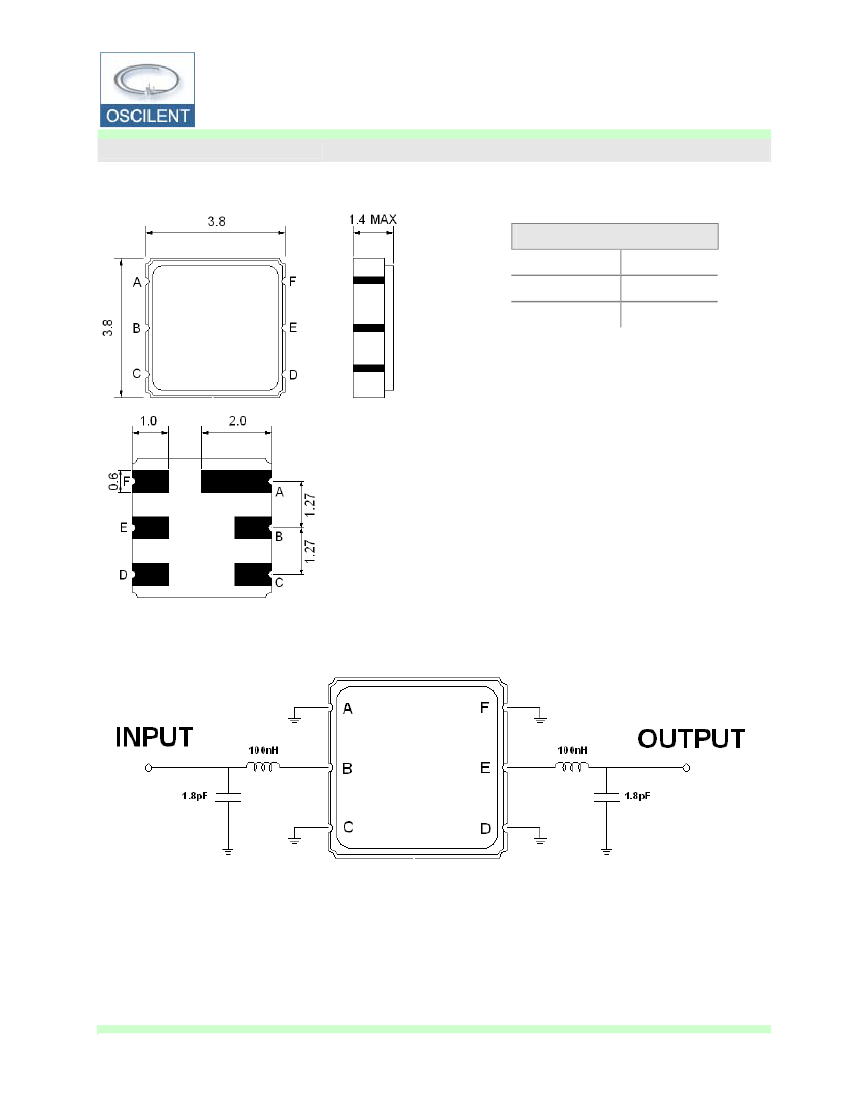

Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification

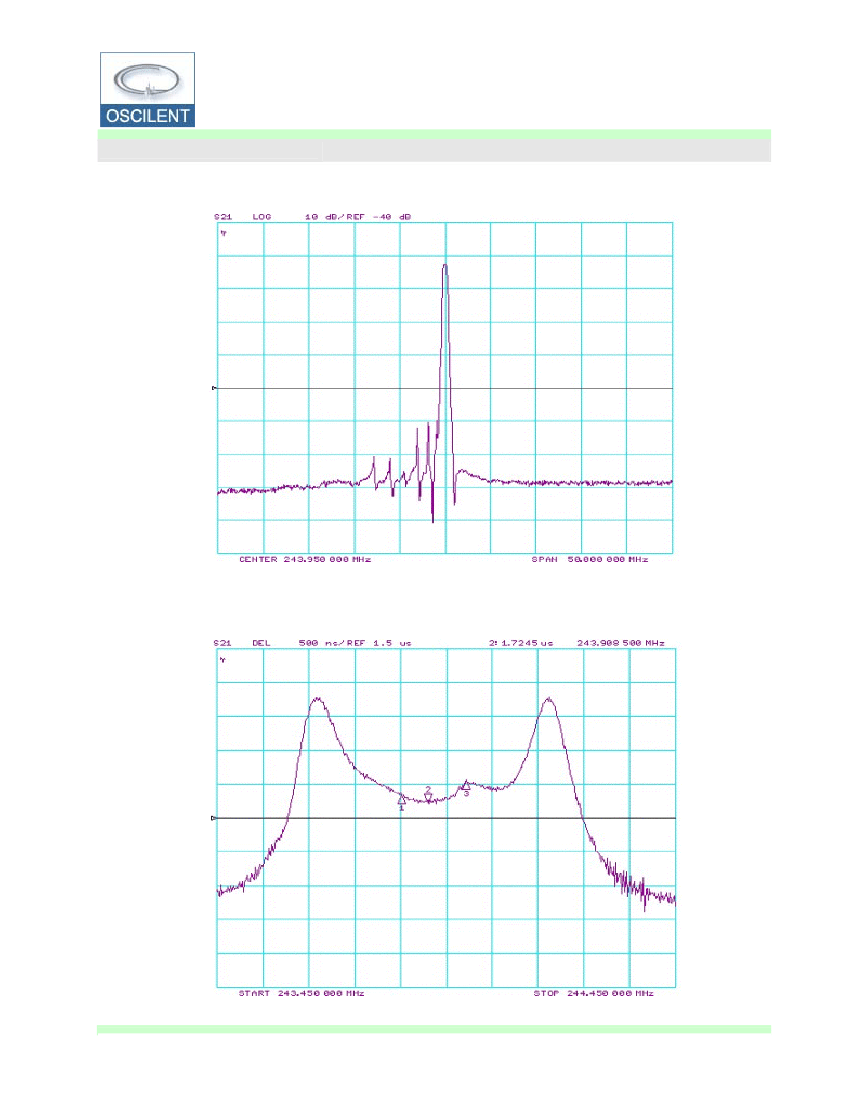

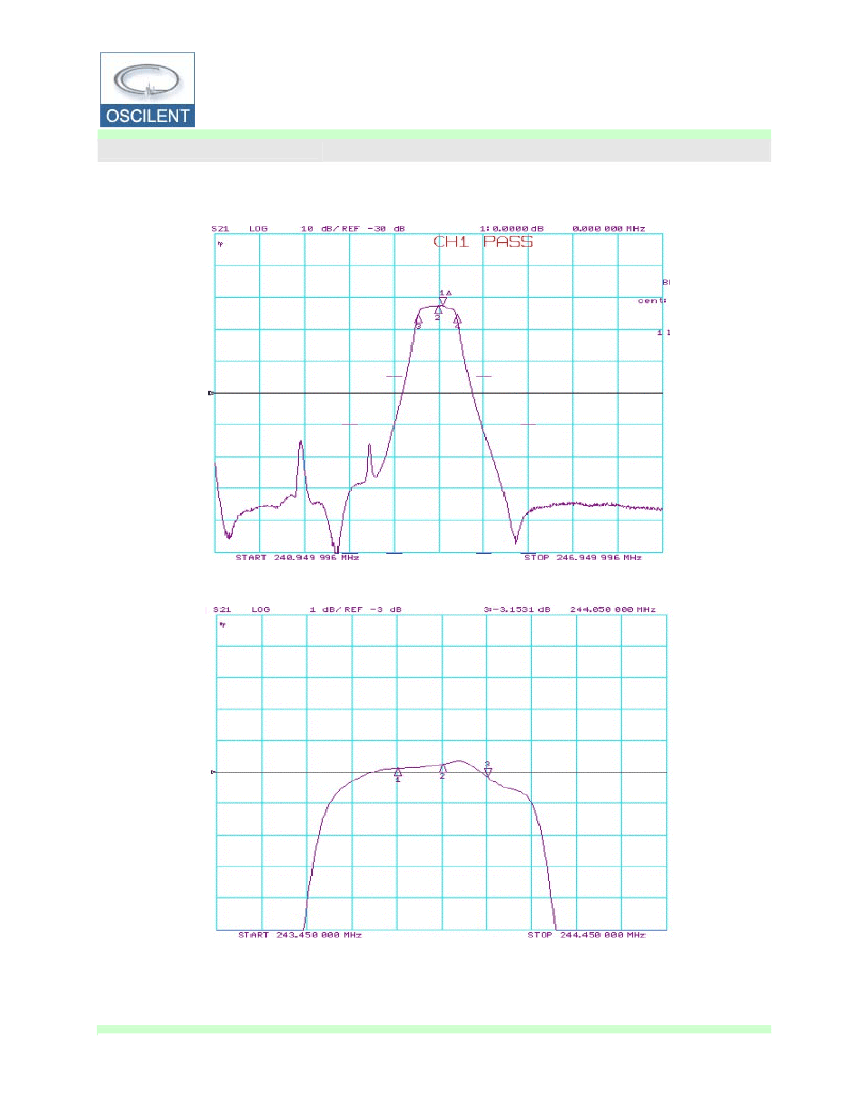

Frequency Performance
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
803-RF243.95M-A
January 2010 Rev A
PHS, IF SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-10
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
+60
+85
0
5
-
-
Notes: With matching network (Ref. Testing Environment Circuit as shown above)
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss at Fo
Amplitude Ripple within Fo±100 KHz
Group Delay Ripple within Fo±100 KHz
Attenuation:
Fo ± 600 KHz
Fo ± 10.7 MHz
Fo ± 21.4 MHz
dB
dB
dB
25
50
60
30
65
65
-
-
-
Unit
MHz
dB
dB
µsec
Minimum
-
-
-
-
Typical
243.95
3.0
0.5
0.4
Maximum
-
4.0
1.0
1.0
Product Specification
P. 2
www.oscilent.com
