D2n Relay
2 pole telecom relay, non-polarized,
Through Hole Type (THT)
Relay types:

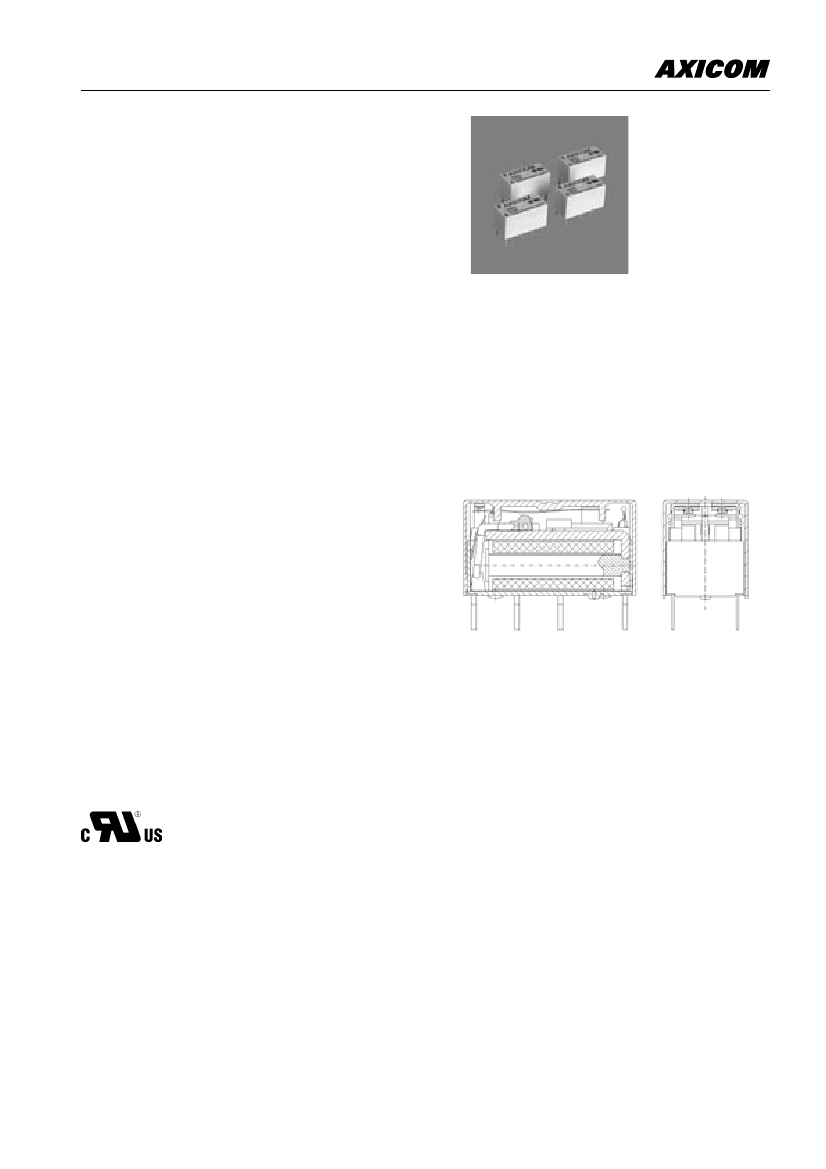

Features
– Standard DIL relay
V23105
non-latching with 1 coil
– Dimensions 20.3 x 10.1 x 10.43 mm, 0.800 x 0.400 x 0.450 inch
– Switching and continous current 3 A
– 2 changeover contacts (2 form C / DPDT)
– Single contacts
– Immersion cleanable
– Four different coil sensitivities
(150, 200, 400, > 500 mW)
– Surge voltage resistance meets FCC Part 68 requirement:
1.5 kV (10 / 160 µsec) between coil and contacts
Typical applications
– Communications equipment
– Office equipment
– Measurement and control equipment
– Entertainment electronics
– Medical Equipment
– Consumer electronics
European Directive conformance:
UL 508
File No. E 111441
D2n relay product conformance according to:
-
Directive 2000/53/EC: ELV (End of Life of Vehicles)
-
Directive 2002/95/EC: ROHS (Restrictions of the
use of certain hazardous substances in electrical and
electronic equipment)
Compliance is evidenced by written declaration from all raw
material suppliers.
Tyco Electronics AXICOM only has responsibility for the proper
processing of these materials.
Confirmation is valid for date codes ≥ 0418
Page 2 (11)
108-98007 Rev. C
D2n Relay
Coil Data (values at 23°C)
Nominal
voltage
Unom
Operate/set voltage range
Minimum
voltage
U
min
Vdc
Vdc
Maximum
voltage
U
max
Vdc
Vdc
V23105
Ordering Information
Release/
reset voltage
Minimum
Coil
power
Coil
Resistance
Relay
code
Tyco part
number
mW
Ω
/ ± 10 %
150 mW nominal power consumption
5
6
9
12
24
4.0
4.8
7.2
9.6
19.2
11.7
14.0
21.0
28.0
56.0
0.25
0.30
0.45
0.60
1.20
150
150
150
150
165
167
240
540
960
3480
V23105A5001A201
V23105A5002A201
V23105A5006A201
V23105A5003A201
V23105A5005A201
8-1393792-5
8-1393792-7
9-1393792-1
8-1393792-8
9-1393792-0
200 mW nominal power consumption
3
5
6
9
12
24
48
2.1
3.5
4.2
6.3
8.4
16.8
33.6
6.1
10.1
12.2
18.2
24.3
48.6
97.2
0.15
0.25
0.30
0.45
0.60
1.20
2.40
200
200
200
200
200
200
200
45
125
180
405
720
2880
11520
V23105A5308A201
V23105A5301A201
V23105A5302A201
V23105A5306A201
V23105A5303A201
V23105A5305A201
V23105A5307A201
0-1393793-5
9-1393792-3
9-1393792-5
0-1393793-2
9-1393792-7
9-1393792-9
0-1393793-3
400 mW nominal power consumption
5
6
9
12
24
48
3.5
4.2
6.3
8.4
16.8
33.6
7.2
8.6
12.9
17.2
34.3
68.6
0.25
0.30
0.45
0.60
1.20
2.40
400
400
400
400
400
400
62
90
203
360
1440
5760
V23105A5401A201
V23105A5402A201
V23105A5406A201
V23105A5403A201
V23105A5405A201
V23105A5407A201
0-1393793-6
0-1393793-7
1-1393793-0
0-1393793-8
0-1393793-9
1-1393793-1
> 500 mW nominal power consumption
5
6
9
12
24
48
3.5
4.2
6.3
8.4
16.8
33.6
6.1
7.3
10.9
14.5
29.1
58.1
0.25
0.30
0.45
0.60
1.20
2.40
695
515
580
515
550
575
36
70
140
280
1050
4000
V23105A5501A201
V23105A5502A201
V23105A5506A201
V23105A5503A201
V23105A5505A201
V23105A5507A201
1-1393793-6
1-1393793-8
2-1393793-3
1-1393793-9
2-1393793-1
2-1393793-4
Coil versions, BT 47 type / specification T4563 C (current tested)
Nominal
voltage
Vdc
5
10
12
24
48
Operating
current
mA
80
32.5
27
14
7
Nominal power
consumption
mW
695
500
515
550
575
Resistance
W
/ ± 10 %
36
200
280
1050
4000
47 W / 5
47 W / 9
47 W / 6
47 W / 7
47 W / 8
V23105A5475A201
V23105A5479A201
V23105A5476A201
V23105A5477A201
V23105A5478A201
1-1393793-2
3-1393794-0
1-1393793-3
1-1393793-4
1-1393793-5
British
Telecom Code
Relay code
Tyco
Part Number
Page 4 (11)
108-98007 Rev. C
D2n Relay

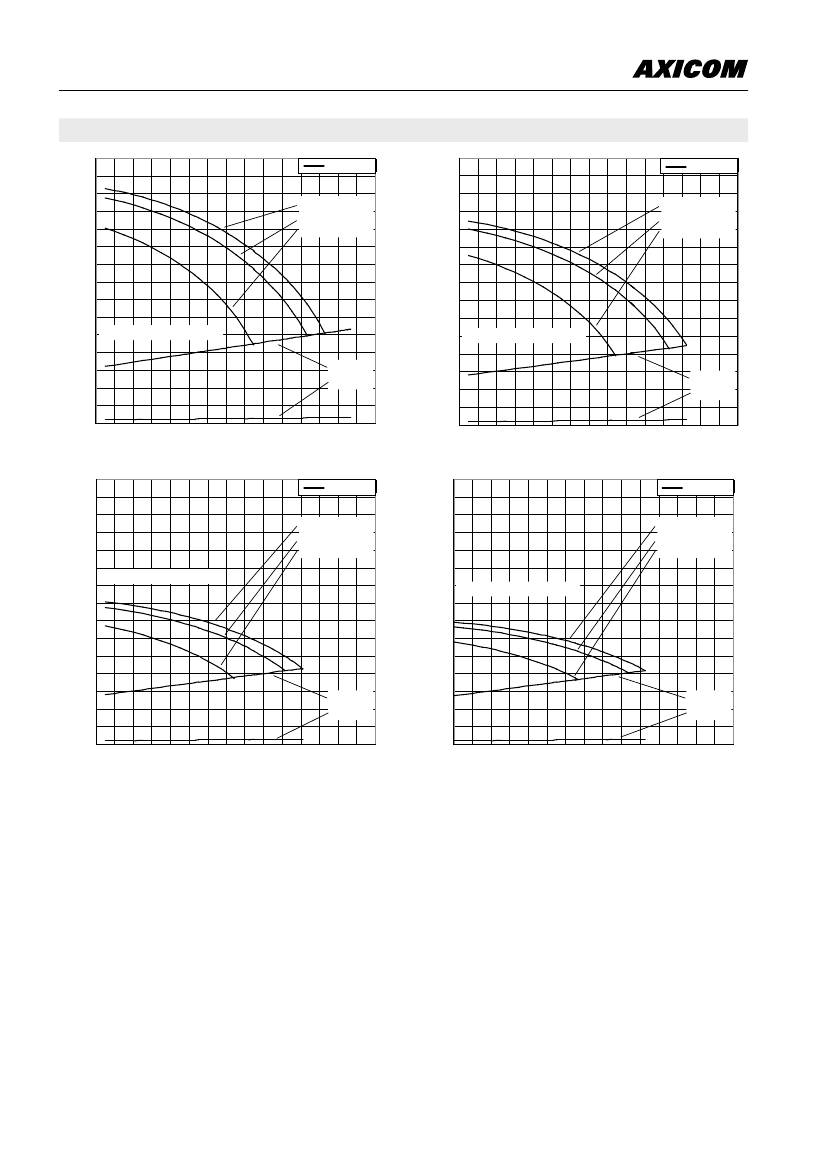

Coil operating range
3.0
2.8
2.6
2.4
2.2
V23105
150 mW coil
150 mW
3
2.8
2.6
2.4
2.2
200 mW coil
200 mW
U
max.
at 0 A
U
max.
at 2 x 1 A
U
max.
at 2 x 2 A
Coil Voltage [U/U
nom
]
U
max.
at 0 A
U
max.
at 2 x 1 A
U
max.
at 2 x 2 A
Coil Voltage [U/U
nom
]
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100 110 120
2
1.8
1.6
1.4
1.2
1
0.8
U
nom.
nominal coil voltage
U
nom.
nominal coil voltage
U
op. min.
U
rel. min.
0.6
0.4
0.2
0
-30 -20 -10
0
10
20
30
40
50
60
70
80
U
op. min.
U
rel. min.
90 100 110 120
Ambient Temperature [°C]
3.0
2.8
2.6
2.4
2.2
400 mW coil
400 mW
Ambient Temperature [°C]
3.0
2.8
2.6
2.4
2.2
550 mW coil
550 mW
U
max.
at 0 A
U
max.
at 2 x 1 A
U
max.
at 2 x 2 A
Coil Voltage [U/U
nom
]
U
nom.
nominal coil voltage
U
max.
at 0 A
U
max.
at 2 x 1 A
U
max.
at 2 x 2 A
U
nom.
nominal coil voltage
Coil Voltage [U/U
nom
]
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
2.0
1.8
1.6
1.4
1.2
1.0
0.8
U
op. min.
U
rel. min.
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100 110 120
0.6
0.4
0.2
0.0
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
U
op. min.
U
rel. min.
100 110 120
Ambient Temperature [°C]
Ambient Temperature [°C]
U
nom
=
U
max.
=
Nominal coil voltage
Upper limit of the operative range of
the coil voltage (limiting voltage) when coils are
continously energized
Lower limit of the operative range of
the coil voltage (reliable operate voltage)
Lower limit of the operative range of
the coil voltage (reliable release voltage)
U
op. min.
=
U
rel. min.
=
Page 5 (11)
108-98007 Rev. C
