EMZJ160ADA471MHA0G

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 470 uF, SURFACE MOUNT, 3333
CategoryPassive components
File Size483KB,2 Pages
ManufacturerNPC
Websitehttp://www.npc.co.jp/en/
Download Datasheet Parametric View All

EMZJ160ADA471MHA0G Online Shopping

Suppliers Part Number Price MOQ In stock
EMZJ160ADA471MHA0G - - View Buy Now

EMZJ160ADA471MHA0G Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 470 uF, SURFACE MOUNT, 3333

EMZJ160ADA471MHA0G Parametric

Parameter NameAttribute value
Maximum operating temperature105 Cel
Minimum operating temperature-55 Cel
negative deviation20 %
positive deviation20 %
Rated DC voltage urdc16 V
Processing package descriptionROHS COMPLIANT
stateACTIVE
terminal coatingTIN BISMUTH
Installation featuresSURFACE MOUNT
Manufacturer SeriesMZJ
size code3333
capacitance470 uF
packaging shapeCYLINDRICAL PACKAGE
Capacitor typeNON SOLID
Terminal shapeFLAT
polarityPOLARIZED
tangent angle0.16
ripple current850mA@100KHz
leakage current75.2uA

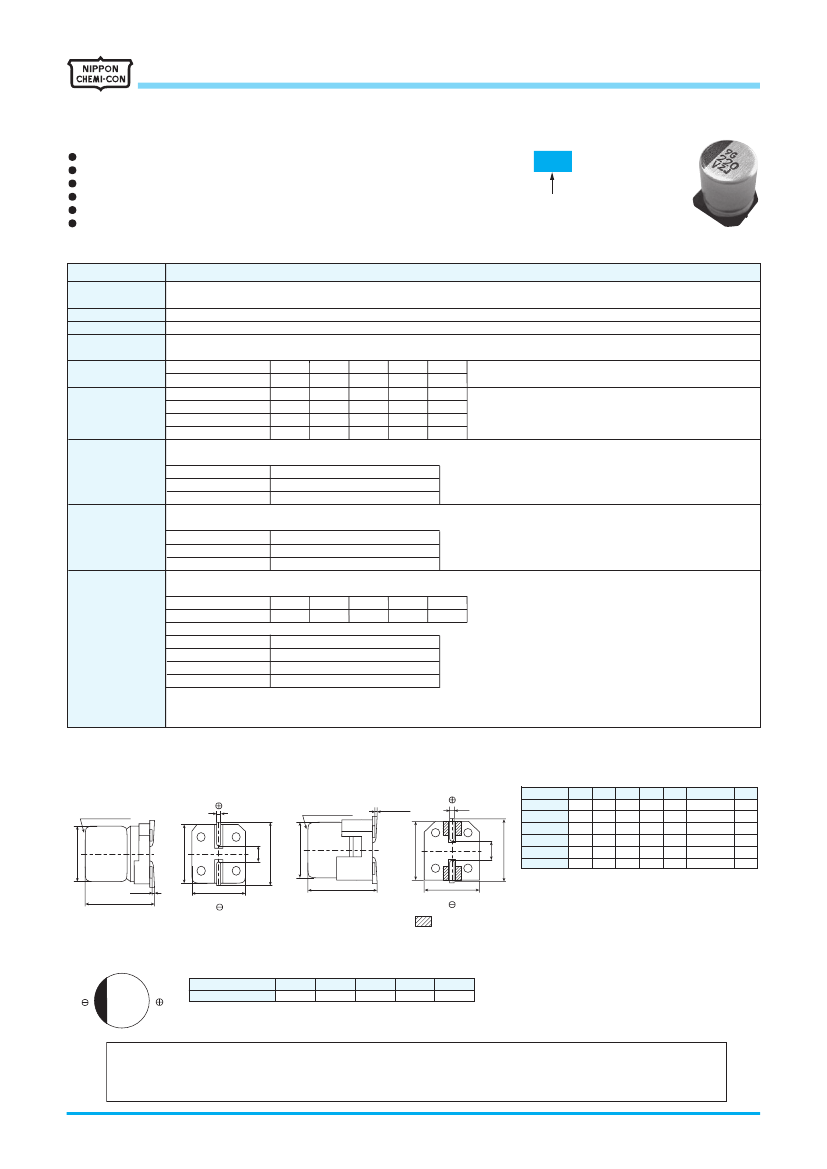

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
AIchip
TM
Low ESR, 105℃
-
・Lower
ESR, 2,000 hours at 105℃
・Rated
voltage range : 6.3 to 35V
・Nominal
capacitance range : 10 to 1,800μF
・Solvent
resistant type (see PRECAUTIONS AND GUIDELINES)
・Vibration
resistant structure
・RoHS
Compliant
MZJ
Series
MZJ
Lower ESR
MZA P74
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tan )
δ
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-55 to +105℃
6.3 to 35V
dc
±20%
(M)
(at 20℃, 120Hz)
I=0.01CV or 3µA, whichever is greater.
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃ after 2 minutes)
Rated voltage (V
dc
)
35V
25V
16V
10V
6.3V
(at 20℃, 120Hz)
tan (Max.)
δ
0.12
0.14
0.16
0.19
0.26
Rated voltage (V
dc
)
35V
25V
16V
10V
6.3V
Z(-25℃)/Z(+20℃)
2
2
2
2
2
Z(-40℃)/Z(+20℃)
3
3
3
3
3
Z(-55℃)/Z(+20℃)
(at 120Hz)
3
3
4
4
4
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours
at 105℃.
Capacitance change
≦±
30% of the initial value
D.F. (tanδ)
200% of the initial specified value
Leakage current
The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±
30% of the initial value
D.F. (tanδ)
200% of the initial specified value
Leakage current
The initial specified value
The capacitors shall be subjected to 1,000 cycles each consisting of charging with the specified surge voltage for 30±5 seconds through
a protective resistor (as required for RC=0.1±0.05sec) and open-circuiting for 5.5 minutes at a room temperature of 15 to 35℃.
Rated voltage (V
dc
)
6.3V
10V
16V
25V
35V
Surge voltage (V
dc
)
7.2V
12V
18V
29V
40V
Appearance
Capacitance change
No significant damage
≦±
20% of the initial value
200% of the initial specified value
The initial specified value
Characteristics
Shelf Life
Surge Voltage Test
D.F. (tanδ)
Leakage current
(Caution)
Surge Voltage Test intends to evaluate capacitors in durability of an exceptional excessive voltage under specific conditions.It does not
imply long-term use at all.
◆DIMENSIONS
[mm]
Code : A
Size code : D61 to JA0
Vent for JA0
φD±0.5
B±0.2
W
φD±0.5
P
C±0.2
Terminal
Code : G(Vibration resistant structure)
Size code : HA0 and JA0
Size code
Vent for JA0
0.3max.
W
D61
E61
F61
F80
HA0
JA0
Terminal
D
4
5
6.3
6.3
8
10
C
B
A
L
5.8 4.3 4.3 5.1
5.8 5.3 5.3 5.9
5.8 6.6 6.6 7.2
7.7 6.6 6.6 7.2
10.0 8.3 8.3 9.0
10.0 10.3 10.3 11.0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
P
1.0
1.4
1.9
1.9
3.1
4.5
B±0.2
0.3max.
L±0.3 (Note)
A±0.2
L±0.5
A±0.2
Note : L±0.5 for HA0 and JA0
: Dummy terminals
◆MARKING
EX) 35V10µF
Rated
voltage symbol
6.3
j
10
A
16
C
25
E
35
V
10
V
ZJ
9j
Rated voltage (V
dc
)
Symbol
Applying voltage over the rated voltages causes the capacitors to have short lifetime.
Besides, applying voltage over the specified surge voltages may cause to have short circuit failure. A protection
circuit should be used if applied voltage will exceed the rated voltages.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
72
P
C±0.2
CAT. No. E1001N
