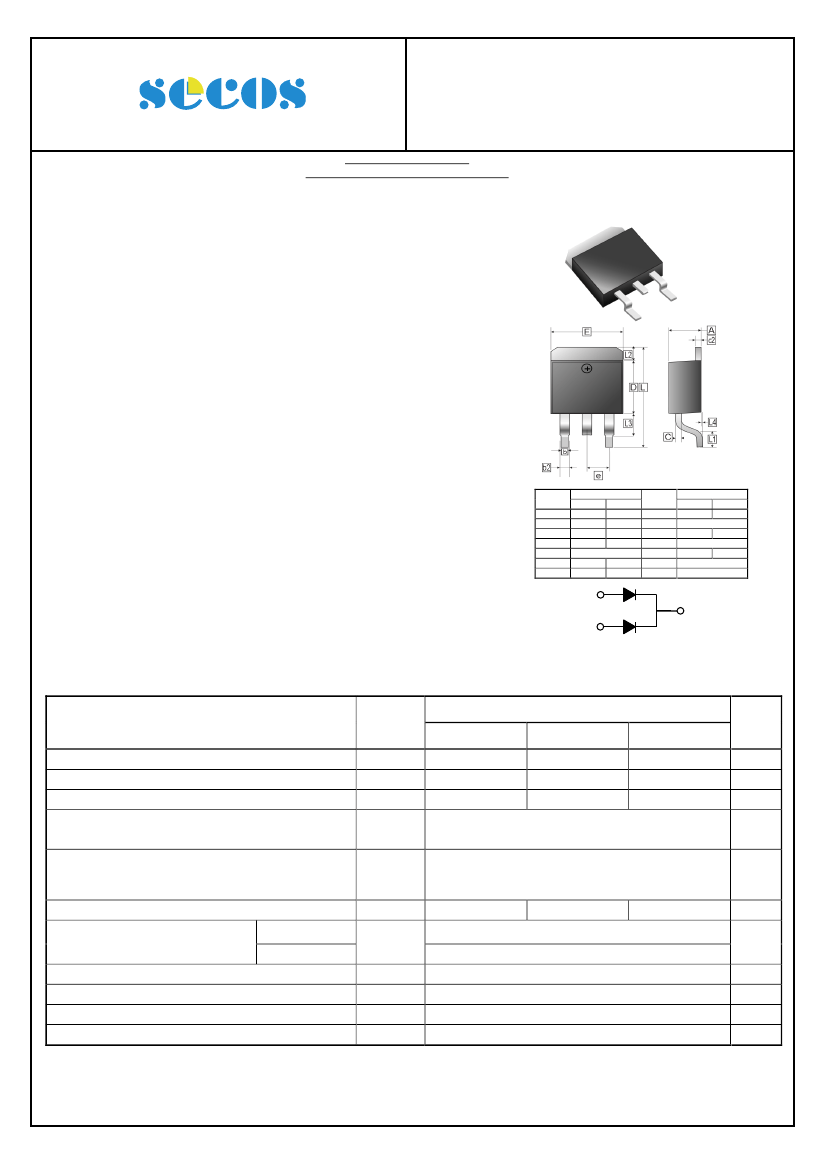

SFG10ED200D~ SFG10ED600D
Elektronische Bauelemente
Voltage 200V ~ 600V
10.0 Amp Super Fast Recovery Rectifier
RoHS Compliant Product
A suffix of “-C” specifies and halogen free
FEATURES
Fast switching for high efficiency
Low forward voltage drop
High current capability
Low reverse leakage current
High surge current capability
TO-263
MECHANICAL DATA
Case：Molded plastic TO-236
Epoxy：UL 94V-0 rate flame retardant
Terminals：Solderable per MIL-STD-202
method 208 guranteed
Mounting position：Any
Weight：1.70 grams
REF.
A
b
L4
C
L3
L1
E
Millimeter
Min.
Max.
4.00
4.85
0.68
1.00
0.00
0.30
0.36
0.53
1.50 REF
2.29
2.79
9.60
10.45
REF.
c2
b2
D
e
L
L2
Millimeter
Min.
Max.
1.10
1.45
1.34 REF
8.0
9.15
2.54 REF
14.6
15.85
1.27 REF
1
3
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
2
Part Number
Parameters
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Current T
L
=100°C
Peak Forward Surge Current,8.3ms single Half
sine-wave superimposed on rated load (JEDEC
method)
Maximum Instantaneous Forward Voltage @ 5.0A
Maximum DC Reverse Current
At Rated DC Blocking Voltage
Maximum Reverse Recovery Time
Typical Junction Capacitance
Typical Thermal Resistance
3
2
1
Symbol
SFG10ED200D
SFG10ED400D
SFG10ED600D
Unit
200
140
200
400
280
400
10.0
600
420
600
V
V
V
A
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
T
RR
C
J
R
θJC
T
J
, T
STG
0.95
100
1.25
10
250
25
65
2.2
-55~150
1.85
A
V
µA
nS
pF
° W
C
°
C
T
J
=25°C
T
J
=125°C
Operating Junction and Storage Temperature Range
Notes：
1. Reverse recovery test conditions I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts DC.
3. Thermal Resistance junction to lead.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
14-Jun-2012 Rev. A
Page 1 of 2
SFG10ED200D~ SFG10ED600D
Elektronische Bauelemente
Voltage 200V ~ 600V
10.0 Amp Super Fast Recovery Rectifier

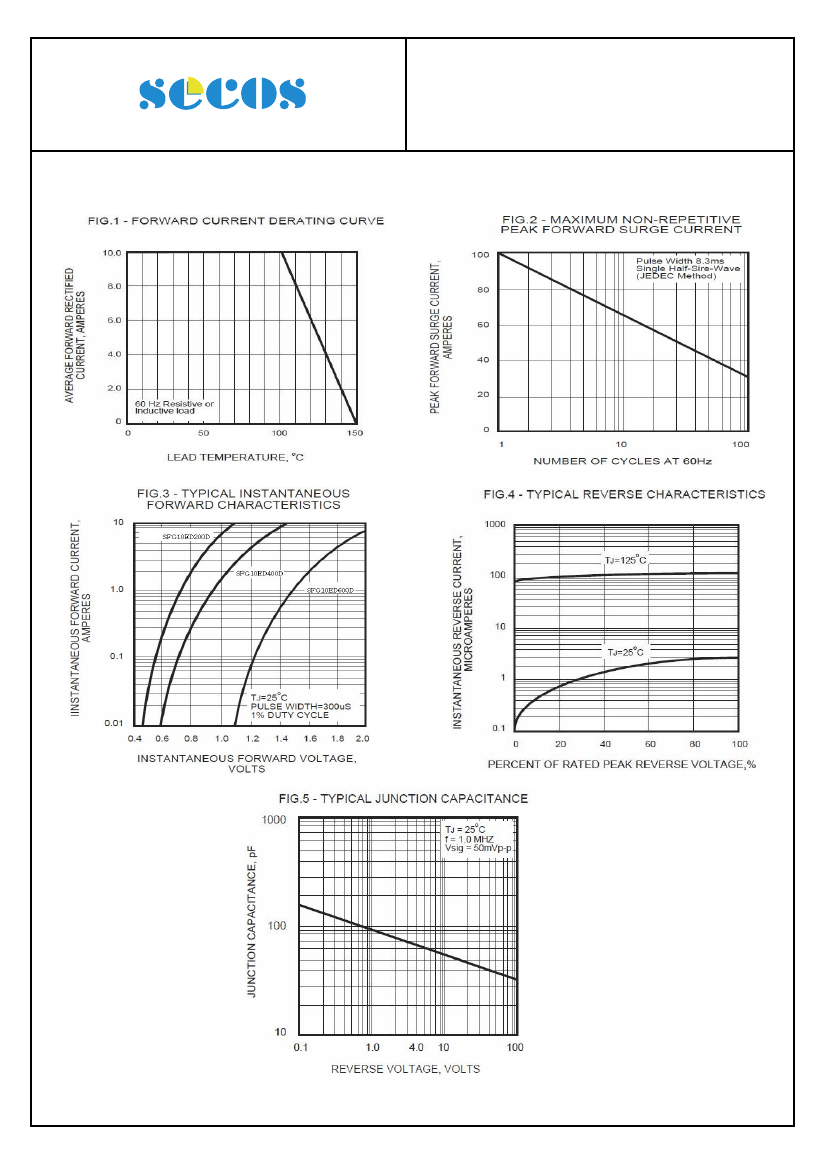

RATINGS AND CHARACTERISTICS CURVE
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
14-Jun-2012 Rev. A
Page 2 of 2
