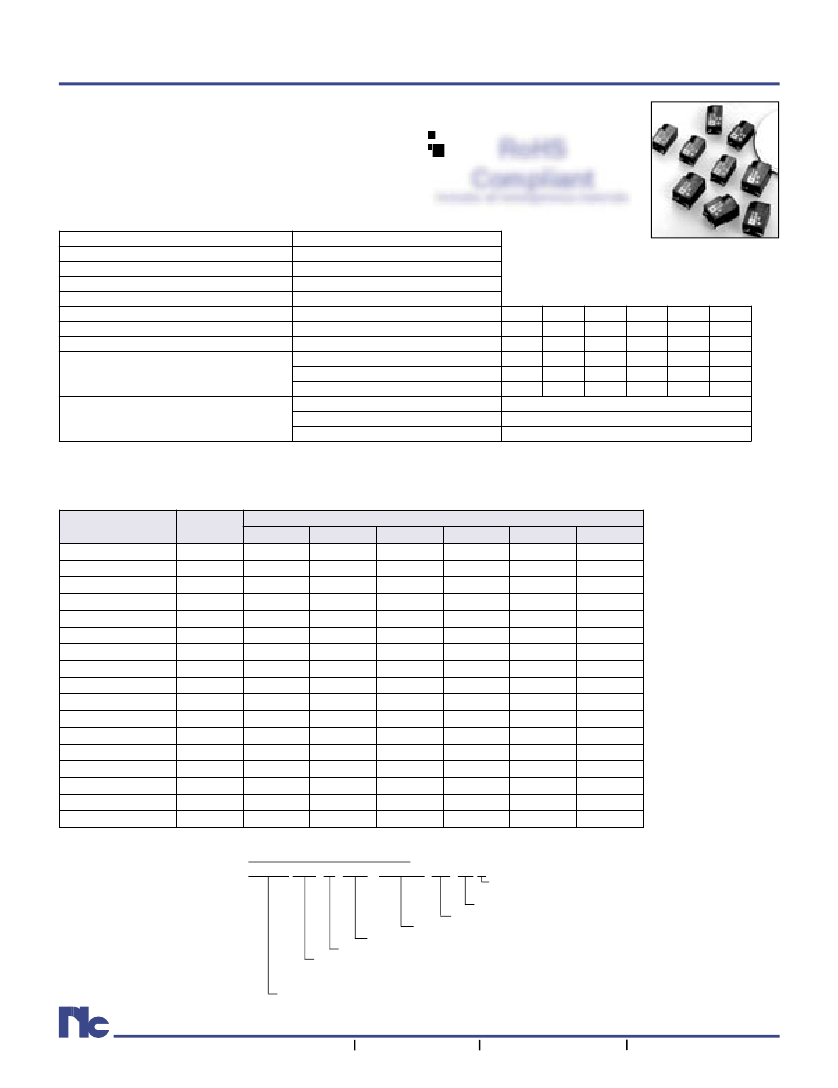

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
•
•
•
•
•
•
NEW GENERATION HORIZONTAL MOUNT CHIP
FLAT TOP RESIN PACKAGE FOR EASY PICK AND PLACEMENT
EPOXY SEALED FOR EXTENDED LIFE (2000 HOURS AT +105
O
C)
LOW IMPEDANCE AND HIGH RIPPLE AT 100KHZ
FIXED TERMINALS FOR HIGH MECHANICAL STABILITY
includes all homogeneous materials
COMPATIBLE WITH REFLOW SOLDERING
NACM Series
RoHS
Compliant
*See Part Number System for Details
CHARACTERISTICS
Rated Voltage Range
Rated Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Max. Leakage Current After 2 Minutes
Working Voltage
Surge Voltage
Max. Tan
δ
Low Temperature Stability
(Impedance Ratio @ 120Hz)
High Temperature Load Life
2000 Hours at +105
o
C
Rated WVDC
4 ~ 50VDC
0.47 ~ 270
µF
-55 ~ 105
o
C
+/-20%(M)
0.01CV or 3
µ
A, whichever is greater
WV (VDC)
SV (VDC)
120Hz, +20
o
C
WV (VDC)
Z-25
0
C/+20
o
C
Z-55
0
C/+20
o
C
Capacitance Change
Tan
δ
Leakage Current
4
5
0.44
4
3
8
6.3
10
16
25
50
7
13
20
32
63
0.24
0.20
0.16
0.14
0.12
6.3
10
16
25
50
4
3
2
2
2
10
8
6
4
4
Within + 30% of initial measured value
Less than 200% of specified max. value
Less than specified max. value
STANDARD PRODUCTS AND CASE SIZE WxL (mm)
Capacitance (
µ
F)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
270
Code
R47
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
680
101
151
221
271
Working Voltage (Vdc)
4
-
-
-
-
-
-
-
-
-
-
-
3.8 x 6.5
-
3.8 x 9.5
4.8 x 7.3
-
4.8 x 10.3
6.3
-
-
-
-
-
-
-
-
-
-
3.8 x 6.5
-
3.8 x 9.5
4.8 x 7.3
-
4.8 x 10.3
-
10
-
-
-
-
-
-
-
-
-
3.8 x6.5
-
3.8 x 9.5
4.8 x 7.3
-
4.8 x 10.3
-
-
16
-
-
-
-
-
-
-
-
3.8 x 6.5
-
3.8 x 9.5
4.8 x 7.3
-
4.8 x 10.3
-
-
-
25
-
-
-
-
3.8 x 6.5
3.8 x 6.5
3.8 x 6.5
3.8 x 6.5
4.8 x 7.3
4.8 x 7.3
4.8 x 7.3
4.8 x 10.3
4.8 x 10.3
-
-
-
-
50
3.8 x 6.5
3.8 x 6.5
3.8 x 6.5
3.8 x 6.5
4.8 x 7.3
4.8 x 7.3
4.8 x 7.3
4.8 x 7.3
-
-
4.8 x 10.3
-
-
-
-
-
-
PART NUMBER SYSTEM
NACM 100 M 50V 4.8x7.3 TR 15 F
RoHS Compliant
Series
330mm (13”) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%, K=10%
Capacitance Code in
µF,
first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10µF
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
47
Surface Mount Aluminium Electrolytic Capacitors
STANDARD PRODUCTS AND SPECIFICATIONS
NIC Part Number
NACM470M4V3.8X6.5TR
NACM101M4V3.8X9.5TR
NACM151M4V4.8X7.3TR
NACM271M4V4.8X10.3TR
NACM330M6.3V3.8X6.5TR
NACM680M6.3V3.8X9.5TR
NACM101M6.3V4.8X7.3TR
NACM221M6.3V4.8X10.3TR
NACM220M10V3.8X6.5TR
NACM470M10V3.8X9.5TR
NACM680M10V4.8X7.3TR
NACM151M10V4.8X10.3TR
NACM150M16V3.8X6.5TR
NACM330M16V3.8X9.5TR
NACM470M16V4.8X7.3TR
NACM101M16V4.8X10.3TR
NACM3R3M25V3.8X6.5TR
NACM4R7M25V3.8X6.5TR
NACM6R8M25V3.8X6.5TR
NACM100M25V3.8X6.5TR
NACM150M25V4.8X7.3TR
NACM220M25V4.8X7.3TR
NACM330M25V4.8X7.3TR
NACM470M25V4.8X10.3TR
NACM680M25V4.8X10.3TR
NACMR47M50V3.8X6.5TR
NACM1R0M50V3.8X6.5TR
NACM1R5M50V3.8X6.5TR
NACM2R2M50V3.8X6.5TR
NACM3R3M50V3.8X6.5TR
NACM4R7M50V4.8X7.3TR
NACM6R8M50V4.8X7.3TR
NACM100M50V4.8X7.3TR
NACM150M50V4.8X10.3TR
NACM220M50V4.8X10.3TR
NACM330M50V4.8X10.3TR
WV
(VDC)
4
4
4
4
6.3
6.3
6.3
6.3
10
10
10
10
16
16
16
16
25
25
25
25
25
25
25
25
25
50
50
50
50
50
50
50
50
50
50
50
Cap.
(µF)
47
100
150
270
33
68
100
220
22
47
68
150
15
33
47
100
3.3
4.7
6.8
10
15
22
33
47
68
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
Case Size
WxHxL (mm)
3.8x3.8x6.5
3.8x3.8x9.5
4.8x4.8x7.3
4.8x4.8x10.3
3.8x3.8x6.5
3.8x3.8x9.5
4.8x4.8x7.3
4.8x4.8x10.3
3.8x3.8x6.5
3.8x3.8x9.5
4.8x4.8x7.3
4.8x4.8x10.3
3.8x3.8x6.5
3.8x3.8x9.5
4.8x4.8x7.3
4.8x4.8x10.3
3.8x3.8x6.5
3.8x3.8x6.5
3.8x3.8x6.5
3.8x3.8x6.5
4.8x4.8x7.3
4.8x4.8x7.3
4.8x4.8x7.3
4.8x4.8x10.3
4.8x4.8x10.3
3.8x3.8x6.5
3.8x3.8x6.5
3.8x3.8x6.5
3.8x3.8x6.5
3.8x3.8x6.5
4.8x4.8x7.3
4.8x4.8x7.3
4.8x4.8x7.3
4.8x4.8x10.3
4.8x4.8x10.3
4.8x4.8x10.3
Max. L.C.
(µA)
3.0
4.0
6.0
13.2
3.0
4.2
6.3
13.8
3.0
4.7
6.8
15.0
3.0
4.2
7.5
15.0
3.0
3.0
3.0
3.0
3.7
5.5
8.2
11.7
17.0
3.0
3.0
3.0
3.0
3.0
3.0
3.4
5.0
7.5
11.0
16.5
Tan
δ
0.44
0.44
0.44
0.44
0.24
0.28
0.28
0.28
0.24
0.24
0.24
0.24
0.20
0.20
0.20
0.20
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
Max. Ripple Current
At +105
o
C & 100KHZ (mA)
28
60
80
150
30
60
75
150
30
60
75
150
30
60
75
150
15
18
22
30
65
70
75
150
150
5
6
8
11
25
60
65
70
120
150
150
NACM Series
Max. Impedance
At +20
o
C & 100KHZ (
Ω)
6.5
3.0
2.5
2.0
6.5
3.0
2.5
2.0
6.5
3.0
2.5
2.0
6.5
3.0
2.5
2.0
6.5
6.5
6.5
6.5
2.5
2.5
2.5
2.0
2.0
7.0
7.0
7.0
7.0
7.0
3.0
3.0
3.0
2.5
2.5
2.5
DIMENSIONS (mm)
Case Size
3.8 x 3.8 x 6.5
3.8 x 3.8 x 9.5
4.8 x 4.8 x 7.3
4.8 x 4.8 x10.3
W Max.
3.8
3.8
4.8
4.8
H Max.
3.8
3.8
4.8
4.8
L Max.
6.5
9.5
7.3
10.3
P+/-0.3
3.0
3.0
4.0
4.0
COMPONENT MARKING:
NOTCH IN BODY IDENTIFIES CATHODE
W
L
H
33
6.3V
CAPACITANCE VALUE (µF)
VOLTAGE RATING (VDC)
-
0.6 ± 0.1
+
ANODE
P
®
1.6 ± 0.1
CATHODE
48
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors
RECOMMENDED REFLOW SOLDERING PROFILE
250
240
o
C Max.
NACM Series
TEMPERATURE (
o
C)
200
160
o
C PREHEAT
150
20 Typ.
100
NATURAL COOLING
50
120 Typ.
TIME (SECONDS)
RECOMMENDED LAND PATTERNS (mm)
Case Size
3.8 x 3.8 x 6.5
3.8 x 3.8 x 9.5
4.8 x 4.8 x 7.3
4.8 x 4.8 x 10.3
A
1.2
1.2
1.2
1.2
B
3.0
3.0
3.3
3.3
C
2.2
2.2
3.2
3.2
D
0.6
0.6
2.1
2.1
A
C
A
TAPING SPECIFICATIONS (mm)
Case Size
3.8x3.8x6.5
3.8x3.8x9.5
4.8x4.8x7.3
4.8x4.8x10.3
W+/-0.2
12.0
16.0
16.0
16.0
A+/-0.1
7.0
10.0
7.7
10.7
4.0 ±0.1
B
B+/-0.2
4.1
4.1
5.0
5.0
2.0 ±0.05
D
C+/-0.1
4.1
4.1
5.2
5.2
P+/-0.1
8.0
8.0
8.0
8.0
1.75 ± 0.1
Chip
F+/-0.05
5.5
7.5
7.5
7.5
W1+/-0.5
13.5
17.5
17.5
17.5
Reel Qty.
3000
3000
2500
2500
1.5 ±0.1
0.4
F
W
P
B
C
Feeding
Direction
φ50
min.
φ
13 ± 0.5
+
+
+
+
+
+
®
w
1
φ
380 ±2.0
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
49
