LPC12065KTE682 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPC12065KTE682

LPC12065KTE682: DescriptionGeneral Purpose Inductor, 6800uH, 10%, 1 Element, Ferrite-Core, SMD; CategoryPassive components inductor; File Size121KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

LPC12065KTE682 Overview

General Purpose Inductor, 6800uH, 10%, 1 Element, Ferrite-Core, SMD

LPC12065KTE682 Parametric

Parameter Name	Attribute value
Maker	KOA Speer
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

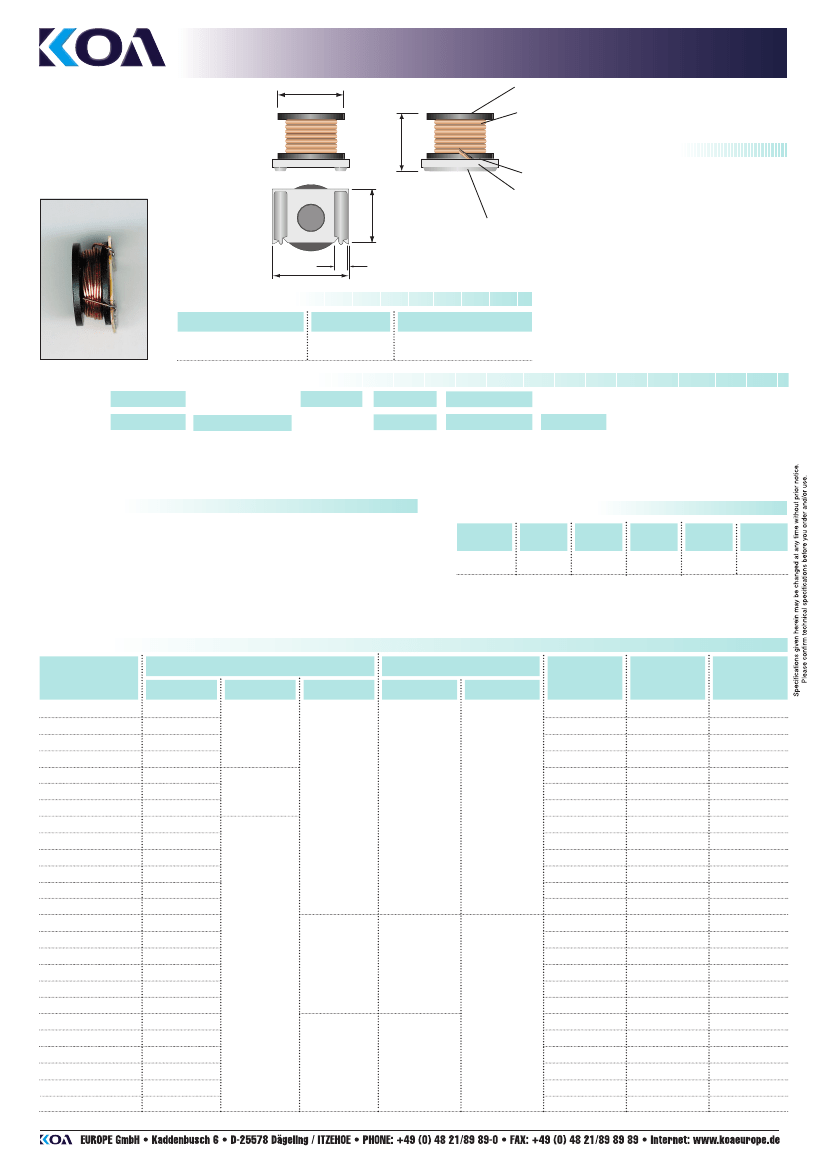

INDUCTORS

TECHNOLOGY OF TOMORROW

ØW

FERRITE CORE

POWER INDUCTOR

LPC 12065

STRUCTURE

Ferrite core

Winding wire

Epoxy adhesive

Ceramic substrate

Electrode

IDENTIFICATION

PRODUCT CODE

LPC 12065

COATING COLOR

None

MARKING

None

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

LPC 12065

PRODUCT

CODE

TERMINATION

SURFACE MATERIAL

L: Sn/Pb

A: SnAg

680

NOMINAL

INDUCTANCE

3 digits

(Unit: µH)

INDUCTANCE

TOLERANCE

INDUCTANCE

TOLERANCE

TAPING*

*Please see “PACKAGING”

FEATURES

Large permissible DC current and small DC resistance

Small surface area allows high mounting density

Small size and low height

Suitable for reflow soldering

Embossed carrier tape packaging available

Operating temperature range*: - 40°C ... + 85°C

Inductors for extended operating temperature range* {-40°C ... +125°C)

in a limited range on request

DIMENSIONS (mm)

PRODUCT

CODE

LPC 12065

∅

12.0 ± 0.2

7.5 max.

3.7 ± 0.3

10.0 ± 0.2 12.4 ± 0.2

* Including self-temperature rise

RATING

INDUCTANCE

TYPE

NOM. VALUE*

LPC 12065 TE R68

LPC 12065 TE 1R0

LPC 12065 TE 1R5

LPC 12065 TE 2R2

LPC 12065 TE 3R3

LPC 12065 TE 4R7

LPC 12065 TE 6R8

LPC 12065 TE 100

LPC 12065 TE 150

LPC 12065 TE 220

LPC 12065 TE 330

LPC 12065 TE 470

LPC 12065 TE 680

LPC 12065 TE 101

LPC 12065 TE 151

LPC 12065 TE 221

LPC 12065 TE 331

LPC 12065 TE 471

LPC 12065 TE 681

LPC 12065 TE 102

LPC 12065 TE 152

LPC 12065 TE 222

LPC 12065 TE 332

LPC 12065 TE 472

LPC 12065 TE 682

0.68 µH

1.0 µH

1.5 µH

2.2 µH

3.3 µH

4.7 µH

6.8 µH

10 µH

15 µH

22 µH

33 µH

47 µH

68 µH

100 µH

150 µH

220 µH

330 µH

470 µH

680 µH

1000 µH

1500 µH

2200 µH

3300 µH

4700 µH

6800 µH

TOLERANCE

FREQUENCY

Q (MIN.)

FREQUENCY

QUALITY FACTOR

SELF-RESONANT

FREQUENCY

(MIN.)

77.0 MHz

60.0 MHz

47.0 MHz

38.0 MHz

30.0 MHz

24.0 MHz

19.0 MHz

15.0 MHz

12.0 MHz

9.50 MHz

7.50 MHz

6.20 MHz

4.90 MHz

4.00 MHz

3.20 MHz

2.50 MHz

2.00 MHz

1.60 MHz

1.30 MHz

1.00 MHz

0.83 MHz

0.67 MHz

0.53 MHz

0.43 MHz

0.34 MHz

RESISTANCE

(MAX.)

0.005

Ω

0.007

Ω

0.008

Ω

0.010

Ω

0.012

Ω

0.016

Ω

0.022

Ω

0.031

Ω

0.046

Ω

0.065

Ω

0.093

Ω

0.130

Ω

0.182

Ω

0.260

Ω

0.380

Ω

0.540

Ω

0.790

Ω

1.08

Ω

1.55

Ω

2.21

Ω

3.20

Ω

4.60

Ω

6.60

Ω

9.30

Ω

13.20

Ω

ALLOWABLE

DC CURRENT

(MAX.)

10.0 A

9.50 A

9.00 A

8.00 A

7.00 A

6.50 A

5.40 A

4.50 A

3.63 A

3.00 A

2.40 A

2.05 A

1.70 A

1.38A

1.14 A

0.94 A

0.77 A

0.65 A

0.53 A

0.44 A

0.35 A

0.29 A

0.23 A

0.19 A

0.16 A

N (± 30%)

M (± 20%)

1 MHz

2.52 MHz

K (± 10%)

0.1 MHz

0.05 MHz

* Other inductance values on request
